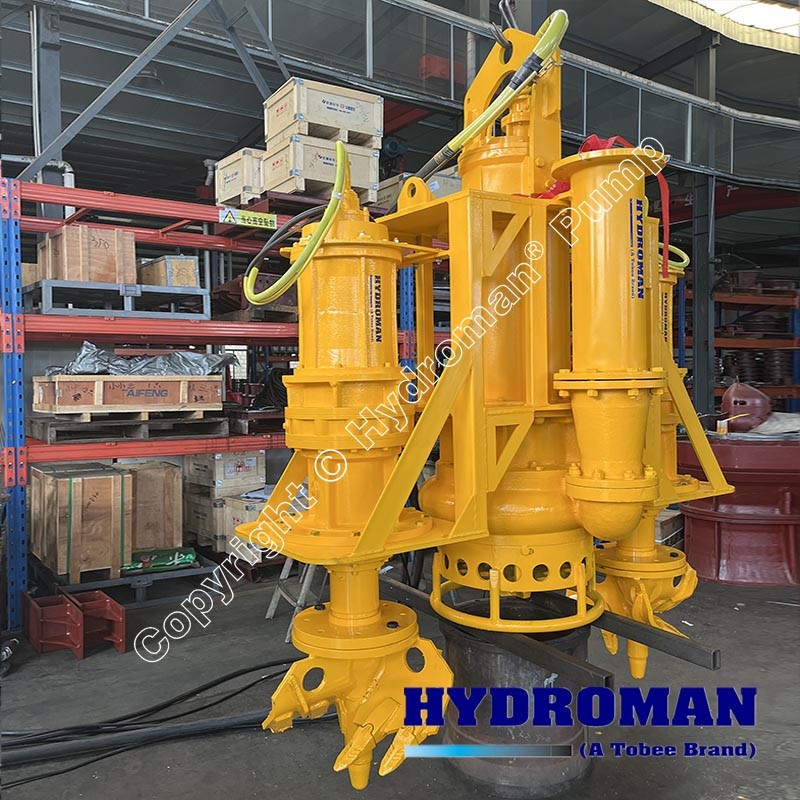

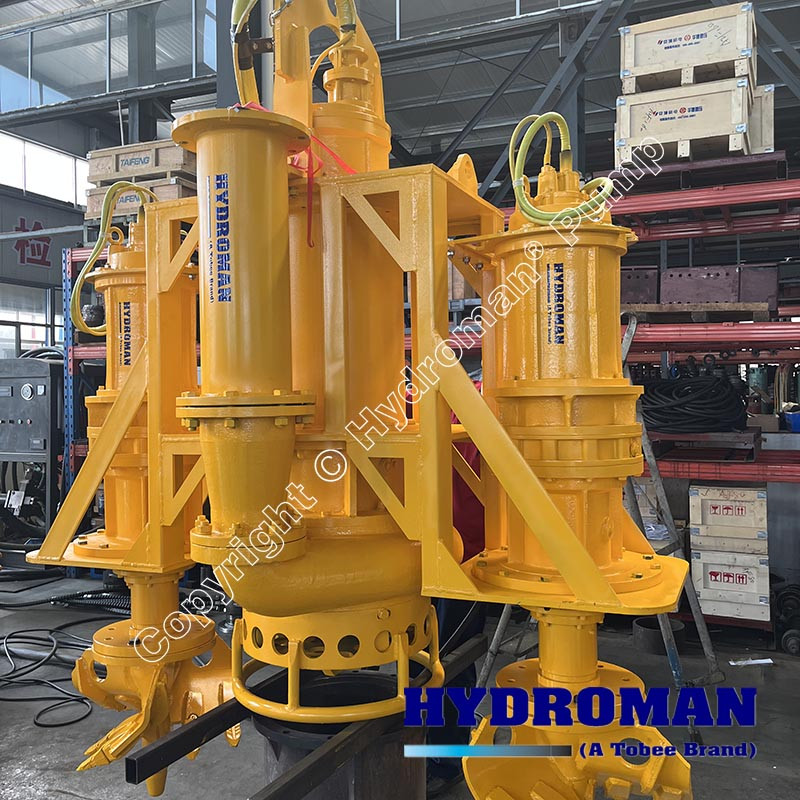

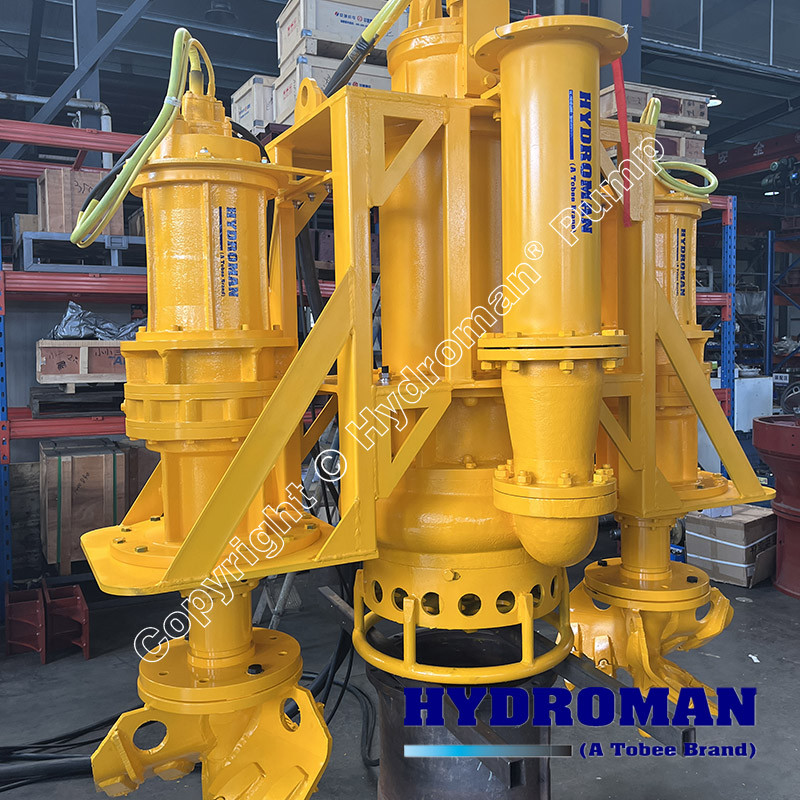

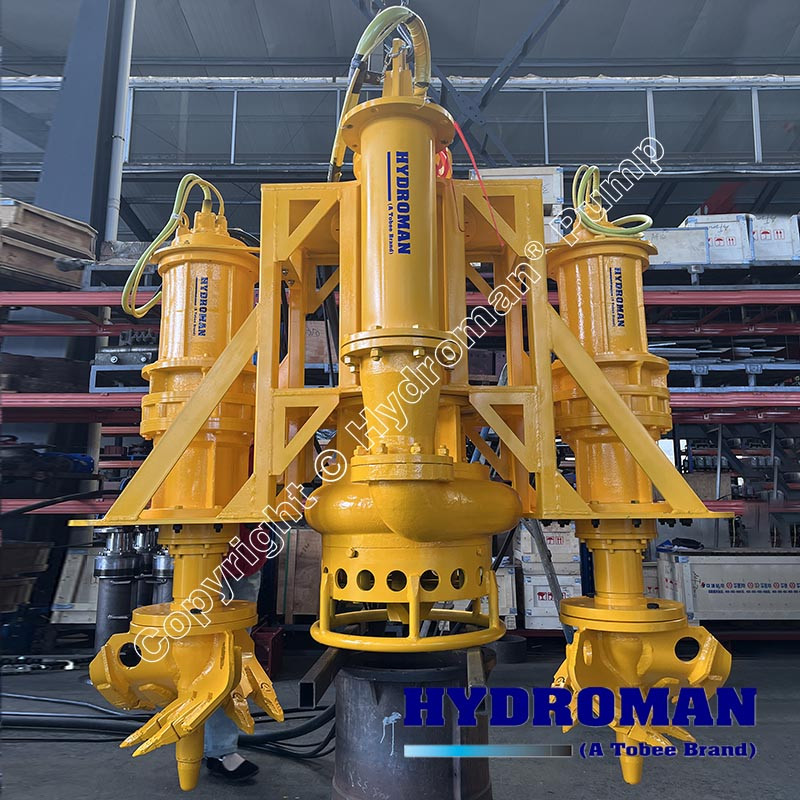

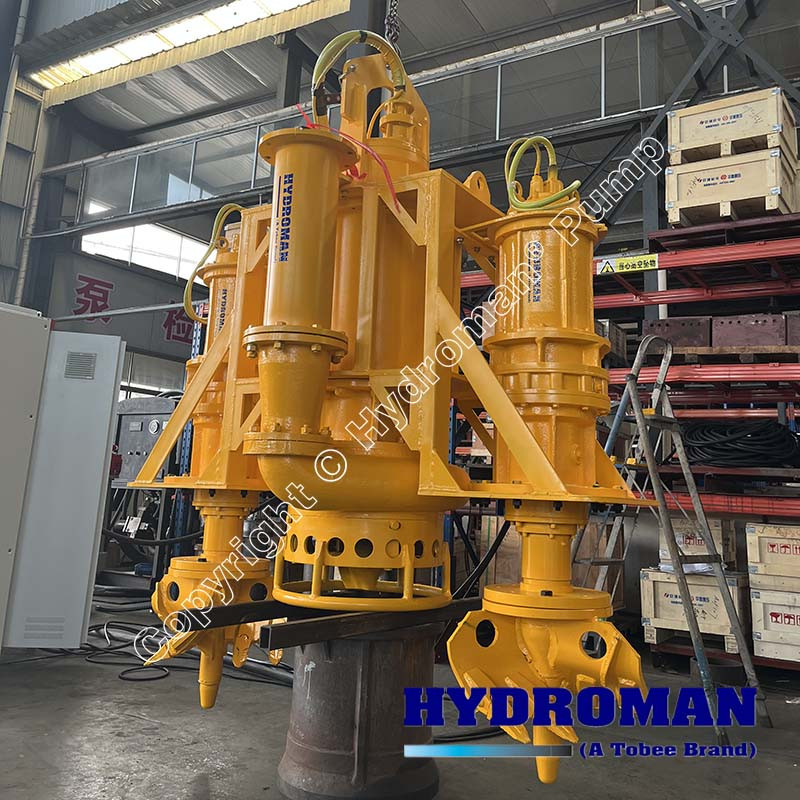

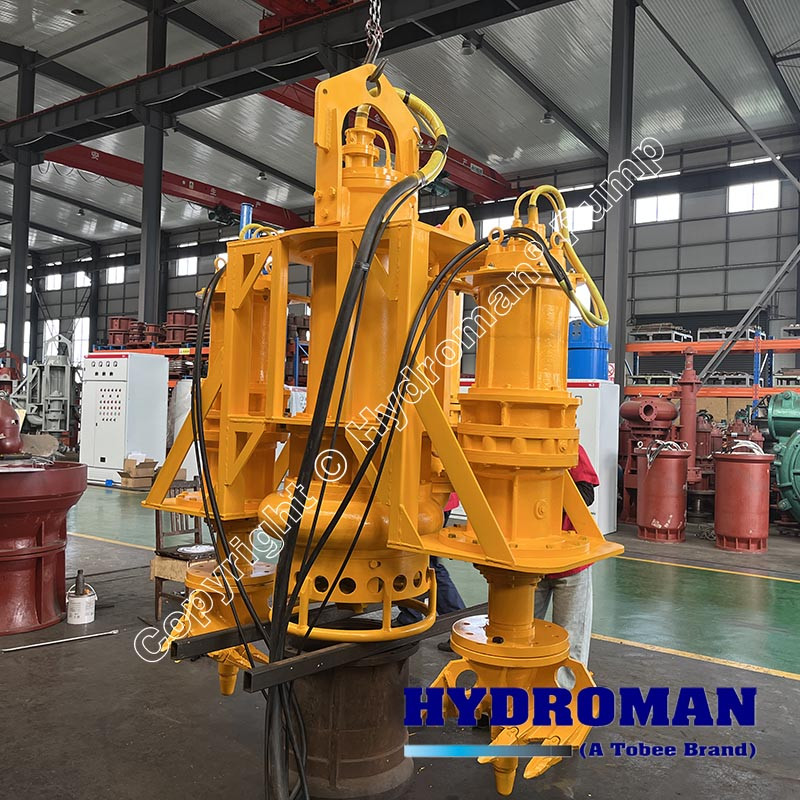

Heavy Duty Electric Submersible Dredging Pump with Side Agitators

Hydroman^® Heavy duty electric submersible dredging pump with side agitators is a highly effective and reliable solution for projects involving thick sludge, high-solid slurries, and challenging underwater sediment removal.  Heavy-Duty Submersible Slurry Pump with Side Agitators combining robust pumping performance with enhanced agitation technology, ensuring continuous and efficient sediment removal even in the toughest conditions. Sand, Sludge & Slurry Submersible Pumps equipped with powerful rotating blades that break up compacted sediments, preventing clogging and improving suction efficiency, Whether for marine construction, mining, or environmental remediation, this electric submersible slurry agitator pump delivers unmatched reliability and performance.

Why Choose Hydroman^® Heavy duty electric submersible dredging pump with side agitators?

▪ Superior Material Handling and Anti - Clogging Performance
The integrated side agitators are engineered to break up compacted sediments, sludge, and even abrasive materials like sand and gravel, suspending them in water for efficient pumping. For example,

Hydroman' s high - chrome reversible agitators double the service life of components while lifting settled sediments directly to the submersible slurry pump' s impeller, eliminating downtime of submersible dredging Pump for sludge removal from clogs.

▪ Durability for Harsh Conditions
Heavy - duty construction using high - grade materials—such as 27% chrome alloy for impellers and agitators—ensures resistance to abrasion and corrosion. Models like Hydroman’s submersible pumps feature wet components hardened to HRC 62 - 65, enabling them to handle rocks up to 150mm and operate at depths of 250mm. Dual thrust bearings and oversized motors reduce vibration and extend lifespan, even when processing dense, abrasive slurries .

▪ Versatility and Application Flexibility
Hydroman^® submersible mud agitator pumps excel in diverse scenarios, from river dredging and port maintenance to mining and wastewater treatment. Their compact, submersible design works in both shallow and deep waters, while optional features like cutter head, side cutters or high - pressure jets adapt to compacted soils or aquatic vegetation.

▪ Simplified Operation and Low Downtime

The integrated agitators eliminate the need for separate stirring equipment, streamlining setup and reducing operational complexity . Submersible operation avoids suction head limitations, ensuring consistent performance regardless of water depth . Protective features—such as overheating sensors and water - ingress detection—prevent damage and enable safe, continuous operation in harsh conditions.

Hydroman^® Heavy duty electric submersible dredging pump with side agitators Applications

▪ Mining Industry
Tailings Transportation: In mining operations, large volumes of tailings (the waste material left after the extraction of valuable minerals) need to be transported and disposed of. The heavy-duty electric submersible dredging pump with side agitators can handle the thick and abrasive tailings slurries, efficiently pumping them to the designated tailings storage facilities.

Mining Dewatering: Mines often encounter water accumulation, which needs to be removed to ensure safe and efficient operation. These pumps can be used to dewater mine pits, sumps, and underground workings. The side agitators help to stir up any sediment that may have settled at the bottom of the water, allowing for the complete removal of water along with the suspended solids.

Ore Slurry Transportation: During the ore extraction and processing stages, the ore is often mixed with water to form a slurry for easier transportation. The high solids handling capacity of these pumps makes them ideal for transporting the ore slurry from the mining face to the processing plant.

▪ Dredging Projects
River and Canal Dredging: Rivers and canals tend to accumulate sediment over time, which can affect water flow, navigation, and flood control. The side agitators on the dredging pump can break up and stir the compacted sediment at the bottom of the waterway. The pump then pumps out the sediment-laden slurry, effectively deepening the waterway and improving its hydraulic performance.

Port and Harbor Maintenance: Ports and harbors require regular dredging to maintain sufficient water depth for ships to dock and maneuver. The heavy-duty nature of these pumps allows them to handle the large volumes of sediment and debris that accumulate in port areas, ensuring smooth shipping operations.

Land Reclamation: In coastal areas, land reclamation projects involve filling in shallow areas of the sea with sediment. The electric submersible dredging pump with side agitators can be used to dredge sediment from the seabed and pump it to the reclamation site, building up new land.

▪ Power Generation
Coal-Fired Power Plants: Coal-fired power plants generate large amounts of coal ash and slurry. These pumps can be used to transport the coal ash slurry from the power plant's boilers to the disposal sites. The side agitators help to keep the coal ash particles in suspension, preventing them from settling and clogging the pipelines.
Hydroelectric Power Plants: In hydroelectric power plants, sediment can accumulate in the reservoirs and penstocks over time. The dredging pumps can be used to remove this sediment, maintaining the efficiency of the power generation process and preventing damage to the turbines.

▪ Industrial Wastewater Treatment
Manufacturing Plants: Many manufacturing plants produce wastewater that contains solid particles, such as metal shavings, sand, and sludge. The heavy-duty electric submersible dredging pump with side agitators can be used to pump the wastewater, along with the suspended solids, to the treatment facilities. The side agitators ensure that the solids are evenly distributed in the wastewater, facilitating the treatment process.
Food and Beverage Industry: In the food and beverage industry, wastewater may contain organic matter, such as food particles and pulp. The pumps can handle the transportation of this wastewater, and the side agitators can break up any clumps of organic matter, ensuring a smooth flow to the treatment system.
