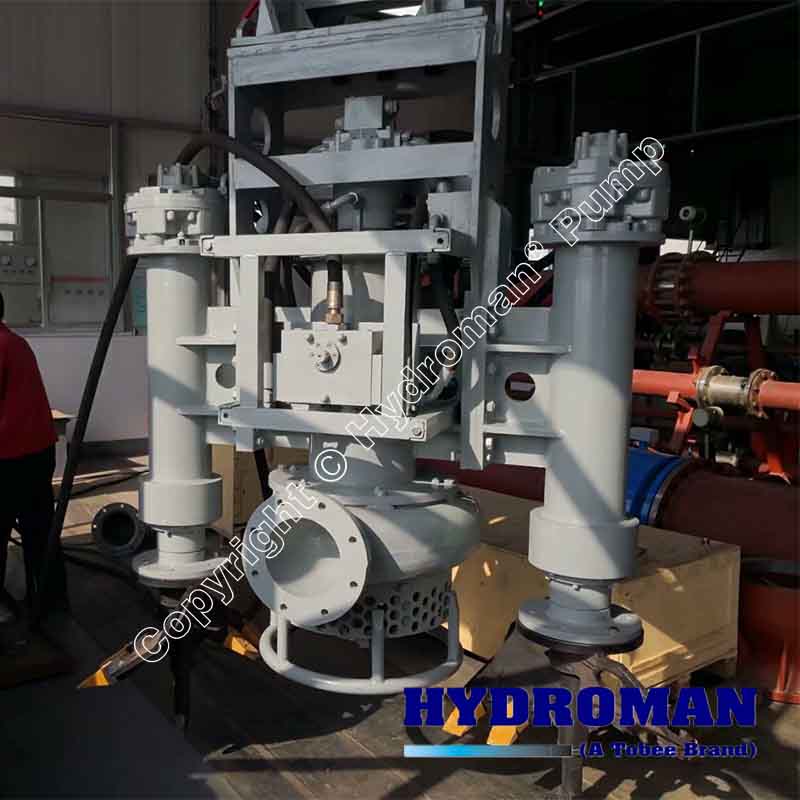

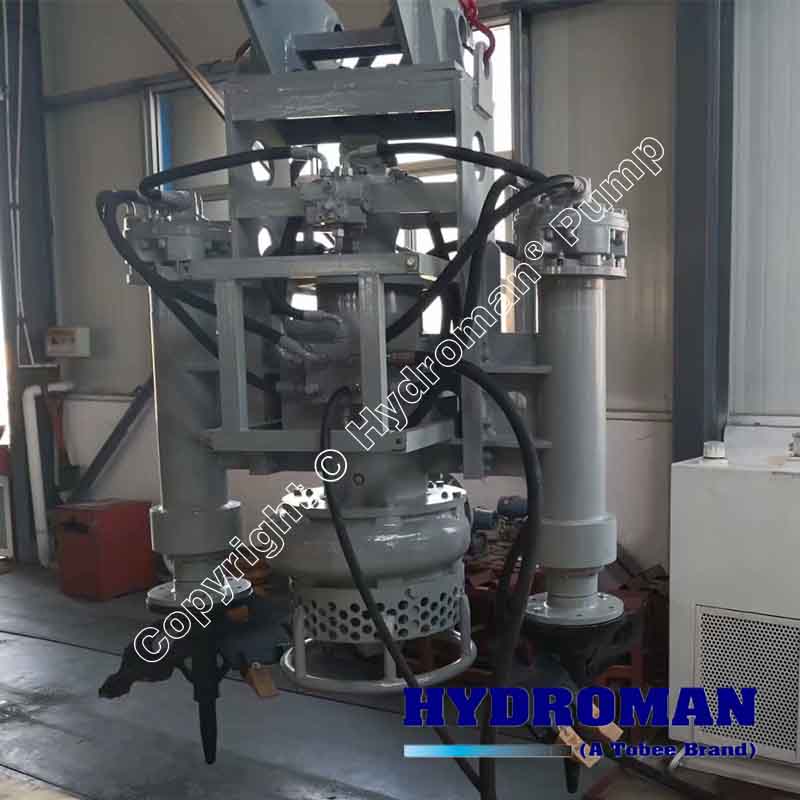

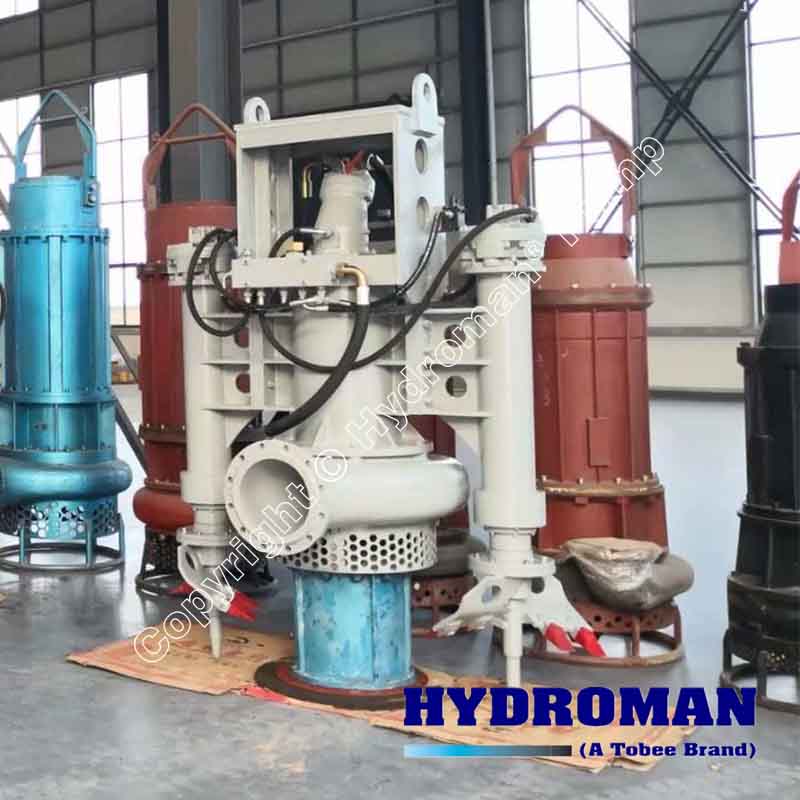

THY220B Hydraulic Slurry Pump


Size: 300mm

Capacity: 900-975m3/h

Head: 18-21m

Max. particles: 120mm

Max. concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ THY220B Hydraulic Slurry Pump for Excavator is the kind of heavy duty submersible pump that is applied for the dredging applications to transport underwater sand, slurry, sludge, gravel or other sediments to specified place. Hydroman Pump offers a variety of wear resistant Slurry Pump for Excavators with large spherical passages which can handle up to 70% solids. THY hydraulic slurry pumps can be hydraulically driven according to working conditions and has excellent suction properties, because it can be submersed to extremely highly mixed densities, many optional suction heads and accessories are also available for your different dredging works. THY hydraulic Slurry Pump has the characteristics of compact structure, portable installation, high chrome wearing component, heavy duty mechanical sealing system, overload thermal protection system and versatile accessories which make it flexible for dredging applications.

Design Features:

▪ Compact structure for flexible operation

▪ Hydraulically driven

▪ Proven modular design and fabrication

▪ High chrome wear resistant components

▪ Heavy duty sand or slurry suction

▪ Heavy duty mechanical sealing system

▪ Overload thermal protection system

▪ Large sphere passage impeller

▪ Versatile accessories such as agitator, cutter or jet-rings

▪ Reliable and cost-effective

▪ High efficient and energy saving

▪ Easy to operate and maintain

▪ Longer service life

Hydroman™ Hydraulic Slurry Pumps Applications:

The THY Hydraulic Slurry Pumps can be widely used in mines, power, metallurgy, coal, environmental protection and other industries to transport the slurry containing abrasive solid particles.Such as the ore pulp transportation of metallurgy ore-dressing plant, hydraulic ash removal of thermal power plant, coal slurry and dense medium transportation of coal washing plant, river dredging, etc.
