Power Range : 2.2-600KW
Supply Voltage : 380v 3-phase ± 10%
Applicable motor : 2.2-600KW
Rated operating current : 4-1200A
Starting : soft start, pulse start, full pressure start
Starting time: 3-120S
Starting voltage : 20-90%U
Starting current : Motor full load current (FLA) 150% -600% (adjustable)
Stop mode : soft stop, transit stop
Downtime : 0-60S
Protection: undervoltage, overload, short circuit, lacking phase ,current imbalance etc.
Ambient temperature range : -20 ℃ ~ +45 ℃
Installation height : up to 1000 m above sea level, the derating is required if more than the run.
Pump control panels provide reliable means of controlling one, or multiple, single, or three phase pumps in pump chambers, sump pump basins, irrigation systems and lift stations. WePanel™ Submersible Pump Control Cabinet is present in a variety of submersible slurry pumps to make sure the submersible motor and submersible sand pump don’t overheat and the submersible slurry mud pump doesn’t run dry.
There is a broad range of pump control panels available, out of which you can choose the one which perfectly blends with your preferences and specifications. There are single-phase, three-phase, simplex, and duplex Pump Control Panels. All of them are available at different voltage and current ratings. All these have been designed to serve their purpose in water-based systems. Yet, they all serve specific purposes and are used in specific applications.
WePanel™ Pump Control Panel Available Features:
Variable Frequency Drives (VFDs)
Service Entrance Rating (UL)
Programmable Logic Controllers (PLCs)
Reduced Voltage Starters
Multiple Pump Control
WePanel™ Pump Control Panel Applications:
Sewage Lift Stations
Booster and Well Pump Stations
Bar & Rake Screens
Centrifuge Separation Systems
Metering Pits and Pressure Monitoring
Wastewater Level for FOGRod Level Probe with Pump Station Level Controls

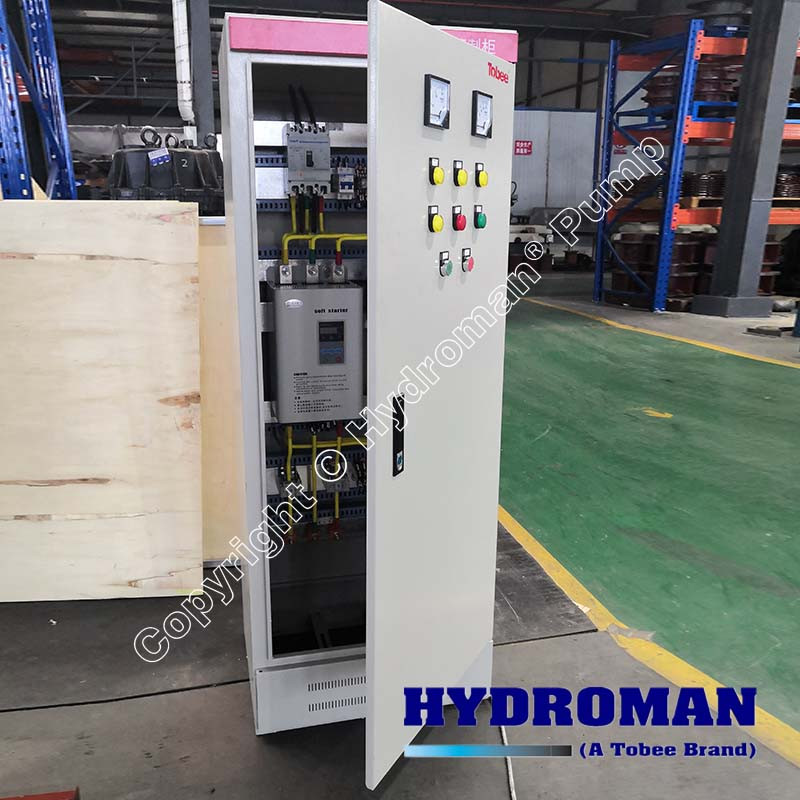

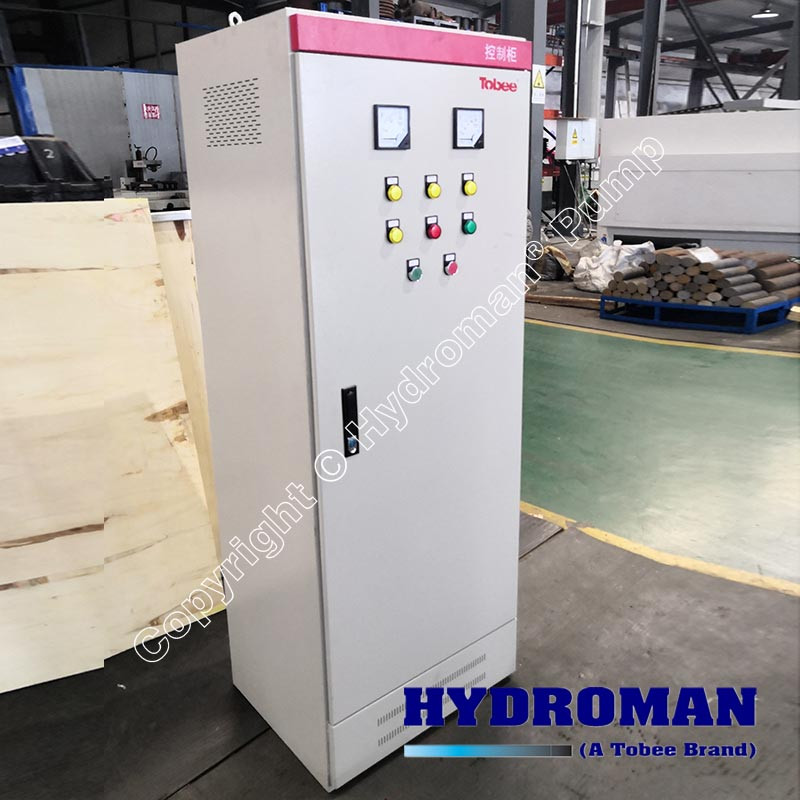

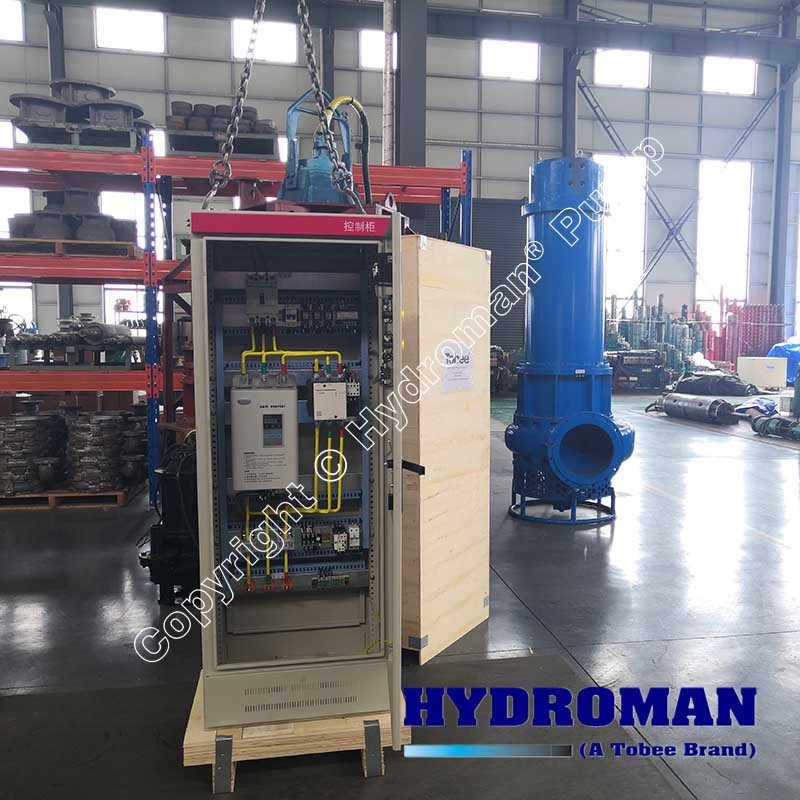

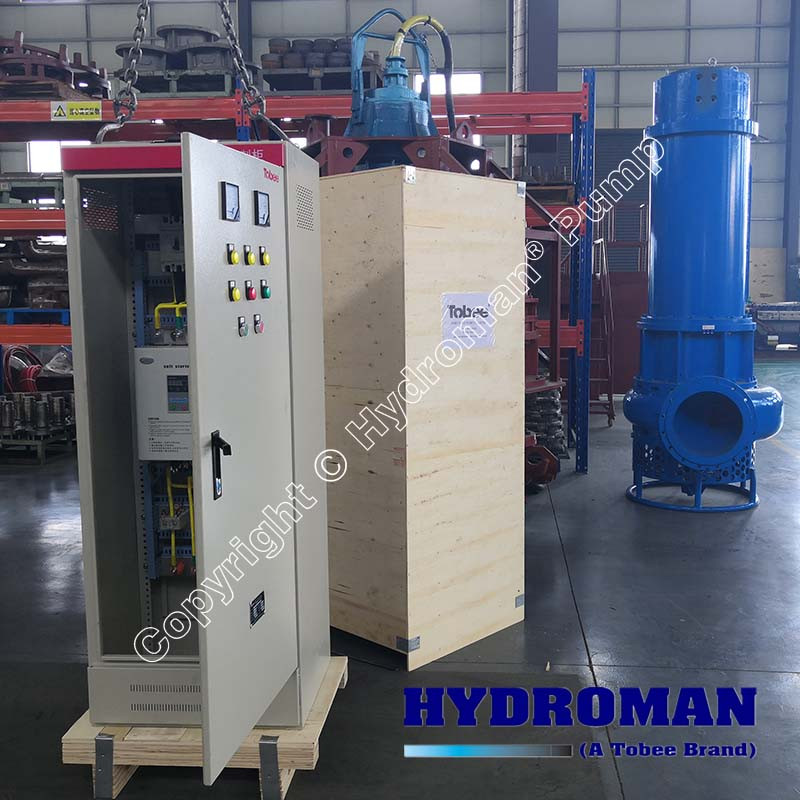

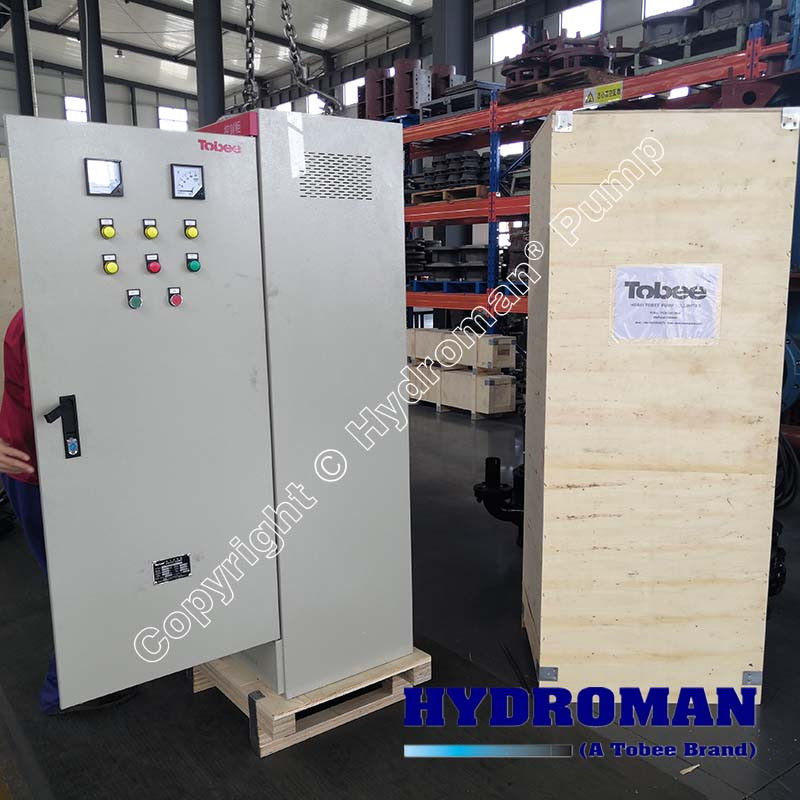

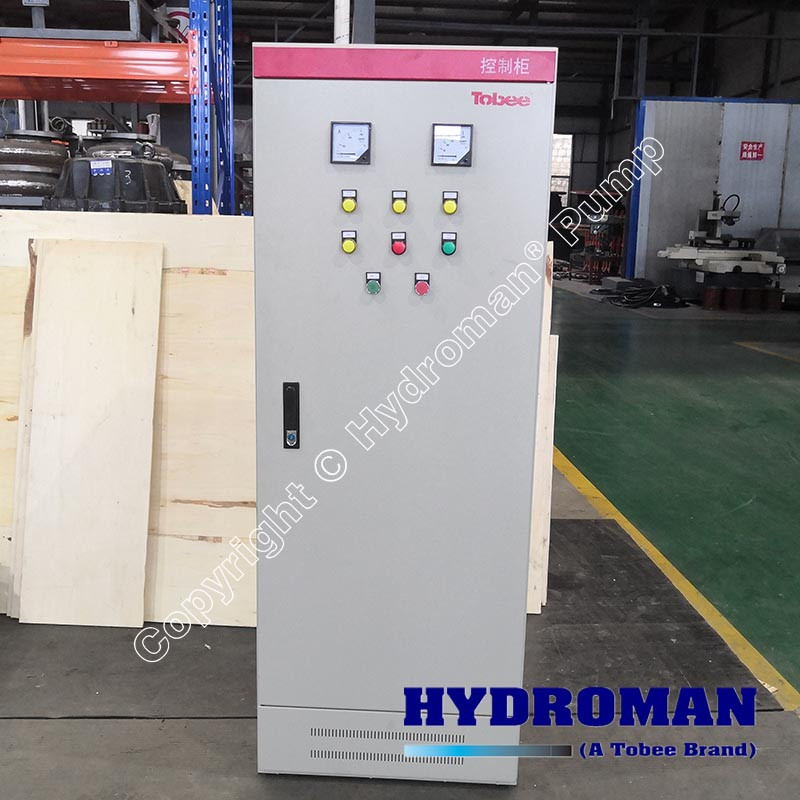

WePanel™ Pump Control Panels Detailed Showing:
