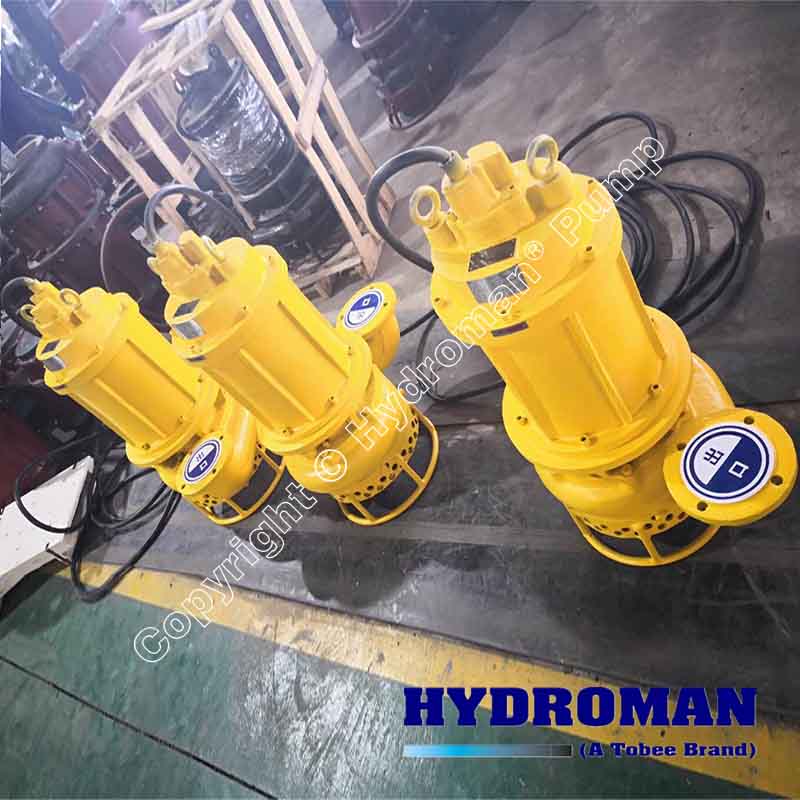

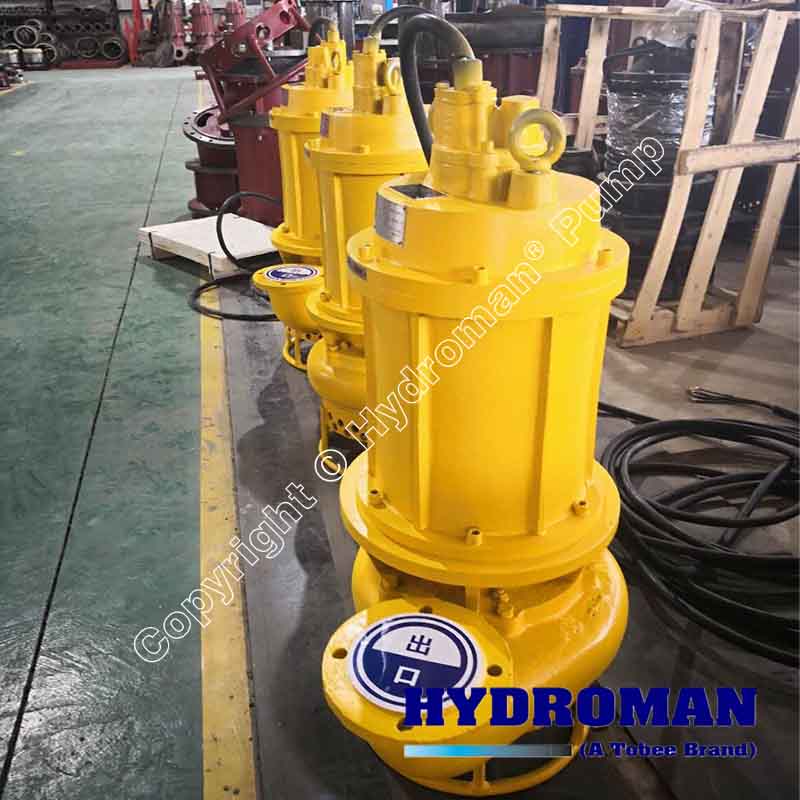

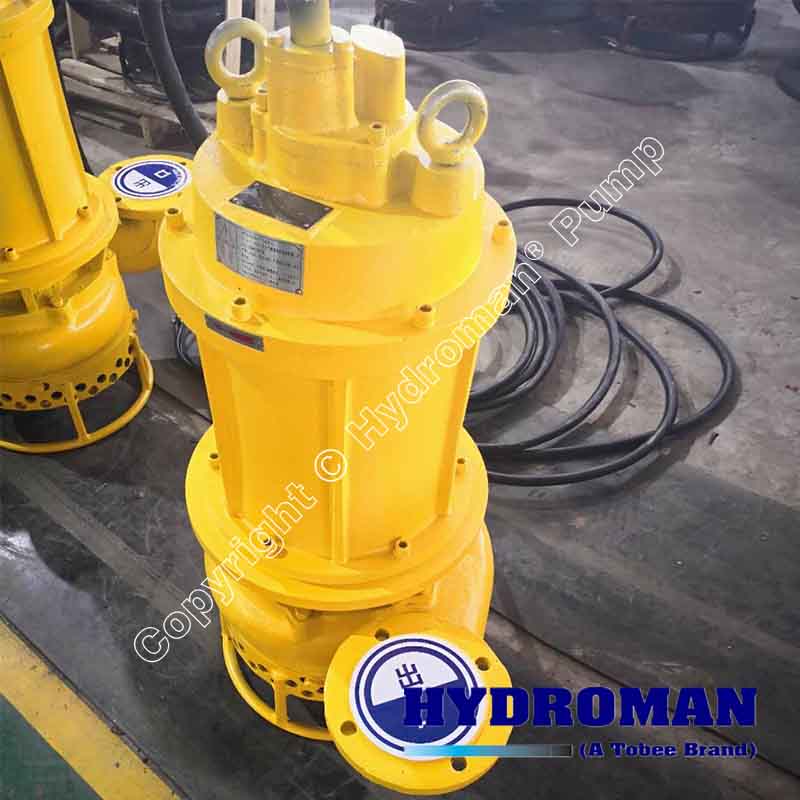

TSQ Submersible Sand Pumps

SPECIFICATIONS:

Size: 50-400mm

Capacity: 7-2400m3/h

Head: 7-120m

Power: 0.75-315kw

Max. particle: 120mm

Agitator or Cutter heads: Available

Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.

Sales@tobeepump.com +86 180 3203 4573

Inquire Now None

product details

Hydroman™ TSQ Submersible Sand Pumps are a world's standard submersible agitator pump, Capable of transporting up to 70% solids, this pump is born to dredge and has earned itself a 'solids-handling' reputation for reliability and durability in the world's toughest applications, The wear parts are made from high chrome alloy, It is widely used in pumping sand, sludge, gravel, stone, mud, ore slurry, coal slurry, sand-stones containing big solid particles etc.

Design Features:

▪ Electric submersible motors are all Class H insulated and have a minimum 1.25 service factor.

▪ TSQ Submersible Sand Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.

▪ High quality materials ensure long life of all components.

▪ Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.

▪ Adjustable High-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.

▪ Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.

▪ Lube Oil Inspection Ports: a wide angle port outside the submersible sand pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.

▪ The excavating action is created by the High-Chrome agitator blades that lift settled sediments which then get sucked into the submersible sand pump, creating a continuous flow of concentrated slurry.

Hydroman™ TSQ Submersible Sand Pumps Performance Parameters:

No.	Model	Capacity (m3/h)	Head H (m)	Power P (kw)	Speed N (r/min)	Eff. η (%)	Max. Particles(mm)	Size (mm)
1	TSQ25-12-3	25	12	3	1450	50	7	50
2	TSQ20-25-4	20	25	4	1450	43	6	50
3	TSQ45-15-5.5	45	15	5.5	1450	58	13	80
4	TSQ20-30-5.5	20	30	5.5	1450	48	7	50
5	TSQ50-10-5.5	50	10	5.5	1450	60	13	80
6	TSQ25-30-7.5	25	30	7.5	1460	54	7	80
7	TSQ32-20-7.5	32	20	7.5	1460	53	13	80
8	TSQ45-15-7.5	45	15	7.5	1460	55	13	80
9	TSQ100-10-7.5	100	10	7.5	1460	60	21	100
10	TSQ30-30-7.5	24	31	7.5	1460	43	13	80
		30	30
		36	29
11	TSQ70-20-11	70	20	11	1460	55	13	80
12	TSQ25-40-11	25	40	11	1460	48	13	80
13	TSQ50-21-11	35	22	11	1460	48	21	80
		50	21
		60	20
14	TSQ50-26-11	35	29	11	1460	48	13	80
		50	26
		60	24
15	TSQ100-16-11	70	20	11	1460	55	21	100
		100	16
		120	15
16	TSQ100-18-11	70	20	11	1460	55	21	100
		100	18
		120	15
17	TSQ25-40-15	18	41	15	1460	35	13	80
		25	40
		30	39
18	TSQ50-26-15	35	29	15	1460	48	13	80
		50	26
		60	24
19	TSQ50-35-15	35	38	15	1460	47	13	100
		50	35
		60	32
20	TSQ60-30-15	42	33	15	1460	50	13	100
		60	30
		72	27
21	TSQ75-25-15	52	28	15	1460	51	13	100
		75	25
		90	22
22	TSQ100-18-15	70	20	15	1460	55	21	100
		100	18
		120	15
23	TSQ150-15-15	105	17	15	1460	56	21	100
		150	15
		180	13
24	TSQ200-12-18.5	200	12	18.5	980	50	45	150
25	TSQ75-35-22	52	38	22	980	48	13	100
		75	35
		90	32
26	TSQ75-45-22	52	48	22	980	48	13	100
		75	45
		90	42
27	TSQ100-25-22	70	27	22	980	55	14	100
		100	25
		120	22
28	TSQ150-22-22	105	25	22	980	60	32	150
		150	22
		180	20
29	TSQ200-15-22	140	17	22	980	60	45	150
		200	15
		240	13.5
30	TSQ100-35-30	70	38	30	980	50	21	100
		100	35
		120	31
31	TSQ150-30-30	105	33	30	980	50	21	150
		150	30
		180	26
32	TSQ200-25-30	140	28	30	980	52	25	150
		200	25
		240	21
33	TSQ250-20-30	175	23	30	980	60	25	150
		250	20
		300	18
34	TSQ300-15-30	300	15	30	980	57	28	200
35	TSQ100-50-37	70	53	37	980	43	13	100
		100	50
		120	47
36	TSQ300-20-37	240	22	37	980	58	28	150
		300	20
		360	17
37	TSQ400-15-37	280	18	37	980	59	28	200
		400	15
		480	12
38	TSQ100-60-45	70	64	45	980	43	13	100
		100	60
		120	55
39	TSQ200-30-45	140	33	45	980	53	25	150
		200	30
		240	27
40	TSQ500-15-45	500	15	45	980	57	46	250
41	TSQ150-45-55	105	47	55	980	50	21	150
		150	45
		180	42
42	TSQ250-35-55	175	38	55	980	53	36	150
		250	35
		300	33
43	TSQ300-30-55	210	34	55	980	55	36	150
		300	30
		360	26
44	TSQ600-15-55	420	18	55	980	62	32	250
		600	15
		720	11
45	TSQ150-55-75	105	58	75	980	48	15	150
		150	55
		180	51
46	TSQ150-60-75	105	63	75	980	48	15	150
		150	60
		180	56
47	TSQ200-45-75	140	48	75	980	52	18	150
		200	45
		240	41
48	TSQ200-55-75	140	58	75	980	50	18	150
		200	55
		240	51
49	TSQ350-35-75	245	38	75	980	60	29	200
		350	35
		420	31
50	TSQ400-25-75	280	29	75	980	62	29	200
		400	25
		480	23
51	TSQ200-60-90	140	63	90	980	50	14	150
		200	60
		240	57
52	TSQ250-55-90	170	58	90	980	50	14	150
		250	55
		300	52
53	TSQ300-45-90	210	50	90	980	52	25	150
		300	45
		360	39
54	TSQ300-50-90	210	54	90	980	52	25	150
		300	50
		360	45
55	TSQ400-40-90	280	44	90	980	54	28	200
		400	40
		480	36
56	TSQ450-30-90	315	34	90	980	64	25	200
		450	30
		540	25
57	TSQ500-25-90	350	30	90	980	65	25	200
		500	25
		600	20
58	TSQ250-60-110	175	64	110	980	54	18	150
		250	60
		300	55
59	TSQ300-60-110	210	64	110	980	55	18	150
		300	60
		360	56
60	TSQ400-50-110	280	54	110	980	56	28	200
		400	50
		480	45
61	TSQ500-35-110	350	38	110	980	61	32	200
		500	35
		600	31
62	TSQ600-30-110	420	33	110	980	64	35	250
		600	30
		720	26
63	TSQ800-25-110	560	28	110	980	66	50	300
		800	25
		960	21
64	TSQ1000-18-110	700	22	110	980	68	50	300
		1000	18

65	TSQ780-26-110	545	29	110	980	68	50	300
		780	26
		935	22
66	TSQ400-60-132	280	64	132	980	68	28	200
		400	60
		480	55
67	TSQ500-45-132	350	49	132	980	67	28	200
		500	45
		600	42
68	TSQ500-55-132	350	59	132	980	70	28	200
		500	55
		600	52
69	TSQ800-35-132	560	38	132	980	70	42	300
		800	35
		960	32
70	TSQ1000-22-132	700	27	132	980	71	50	300
		1000	22
		1200	17
71	TSQ1250-15-132	875	18	132	980	70	56	300
		1250	15
		1500	12
72	TSQ600-50-160	420	56	160	980	65	28	200
		600	50
		720	43
73	TSQ650-52-160	455	56	160	980	65	28	200
		650	52
		780	44
74	TSQ1000-30-160	700	34	160	980	70	53	300
		1000	30
		1200	25
75	TSQ1250-25-160	875	28	160	980	70	56	350
		1250	25
		1500	22
76	TSQ780-50-185	780	50	185	980	64	38	300
77	TSQ600-55-200	420	59	200	980	62	28	250
		600	55
		720	50
78	TSQ800-45-200	560	49	200	980	66	42	300
		800	45
		960	40
79	TSQ1000-40-200	700	45	200	980	70	42	300
		1000	40
		1200	35
80	TSQ1500-20-200	1050	24	200	980	71	56	350
		1500	20
		1800	15
81	TSQ2000-20-200	1400	25	200	980	72	56	400
		2000	26
		2400	14
82	TSQ800-55-220	560	60	220	980	66	38	300
		800	55
		960	50
83	TSQ1250-35-220	875	39	220	980	70	45	350
		1250	35
		1500	30
84	TSQ1500-35-250	1050	40	250	980	72	50	350
		1500	35
		1800	30
85	TSQ1750-30-250	1225	34	250	980	70	55	350
		1750	30
		2100	25
86	TSQ2000-35-315	1400	40	315	980	72	60	400

Hydroman™ TSQ Submersible Sand Pumps Applications:

TSQ Submersible Sand Pumps widely used for Dredging, Ocean Sand mining, ponds, Fly ash/ bottom ash, Sand and Gravel excavation, Hazardous waste clean-up, Tank clean up (replacing vacuum trucks), Cleaning out numerous sumps including at: Cement plants, Agricultural wash down pits (carrots, beats etc), Pipeline burial, Coke pits, Mill scale/ slag pits, Barge unloading, Silt removal, Removal of filer media at waste treatment plants, Island building etc.
