Hydraulic Side Agitators for Dredging Pump

SPECIFICATIONS:

Type: Hydraulic driven

Power: 0.75-22kw

Voltage: 380v-50hz / 460v-60hz

Input speed: 1500/1800rpm

Output speed: 21-52rpm

Speed ratio: 29-71

Torque: 200-16000N.m

Insulation: Classe H

Materials: High chrome, Hyperchrome etc

Sales@tobeepump.com +86 180 3203 4573

Inquire Now Next Product

product details

As an effective accessory forsubmersible dredging pumps, Hydraulic Side Agitators are designed to let hydraulic dredge pump increase solid production by increasing the concentration of the slurries and permit to complete the dredging activities even in the most difficult situations.

Hydroman® Hydraulic Side Agitators for Dredging Pump Specifications：

Model	Power (kw)	Input speed (r/min)	Speed ratio	Output spee d(r/min)	Torque (N.m)	Weight (kgs)
ExPro-1.1	0.75-1.1	1500	29	52	200	50
ExPro-2.2	2.2	1500	29	52	400	80
ExPro-4	4	1500	29	52	800	185
ExPro-5.5	5.5	1500	35	43	1600	300
ExPro-7.5	7.5	1500	35	43	1600	330
ExPro-11	11	1500	35	43	3000	440
ExPro-15	15	1500	35	43	3000	480
ExPro-22	22	1500	71	21	16000	760

Hydraulic Side Agitators Idea Uses：Hydraulic Barge Unloading, Mining Tailings Ponds, Slurry Ponds, Liner Safe Dredging, Heavy Construction, Dewatering, Railcar Offload, Long Reach Dredging and more.

Agitation Options for Dredging Pump: Side Agitators, Cutterhead and a high-pressure water jetting rings available depending on the dredging application.

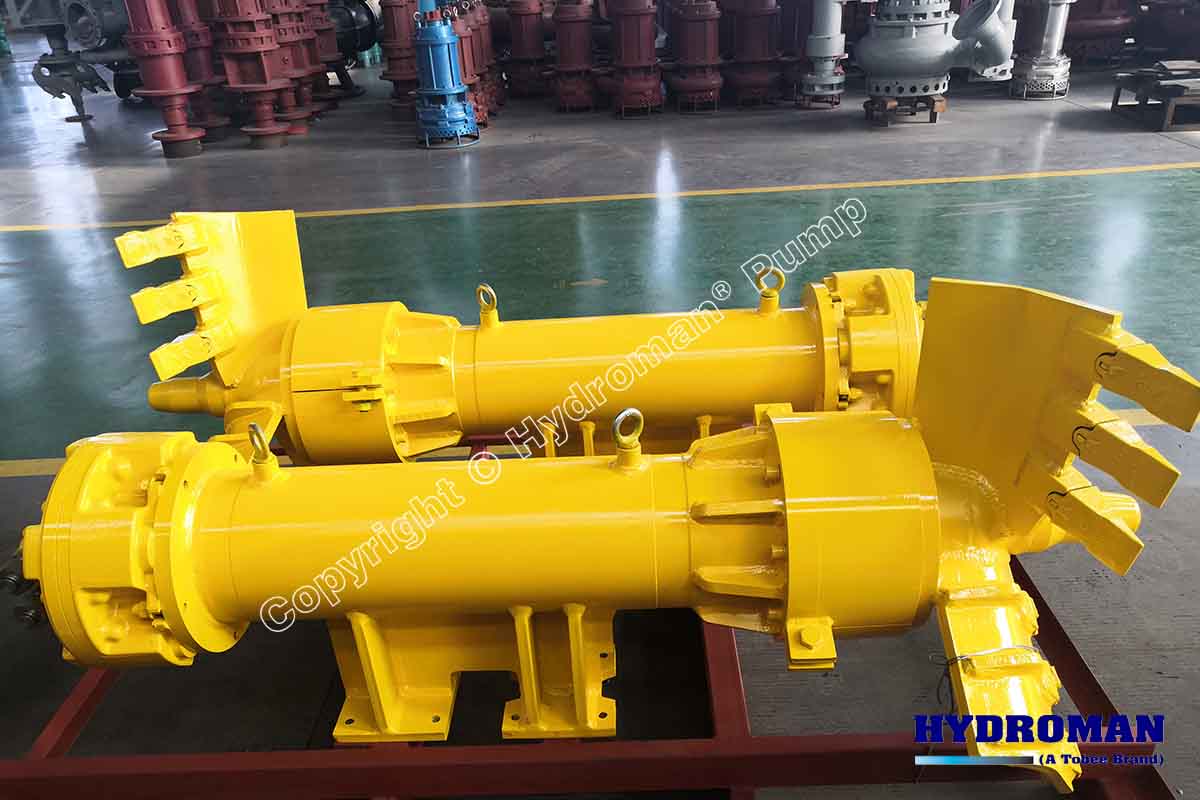

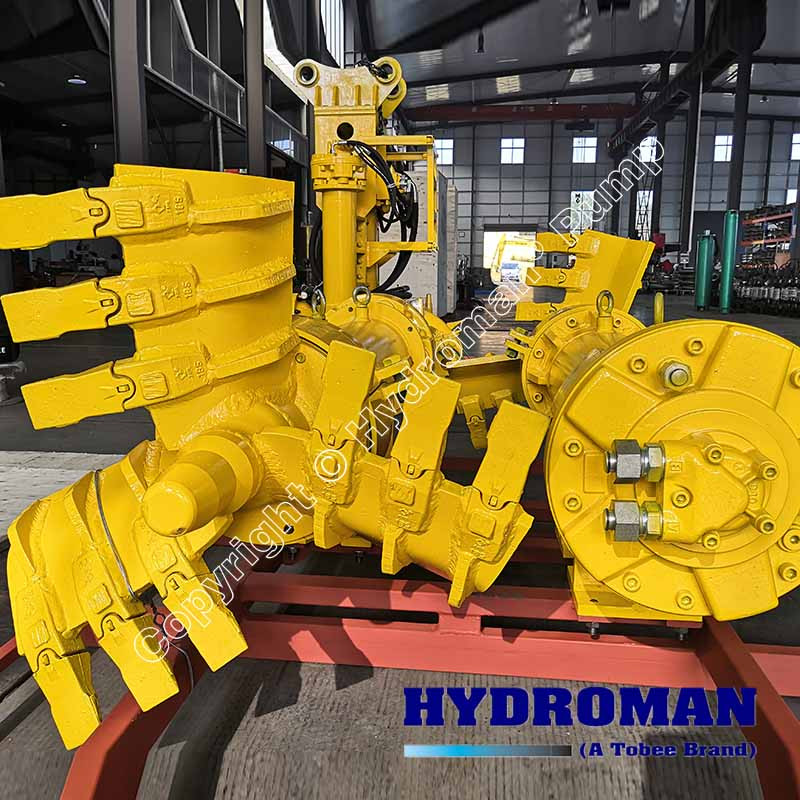

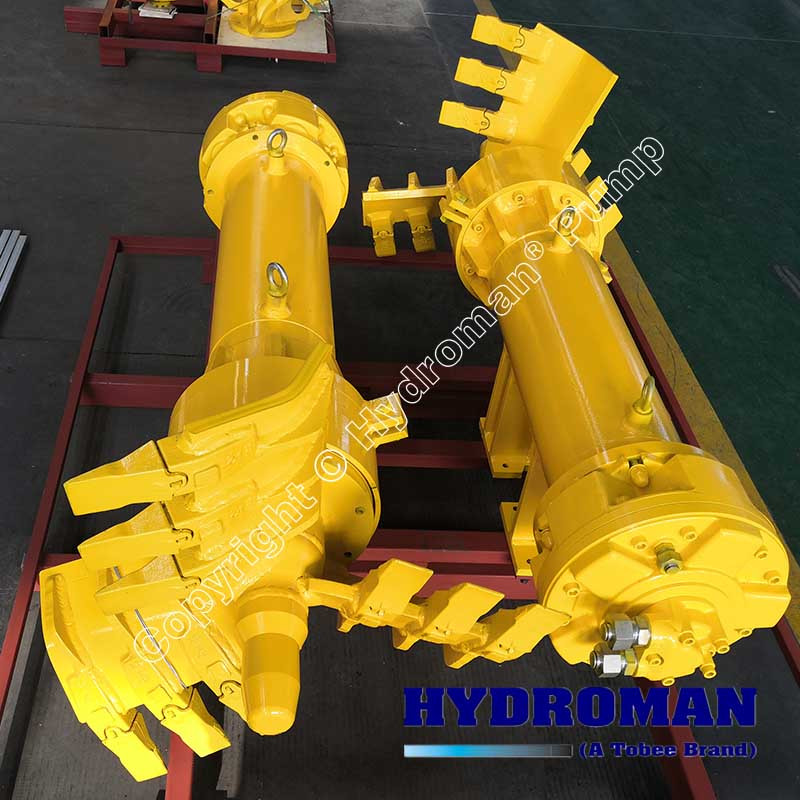

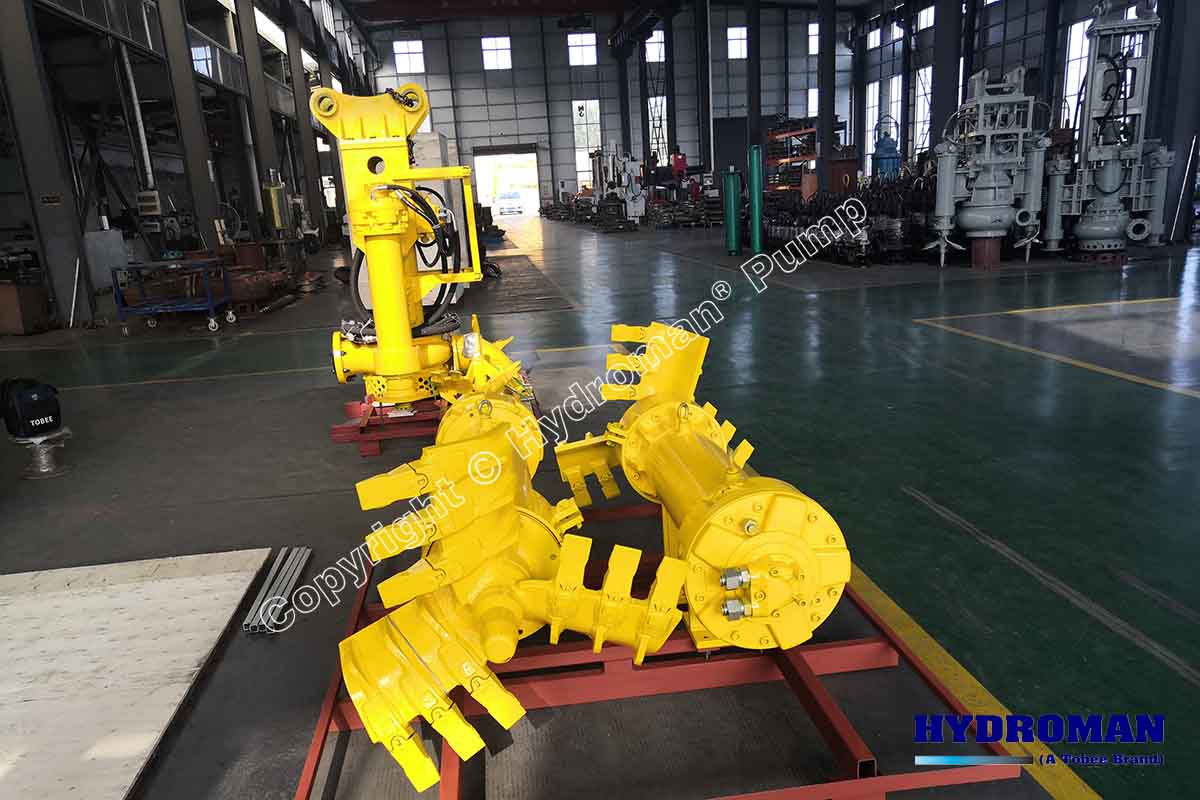

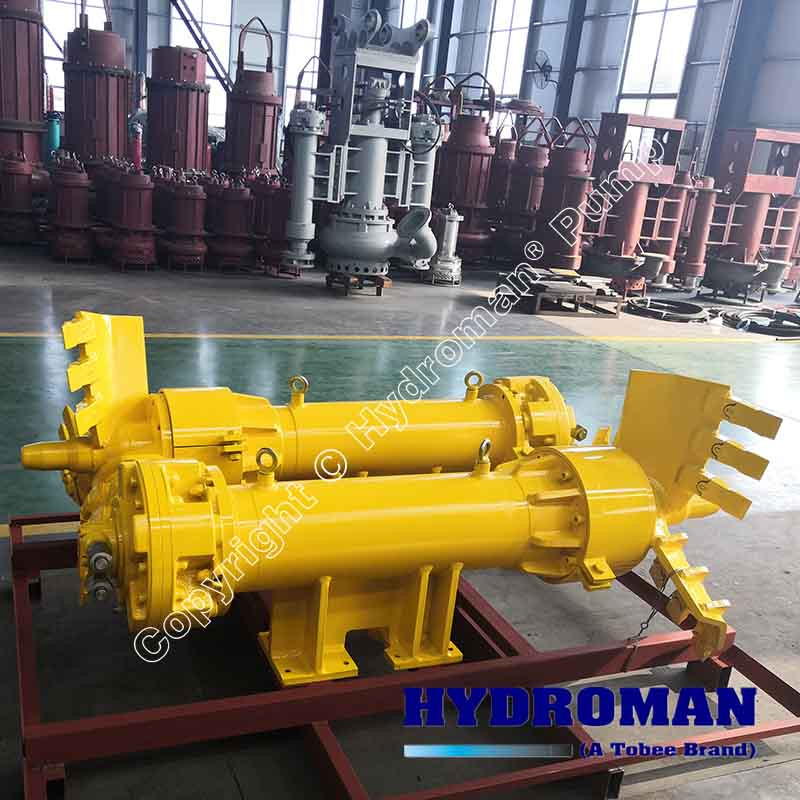

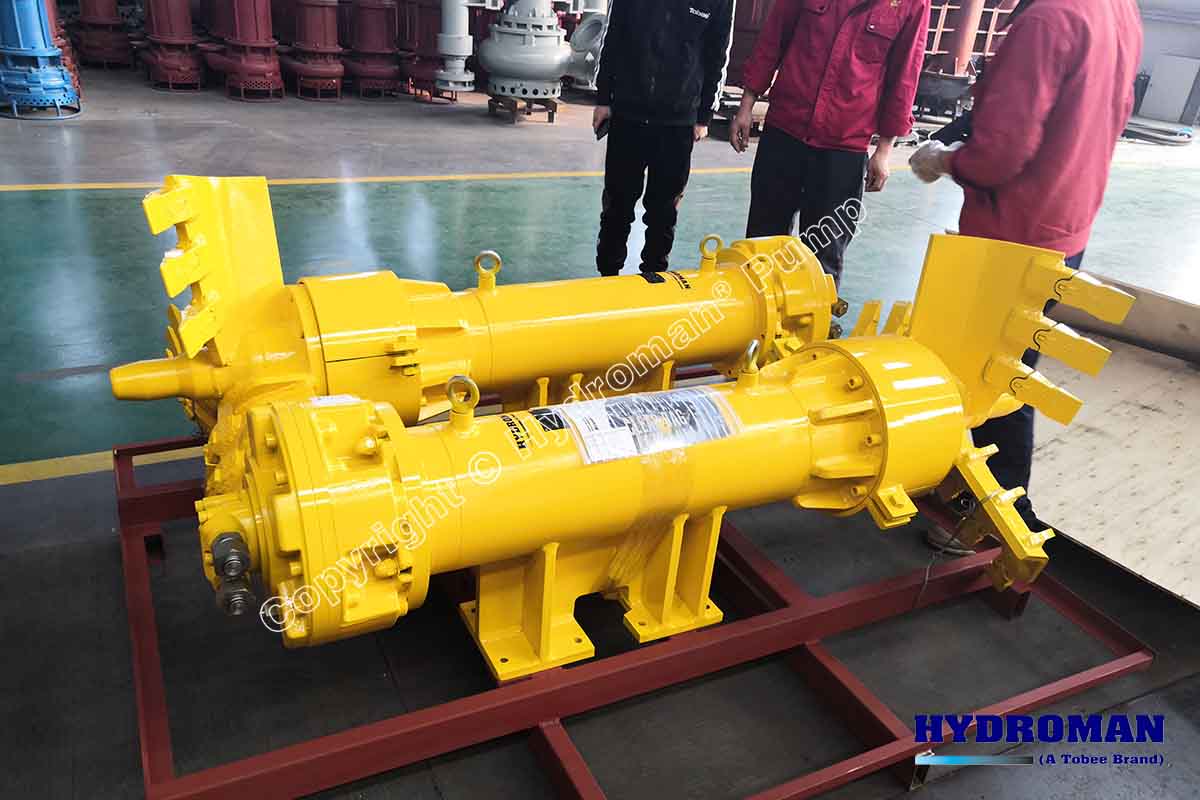

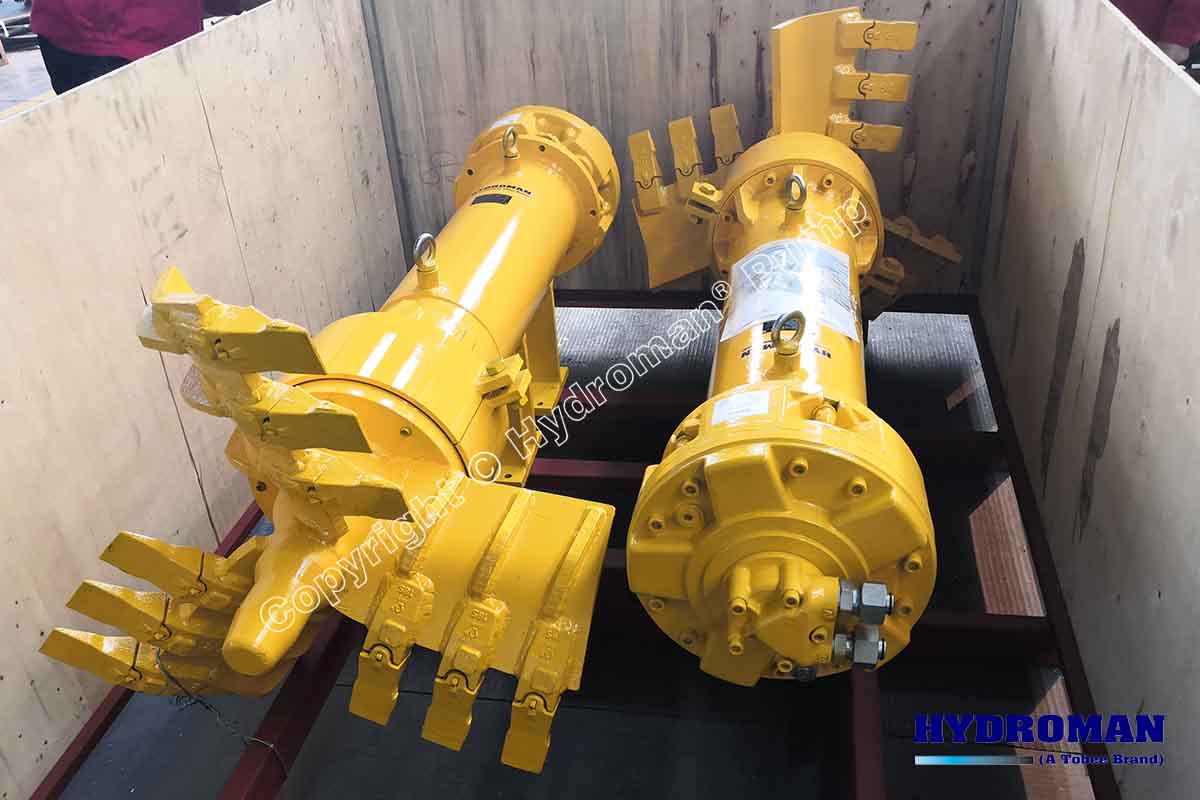

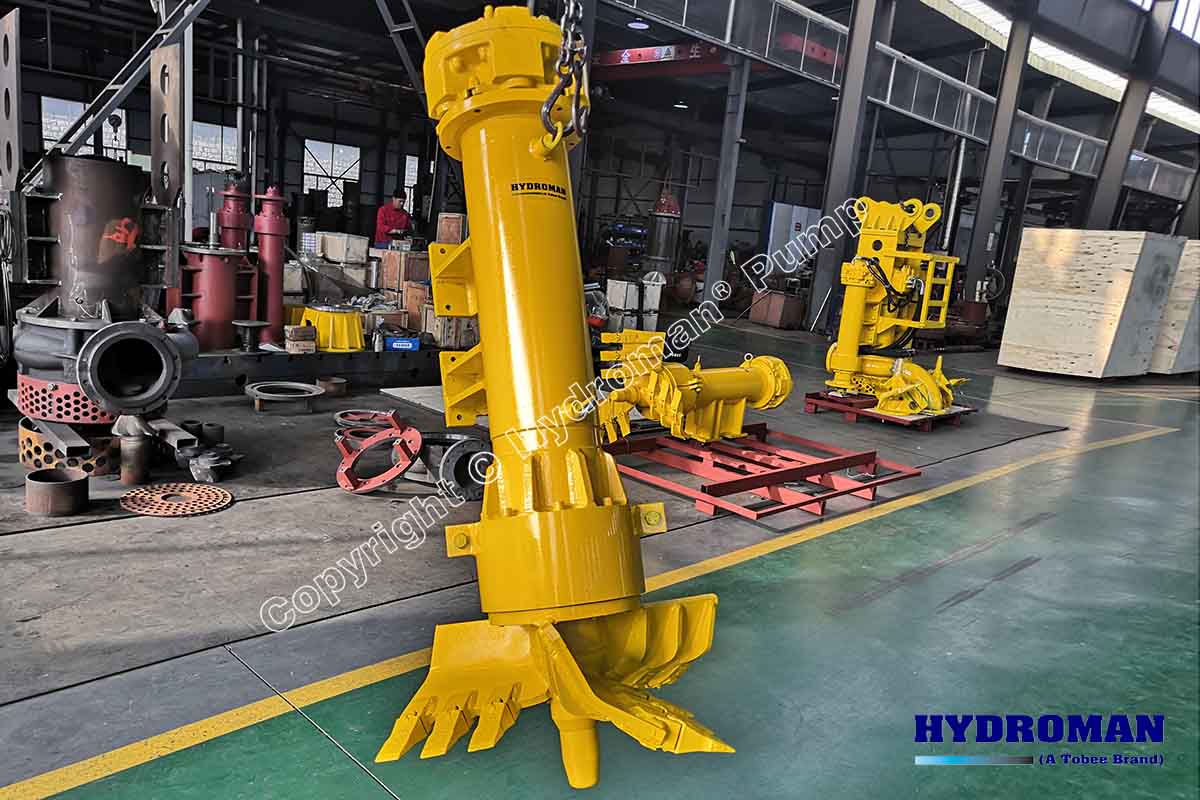

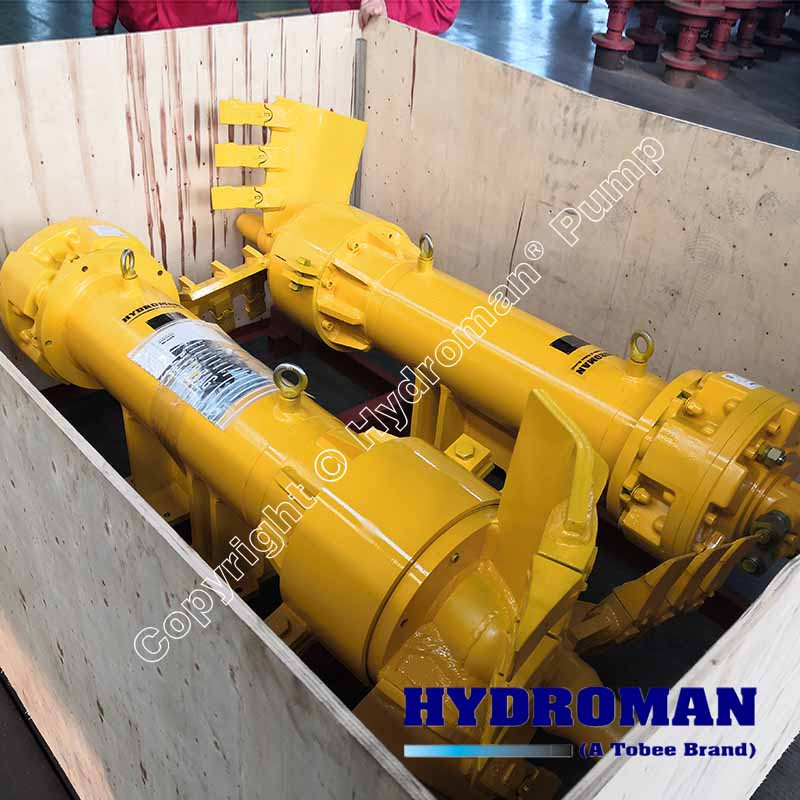

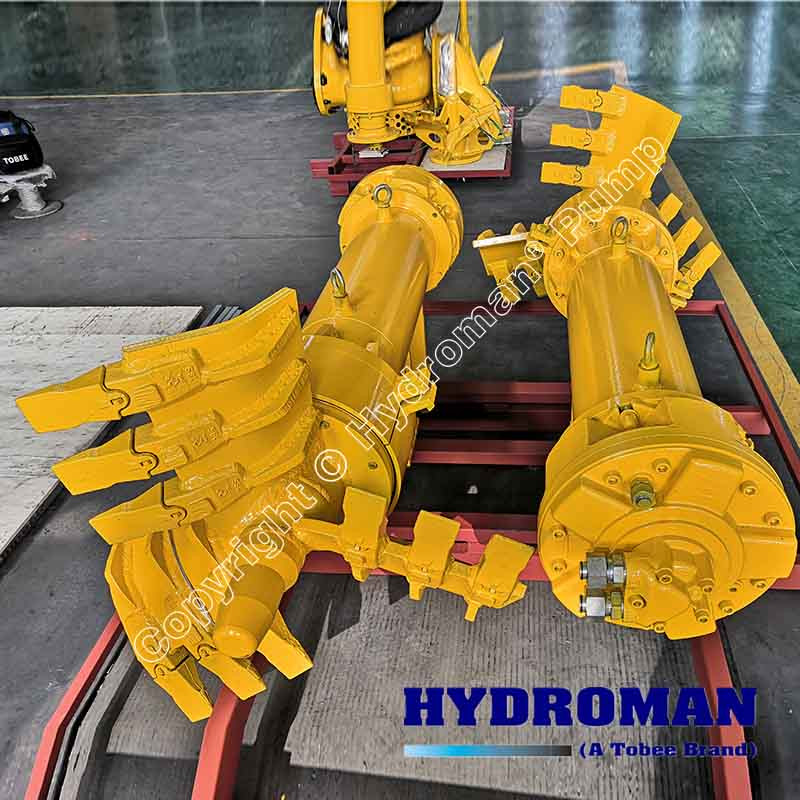

Hydraulic Side Agitators for Dredging Pump Photos:
