Hydraulic Dredging Cutters

SPECIFICATIONS:

Type: Hydraulic driven

Power: 0.75-22kw

Voltage: 380v-50hz / 460v-60hz

Input speed: 1500/1800rpm

Output speed: 21-52rpm

Speed ratio: 29-71

Torque: 200-16000N.m

Insulation: Classe H

Materials: High chrome, Hyperchrome etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

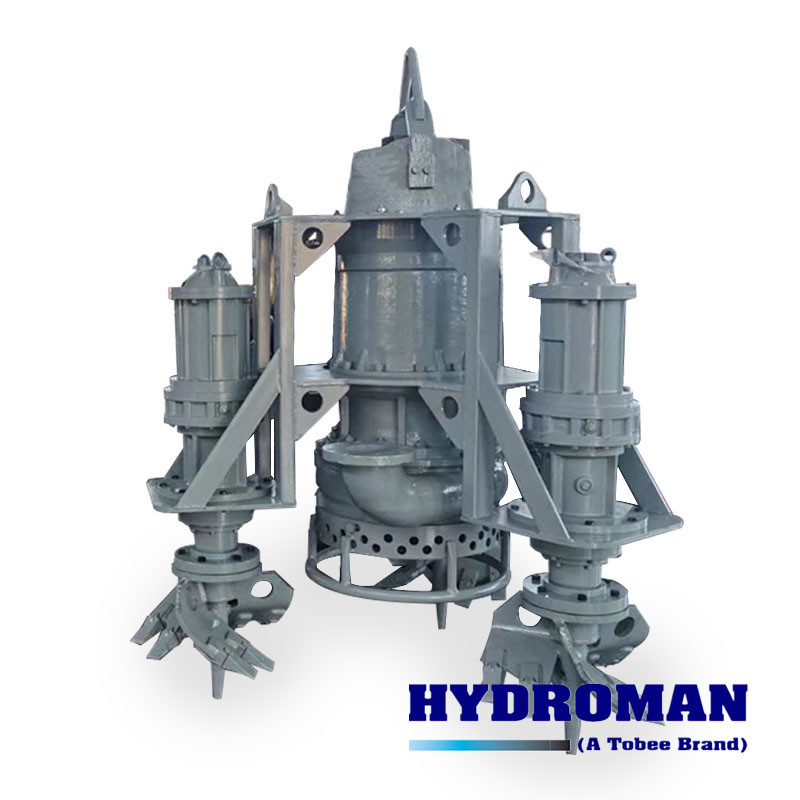

Hydroman® ExPro Hydraulic Dredging Cutters are designed to let the dredge pump works also in presence of very compact material. Hydraulic Dredging Cutters are able to increase solid production by increasing the concentration of the slurries and permit to complete the dredging activities even in the most difficult situations.


Design Features:

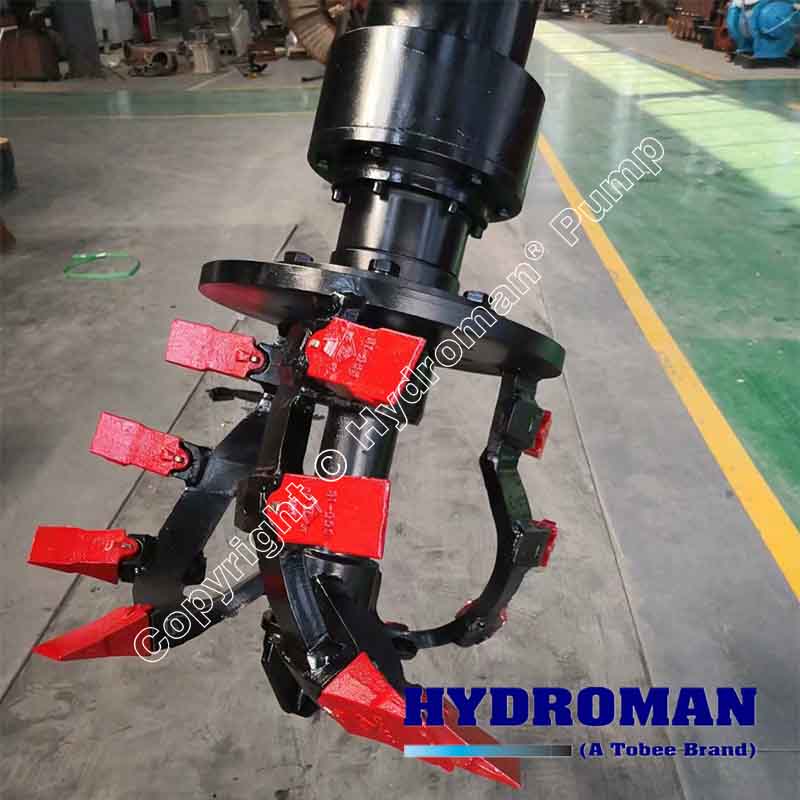

▪ Cutting head is designed to reduce cost of wear parts thanks to interchangeable hard tooth

▪ Robust hydraulic motor guarantees strong torque and long life

▪ Cutters are designed to work up to 250m working depth, handled by steel cable


Hydroman® ExPro™ Hydraulic Dredging Cutters Specifications:


Model

Power

(kw)

Input speed

(r/min)

Speed ratio

Output spee

d(r/min)

Torque

(N.m)

Weight

(kgs)

ExPro-1.10.75-1.11500295220050
ExPro-2.22.21500295240080
ExPro-4415002952800185
ExPro-5.55.5150035431600300
ExPro-7.57.5150035431600330
ExPro-1111150035433000440
ExPro-1515150035433000480
ExPro-22221500712116000760
