High Pressure Water Jet Rings


Water Capacity: 20 - 60m³/h

Pressure: 6 - 7bar

Water inlet diameter: 1 - 6inch

Nozzle diameter: 5 - 25

Number of nozzles: 4 - 8

Material: Carbon Steel

Sales@tobeepump.com +86 180 3203 4573

product details

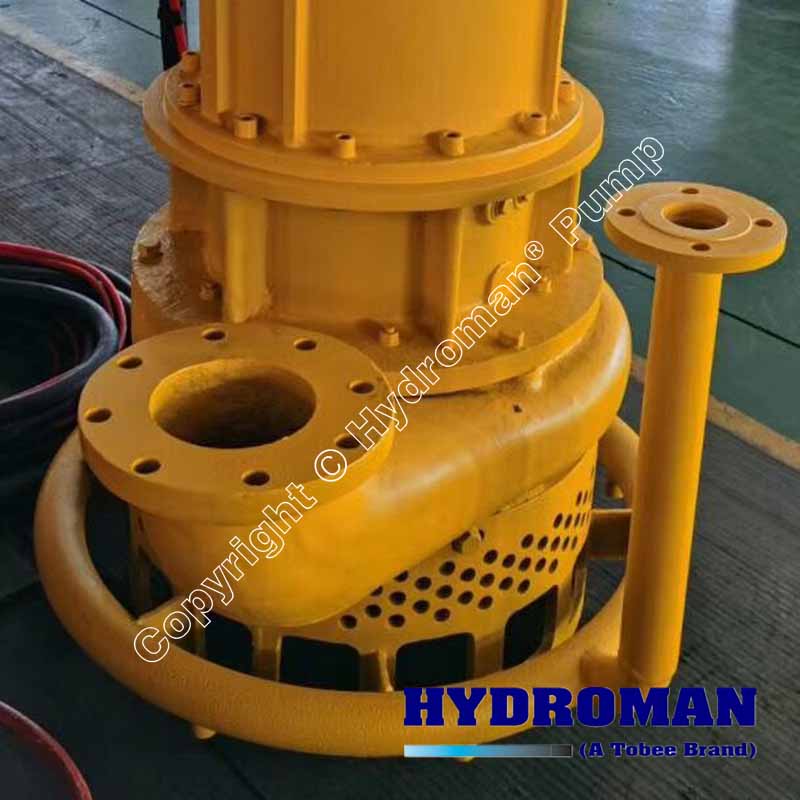

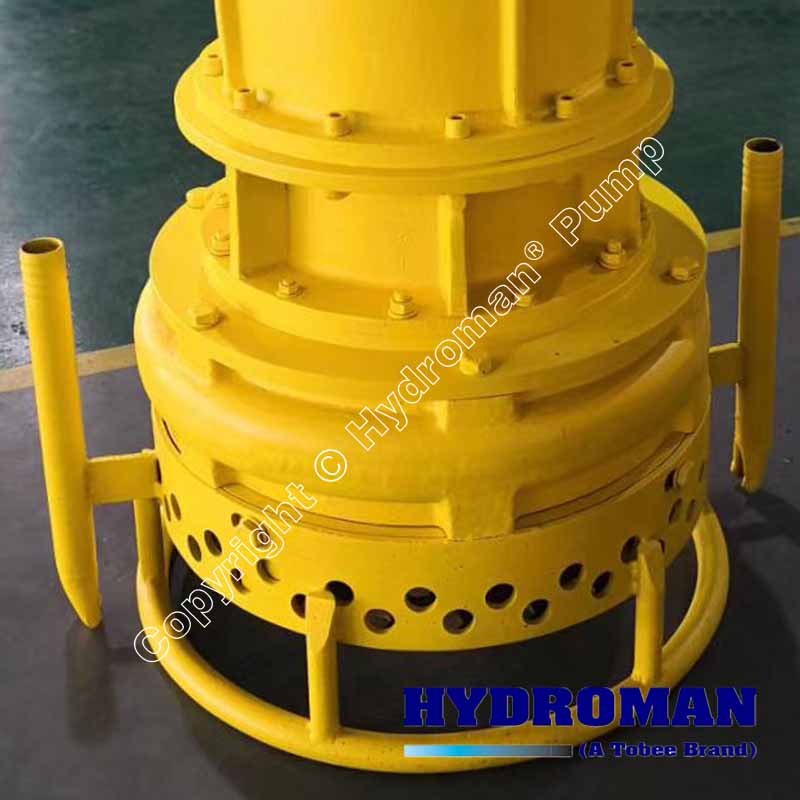

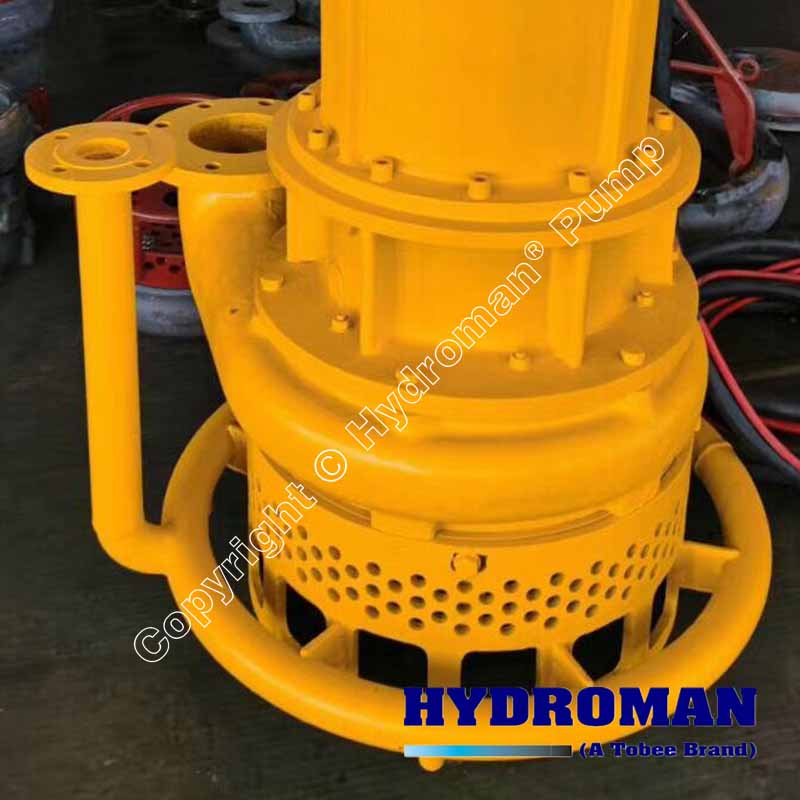

Hydroman® iShot™ High Pressure Water Jet Rings can provide extra cutting and suspending capability, notably for the applications where you have compact materials to pump. Hydroman manufactures custom made water jet rings and install them on your submersible slurry pump, ready for connection to high pressure pump. Hydroman can also provide the high pressure pump in a complete installation.

For electric slurry pumps it can be used as an alternative to hydraulic cutters. This system consists of a jet ring frame, mounted on the submersible dredge pump filter, a high pressure centrifugal pump (available in electric and hydraulic versions), a suction hose with water filter and non-returns valve and a delivery line.

Design Features:

▪ Jets Ring Frame mounted on the submerisble pump strainer stand.

▪ High pressure surface pump (available in electric and hydraulic versions).

▪ Suction hose with water filter, check valve and delivery line.

▪ Stainless Steel option available, for sea water and aggressive mining water.

High Pressure Water Jet Ring Applications:

Hydroman® iShot™ High pressure water jet ring system can be used in presence of compact, very dry or clay materials.
