THY300A Hydraulic Slurry Pump


Size: 250mm

Capacity: 720-900m3/h

Head: 22-34m

Max. particles: 120mm

Max. concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Sales@tobeepump.com +86 180 3203 4573

product details

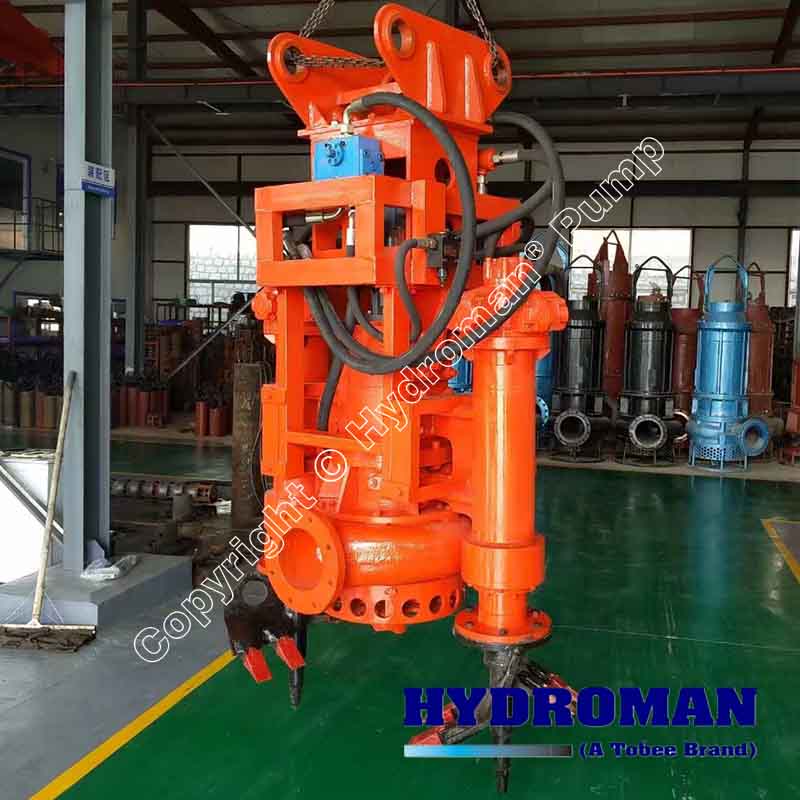

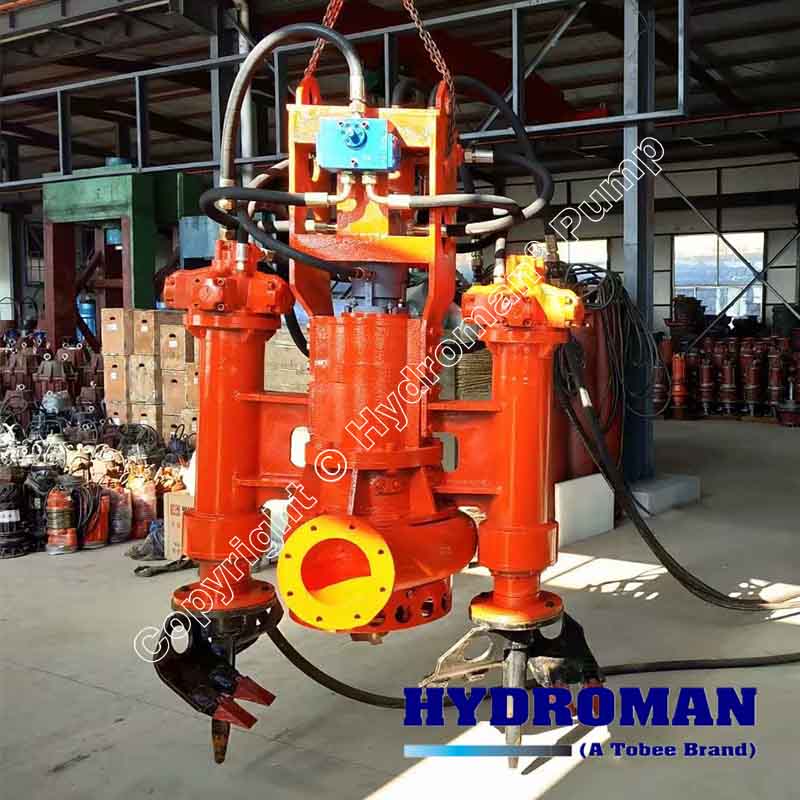

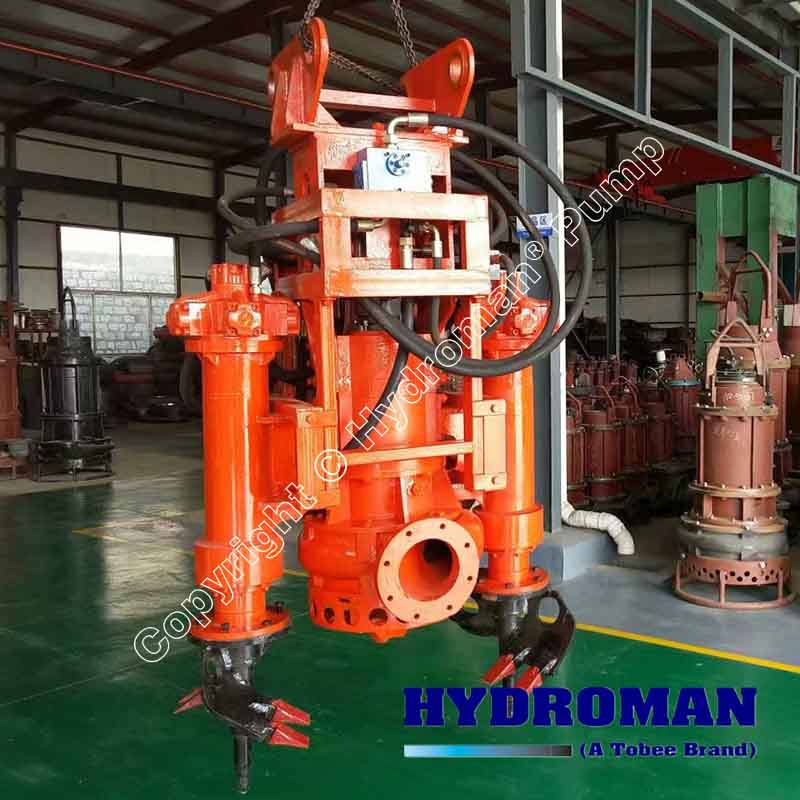

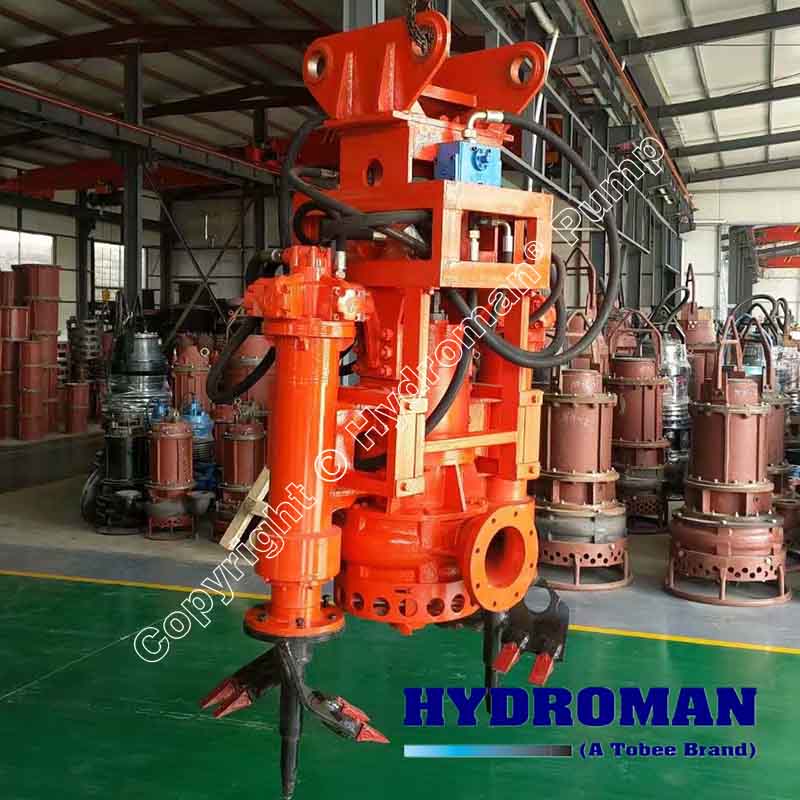

Hydroman™ THY300A Hydraulic Agitator Slurry Pump is kind of electrical and mechanical hydraulic submersible sand suction pump. Hydraulic slurry pump is equipped with two or three agitators to mix the precipitated sludge at high concentrations. Hydraulic slurry pump is suitable for conveying the liquid containing solid particles such as sand or coal cinder. This hydraulic slurry pump is made of wear-resisting materials. Hydraulic slurry pump has the characteristics of advanced structure, high conveying ability, strong sewage capability and long life span.

Design Features:

▪ The hydraulic slurry pump has better stability and longer life span, because the main parts are made of abrasion resistant materials – chromium alloy.

▪ Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, then high suction efficiency can be ensured.

▪ Except for the main impeller inner pump, there is extra agitation impeller at bottom to cut and mix the sludge, so the efficiency will be improved more.

▪ The hydraulic slurry pump is easy to installation and operate while without additional vacuum pump or pump house.

▪ The hydraulic slurry pump is high efficient and energy-saving due to the powerful bottom agitator.

▪Professional technology support is provided for the whole process of the usage and maintenance.

Hydroman™ Hydraulic Slurry Pumps Applications:

The THY Hydraulic Slurry Pumps can be widely used in mines, power, metallurgy, coal, environmental protection and other industries to transport the slurry containing abrasive solid particles.Such as the ore pulp transportation of metallurgy ore-dressing plant, hydraulic ash removal of thermal power plant, coal slurry and dense medium transportation of coal washing plant, river dredging, etc.
