Max. particles: 60mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Sealing arrangement: Double mechanical seal
Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

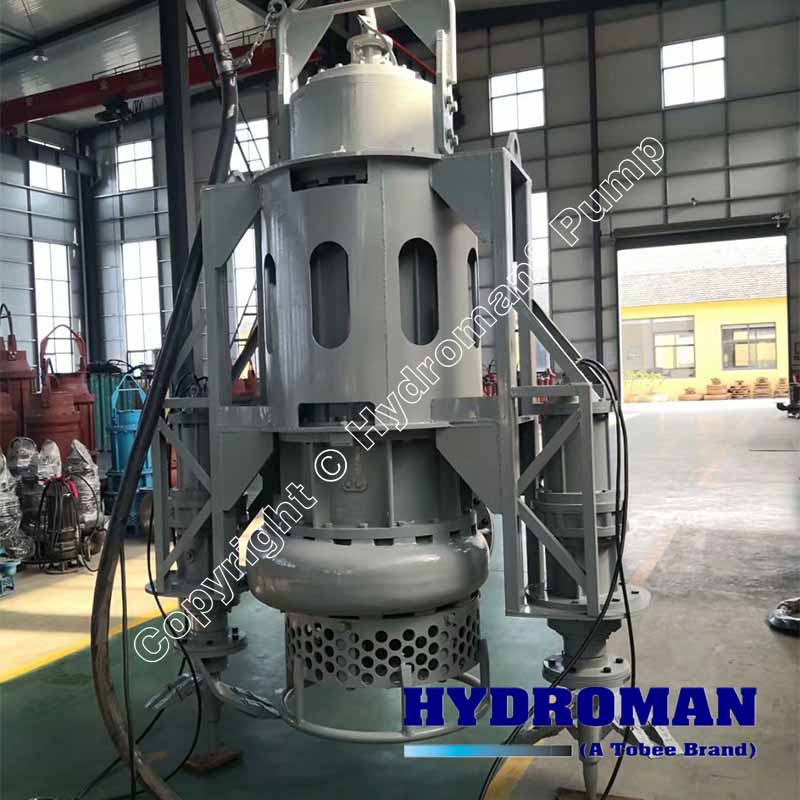

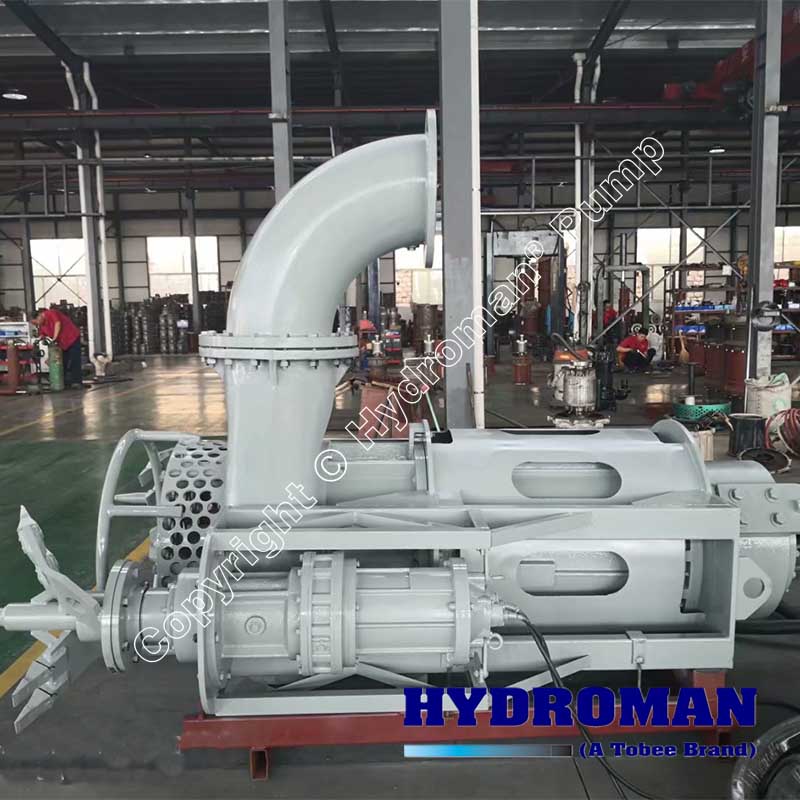

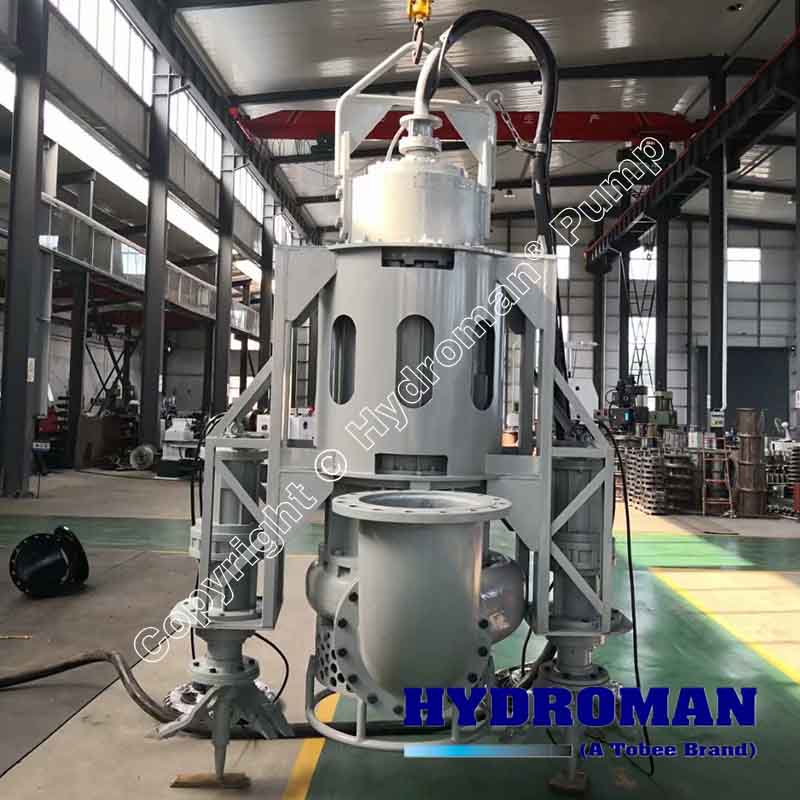

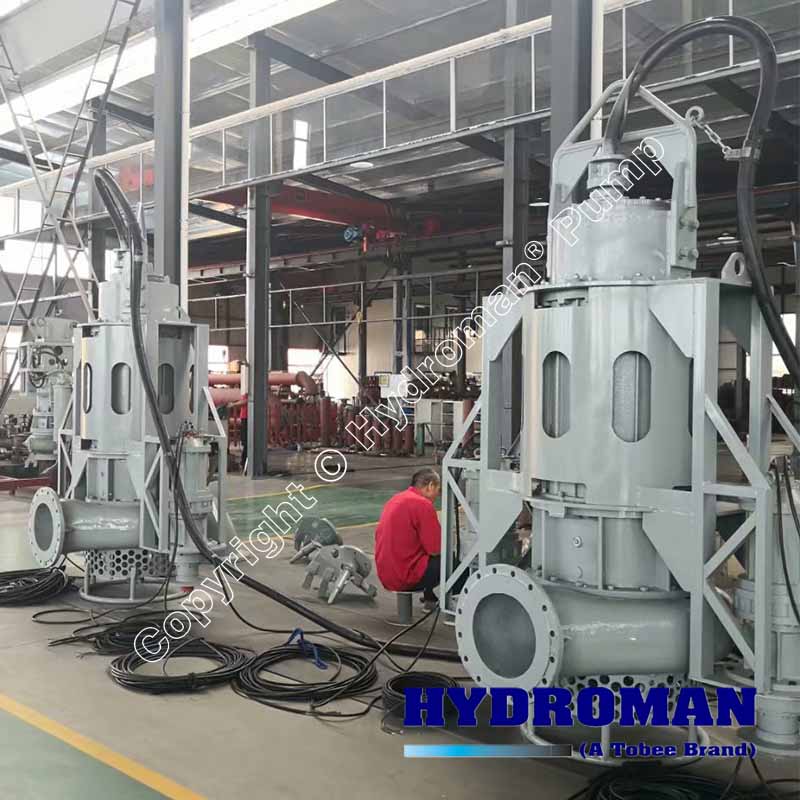

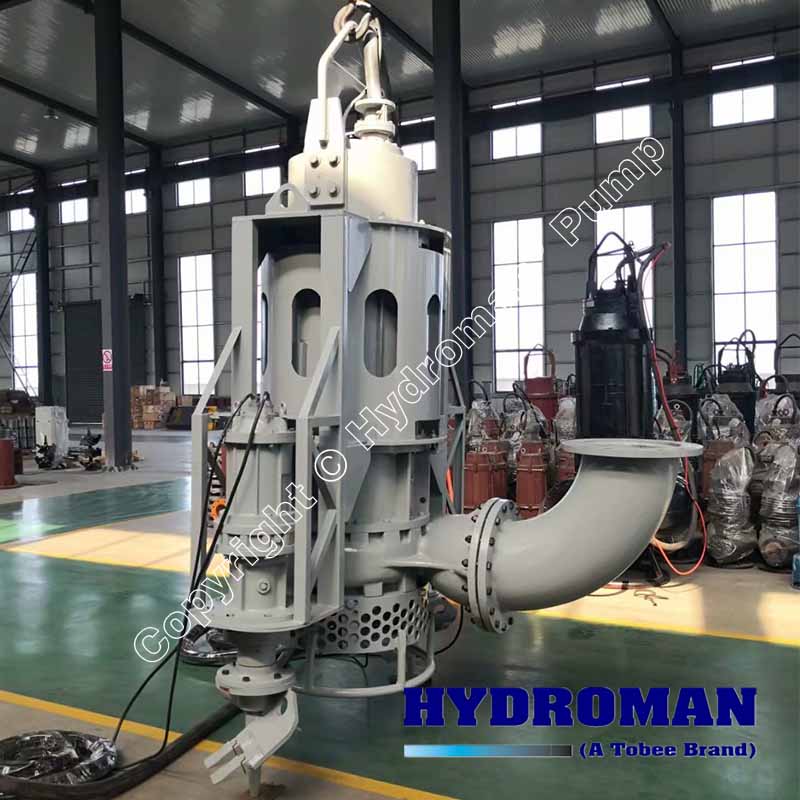

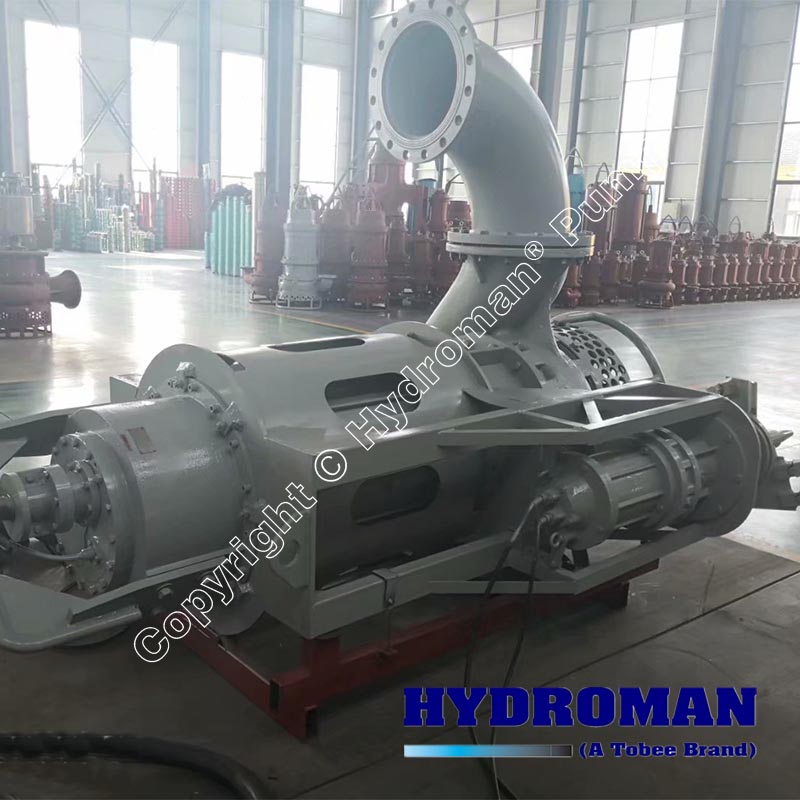

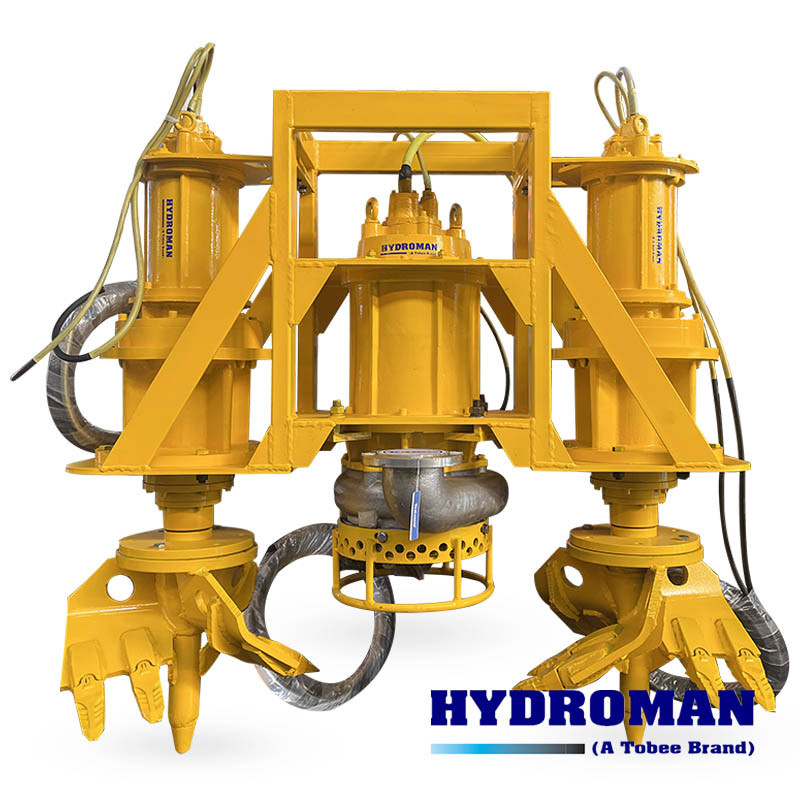

Hydroman™ Heavy Duty Submersible agitator Dredge Pumps are designed for handling slurries with a high content of abrasive solids. The pumps have been extremely successful for clients operating in specialized sectors who face severe conditions and difficult applications including dredging in the marine and energy sectors as well as in mining for minerals and other materials. Handling slurries with up to 70% solids content and specific gravity up to 1.7, with a capacity of up to 5300 gpm at 275 feet of head.
▪ Electric motors are all Class H insulated and have a minimum 1.25 service factor.
▪ Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.
▪ High quality materials ensure long life of all components.
▪ Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.
▪ Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.
▪ Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.
▪ Lube Oil Inspection Ports: a wideangle port outside the pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.

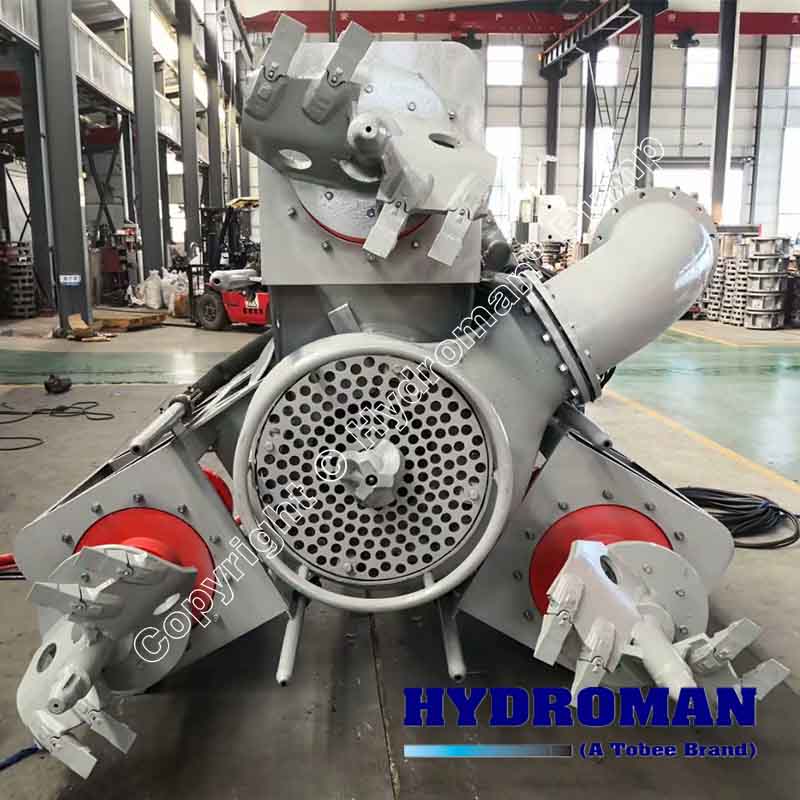

▪ The excavating action is created by the Hi-Chrome agitator blades that lift settled sediments which then get sucked into the pump, creating a continuous flow of concentrated slurry.
Hydroman™ Submersible Dredge Pumps Applications:
▪ Waste sludge handling / Tank clean out / Waste collection ponds / Thickener clean out / Barge unloading.
▪ Waste collection pit / Ash sumps / Dredging waste ponds / Bark Collection pit / Clean up sumps.
▪ Gold tailings reclamation / Ball mill sumps / Settling and collection ponds / Underground slimes collection ponds / Conveyor tunnel sumps / Tailings back-fill system / Preparation plant collection sumps / Coal tailings relocation / Open pit slimes removal / Crusher sumps / Grinding area sumps / Flotation area sumps / Removal of material of material from thickeners / Truck wash sumps.
▪ Mill scale pits / Coke plant scale pit / Boast furnace slag pit / Water treatment sumps / Clean up sumps.
▪ Dredging deep deposits (up to 120 m deep) / Recovery of sand not mined by primary dredge / Sands mining.
▪ Trench clean out and back-fill in pipe-cable laying projects / Clean out caissons in construction / Transfer of bentonite slurry / Overburden removal / Silt from gravel washing.
▪ Removal of suilt build up at marinas, harbors, dock loading facilities, etc. / Clean out of contaminated sludge collection ponds / Reclaiming beaches / River, lake and canal clean out.
▪ Coke conveyor spillage sumps / Crude oil tank clean out / Sludge transfer / Settling-collection pits/ Tailings recovery / Coke fines collection pit / Relocation of sand filled drilling rigs / Drilling mud barge unloading.
▪ De-silting water intakes / Emergency dump pond / Ash decant sumps / Fly ash collection sump / Ash and waste collection pit / Scrubber sludge transfer / Lime collection pit / Coal wash-down sumps.
▪ Pumping marble dust.
