Hydraulic Submersible Slurry Pumps for Dredging Sand, Silt, Gravel

SPECIFICATIONS:

Size: 65 - 600mm

Capacity: 15-4000m3/h

Head: 10-125m

Max. particles: 120mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

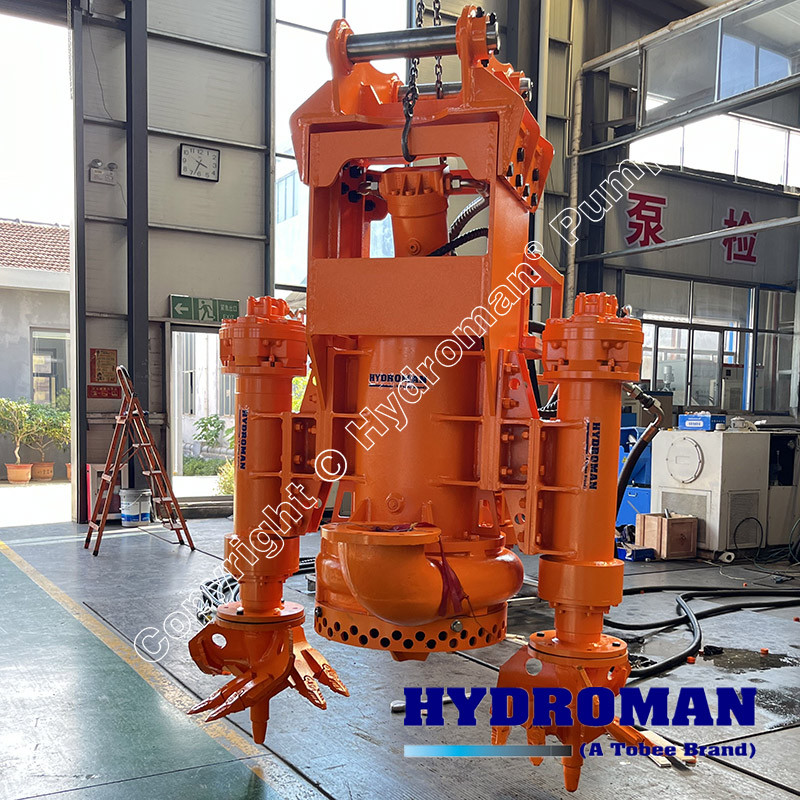

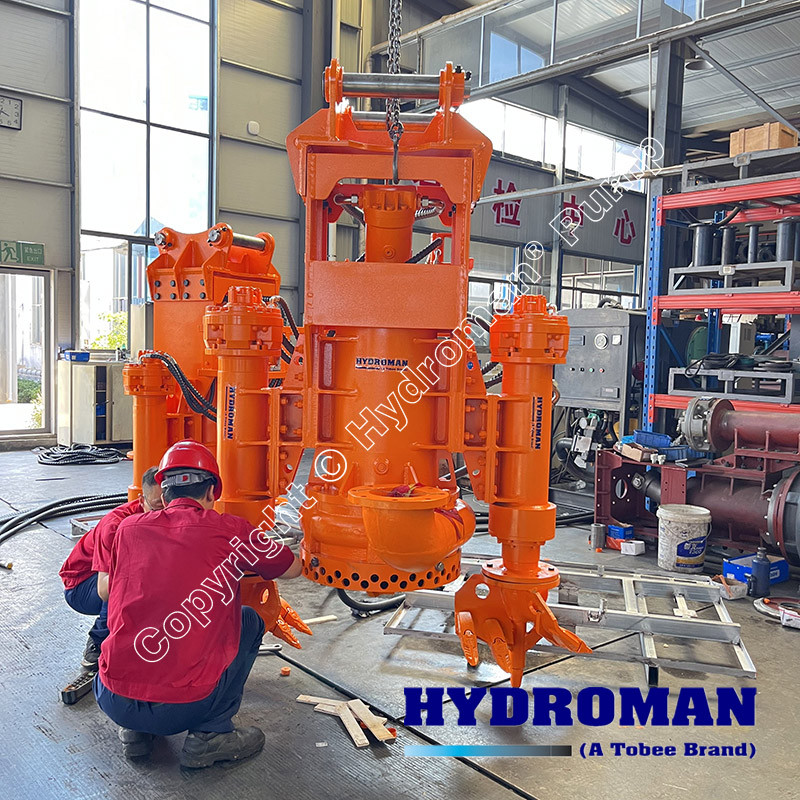

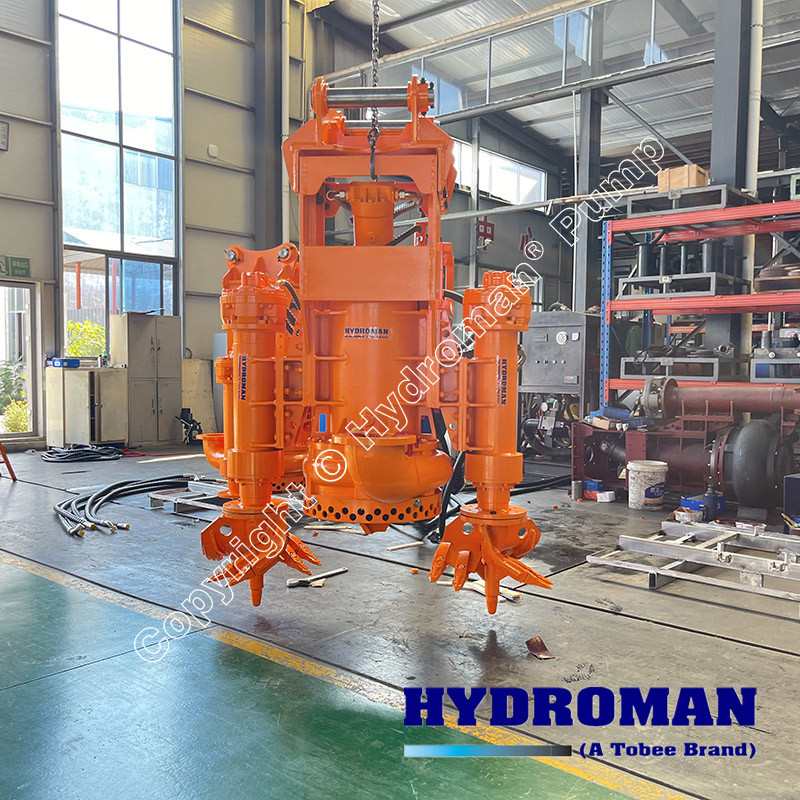

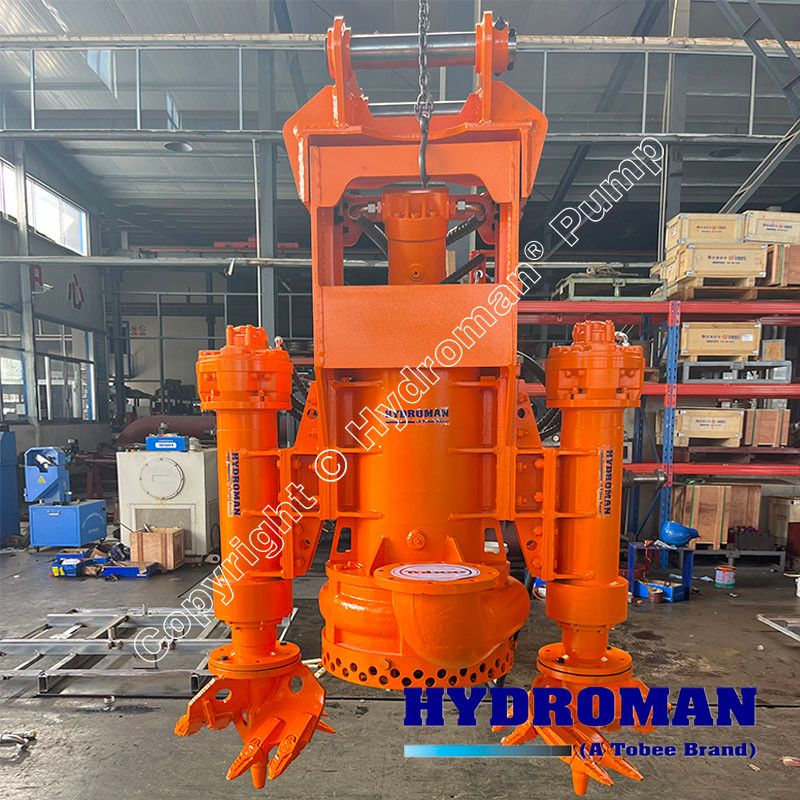

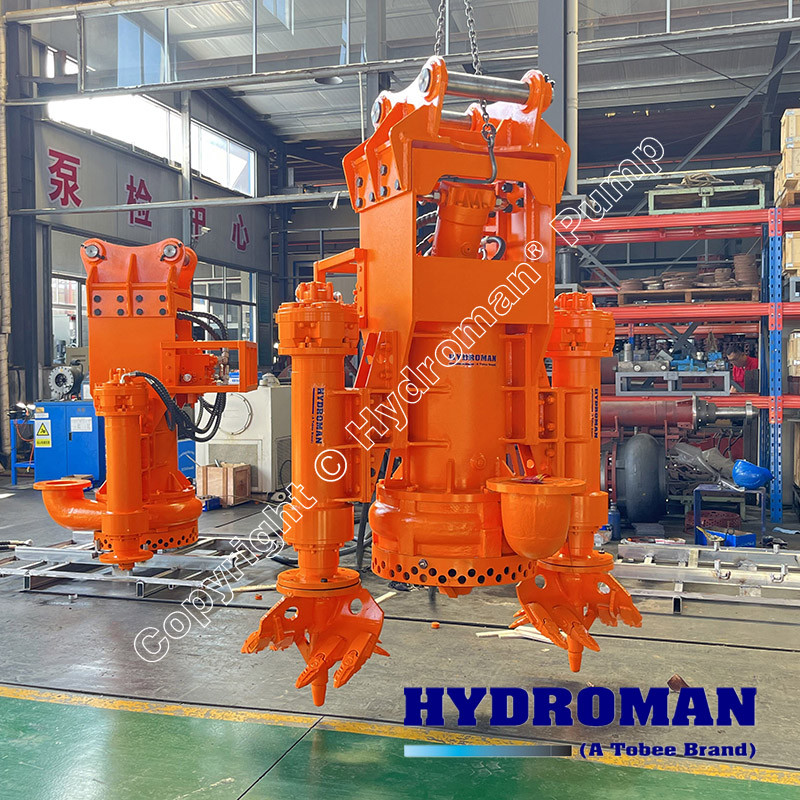

Hydroman® Hydraulic Submersible Slurry Pumps for Dredging Sand, Silt, Gravel are designed for excavators of various sizes, ideal for efficient extraction in water-rich, sludge, and sediment conditions, hydraulic dredging submersible slurry pump connects to the end of an excavator boom allowing for dredging in waterways and near shorelines, allowing operators more time on-site and less environmental cleanup.

Hydroman® Hydraulic Submersible Slurry Pump for Dredging Sand, Silt, Gravel Features

 Auxiliary Device for Amphibious Excavators: Excavator hydraulic dredge pump attachment enhances dredging operations.

 Effective in Challenging Conditions: Performs well in waterlogged, silty areas where traditional excavation and transportation are difficult.

 High-Quality Materials: Made from high-chromium alloy, ensuring hydraulic excavator dredging sand pumps accessory long-lasting performance and resistance to wear.

 Advanced Structure: Designed for optimal performance and efficiency.

 High Efficiency: Greatly improves work efficiency in dredging operations.

Hydroman® Hydraulic Submersible Slurry Pump for Dredging Sand, Silt, Gravel Critical applications include:

 Underwater Material Extraction: hydraulic slurry sand pump for 20 ton excavator allows for the efficient removal of otherwise inaccessible materials in traditional methods for extracting materials such as sand, gravel, and other aggregates from underwater deposits in quarries, lakes, or rivers.

 Dredge Pond Maintenance: Submersible hydraulic dredge sludge pump with side agitators is employed to remove accumulated sediment, maintain proper water depth, and optimize the capacity of these ponds for sediment settling and water recycling.

 Deepening and Expansion: Hydraulic dredging can deepen quarry pits or expand the operational area. This is particularly useful when the quarry’s active mining area needs to be extended below the water table.

 Sediment Removal: Sediment buildup can hinder quarry operations, reducing water storage capacity and affecting material extraction processes. Hydraulic submersible slurry pump with 2 side cutters effectively removes accumulated sediment,maintaining the efficiency of various methods.

 Environmental Restoration: Quarries that have completed their active extraction phase may use hydraulic dredging equipment to restore aquatic habitats or natural water bodies, ensuring proper sediment removal and rejuvenation.

 Tailings Pond Management: Quarries may have tailings ponds where waste materials and sediments settle. Hydraulic submersible pump for mud sand dredging can manage and maintain these ponds, preventing overflows and ensuring proper waste disposal.

 Water Recirculation: Dredging aids in recirculating water within quarry operations.  Heavy duty hydraulic submersible slurry pump helps maintain water quality and supports sustainable water reuse practices by removing sediments and contaminants.

 Infrastructure Maintenance: Hydraulic dredging excavator pump equipment can also maintain waterways, channels, and berths within the quarry area, ensuring vessels and equipment can navigate efficiently.

 Hydraulic Transport: Hydraulic submersible sand dredge pumps for Excavator are essential for maintaining efficient hydraulic conveyance.

In summary, Hydroman® Hydraulic Submersible Slurry Pump for Dredging Sand, Silt, Gravel helps with underwater material extraction, sediment removal, water management, environmental restoration, and overall operational efficiency by utilizing hydraulic dredging techniques.
