Submerged Dredge Pump


Size: 50-400mm

Capacity: 10-2000m3/h

Head: 8-150m

Max. particles: 60mm

Max. concentration: 70%

Max. working depth: ≤ 150m

Cutterheads: 0.75-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome alloy, SS304, SS316L, Duplex SS etc

Sales@tobeepump.com +86 180 3203 4573

product details

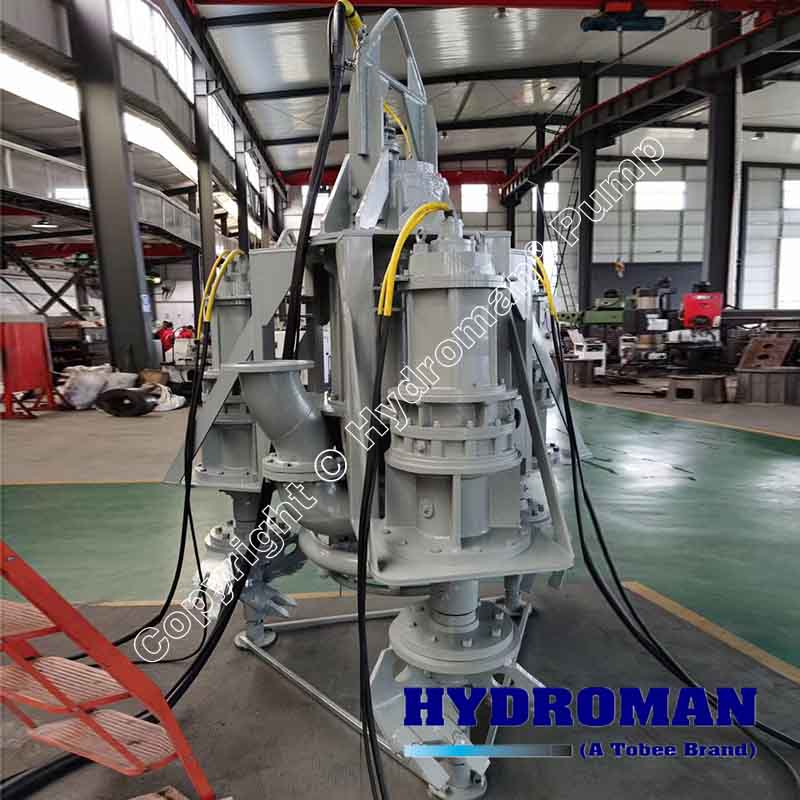

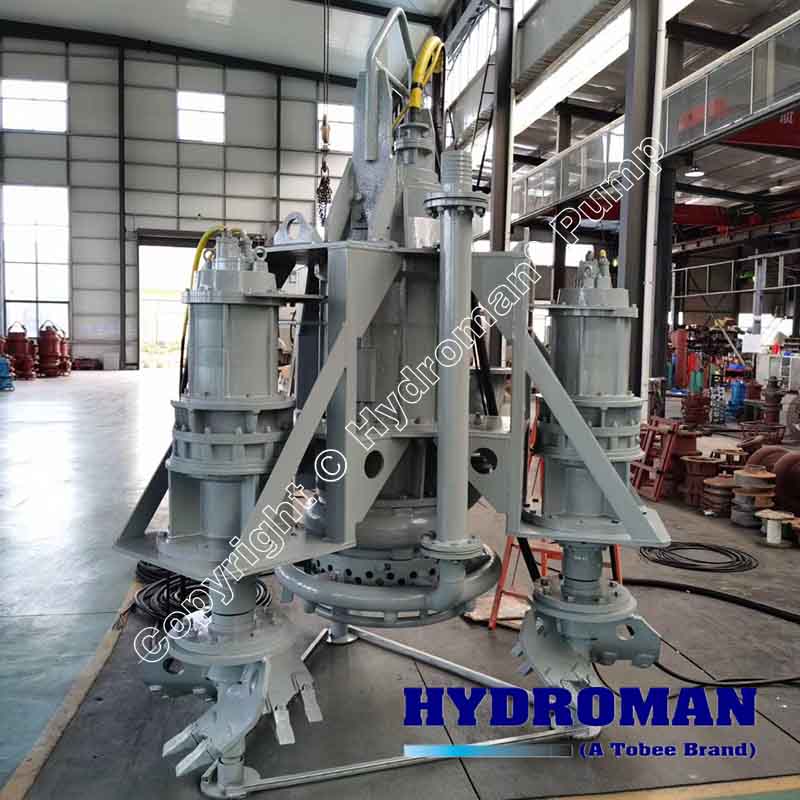

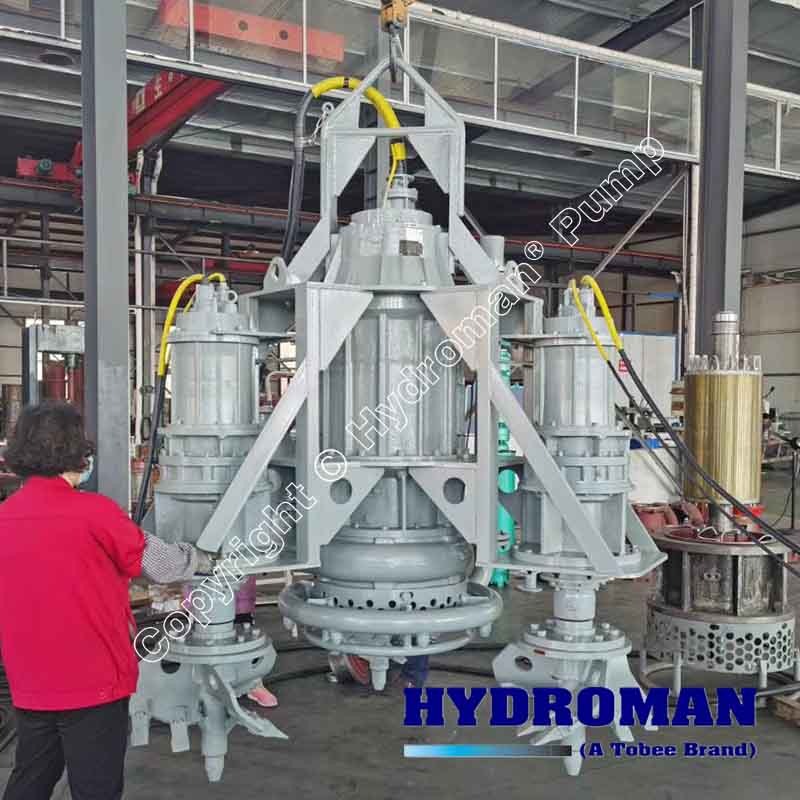

Hydroman™ Submerged Dredge Pump is a vertical single-stage and single-suction cantilever type submersible dredging pump. The impeller is can be made in closed or semi-open type and is equipped with agitator at the edge extension of the impeller suction. It is mainly used in mining, dredging, marine, environmental protection, municipal engineering, thermal power plant, gas coking plant, and other industries.

Designed Features:

▪ It adopts vertical cantilever type and single pump shell structure.

▪ Simple bearing assembly, high capacity bearing design and wear resistance.

▪ The gap between the impeller and the guard plate can be adjusted to ensure the efficient operation of the pump.

▪ The motor is anti over-loaded motor with water-proof function.

▪ Low rotation speed, better wear resistance and long service life.

▪ No limited by suction lift. sand suction efficiency is high, dredging is more thorough.

▪ Higher efficiency and wear resistance.

Hydroman™ Submerged Dredge Pumps Applications:

Hydroman™ TJQ Submerged Dredge Pump widely used for pumping Sands, gravel, sludge, ore slurry, coal slurry, sandstones containing big solid particles, pumping sand for building, silt sand, silt, tailing slurry, ore, iron sand ore, sediment in sewage treatment works, etc.
