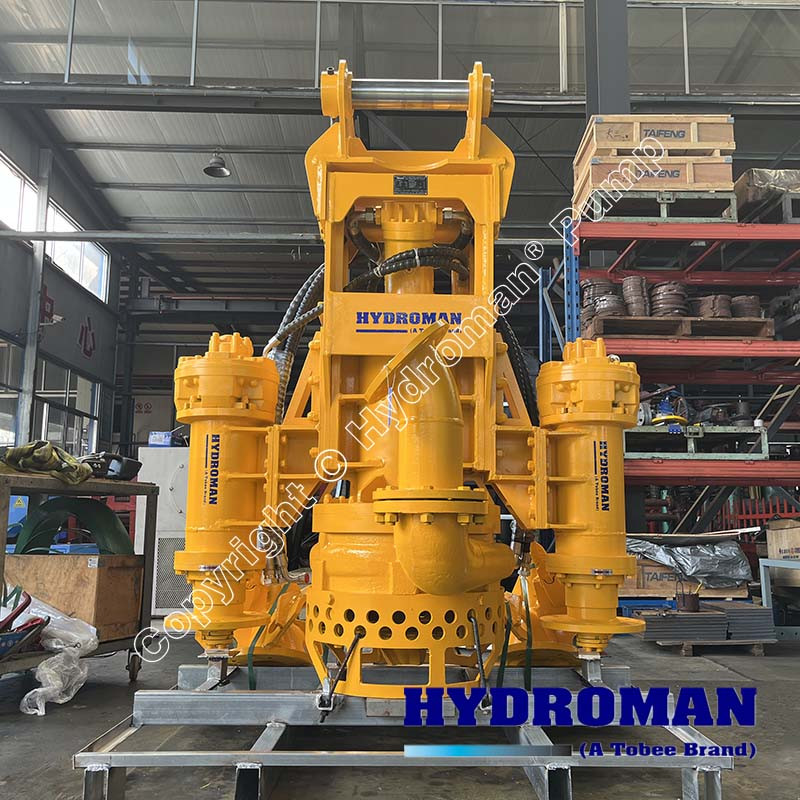

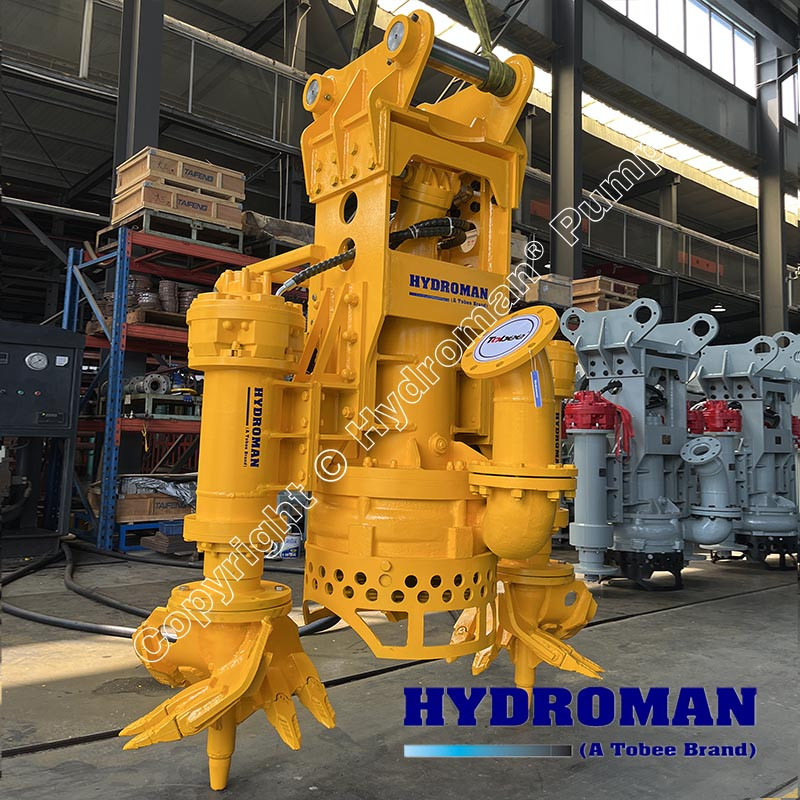

Submersible Slurry Sludge Pump for Desilting Compacted Mud

SPECIFICATIONS:

Size: 80-400mm

Capacity: 50-1500m3/h

Head: 10-50m

Max. particles: 60mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman®  Submersible Slurry Sludge Pump for Desilting Compacted Mud is a submersible type centrifugal slurry sludge pump, submerging into the slurry or mud-filled environment to work. Submersible slurry pump with side agitators essential equipment in industries dealing with heavy sedimentation, compacted mud, and high-density slurries. The ability of submersible hydraulic sludge pump to handle high-density slurries, coupled with robust construction and submersible flexibility, makes hydraulic submersible slurry pump a preferred choice for efficient sediment management.

In various industries such as water conservancy, mining, and construction, the presence of compacted mud can pose significant obstacles to operations. This submersible sludge pump offers a reliable solution by effectively pumping out the mud, ensuring smooth progress of projects. For compacted mud, some advanced submersible slurry sludge pumps are equipped with side agitators treatment mechanism. The hydraulic side agitators, rotates vigorously to break up the compacted mud structure. This action transforms the thick, compacted mud into a more fluid - like slurry that can then be more easily sucked into the hydraulic slurry pump inlet and propelled out through the outlet by the impeller's action.

Hydroman® Submersible Slurry Sludge Pump for Desilting Compacted Mud Application
 Water Conservancy Engineering
Restoring Water Storage Capacity:  By using submersible desilting pumps to remove this mud, the original water storage capacity of rivers, lakes, and reservoirs can be restored.
Improving Water Flow: After desilting by submersible slurry sand pump, the water flow becomes smoother, which helps in improving the self-purification ability of the water body and reducing the risk of waterlogging in river basins.
Protecting Aquatic Ecosystems:  By using submersible dredging pump for removing the mud can reduce the pollution load in the water and create a better living environment for aquatic life.

 Mining Industry
Efficient Slurry Transportation: Hydraulic submersible slurry dredge pump, with their strong pumping capacity and ability to handle high-concentration slurries, can transport these muds to designated treatment sites or storage yards efficiently.
Reduction of Environmental Pollution: High-density sludge submersible hydraulic pump promptly remove and transport the compacted mud, the risk of leakage and pollution to the surrounding environment is reduced.
Land Resource Conservation: submersible mud agitator pumps to transport the mud to centralized treatment facilities, the land occupied by sludge storage can be reduced, saving valuable land resources.

 Construction Engineering
Site Clearing: Quickly removing these muds, keeping the construction site clean and tidy, and creating favorable conditions for the smooth progress of construction.
Foundation Safety Guarantee: Removing the mud in time can reduce the pressure on the slope and ensure the stability and safety of the foundation.
Prevention of Secondary Pollution:  Collectting and transporting the mud to designated treatment places, preventing secondary pollution.
