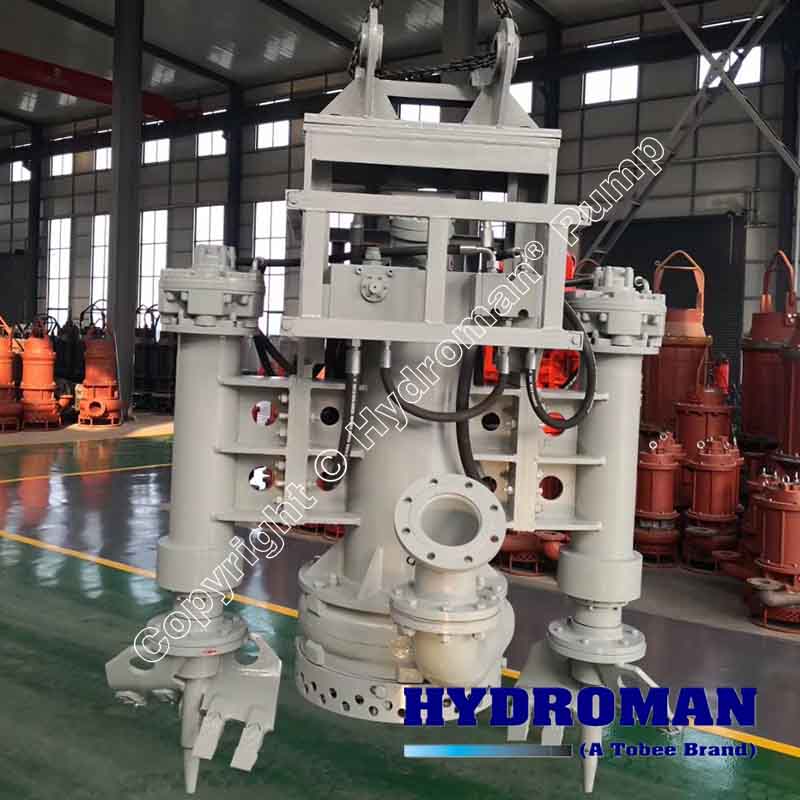

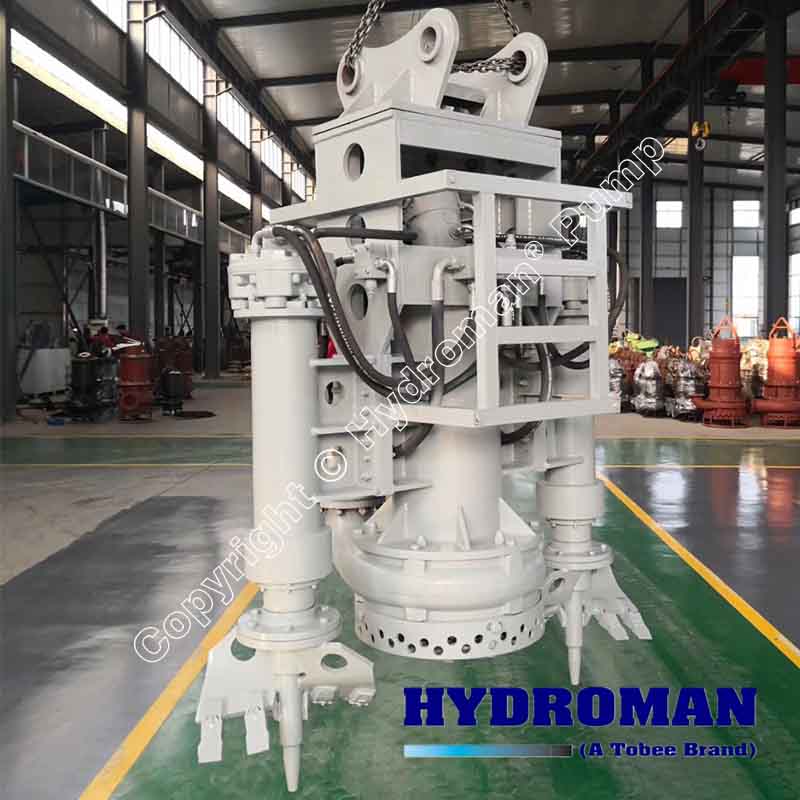

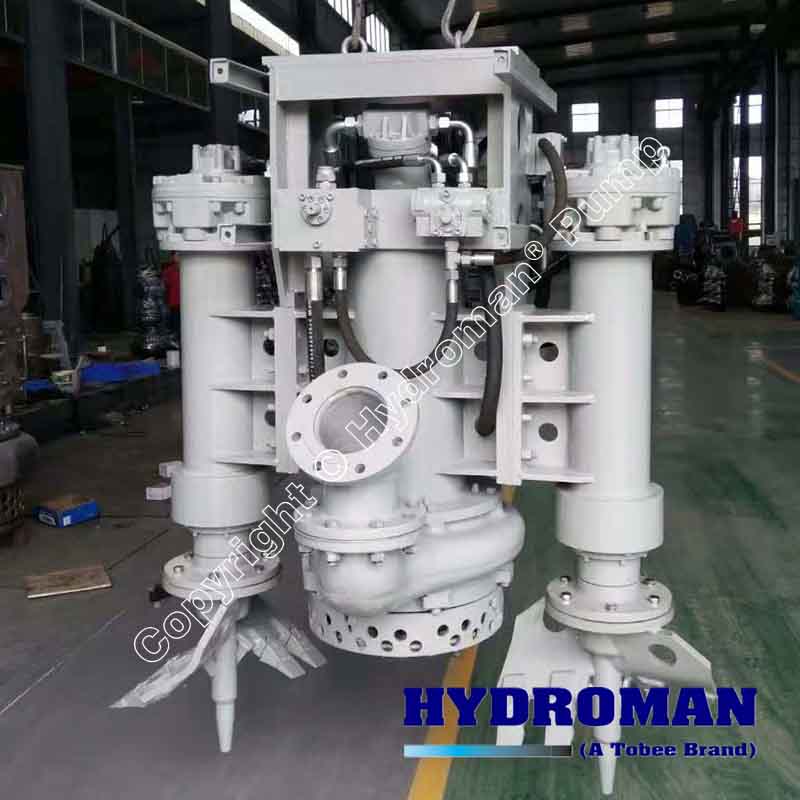

THY85A Hydraulic Slurry Pump


Size: 150mm

Capacity: 200-240m3/h

Head: 22-30m

Max. particles: 60mm

Max. concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ THY85A Hydraulic Slurry Pump with excavators - cutterheads can be employ in various applications like in mining, industry, dredging and construction. With years of submersible experience, Hydroman hydraulic slrury pump meets the requirements in various job sites whether it is in dam dredging, pumping bentonite, sand pumping/sand winning,offshore deep sea dredging etc. THY hydraulic slurry pumps with its cleverly design can handle various job sites.

Design Features:

▪ Continuous operation with high concentration by the agitation of Cutter Heads (agitator) at the bottom of pump.

▪ Hi-Chrome casting iron is used in Impeller, Cutter Head and the other expendable parts and every parts have high durability against abrasion.

▪ The distance between Suction Cover and Impeller is easily adjustable and it allows best operation anytime.

▪ Capacity of THY hydraulic slurry pump can be changeable according to the application. Speed of revolution is changeable by adjustment of amount of oil flowing.

▪ Suitable for dredger/dredging system. THY hydraulic slurry pump provides best performance for dredging, wide range of specification fits to many kind of application.

Hydroman™ THY85A Hydraulic Slurry Pump Applications:

Transfer of slurry, sand & gravel and other solids for

▪ Dredging

▪ Silt-clearing

▪ Water Treatment

▪ Building Services

▪ Sumps and Basements

▪ Mining

▪ Civil Construction

▪ Industry

▪ Municipal

▪ Processing
