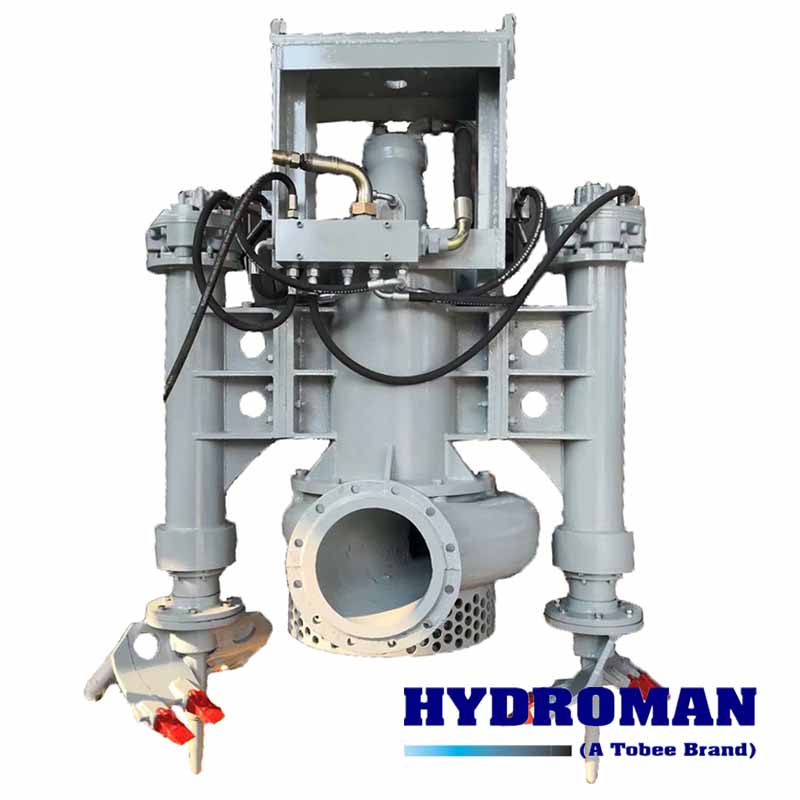

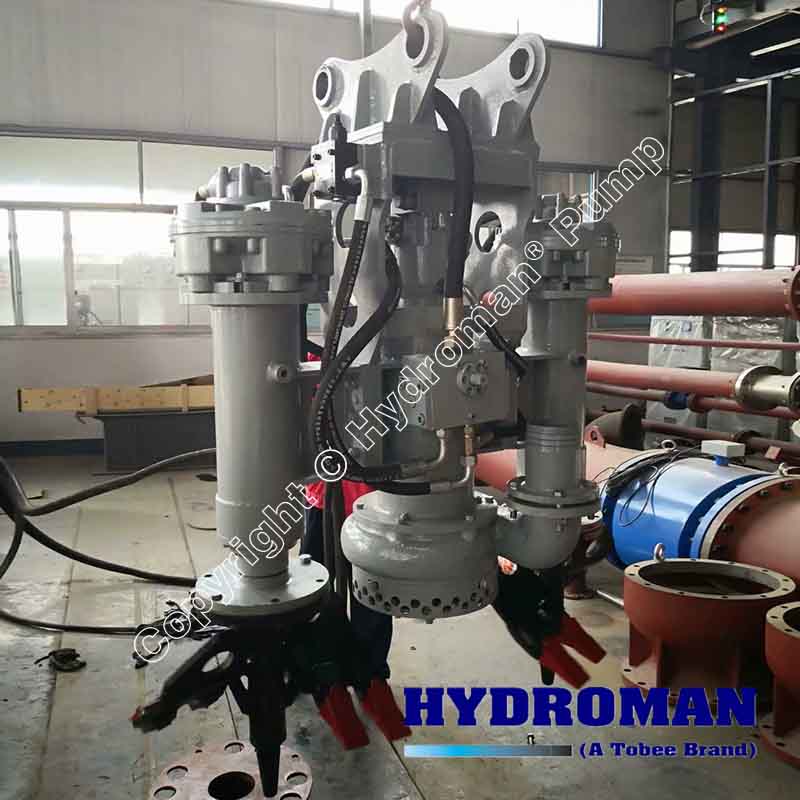

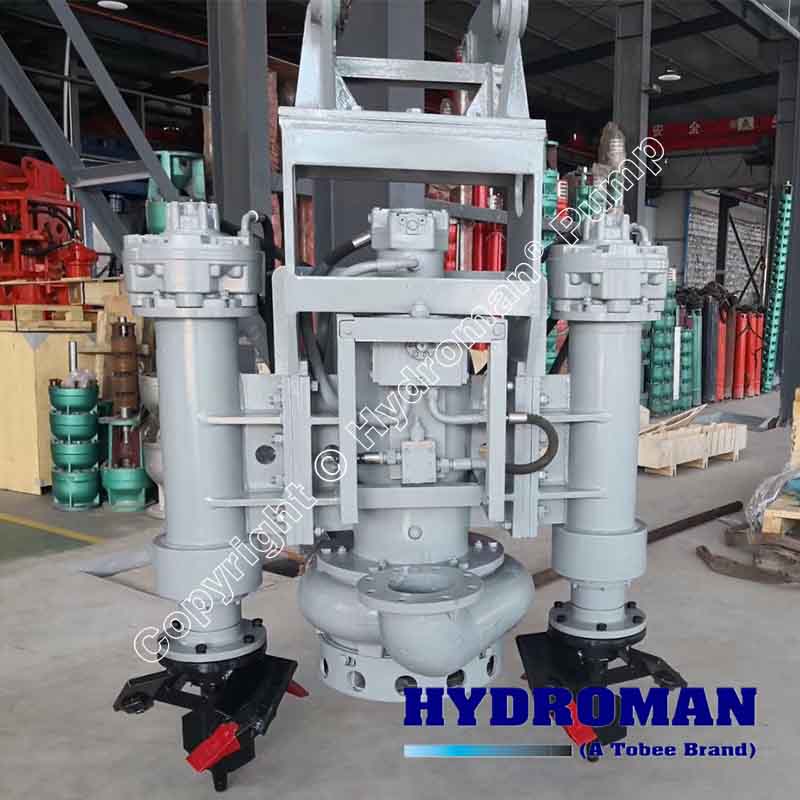

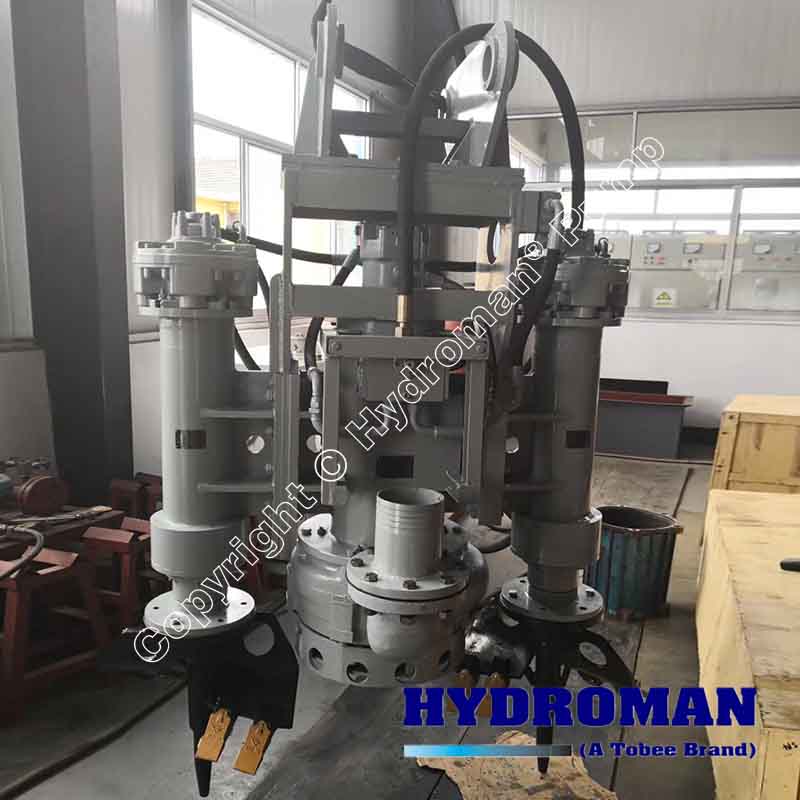

THY85B Hydraulic Slurry Pump

SPECIFICATIONS:

Size: 200mm

Capacity: 350-420m3/h

Head: 16-23m

Max. particles: 60mm

Max. concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ THY85B Hydraulic Slurry Pump is used in process plants, tailings ponds and dredge mining projects around the world. This experience has driven continuous development to reach the best solutions for the mining industry. In addition to hydraulic slurry pumps for very heavy slurry and dredges for wet mining and tailing ponds, Hydroman is constantly working to improve the latest state-of-the-art designs for complex pumping stations


Design Features:


▪ Hydraulic Motor

Reliability and flexibility of hydraulic motors are widely recognized. Our Pumps equipped with hydraulic motors can reach powers up to 400HP and work w ith native variable RPM. No problems of loosing efficiency at different speeds combined with no problems of electroshock from electric devices makes hydraulic pumps the right choice for complex pumping and dredging applications.


▪ Metallurgy and Seals

High quality material ensure long life for all pump components. All wear parts are made in High Chrome alloy to allow extended life between spare part changes. Unique lip seal system with a front deflector to prevent the fine materials penetrating the sealing zone and Teflon layers to resist to high and low pH.


▪ High Efficiency Agitator

The excavating action is created by the Hi-chrome agitator blades. It actually lifts settled sediments which get sucked into the pump, creating a continuous flow of concentrated slurry (up to 70% by weight) out the pump discharge.


▪ Solid Handling up to 120mm

Hydraulic pumps can work in the most difficult situations.Pumps are designed for solid handling up to 120mm ( 5 inches)


Hydroman™ THY85B Hydraulic Slurry Pump Applications:

The THY85B Hydraulic Submersible Slurry Pump is suitable for conveying liquid with slurry, solid particles of gravel, cinders and tailing, river dredging, sand pumping vessel, sewage treatment plants, metallurgical industry, mining, power plants, etc.
