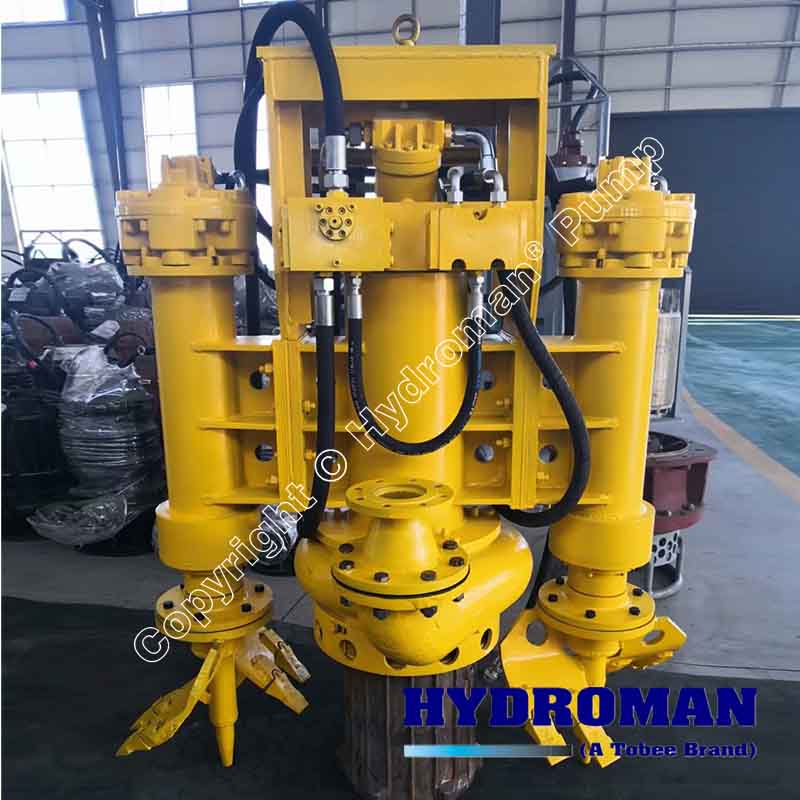

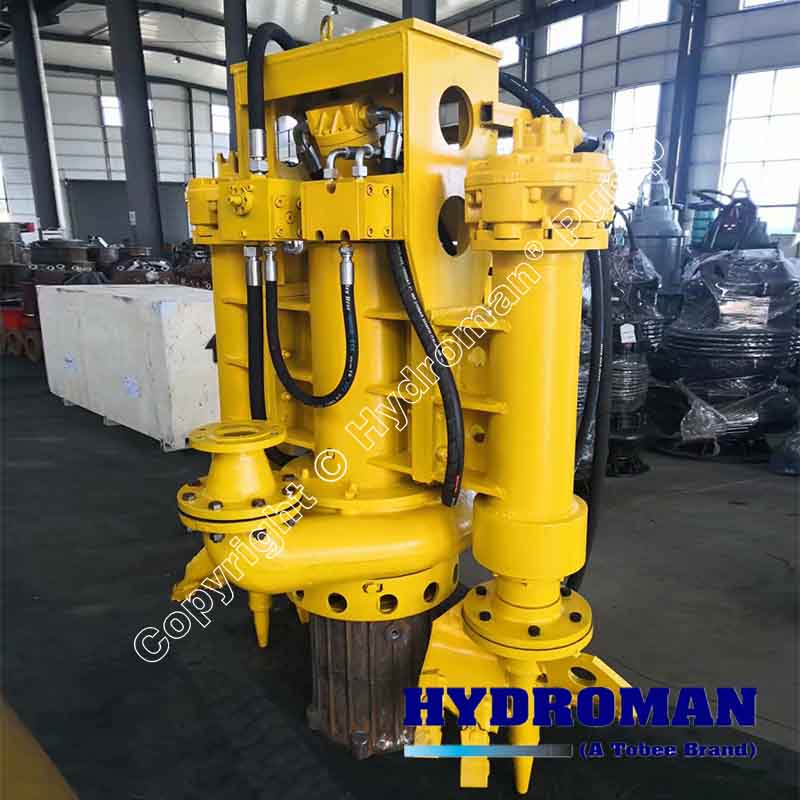

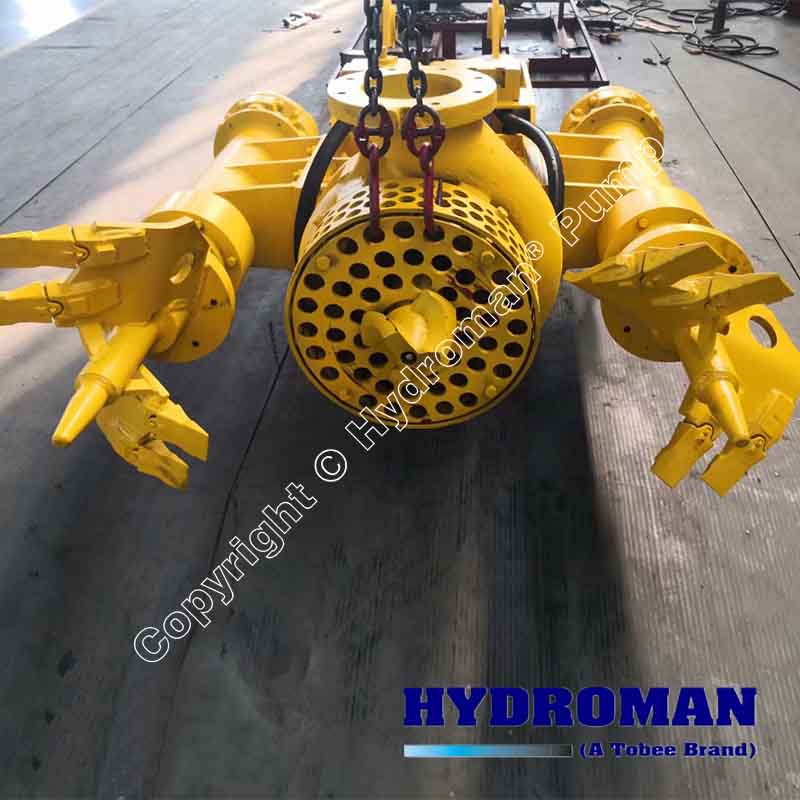

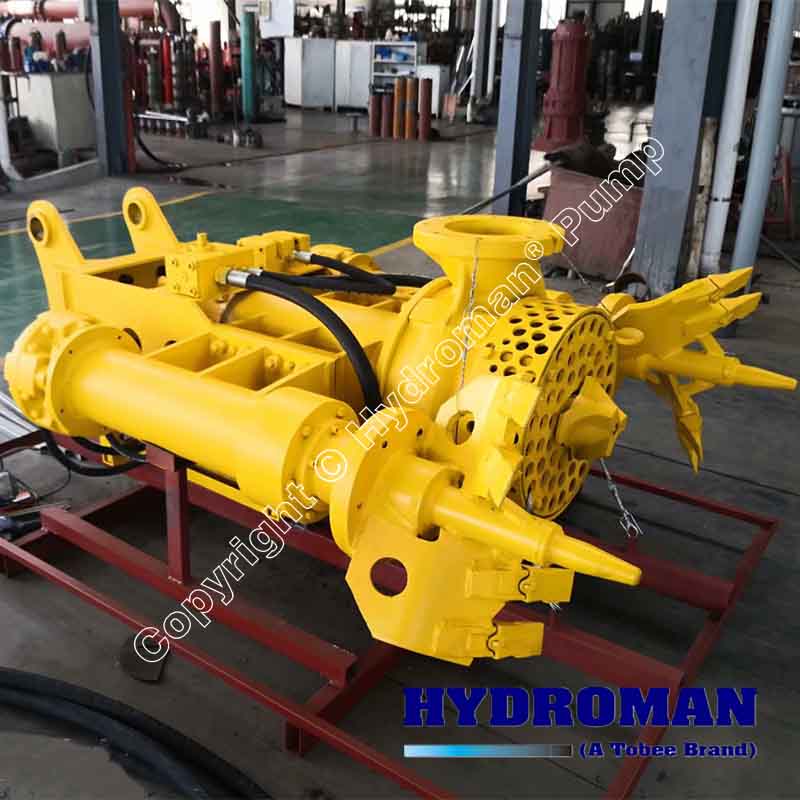

THY85HC Hydraulic Slurry Pump

SPECIFICATIONS:

Size: 250mm

Capacity: 720-860m3/h

Head: 5-7m

Max. particles: 90mm

Max. concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ THY85HC Hydraulic Slurry Pump is designed and used as an excavator attachment taking place of grab bucket when there is too much slurry, mud and not suitable for digging. It is driven by the excavator hydraulic system or a separate hydraulic station to pump slurry, sand, gravel, sludge, mortar etc. Its flow passage components is made of high-strength and wear-resistant alloy. THY85HC Hydraulic Slurry Pump mainly is used for pumping or sucking slurry, sand, gravel, oil or other water mixture, which has extra performance of dredging for sand and gravel. THY85HC is mostly attached to amphibious excavator, swamp excavator, dredging excavators, or cutter suction dredger, bucket dredgers to operate.


Design Features:

▪ The THY pump impeller and housing is made of high-chromium alloy which is particularly applied for dredging sand and gravel and have very good performance on wear resistance, easy to be replaced and low cost.

▪ It can be driven by the diesel engine or the excavators.

▪ The THY pump is impeller submersible pump, including 2 dredging cutter or agitators which loosen the slurry or sand matters for suction.

▪ The THY pump is hydraulically driven instead of electrically driven which has more applications in deep water area and used for dredging different matters.


Hydroman™ THY85HC Hydraulic Slurry Pump Applications:

The THY85HC Hydraulic Submersible Slurry Pump best choice of industries that face the most difficult pumping:

Sewage By-Pass

▪ Lime slurries

▪ Mill scale

▪ Coal runoff sumps

▪ Wash down sumps

▪ Ash transfer

▪ Tailings ponds

▪ Slag pits

▪ Food wastes

▪ Silt removal

▪ Sand & gravel dewatering

▪ Barge & tank cleanout
