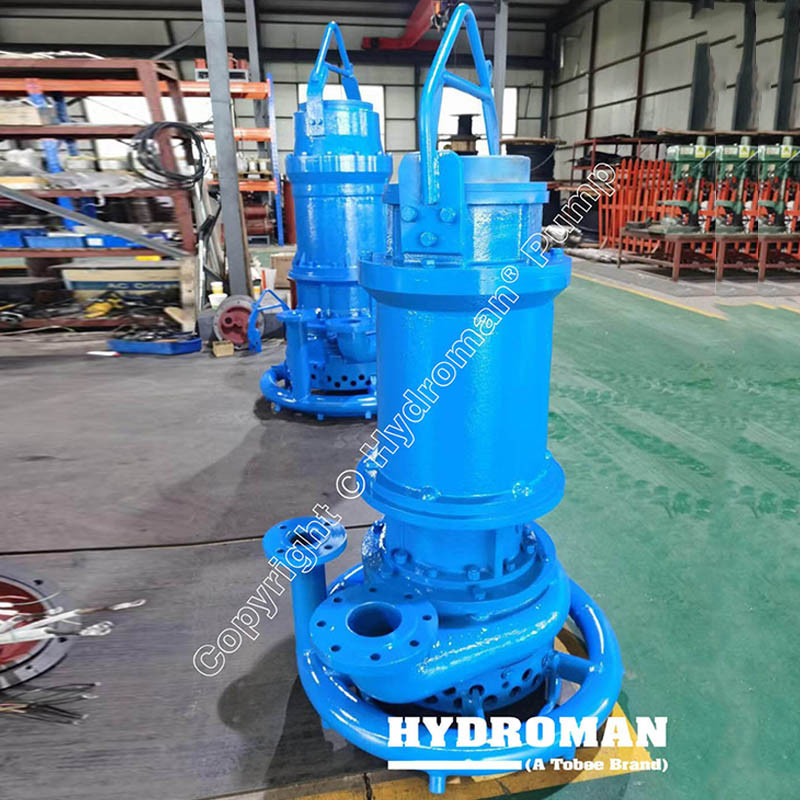

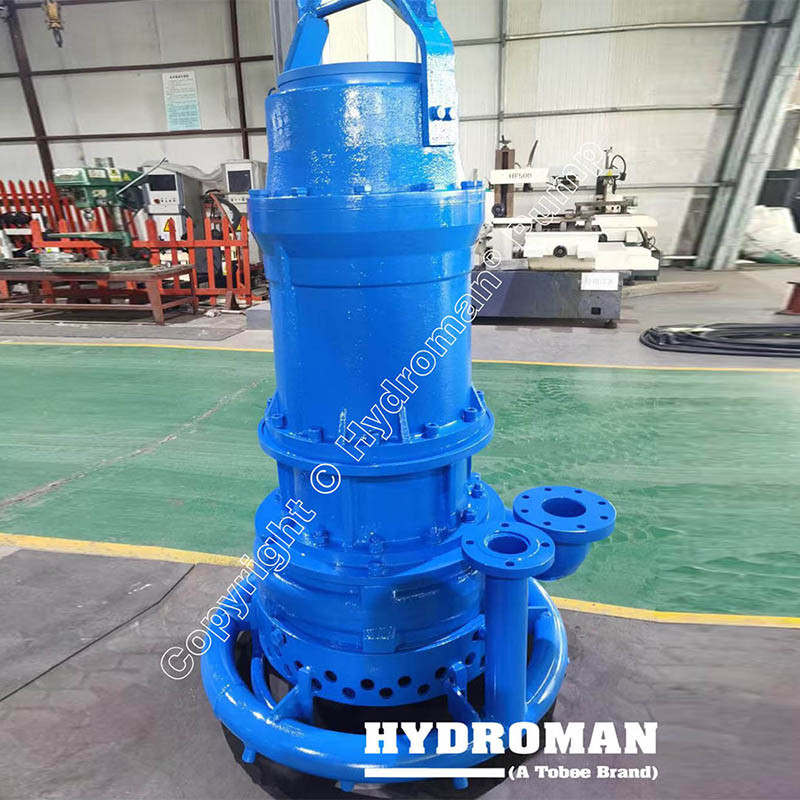

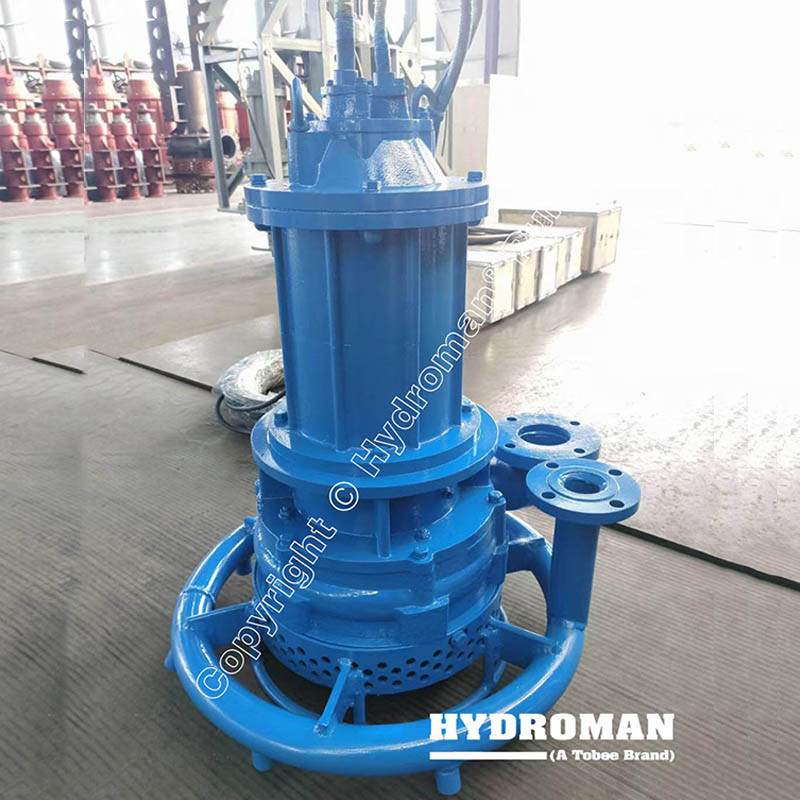

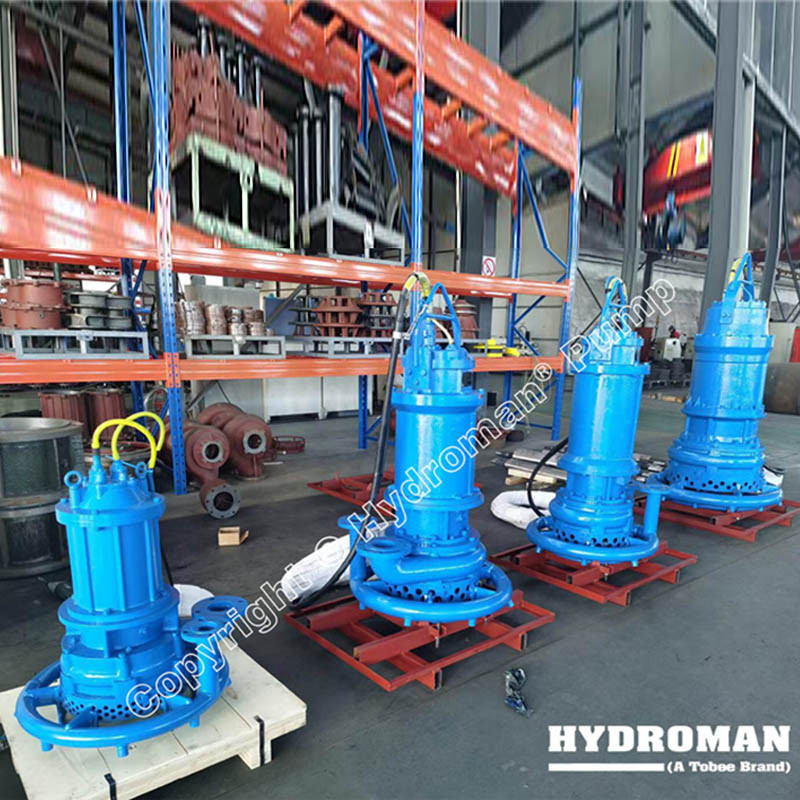

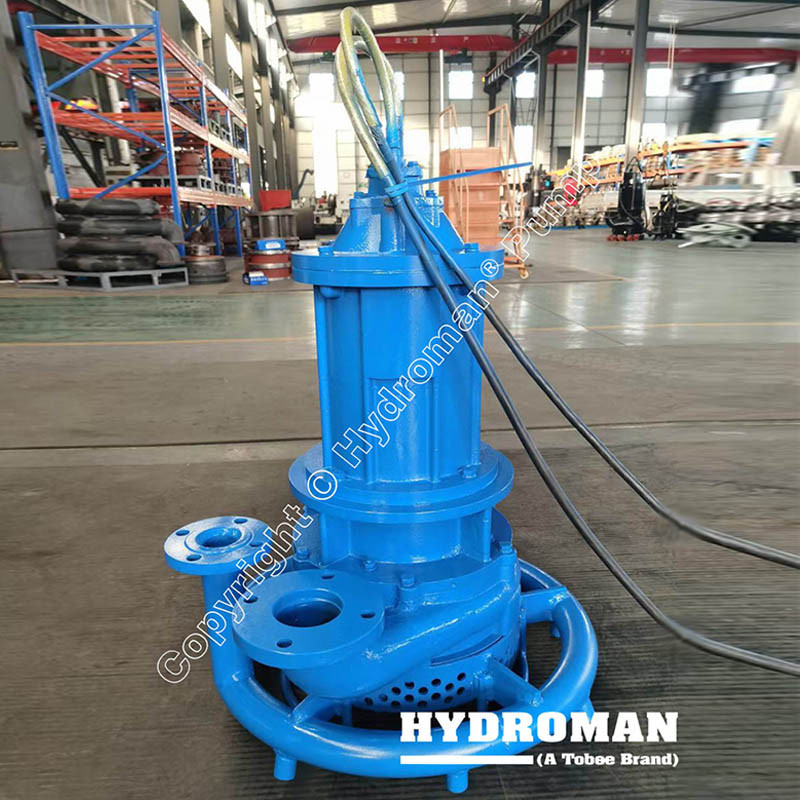

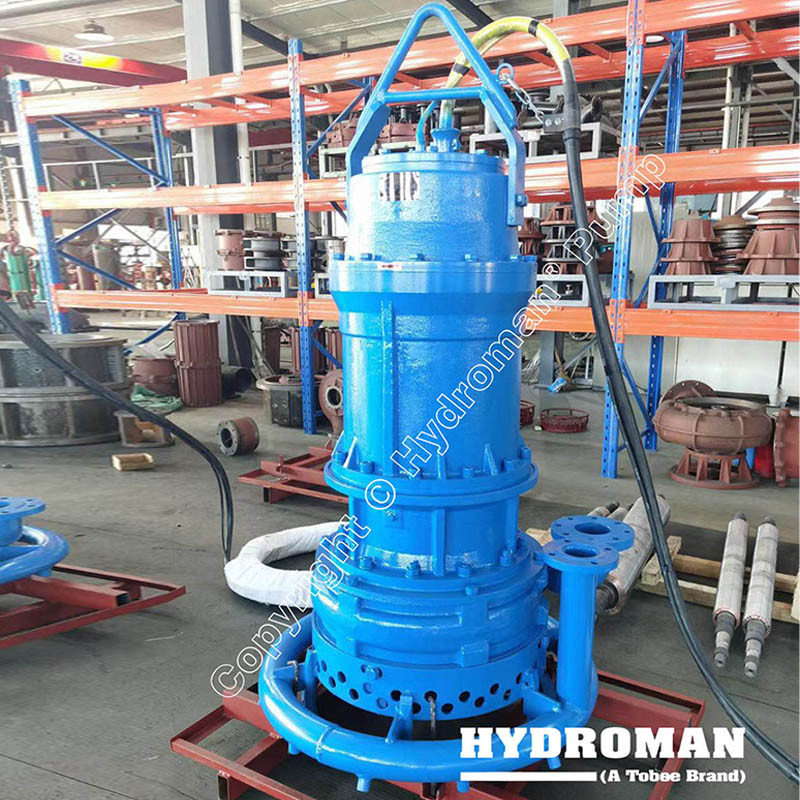

Submersible Mud Desilting Pump with Water Jet Ring


Size: 50-400mm

Capacity: 10-2000m3/h

Head: 8-150m

Max. particles: 60mm

Max. concentration: 70%

Max. working depth: ≤ 150m

Water Jet Ring: High pressure

Sealing arrangement: Double mechanical seal

Materials: Hard chrome alloy, SS304, SS316L, CD4Mcu, Duplex 2205 etc

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ Submersible Mud Desilting Pump with Water Jet Ring can be used in presence of compact, thickened sand, very dry or clay materials. Water Jet Ring can be added to the submersible slurry pump stand to add high pressure water near the pump suction to further suspend settled out solids by the water jetting action of the nozzles providing the most effective removal of the large solids and reducing the potential of “sanding in the sump.

Hydroman® iShot™ Water Jet Ring for submersible slurry pump is available in electric and hydraulic version,consists of a Jets Ring Frame mounted on the submersible mud pump strainer stand, applied in correspondence with the filter of the dredging unit and a centrifugal water pump for feeding the ring with a horizontal axis. Stainless Steel option available, for sea water and aggressive mining water. The high pressure water jet ring also helps to further prevent the material to blocking the pump inlet in very critical situation for maintaining constant production, e.g. high depth dredging.

Features for Submersible Mud Desilting Pump with Water Jet Ring:

Submersible work Without influence of suction head.

No noise, keep the silence of your work station

With agitator, no need extra stirring devices, more convenience for operating.

It need not to build pump house.

Directly works on the surface of the slurry, with more efficiency to deliver slurry.

Submersible Desilting Pump with Water Jet Ring can handle High Concentration Solids, High Viscosity and Specific Gravity Fluids and High Abrasive and Corrosive Materials

Low Ownership Cost and High Production

Submersible Mud Desilting Pump with Water Jet Ring in Application:

Power Plants
Sand & Clay Mining
Mineral Extraction & processing
Coal pile run-off
Coal tunnel wash down sumps
Bottom ash sumps
Fly ash & precipitator sumps
Ash pond float sumps
Plant waste clean-up sumps
Kaolin clay
Sand transport
Clarifier sludge
Red mud decanting
Limestone Slurries
Ball and sag mill runoff
Cyclone feed
Magnetite recovery
Concentrate sump
Red mud decanting
Thicker Drain or thicker underflow sump
Slurry transport tailing sumps
Mill rougher sumps
