Submersible Sand, Sludge and Slurry Pumps


Size: 50-400mm

Capacity: 7-2400m3/h

Head: 7-120m

Power: 0.75-315kw

Max. particle: 120mm

Agitator or Cutter heads: Available

Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ Submersible Sand, Sludge and Slurry Pumps made to pump thick mud and other similarly viscous mixtures of liquids and solids, submersible sludge pumps are used for moving sludge or light slurry, tank clean-outs, trench and pond cleaning, mining dewatering operations, and various other applications. Submersible slurry pump is the catch-all of submersibles. Capable of pumping the most abrasive media with high solids content, submersible slurry pump is the workhorse for quarries and settling pond operations,these submersible slurry pumps are used for everything from dewatering to dredging. Sand is one of the most abrasive materials for any type of pump to manage. The beating of sand on the impeller, volute, and even the hose cause extreme wear and tear on pump components, Hydroman submersible sand pump wear components are built with a high chromium iron, an extremely strong alloy that is mainly used in mining, milling, earth-handling, and manufacturing industries which require materials with exceptional wear and corrosion resistance. Hydroman™ has expertise in manufacturing a great variety of Submersible Sand, Sludge & Slurry Pumps as per the client's industrial requirements.

Hydroman™ Submersible Sand, Sludge and Slurry Pump Advantage

Submersible Slurry pump for abrasive liquids.

Submersible Sand Pump made of Hardened alloy wet‐end materials for heavily contaminated liquid.

Submersible Sludge Pump is extra thick wet end components for extended wear life.

Double internal mechanical seals with silicon carbide faces.

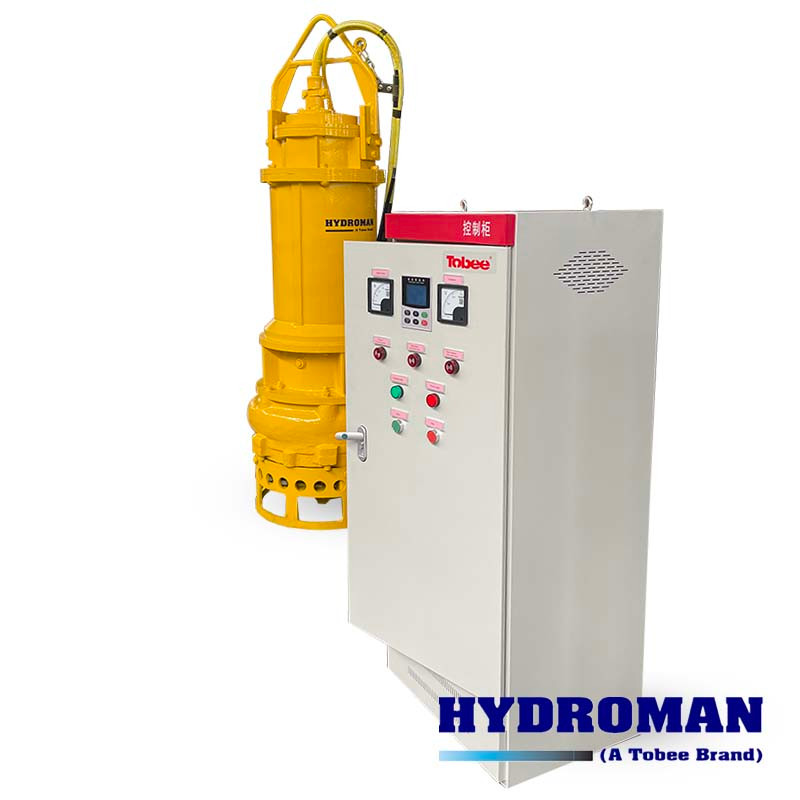

Submersible Sludge Slurry Pump built-in thermal,amperage sensing and thermal protection.

Submersible Sand Slurry Pump handle solids up to 120mm.

SUS 410 motor shaft, 3 phase, 4 pole motors,Class F motor insulation.

Replaceable Wear Liner Low maintenance cost.

Heavy Duty Power End Increased mean time between failures.

External agitatoir adjustment maintains original efficiency; simple and fast.

Hydroman™ Submersible Sand, Sludge and Slurry Pump Application:

Construction sites

Mining and industrial sites

Mines and quarries

Sand pits and sedimentation tanks at wastewater treatment plants

Transfer of bentonite slurry and sandy sludge

Transfer of water containing mud and sand

Wastewater treatment plants

Transfer of water high in slurry, sand and abrasive particles

Bottom deepening

Cleaning of sand pits, sludge tanks and tailings’ ponds

Transfer of sandy sludge and slime

Harbor construction

Silt Removal

Sand and Gravel Pumping

Barge and Tank Clean-out

Lime Slurry

Coal Runoff Sumps

Food Waste

Hydroman™ Submersible Sand, Sludge and Slurry Pump Showing Video:
