SPECIFICATION:
Size: 150-350mm
Capacity: 400-800m3/h
Head: 10-30m
Power: 22-110kw
Max. particle: 120mm
Agitator or Cutter heads: Available
Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.
product details
Hydroman™ Submersible Agitator Pumps are ideal for dewatering in sand‚ silt‚ grit chambers and other abrasive applications. Submersible dewatering agitator pump feature a built-in agitator that mixes settled solids with pump water to restore sump or basin volume.
Submersible Agitator Pump with 4-pole motor insure reliable operation and extended working period under rough conditions. Hydroman Submersible Agitator Slurry Pump equipped with high-chrome alloy impeller combined with agitator are suitable for transferring of water with sand and slurry and are used in mining, construction and municipal wastewater treatment applications for cleaning of sand pits, bottom deepening, pumping of water containing great amount of slurry, sand and abrasive particles.
Submersible Agitator Pump Parameter:
Model | Capacity | Head H | Power P (kw) | Speed N | Eff. η | Max. Particles (mm) | Size |
250TSQ | 400-800 | 8-45 | 22-200 | 980-1460 | 50-70 | 120 | 6-14 |
Submersible Agitator Pump Application:
Harbors and Maritime Works | Mining Industry | Transfer Sand and Gravel |
Removal of silt/sand in marinas Cleaning and maintenance of harbors Reclaiming beaches River, channel, lake dredging Dam maintenance Contaminated sediments removal Harbor dredging Off-shore and high depth dredging | Mine tailings dredging Gold tailing reclamation Iron ore tailing reclamation Ball mill sumps Settling and collection ponds dredging Underdround slimes collection ponds Conveyor tunnel sumps Coal tailing reclamation Open pit slimes removal Crusher sumps Grinding area sumps Flotation area Track wash sumps Removal of material from thickener Oil Sands tailings managements Environmental dredging | Deep sea dredging operation (up to 150 m deep) High depth dredging Sand extraction Ocean sand mining Pumping sand and gravel (up to 120mm) Environmental dredging Contaminated sediments dredging |

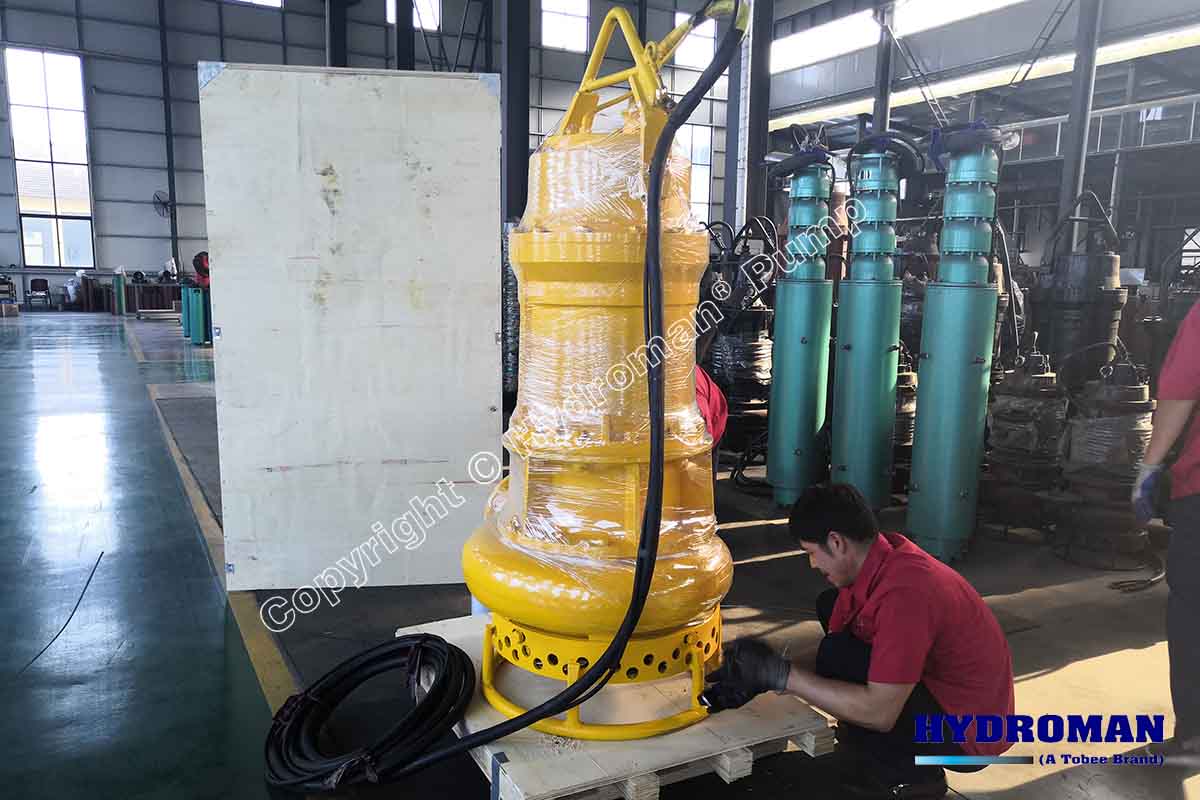

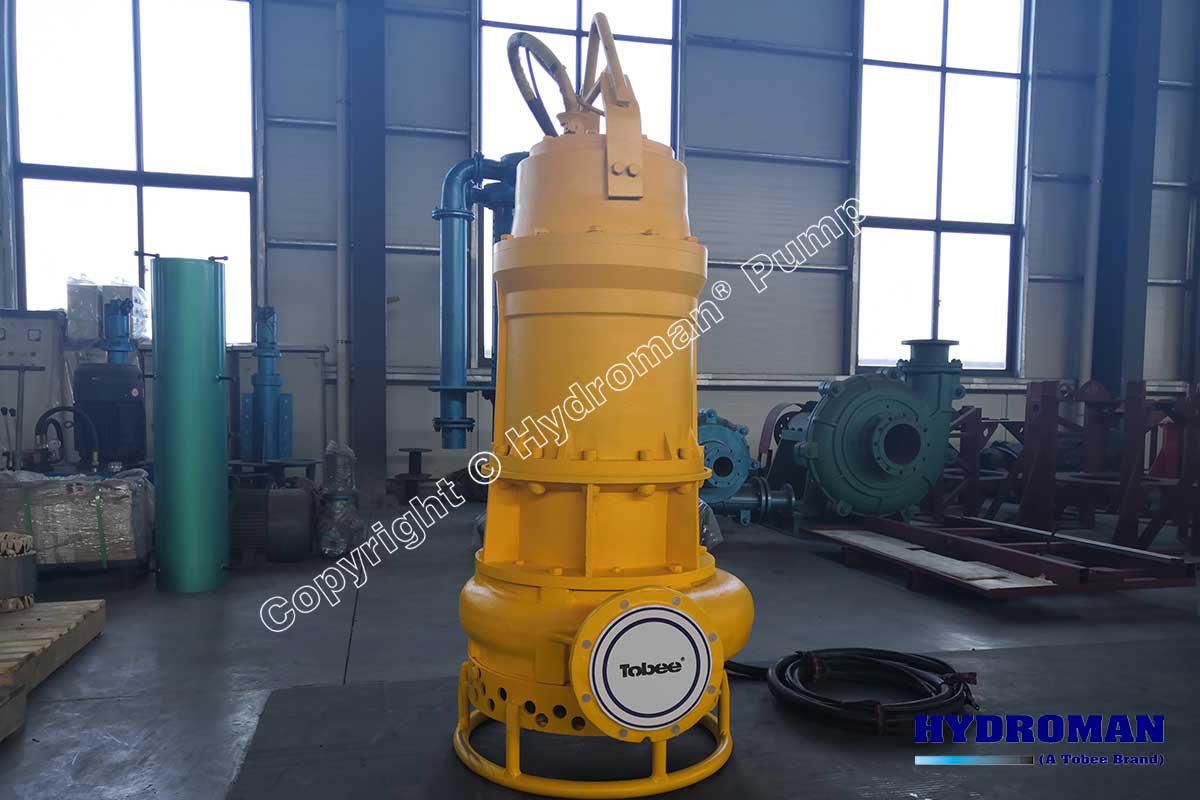

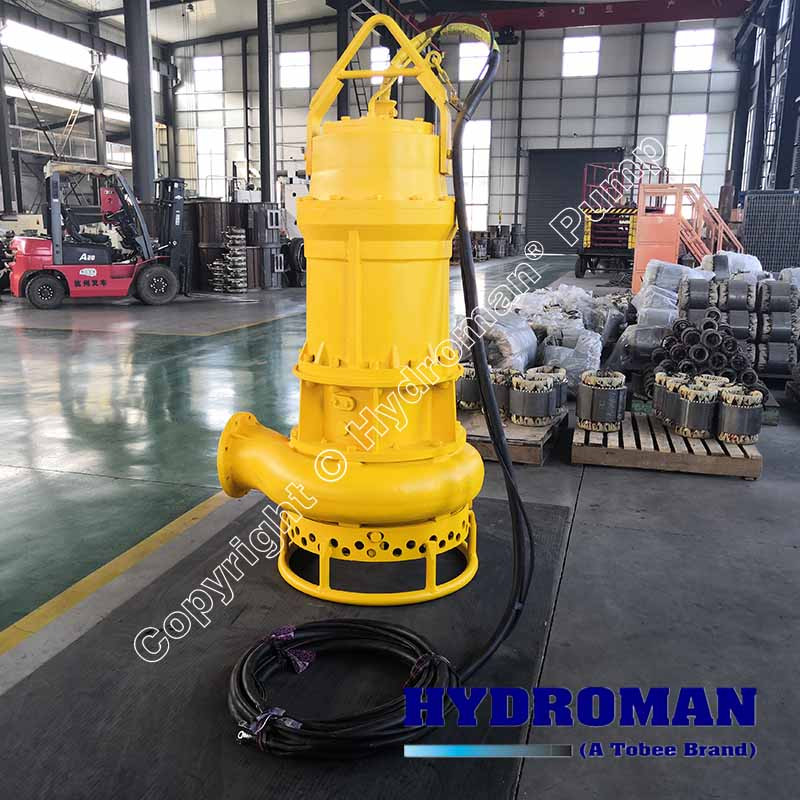

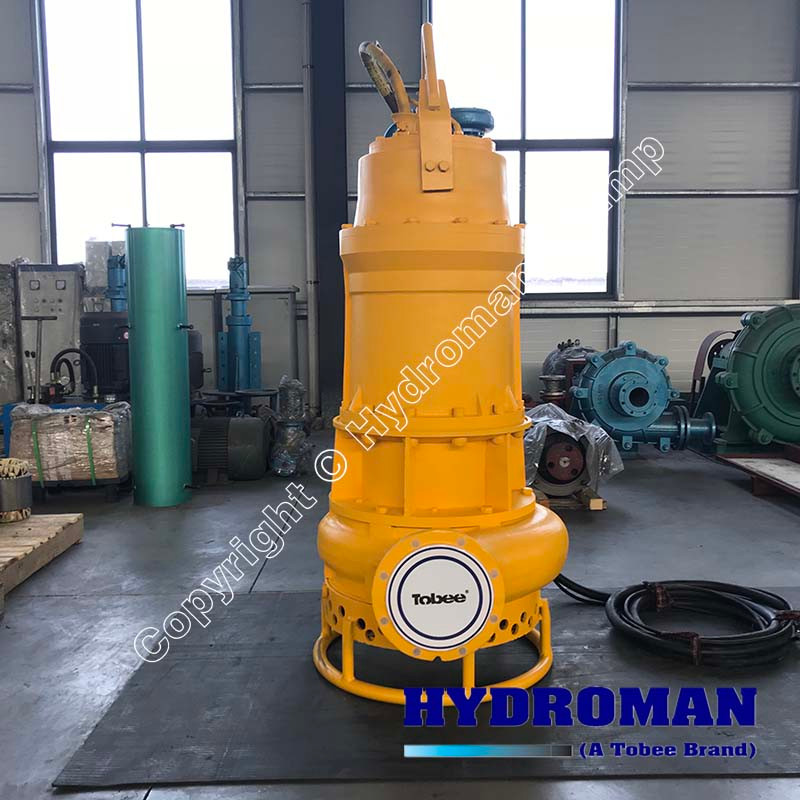

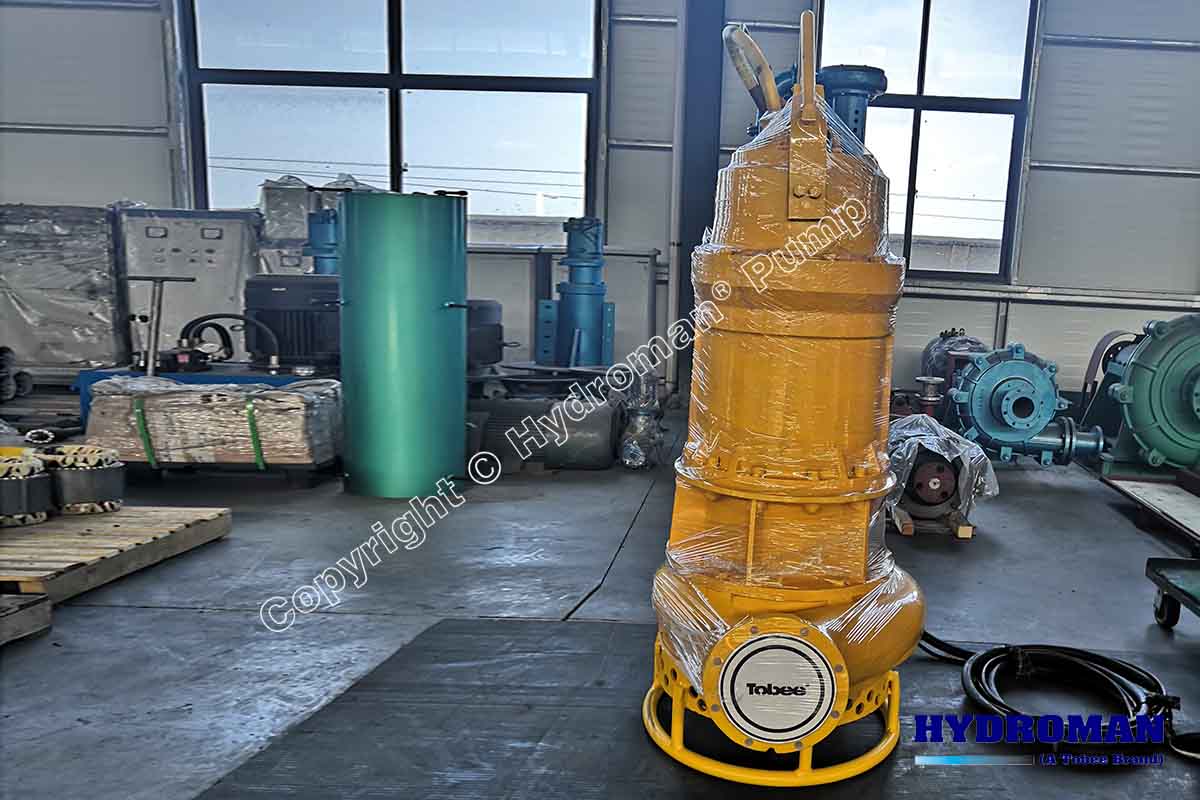

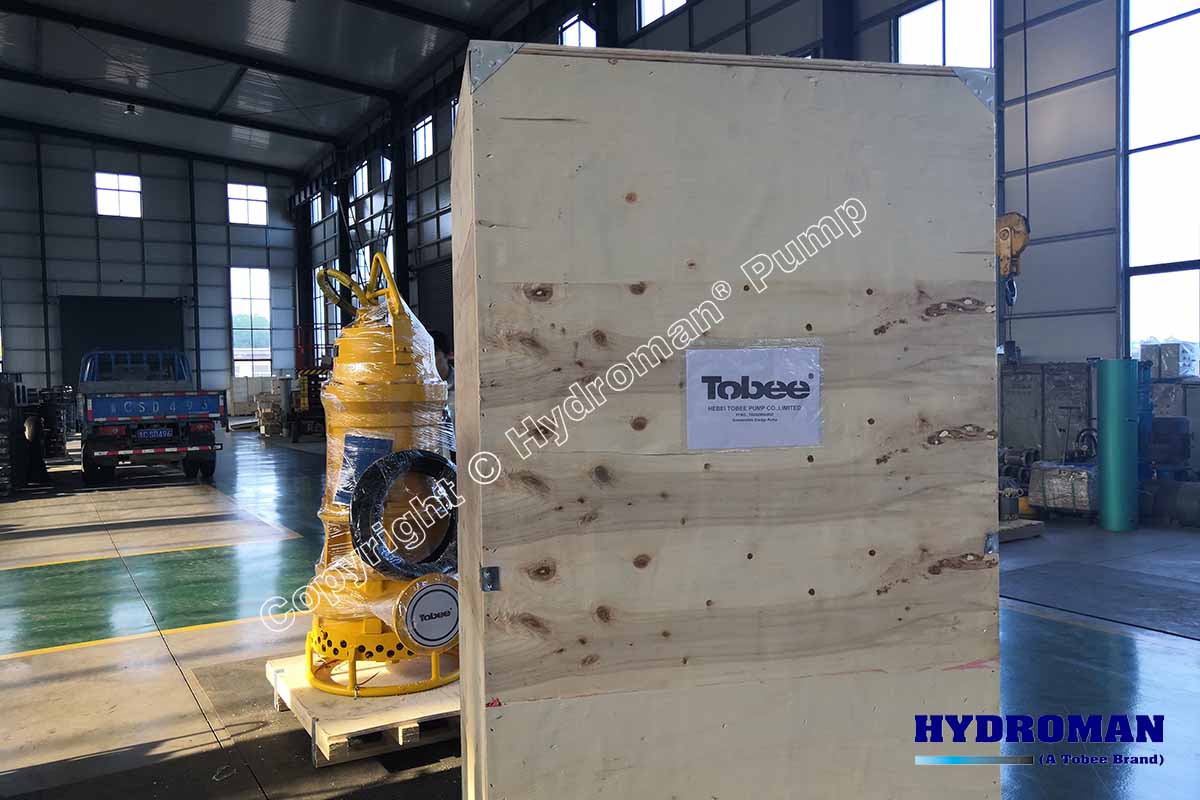

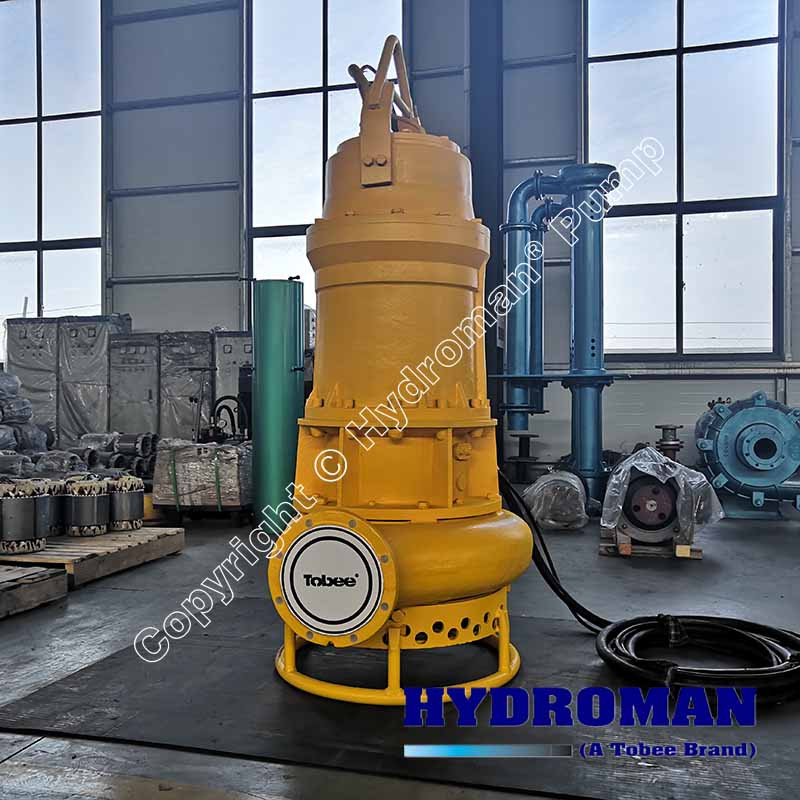

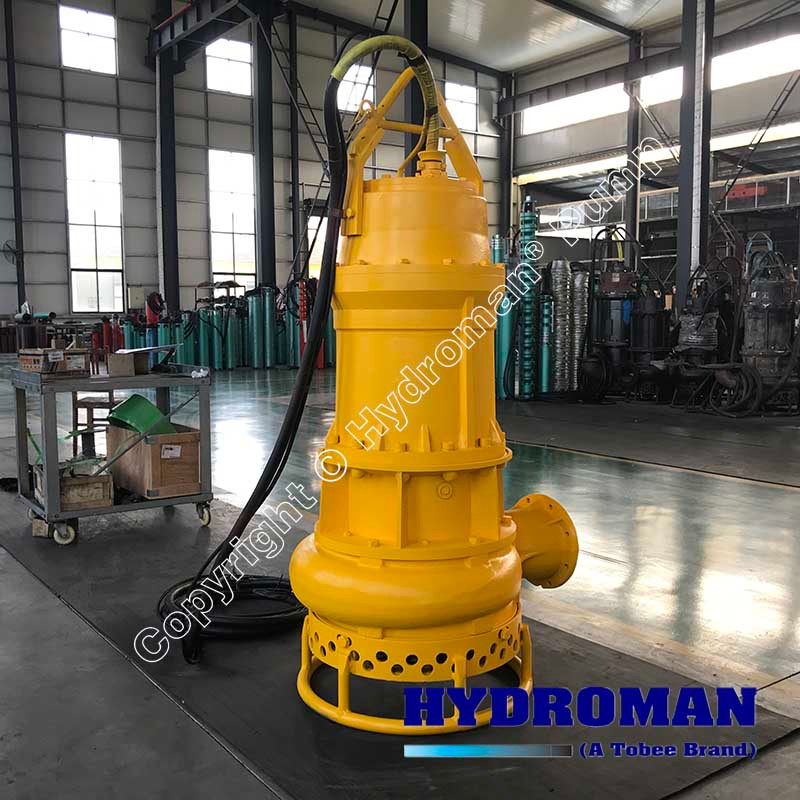

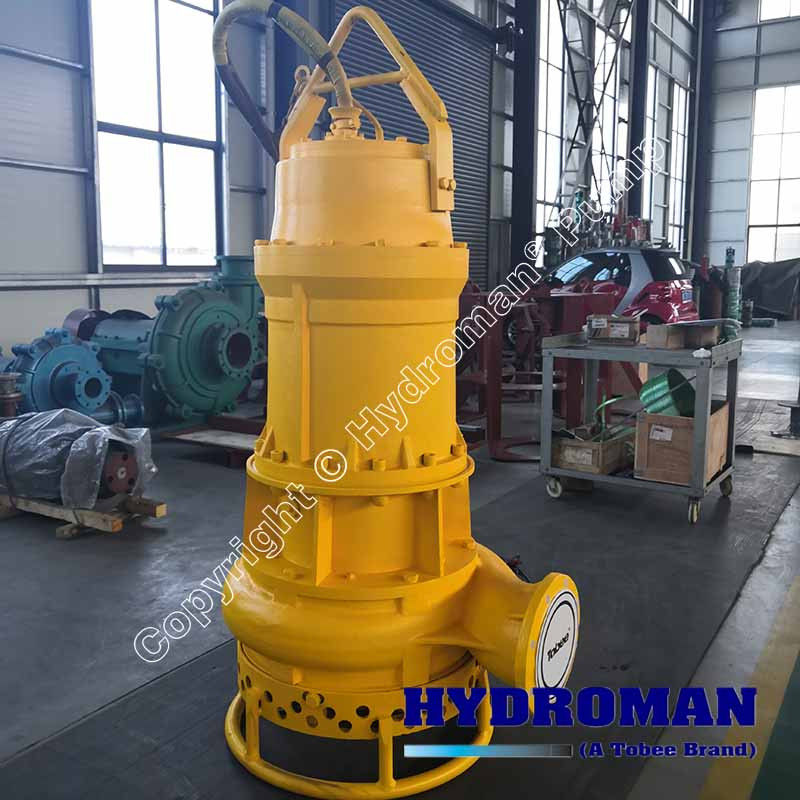

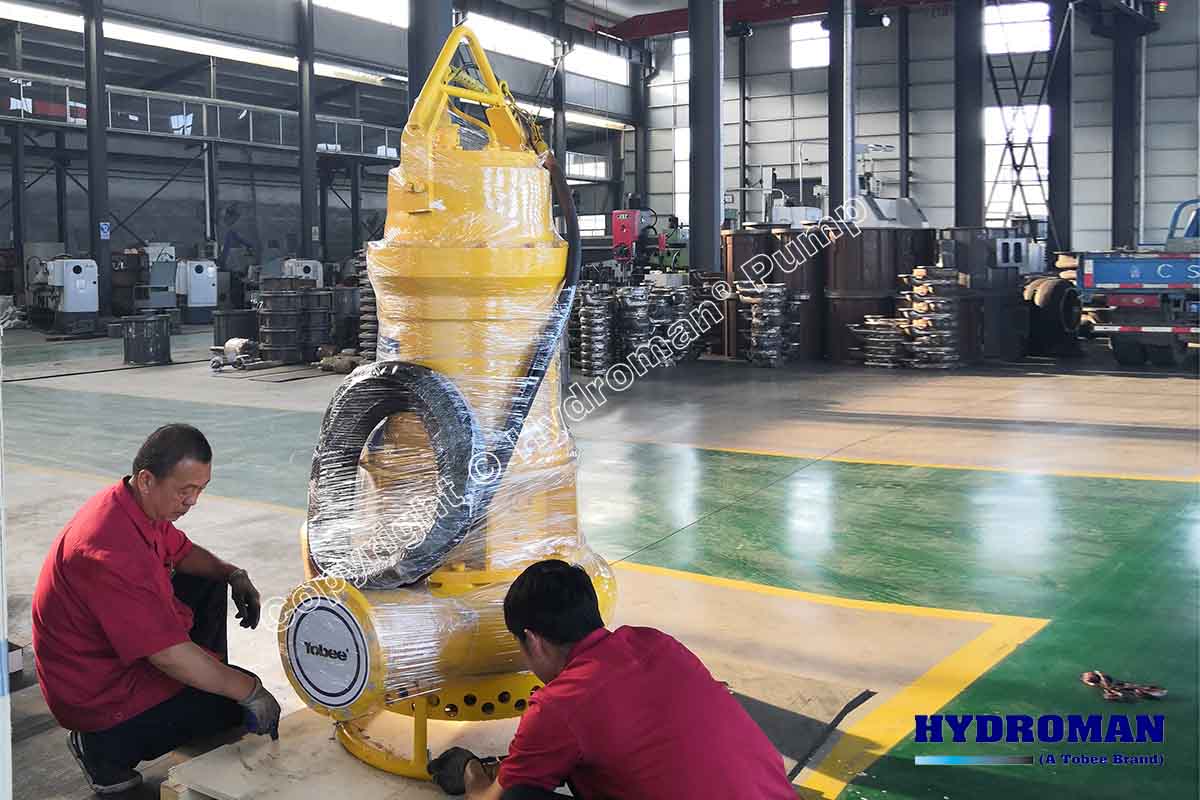

Submersible Agitator Pump Photos:
