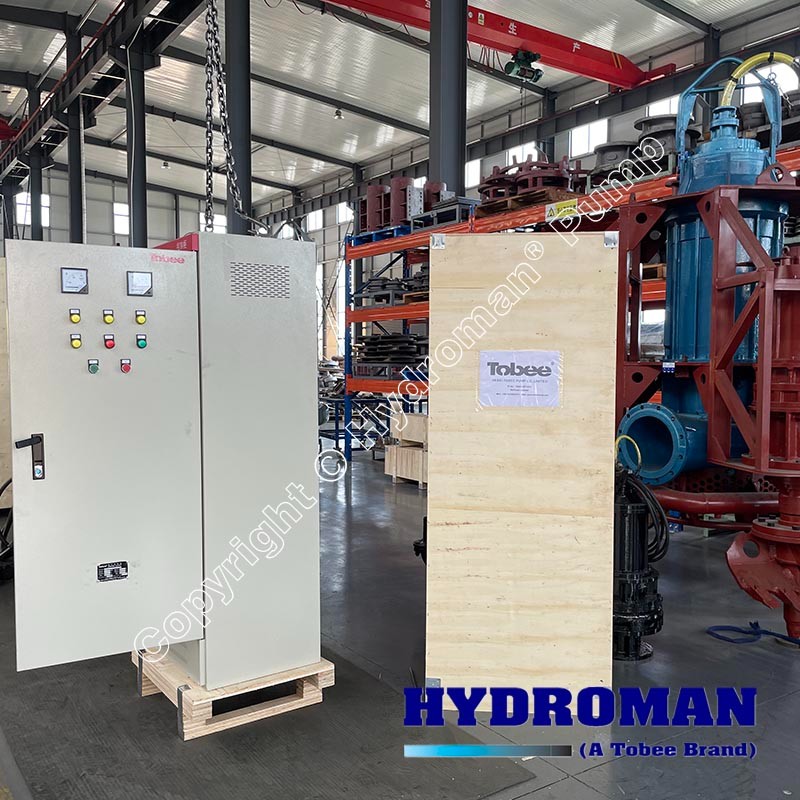

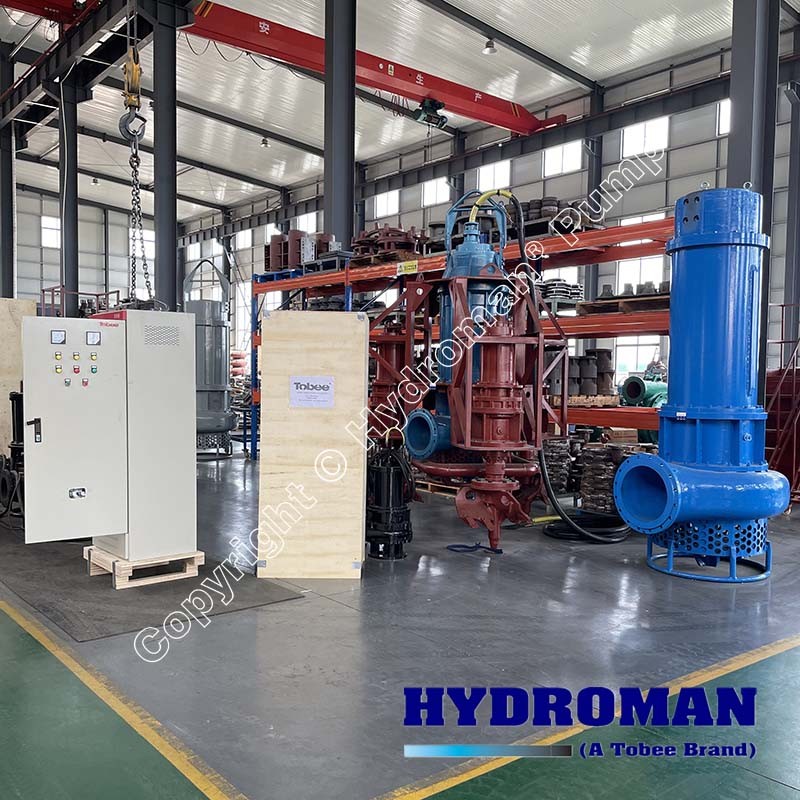

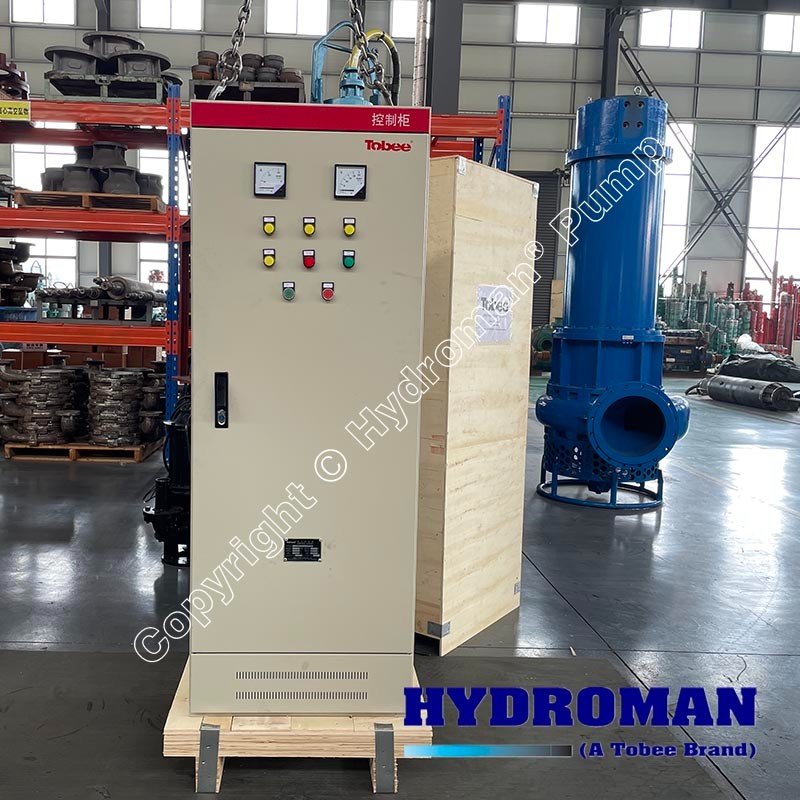

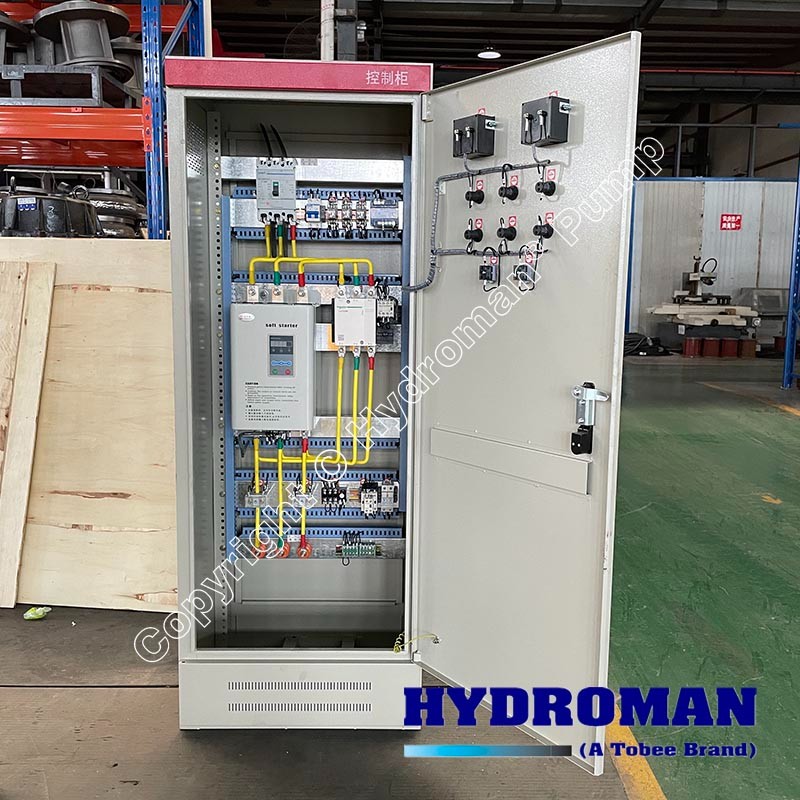

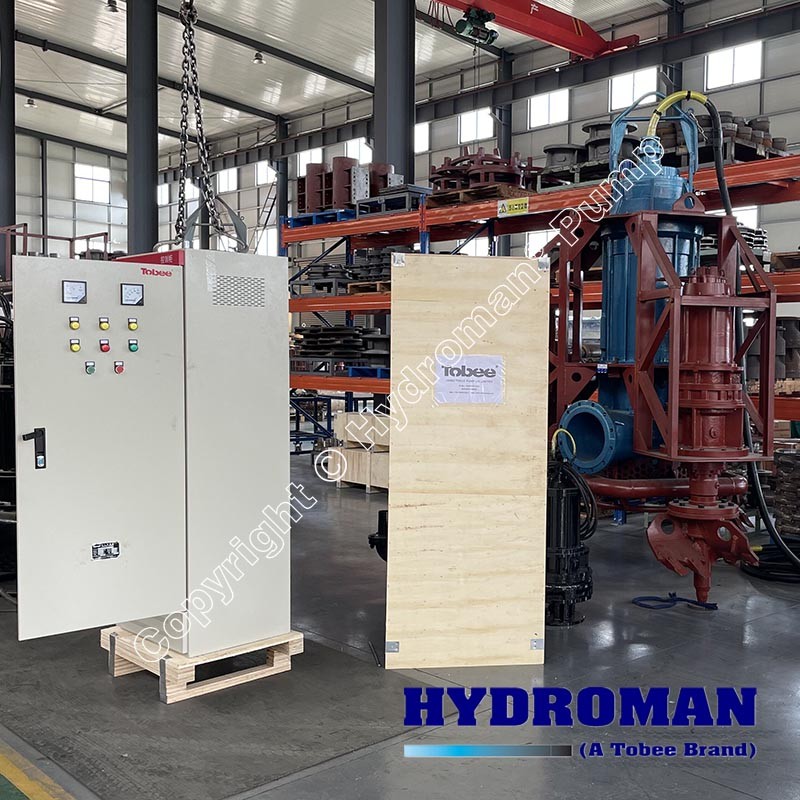

Soft Stater Control Panel

Power Range :2.2-600KW

Supply Voltage : 380v 3-phase ± 10%

Load characteristics : Input supply voltage 380V/50HZ

Applicable motor : 2.2-600KW

Rated operating current : 4-1200A

Starting : soft start, pulse start, full pressure start

Starting time:3-120S

Starting voltage : 20-90%U

Starting current : Motor full load current (FLA) 150% -600% (adjustable)

Stop mode : soft stop, transit stop

Downtime : 0-60S

Run : normal operation, energy-saving operation

Protection: undervoltage, overload, short circuit, lacking phase ,current imbalance etc.

Ambient temperature range : -20 ℃ ~ +45 ℃

Relative humidity : 20-90% RH non-condensing

Installation height : up to 1000 m above sea level, the derating is required if more than the run.

Sales@tobeepump.com +86 180 3203 4573

Inquire Now Next Product

product details

WePanel Soft Starter Control Cabinet is present in a variety of submersible slurry pump unit according to the characteristics of the developed soft-start control device, the control can be achieved via the soft starter submersible pump motor smooth start and smooth stop. Various submersible slurry pumps with soft starter control cabinet, extend the service life of the submersible pump unit and improve submersible dredge pump inspection cycle, reducing the overall cost of the submersible slurry pump unit.

WePanel™ WeSs Soft Starter Control Cabinet Specificaitons:

Motor Model	Power (kW)	Voltage (V)	Current (A)	Efficiency (%)	power factor (COS Ø)	Hertz (Hz)	Control Panel
1222/4-22	22	380	47	84	0.80	50Hz	WeSs-22kW
1222/4-25	25	380	53	84.5	0.80	50Hz	WeSs-30kW
1222/4-30	30	380	64	85	0.82	50Hz	WeSs-30kW
1222/4-37	37	380	78	85	0.82	50Hz	WeSs-37kW
1222/4-44	44	380	91	86	0.82	50Hz	WeSs-45kW
1222/4-55	55	380	113	86	0.82	50Hz	WeSs-55kW
1222/2-75	75	380	152.3	87	0.86	50Hz	WeSs-75kW
1222/2-87	87	380	182.8	87	0.86	50Hz	WeSs-90kW
1222/2-100	100	380	203.1	87	0.86	50Hz	WeSs-110kW
1228/2-120	120	380	234	88	0.89	50Hz	WeSs-132kW
1228/2-140	140	380	272	88	0.89	50Hz	WeSs-160kW
1234/2-180	180	380	351	88.5	0.88	50Hz	WeSs-185kW
1234/2-220	220	380	420	89.5	0.89	50Hz	WeSs-220kW
1234/2-260	260	380	496	89.5	0.89	50Hz	WeSs-260kW
1234/2-300	300	380	432	90	0.89	50Hz	WeSs-300kW
1234/2-350	350	380	502	90.5	0.89	50Hz	WeSs-350kW
1234/2-410	410	380	585	90.5	0.89	50Hz	WeSs-410kW
1222/4-22	22	460	41	84.5	0.80	60Hz	WeSs-22kW/460V
1222/2-30	30	460	55	81.5	0.84	60Hz	WeSs-30kW/460V
1222/2-37	37	460	66	83.5	0.84	60Hz	WeSs-37kW/460V
1222/2-44	44	460	77	84	0.85	60Hz	WeSs-45kW/460V
1222/2-55	55	460	95	85.5	0.85	60Hz	WeSs-55kW/460V
1222/2-64	64	460	110	85.5	0.85	60Hz	WeSs-75kW/460V
1222/2-87	87	460	151	87.5	0.85	60Hz	WeSs-90kW/460V
1222/2-100	100	460	167	87.5	0.86	60Hz	WeSs-110kW/460V
1228/2-120	120	460	205	86	0.87	60Hz	WeSs-132kW/460V
1228/2-140	140	460	232	87	0.87	60Hz	WeSs-160kW/460V
1228/2-180	180	460	290	87.5	0.90	60Hz	WeSs-185kW/460V
1234/2-220	220	460	363	87.5	0.87	60Hz	WeSs-225kW/460V
1234/2-260	260	460	430	87.5	0.87	60Hz	WeSs-260kW/460V
1234/2-300	300	460	495	87.5	0.87	60Hz	WeSs-300kW/460V
1234/2-350	350	460	564	88.5	0.88	60Hz	WeSs-350kW/460V
1234/2-410	410	460	665	88.5	0.875	60Hz	WeSs-410kW/460V
