Dredge Pump Control Panel

Power Range:  2.2 ~ 300kW

Power voltage: 380V ± 10%, 440V ± 10%, 50Hz / 60Hz

Applicable motor: 3 ~ 300 KW

Rated current: 6 ~ 600 A

Starting time: 3 ~ 60s

Starting voltage: 20 ~ 90%U

Starting current: Motor full load current (FLA) 150% -600% (adjustable)

Stop mode: Soft stop, Slow stop

Downtime: 0 ~ 60s

Protection: Underload, Undervoltage, Overload, Short circuit, Default Phase, Current unbalance etc

Ambient temperature:  -20 ℃ ~ +45 ℃

Relative humidity: 20-90% RH No condensation

Protection Class: IP20

Installation height: ≤1000m

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

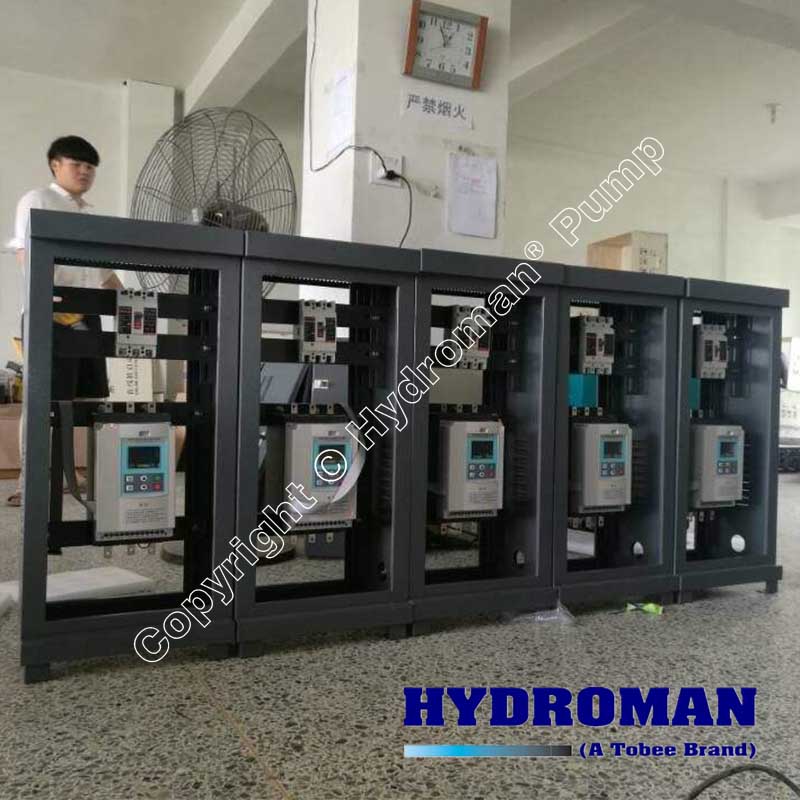

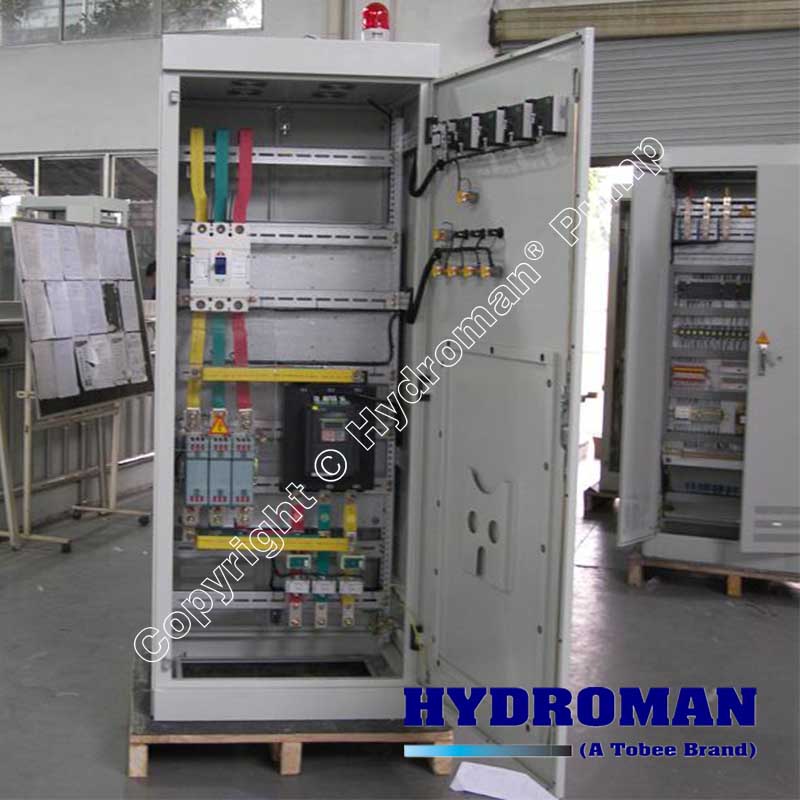

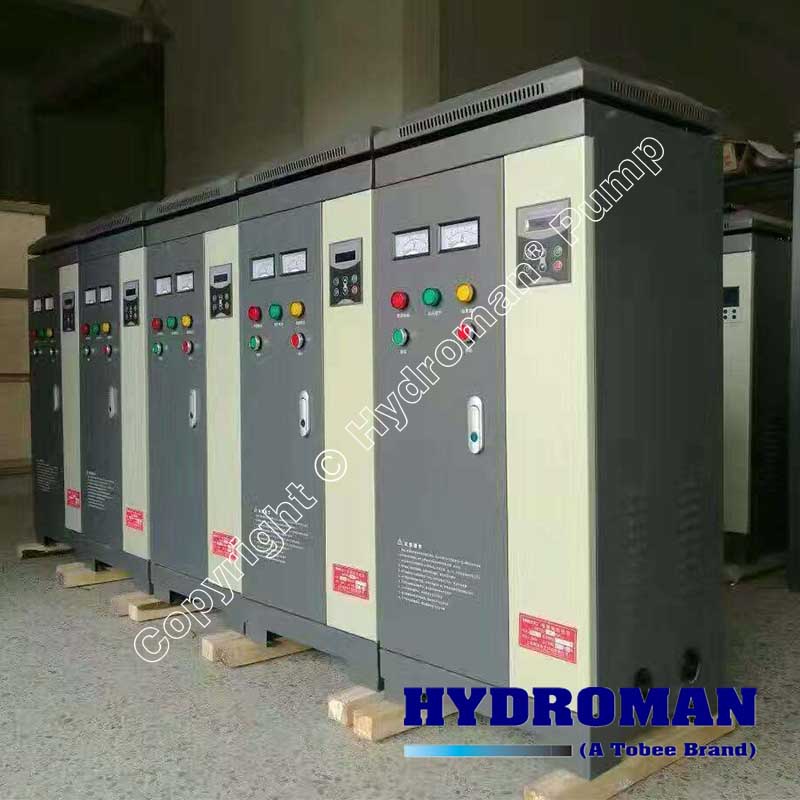

Hydroman® WePanel™ HSS Soft Starter Control Panel is designed for various dredge pump unit according to the characteristics of soft-start control device, Using soft start control can achieved pump and motor with steady start and steady stop, The HSS Soft Starter Control Panel can be used for Various submersible slurry pumps, extend the service life of the dredge pump unit and improve pump inspection cycle, reducing the overall cost of the pump unit.


WePanel™ Soft Starter Control Panel is used with AC electric motors to temporarily reduce the load and torque in the powertrain and electrical current surge of the motor during start-up. This reduces the mechanical stress on the motor and shaft, as well as the electrodynamic stresses on the attached power cables and electrical distribution network, extending the lifespan of the system.
