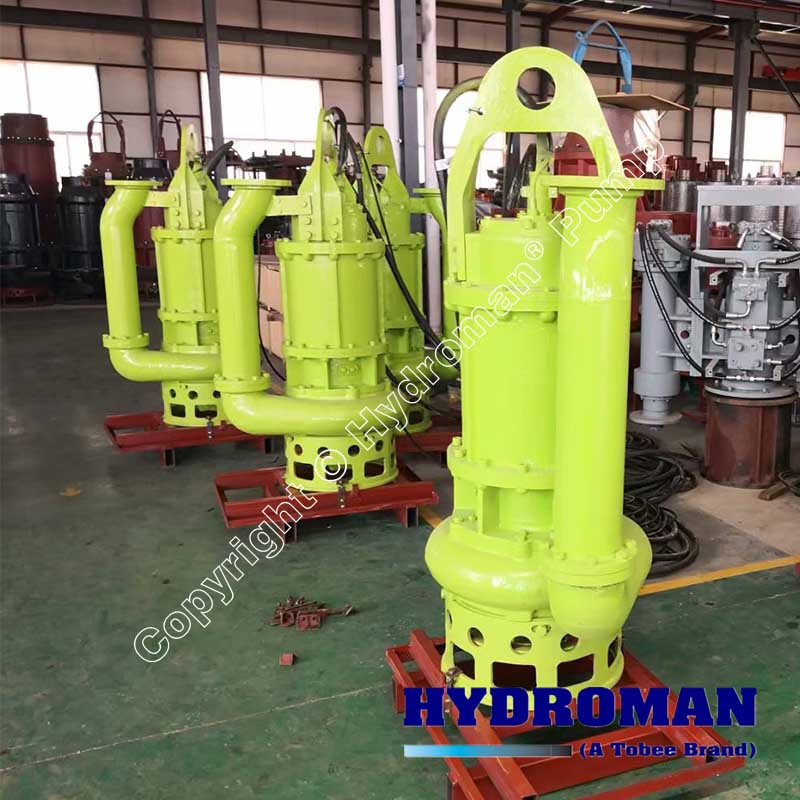

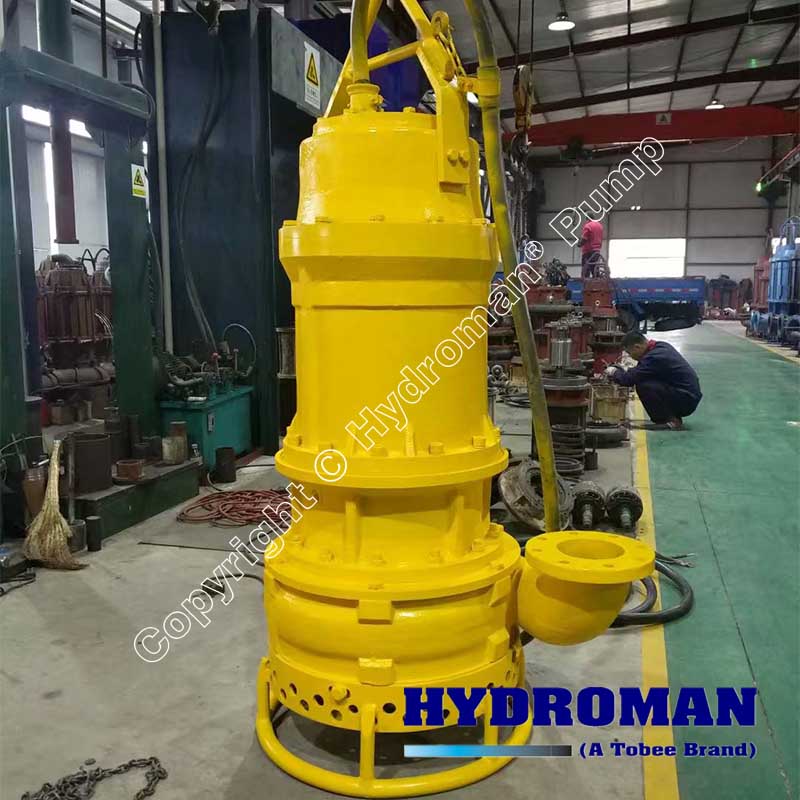

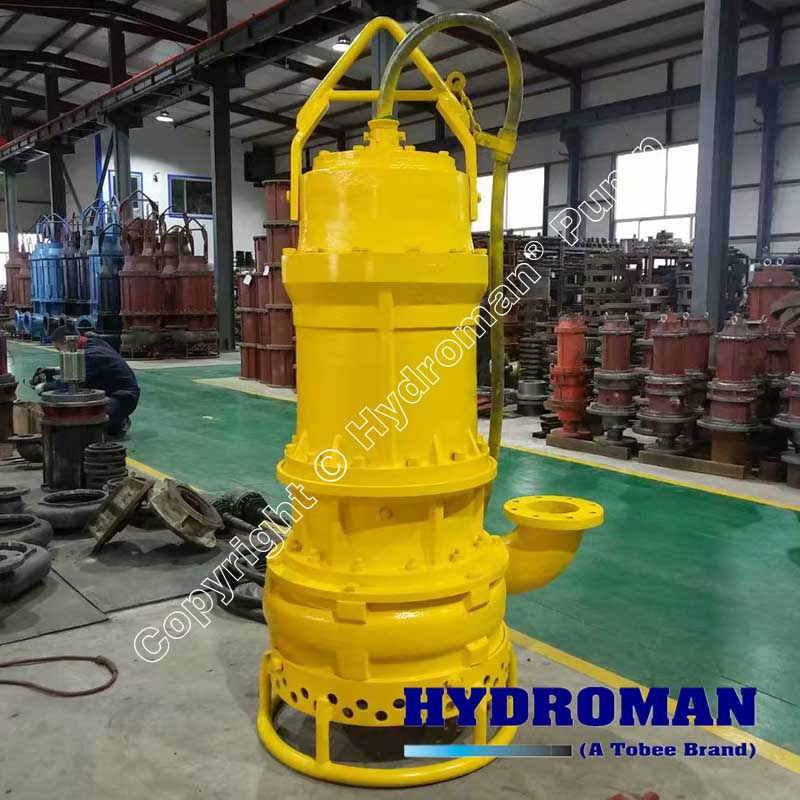

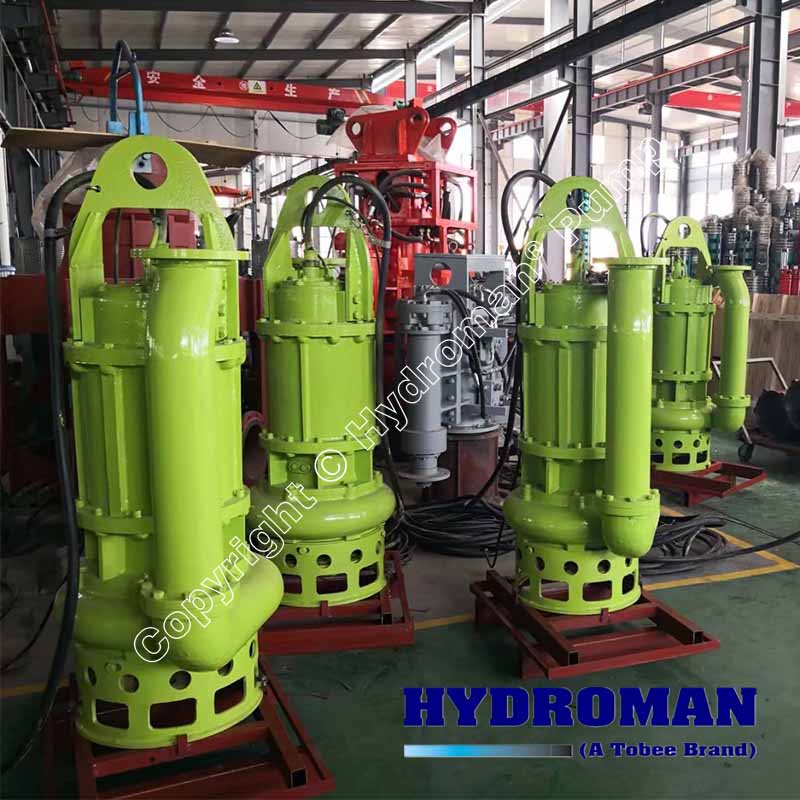

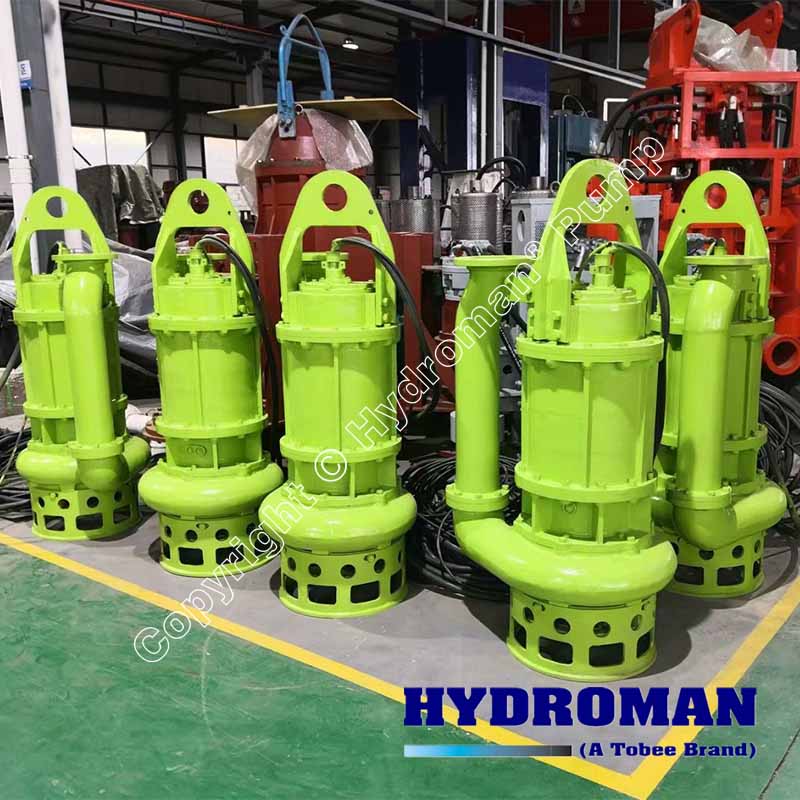

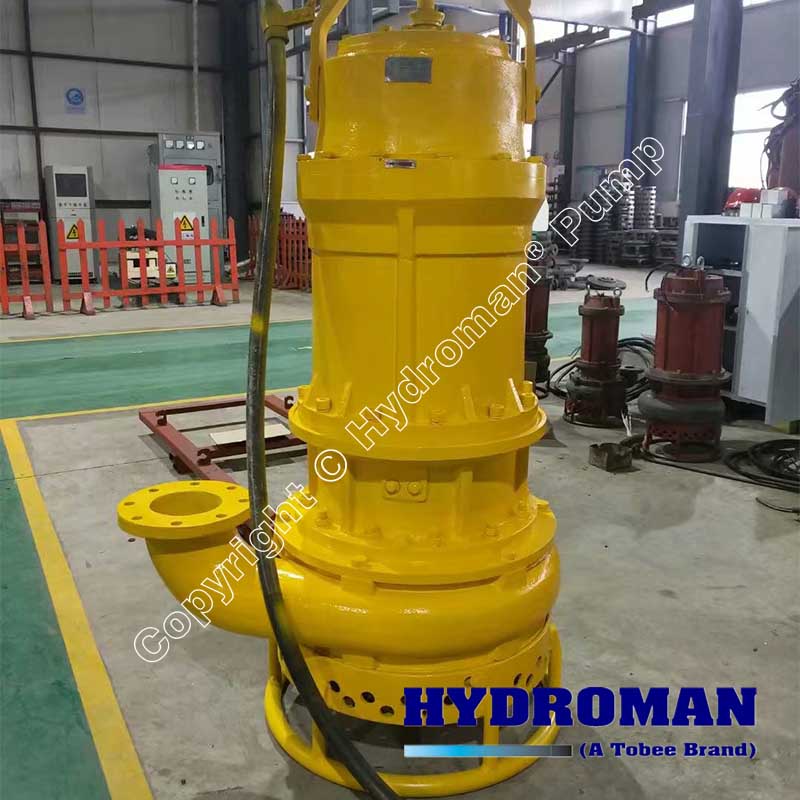

100TJQ Submersible Slurry Pump


Size: 100mm

Capacity: 35-200m3/h

Head: 10-65m

Max. particles: 32mm

Max. concentration: 70%

Max. working depth: ≤ 150m

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ 100TJQ Submersible Slurry Pumps are extra heavy duty submersible slurry pumps. TJQ has been designed for pumping slurry, sand, sludge, mud, sea water, gravel and rock notably in mining and dredging industry. It is a pump and an excavator at the same time.

The design incorporates the renowned patented Hydroman agitator, attached directly on the pump shaft, closed impeller, large open passages for easy passage of solids, heavy duty shaft and bearing configuration, special seals working in an oil bath and 4, 6, 8 or 10 pole customs built electric motor with 1.35 service factor.

The impeller, the wear plates and the agitator are manufactured in high chrome alloy(27 to 28%). The hardness can upto 65HRC.

Hydroman™ TJQ Submersible Slurry Pumps Applications:

Dredging, Sand & Gravel

▪ Sand extraction and transport

▪ Sand and gravel mining

▪ Dredging harbors and marinas

▪ Port maintenance

▪ Dredging of canals and harbors

▪ Clean-up of rivers, lakes and lagoons

▪ Dam dredging

▪ Beach reclamation

▪ Heavy soils


▪ Mining and tailings reclamation

▪ Clean-up of setting tanks

▪ Extraction of coal, minerals and sand


▪ Underwater work

▪ Ecological recovery

▪ Clean-up of locks

▪ Emptying of caissons and bulkheads

▪ Barge transfer


▪ Pumping industrial waste, extraction of slag, forge scale, calcines, sludge, setting sludge, petroleum and tar residues

▪ Thermal Power plants – Ash pits

▪ Construction and public works

▪ Inert wash sludge

▪ Marble dust

▪ All types of effluent with solids in suspension

▪ Sewage

▪ De-watering
