Max. particles: 10mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

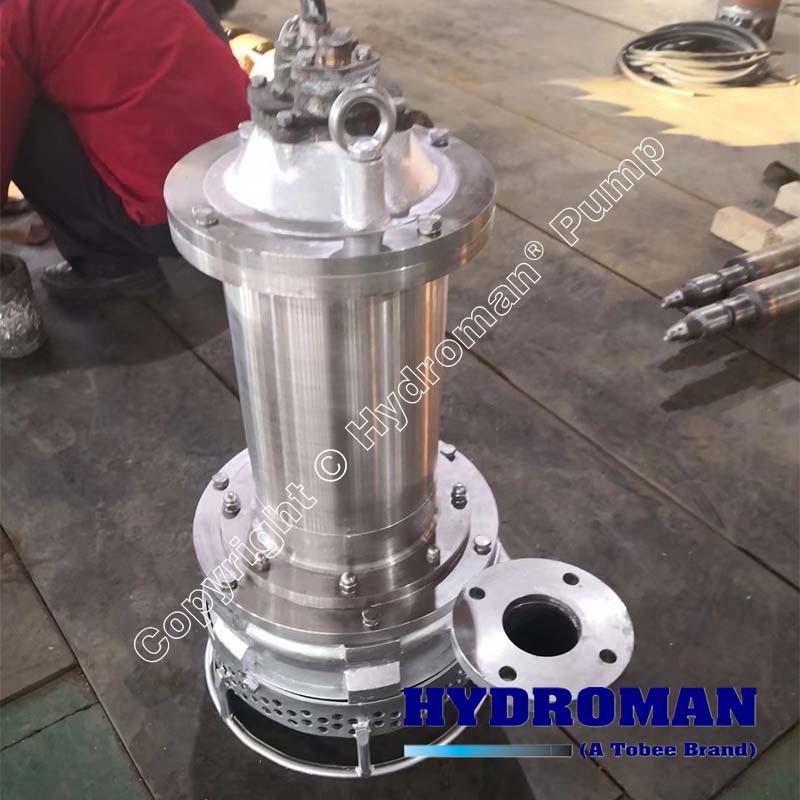

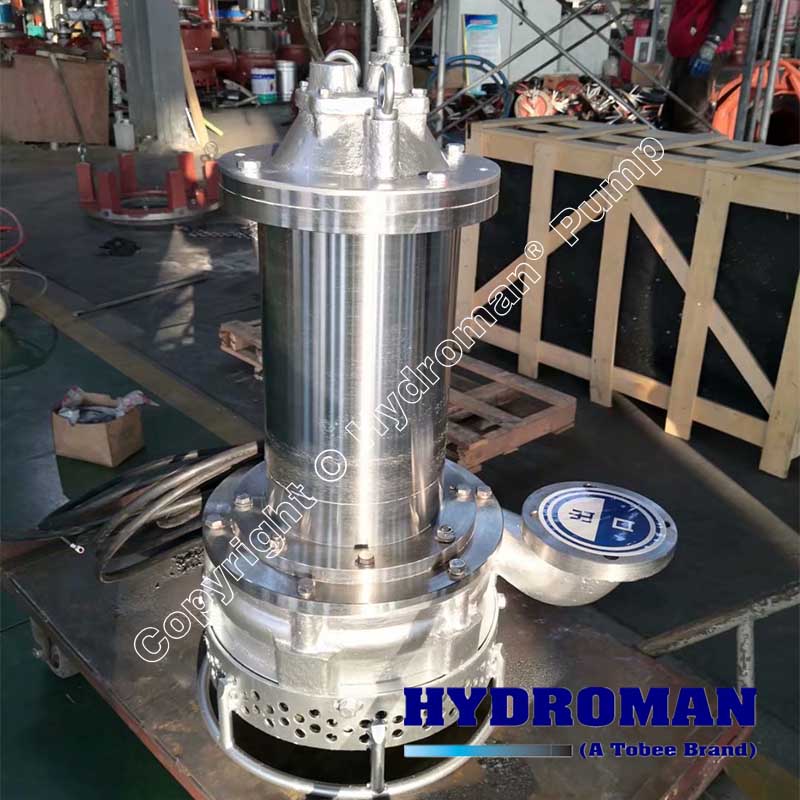

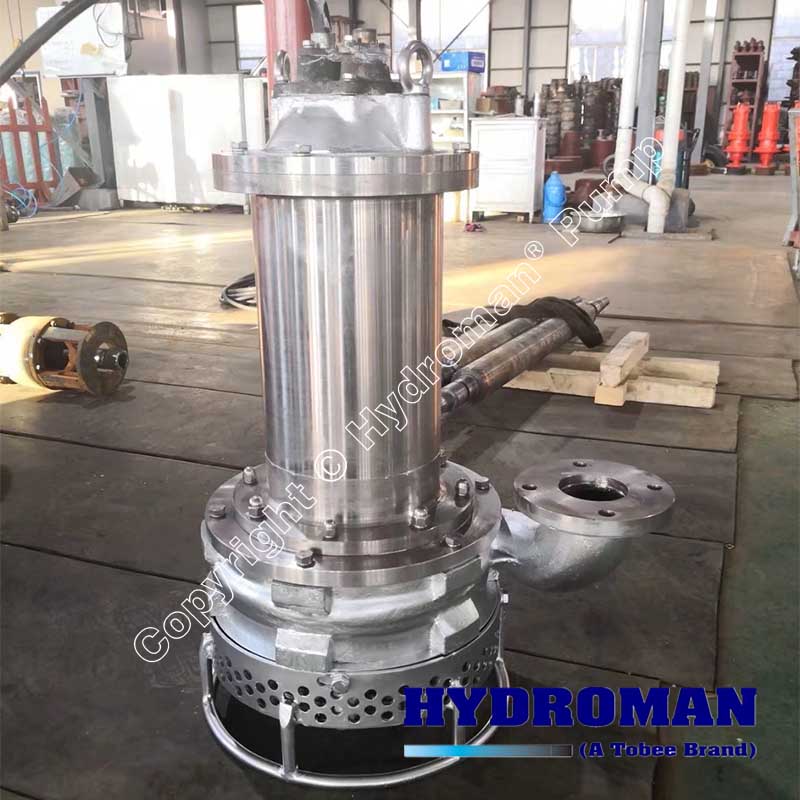

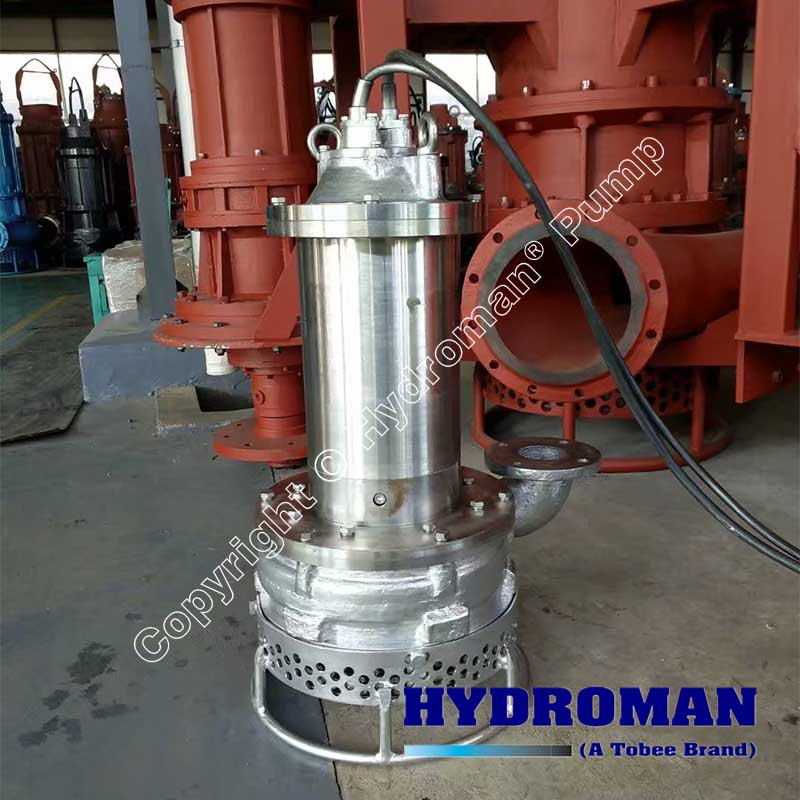

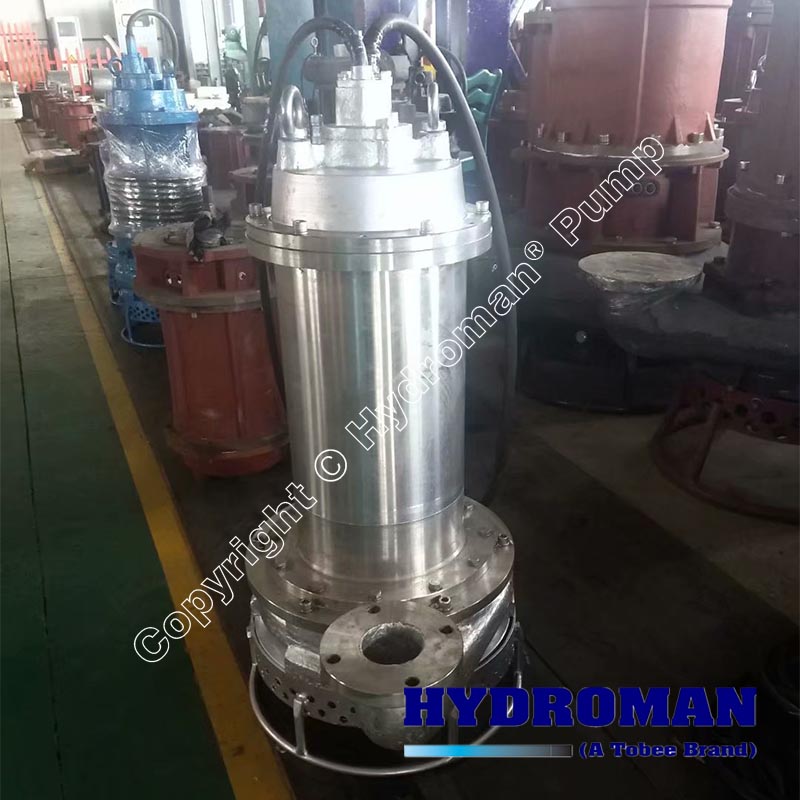

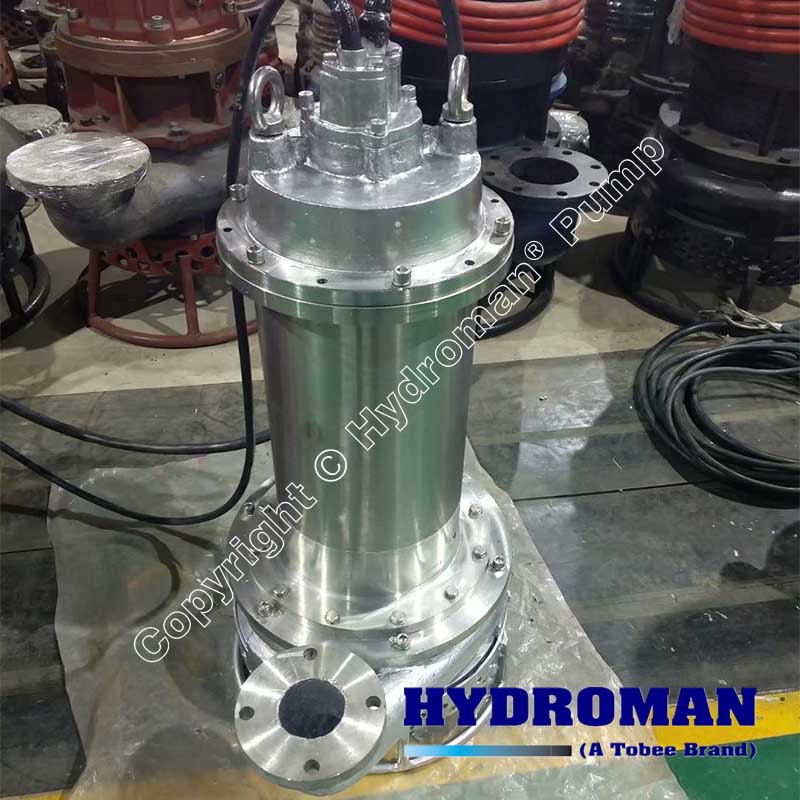

Hydroman™ 65TJQ Submersible Slurry Pump is a kind of Submersible equipment which motor connects directly with pump. It is used for delivering liquid contained slurry, sand, coal, stone, gravel and other aggressive solid etc. The 65TJQ pump can be mainly employed in clearing the mud in lake, river, sea and widening channel etc. It also can be applied to clear out sewage pool; in building site, steel works and power station and so on, the Hydroman pump adopts excellent material, advanced structure, and it is with wide flowing passage & strong delivery ability. The wet parts are made from wear-resistant high chrome alloy. The pump can be controlled by VFD.
Submersible work without influence of suction head.
Don’t need any vacuum pump assistant, save invest.
Lower noise, keep the silence of work station.
Equipped with agitator, no need extra cutter devices, more convenience for operating.
It doesn’t need to build pump house.
Directly work on the surface of slurry, with higher efficiency to deliver slurry.
Hydroman™ TJQ Submersible Slurry Pumps Applications:
Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc
Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc
Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.
Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc
