THY175A Hydraulic Slurry Pump

SPECIFICATIONS:

Size: 200mm

Capacity: 350-420m3/h

Head: 30-43m

Max. particles: 60mm

Max. concentration: 70%

Temperature Range: ≤80°C

Agitator or Cutterheads: Available

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

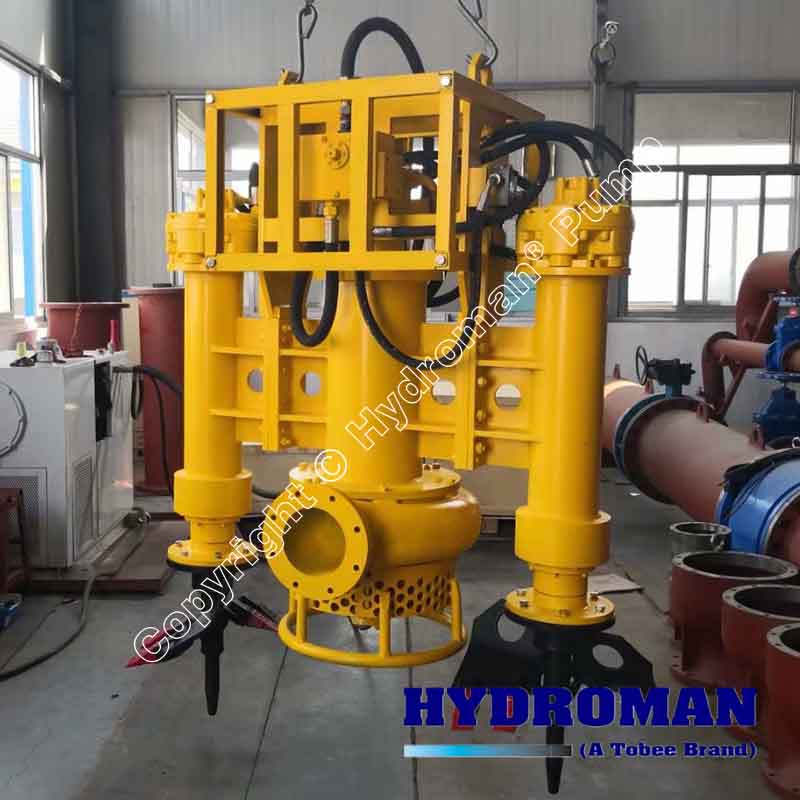

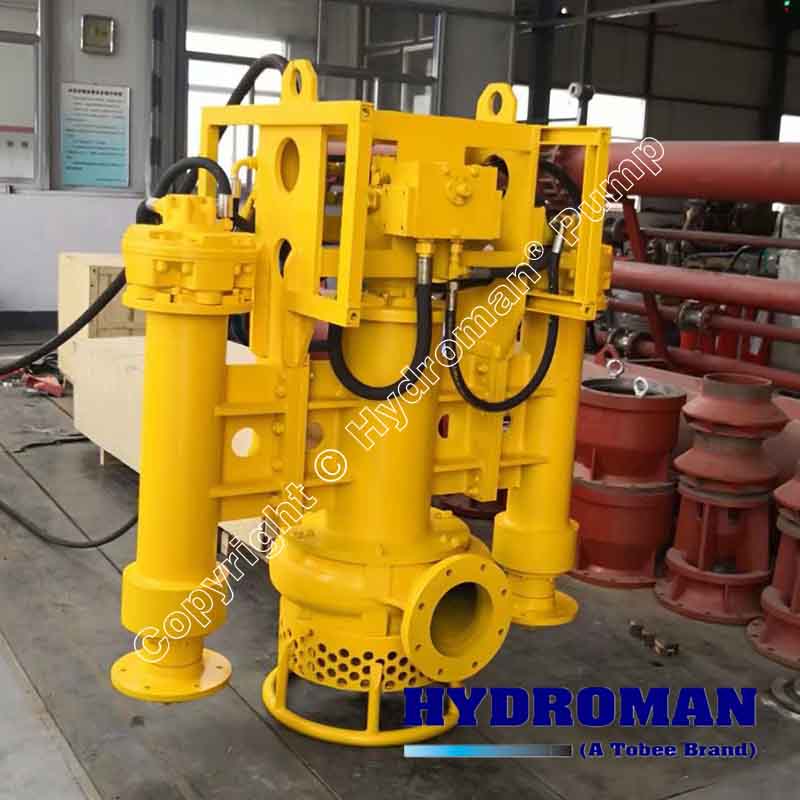

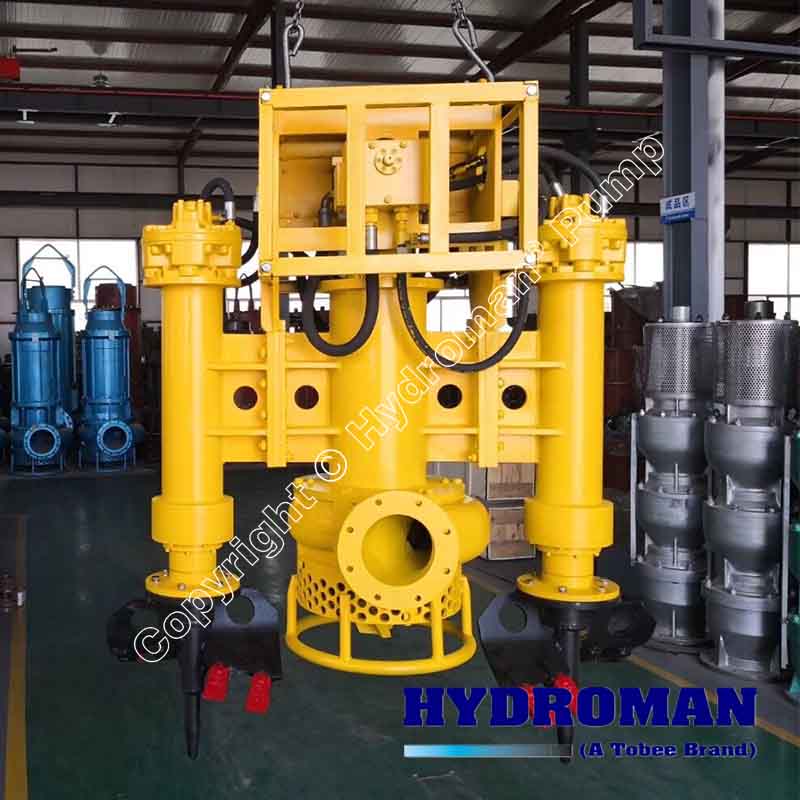

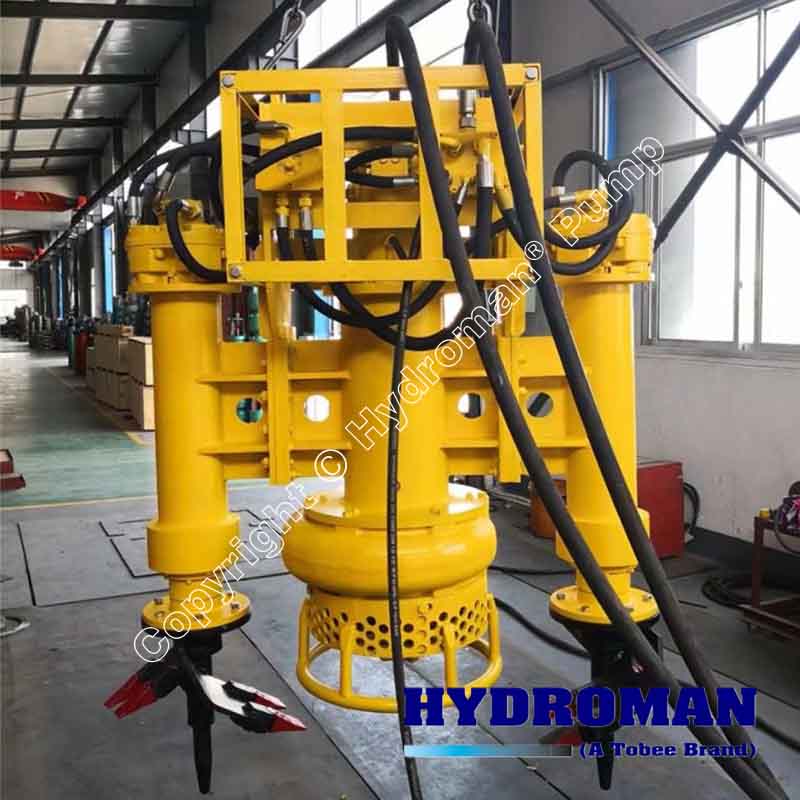

Hydroman™ THY175A Excavator Mounted Hydraulic Slurry Pumps are one kind of submersible pumps driven by hydraulic. THY175A Hydraulic Slurry Pump is ideal for applications were electric power is not available, or variable speed is needed for the slurry application. Hydroman hydraulic slurry pump can be also installed side agitators to work like submersible agitator pumps, and in some place it also called hydraulic agitator dredge pump. No matter where you are, if there is hydraulic supply the pump will work well. Hydroman Hydraulic slurry pump wear parts use high chrome 27% + Mo material to match good wear resistance performance, the wear parts hardness can up to HRC65. If you have special material request based on site condition, Hydroman also accepts the customize materials.


Design Features:

▪ THY Pump provided of agitator to stir things up

▪ High abrasion resistance, Hardness no less than HRC65

▪ Low rotation speed lead to long working lifer

▪ Able to handle up to 70% per weight material density

▪ No need cables or electric supply


Hydroman™ Excavator Mounted Hydraulic Slurry Pumps Applications:


OFFSHORE APPLICATIONSCIVIL CONSTRUCTION/SPECIALTY DREDGING APPLICATIONS
DecommissioningWell Site ExcavationDock DredgingPipeline
Platform Removal/InstallationPipeline & Jet TrenchingSlip MaintenanceMarsh Restoration
Marine Salvage/Heavy LiftJack-Up Leg ExcavationOilfield LocationMitigation
Internal Pile ExcavationCofferdam ExcavationWater Intake StructureEnvironmental Remediation
ROV/Diver Assisted Excavation EquipmentMarine ConstructionChannel MaintenanceBeach Restoration
P&A ExcavationWetland RestorationCofferdamGeotubes
