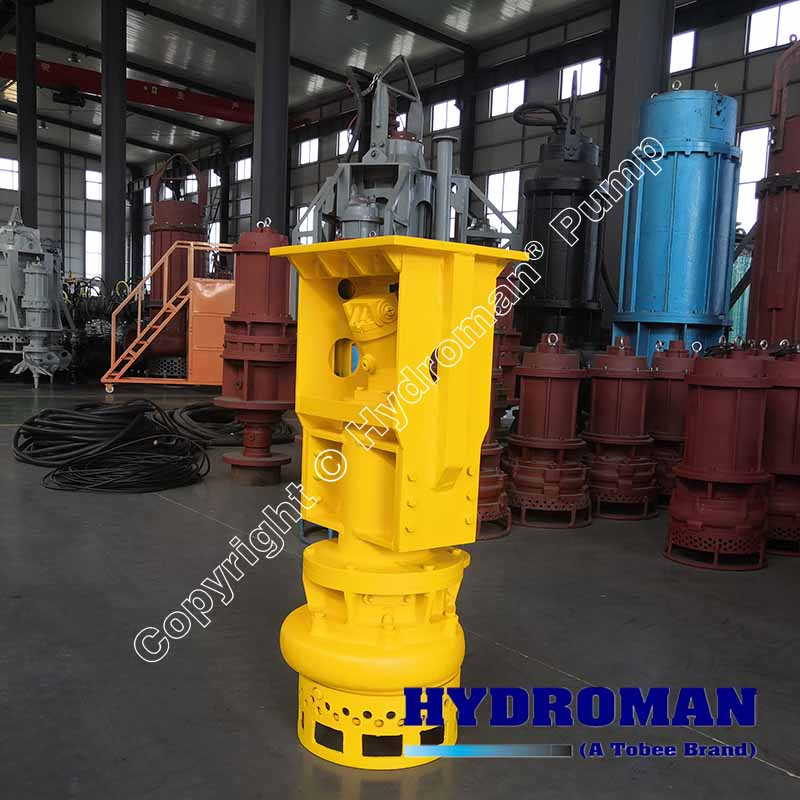

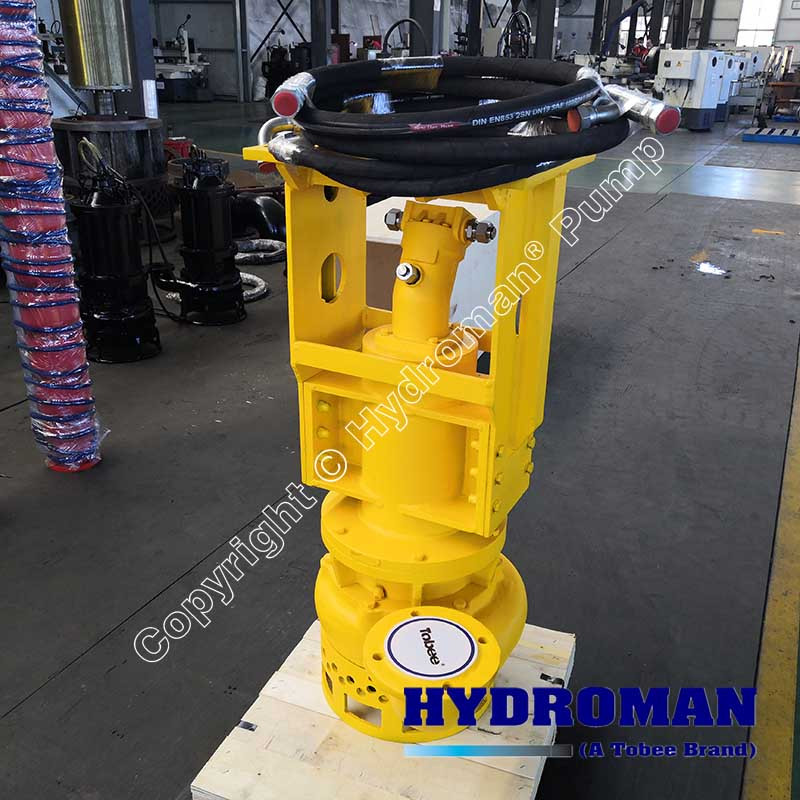

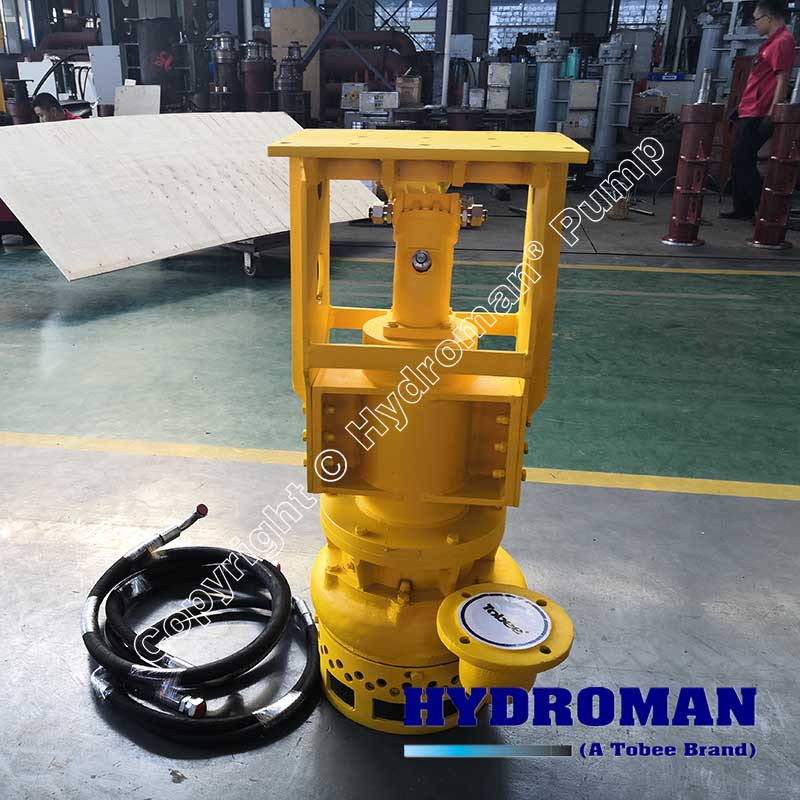

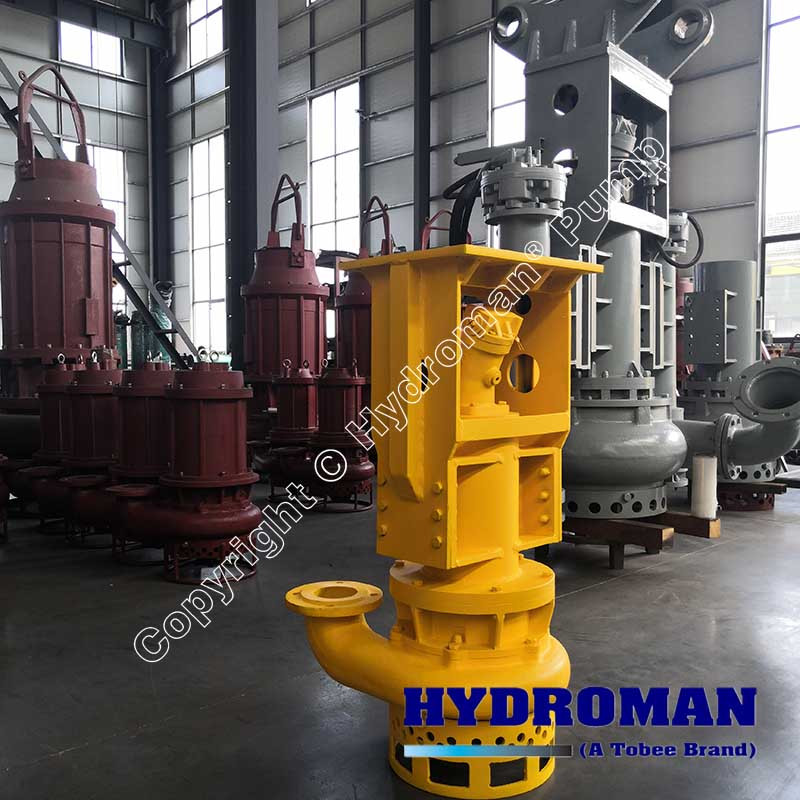

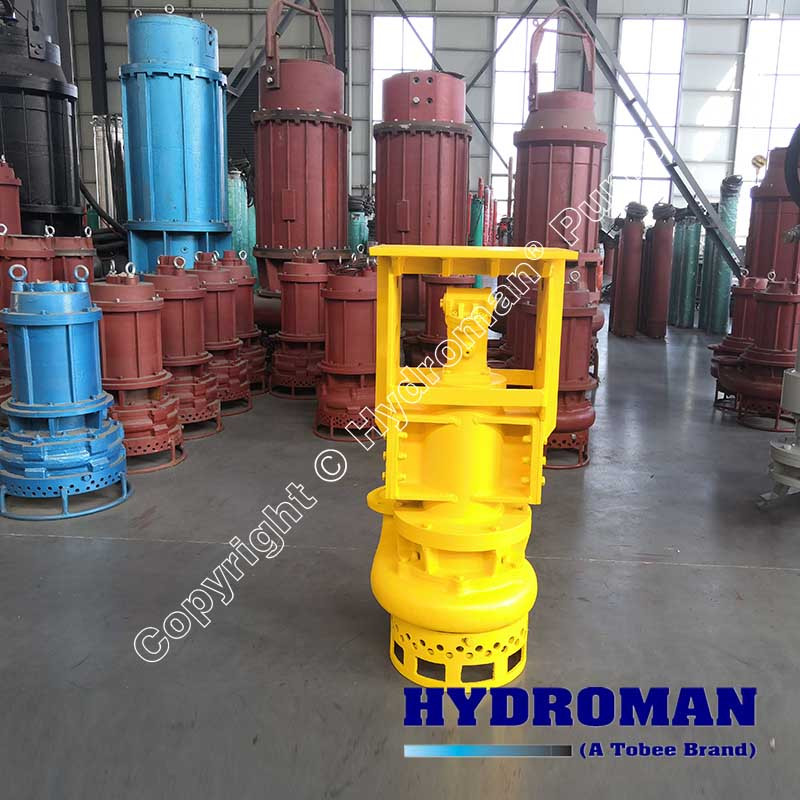

Hydraulic Engine Driven Submersible Sand Pump


Size: 80-400mm

Capacity: 50-1500m3/h

Head: 10-50m

Max. particles: 120mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ Hydraulic Engine Driven Submersible Sand Pump is a hydraulic machinery with mixing function,designed to utilize the performance of hydraulic motor to the utmost for the site where the electric power source can’t be supplied. Hydraulic sand pump is suitable for conveying media containing various particle sizes of solid particles such as sediment, cinder, tailings and ore sand. Submersible hydraulic sand pump is mainly used for dredging and dredging of metallurgy, mines, thermal power plants, iron and steel, water treatment, sand mining, mining, ports, rivers, lakes and ponds; The suction and transportation of sediment media such as port construction and Hydraulic Reclamation of rivers, seas and beaches are ideal substitutes for traditional mud pumps. The whole set of equipment can be flexibly matched with other equipment, such as hydraulic station, excavator and loader, so as to break the power restriction and transfer flexibly, especially for construction in remote areas.

Hydroman™ Hydraulic Engine Driven Submersible Sand Pump Characteristic:

Submersible Sand Pump made of hardened alloy wear parts for reducing cost of maintenance

Hydraulic Submersible Sand Pump Build-in Agitator and extra added two side excavators for stirring up solids density of the mixture can be up to 70% by weight.

Hydraulic driven sand pump is Oil Lubricated Seals (can run dry)

Variable Speed hydraulic drive

Safe Hydraulic Drive can be used where electric power is hazardous or impractical

Dependable gear type hydraulic motor

Hydroman™ Hydraulic Engine Driven Submersible Sand Pump Main Applications:

Dredging and desilting in the river, lake and port.

Extracting sand, gravel etc., harbor reclamation project

Draining liquid with solid materials, such as iron, tailings and slag etc.

Extracting slag, forging slag, sludge and other industrial waste.

Pump sand and gold mining etc.

Hydraulic pump is mainly used as excavator auxiliary attachment to take place of grab bucket when there is too much water, mud and not suitable for digging. With the pump we can realize efficient, high density extraction and long distance convey. It is widely used in beaches, farms, river excavation, dredging, drawing sand and coastal reclamation operation.

Hydroman™ Hydraulic Engine Driven Submersible Sand Pump Showing Video:
