Offloading Submersible Hydraulic Dredging Pump


Size: 80-400mm

Capacity: 50-1500m3/h

Head: 10-50m

Max. particles: 120mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ Offloading Submersible Hydraulic Dredging Pump can efficiently dredge material to load into a hopper barge and takes them to its final disposal area at the same time. In some dredging operations the dredged material is first loaded into a hopper barge that carries the material to its final discharge location. Once the material reaches the site, it’s possible that it has lost most of its moisture and has compacted on the barge hopper, Hydroman™ Offloading Submersible Dredging Pump can break the material from its compacted state and diluting it into a homogeneous slurry with high solid concentrations that the pump then takes to its final disposal area.

In addition,excavators, cutter head and jet rings to optimize the performance of Hydroman pumps, Hydroman™ submersible pumps are used in very different sectors: from marine dredging to the industrial ponds desludging, from high-depth works to operations at mining basins. The variety of work carried out and the need to provide effective solutions for every need of our customers led us to create a complete and reliable range of accessories. For clayey materials, as an alternative or in addition to the disruptor, it is possible to consider a system of high pressure water jets called the jet-ring system, the cutter head can be used in combination with the agitator, which allows to avoid clogging problems to the pump, The excavators are used in conjunction with the pump to increase the solid production and carry out dredging works in the presence of particularly compact backdrops.

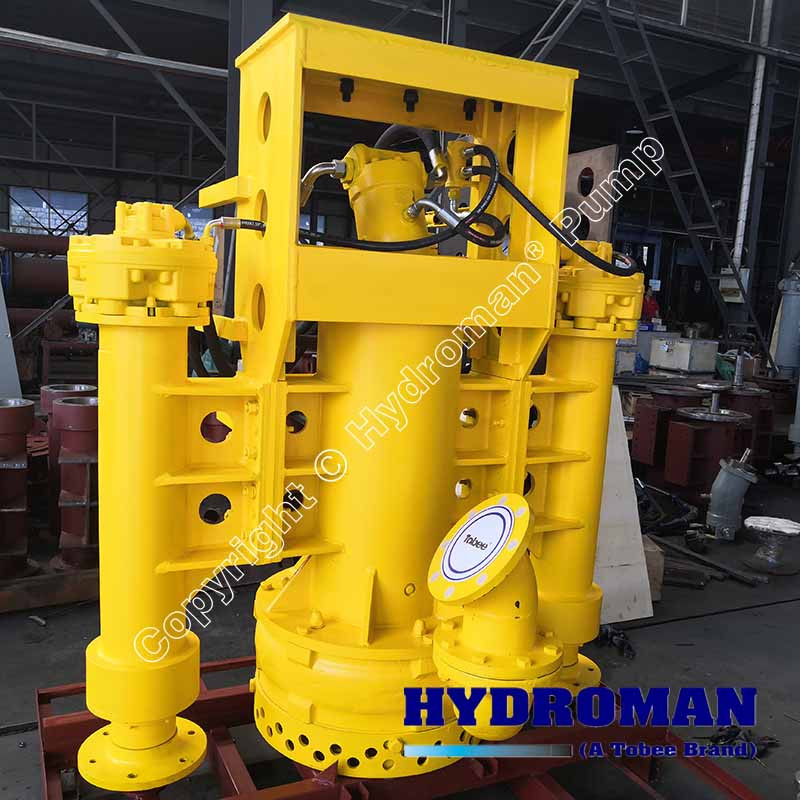

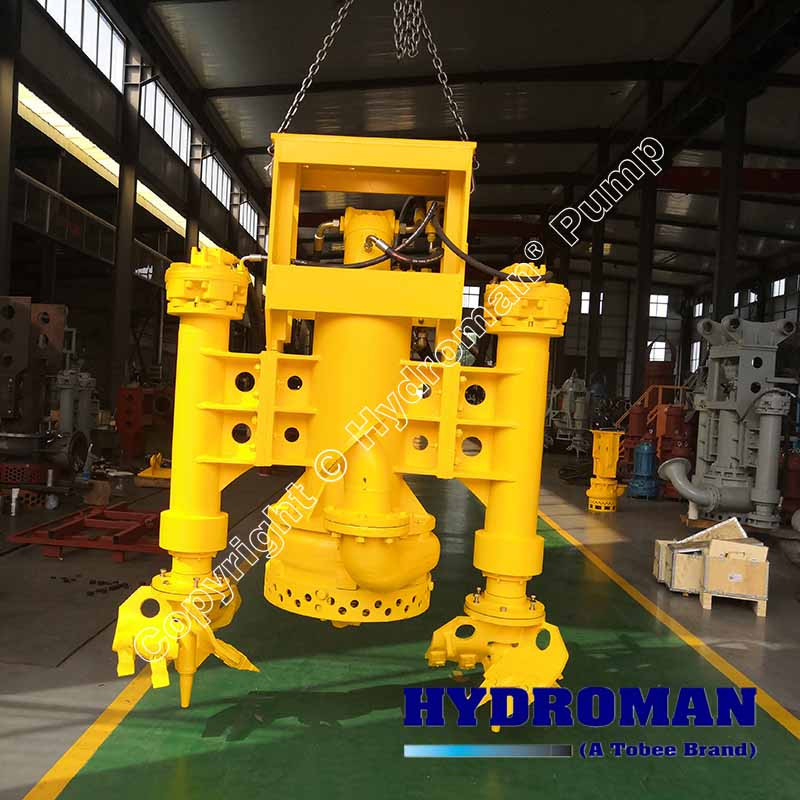

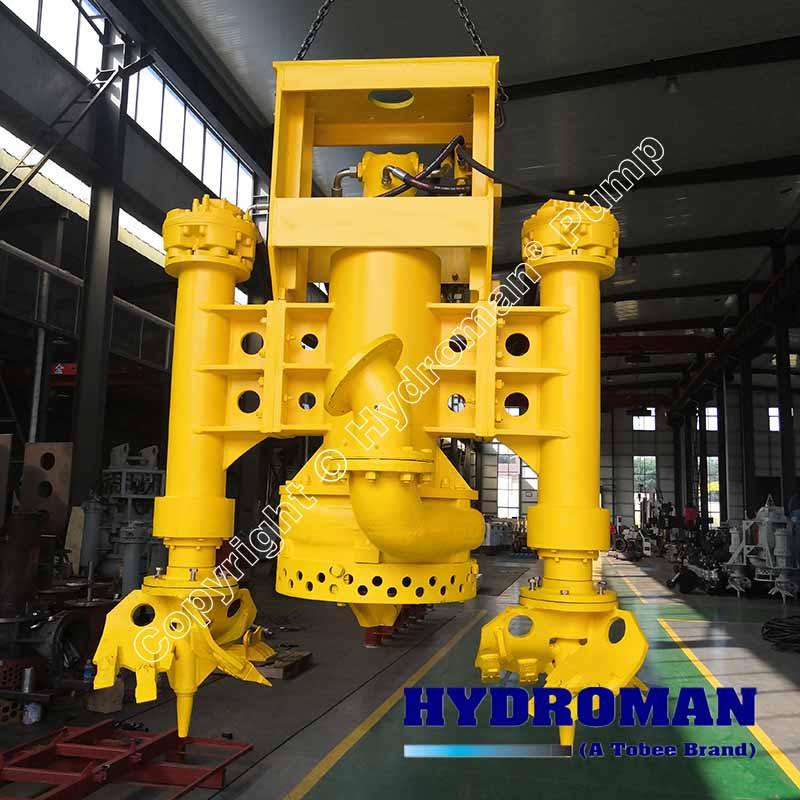

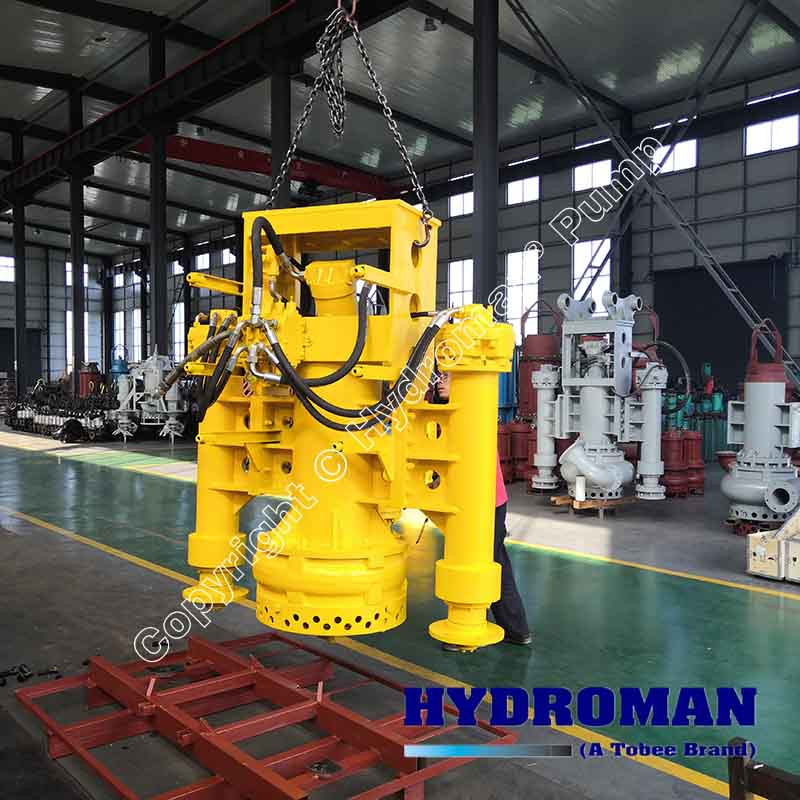

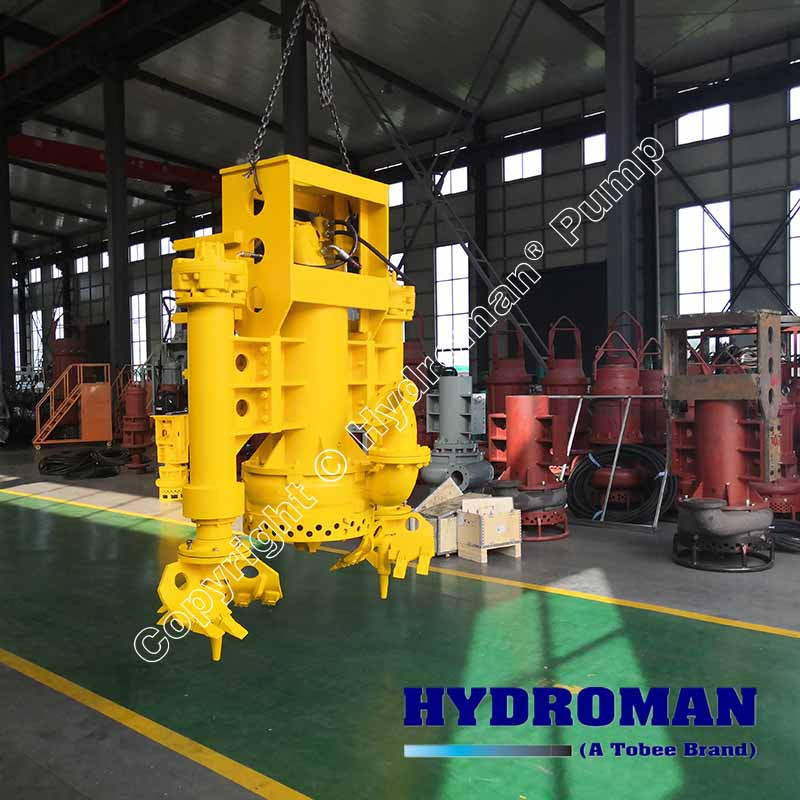

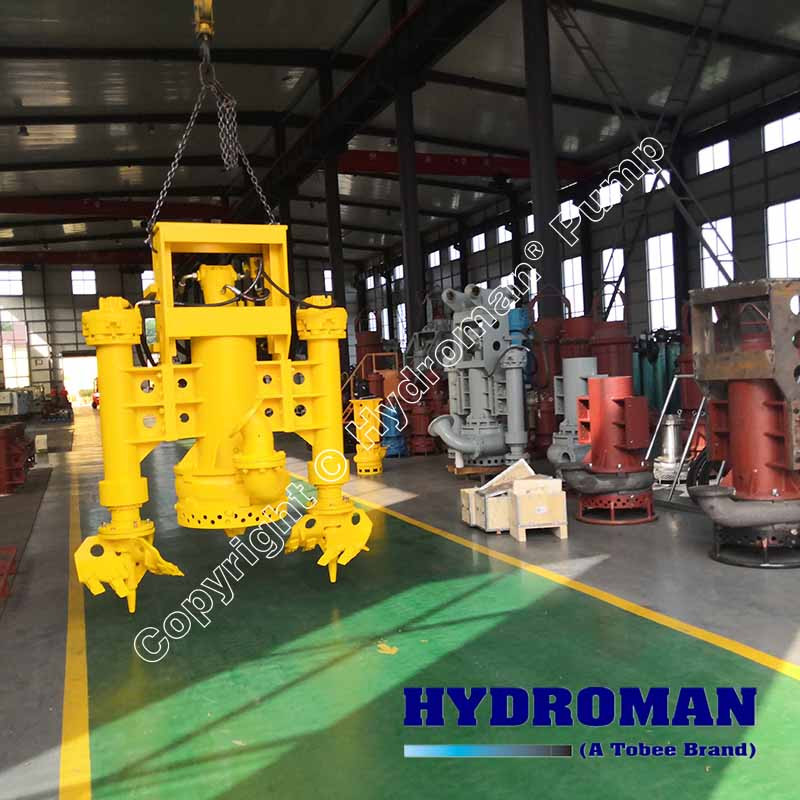

Hydroman™ Offloading Submersible Hydraulic Dredging Pump

Offloading Submersible Hydraulic Dredging Pump

Submersible Dredging Pump for Maritime Constructions

Submersible sand pump for river dredging

Submersible dredge pump

Submersible gravel pump with hydraulic actuator

Hydroman™ Offloading Submersible Hydraulic Dredging Pump Application:

Dredging for river, lake, man work lake, port.

Sucking sand in river, lake and sea.

Discharging sediments and mud slurry

Drainage in civil pipeline and rainwater pumping station

Cleaning steel mill and ore treatment plant settling pond, power plant's sediment coal pool and pollution water treatment plant oxidation ditch sediment pool.

Transferring water and slag slurry in steel and iron mill.

Transferring tailings and slag pulp in concentrating mill.

Cleaning slime and slurry in coal mine

Transfering coal fly ash, slime and coal slurry

Absorbing all kinds of carborundum, silica sand and steel slag solid particles.

Gold sand dredging, iron sand suction and mineral processing

Transferring slurry with all kinds of impurity

Transferring slurry with more bigger solid particles
