Max. particles: 60mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

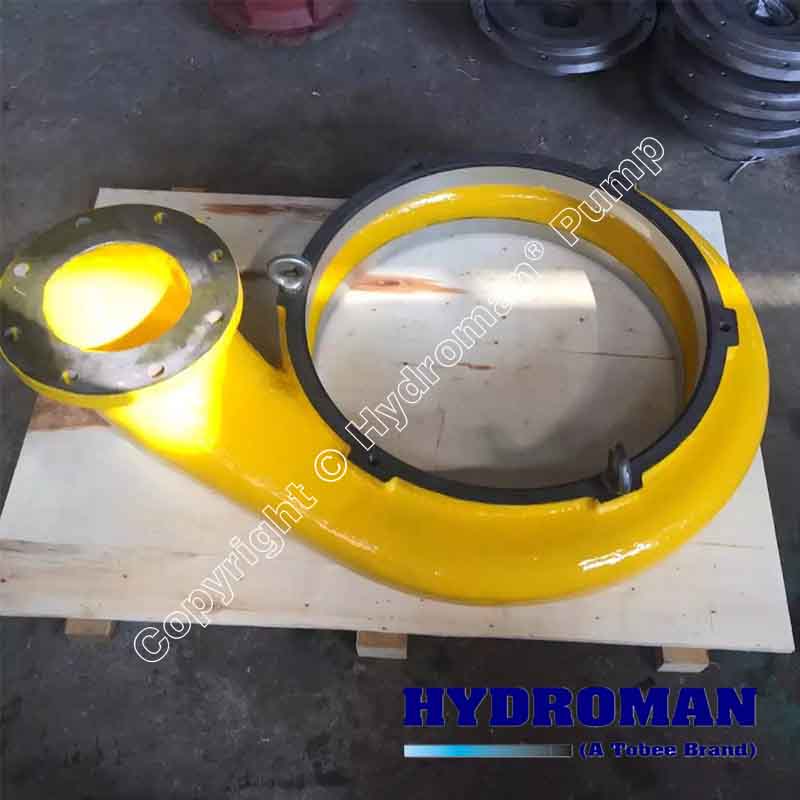

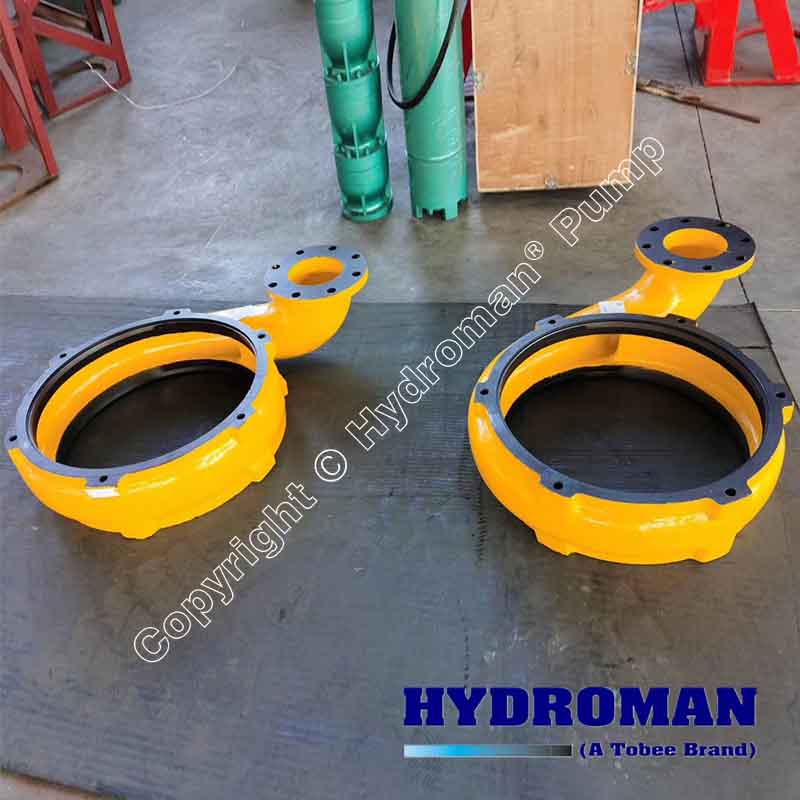

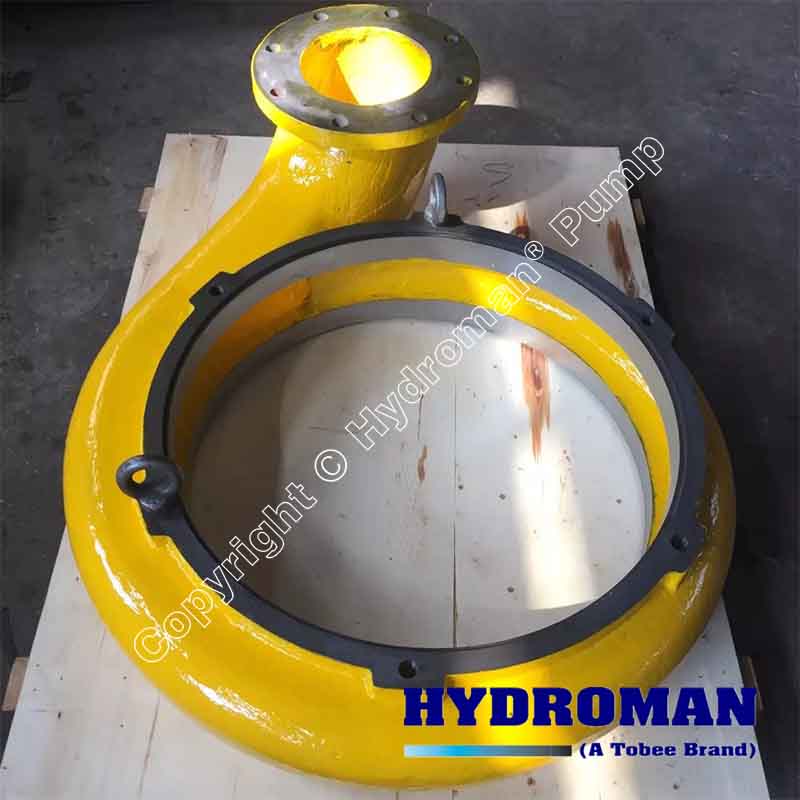

Hydroman™ Submersible Slurry Pump Casing is another main wear part which directs slurries to the pump outlet in unlined submersible slurry pumps.
Most Submersible slurry pump casings are slower than water pumps with large clearance at the cut water, this volute casing form gives a little less efficiency compared with clean water pumps. However, this volute casing form reduce wear through lower internal velocities, and this is best compromise between wear life and efficiency.
Submersible slurry pump casings are normally made in wear resistant cast iron of 27%-30% chrome, special alloys are also available.
Hydroman manufactures wear resistant slurry pump casings which are suitable for various abrasive and corrosive slurry applications.
