Tunneling Slurry Pump

Aug. 13, 2021

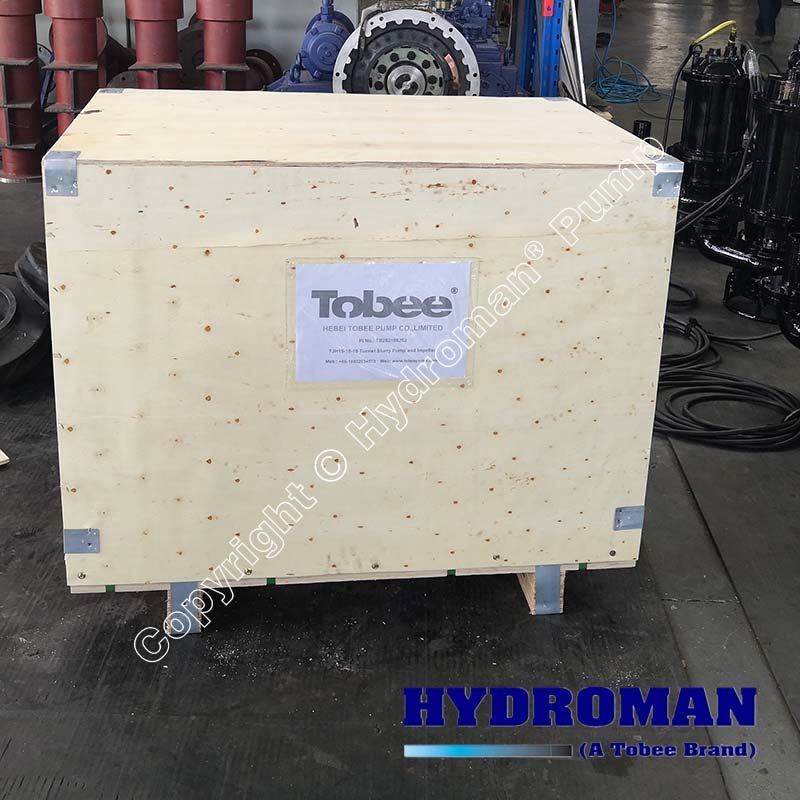

TJH 150-10-15 Tunneling Slurry Pump operated at 150m3/h capacity and 10m head had been ready for shipping.

Tunneling Slurry Pump is a close-coupled horizontal slurry pump, which can be used as a priming pump or a booster pump for the treatment of microtunnelling slurries and tunneling slurries.The Tunnel Slurry Pumps offered by Hydroman are compact and work in a vertical as well as horizontal position.

Hydroman Tunneling Slurry Pump has high-performance capalilities, which can handle slurries with up to 60% of solids by weight and particles with up to 60 mm diameter at many job sites worldwide including the applications of tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction, etc.

TJH Tunneling Slurry Pump Performance Parameters:

No.	Model	Size (mm)	Capacity Q (m3/h)	Head H (m)	Power P (kw)	Eff. η (%)	Speed n (r/min)	Weight (kg)
1	50TJH10-20-3	50	10	20	3	37	1460	110
2	50TJH15-18-3	50	15	18	3	46	1460	110
3	50TJH20-15-3	50	20	15	3	52	1460	110
4	50TJH25-12-3	50	25	12	3	58	1460	110
5	65TJH30-12-3	65	30	12	3	60	1460	110
6	65TJH35-10-3	65	35	10	3	64	1460	110
7	65TJH40-8-3	65	40	8	3	66	1460	110
8	50TJH15-22-4	50	15	22	4	43	1460	113
9	50TJH18-20-4	50	18	20	4	46	1460	113
10	50TJH20-18-4	50	20	18	4	50	1460	113
11	50TJH25-20-4	50	25	20	4	52	1460	113
12	65TJH30-16-4	65	30	16	4	52	1460	113
13	65TJH35-15-4	65	35	15	4	60	1460	113
14	65TJH40-12-4	65	40	12	4	63	1460	113
15	65TJH45-10-4	65	45	10	4	66	1460	113
16	80TJH20-30-5.5	80	20	30	5.5	42	1460	205
17	80TJH30-20-5.5	80	30	20	5.5	54	1460	205
18	80TJH45-15-5.5	80	45	15	5.5	41	1460	205
19	80TJH15-20-5.5	80	15	20	5.5	33	1460	205
20	80TJH50-10-5.5	80	50	10	5.5	44	1460	205
21	80TJH15-20-7.5	80	15	20	7.5	34	1460	210
22	80TJH20-25-7.5	80	20	25	7.5	35	1460	210
23	80TJH25-20-7.5	80	25	20	7.5	36	1460	210
24	80TJH25-30-7.5	80	25	30	7.5	36	1460	210
25	80TJH30-30-7.5	80	30	30	7.5	37	1460	210
26	80TJH32-20-7.5	80	32	20	7.5	37	1460	210
27	80TJH45-15-7.5	80	45	15	7.5	41	1460	210
28	100TJH100-10-7.5	100	100	10	7.5	48	1460	220
29	80TJH25-40-11	80	25	40	11	36	1460	300
30	80TJH40-25-11	80	40	25	11	38	1460	240
31	80TJH50-21-11	80	50	21	11	40	1460	240
32	80TJH50-26-11	80	50	26	11	40	1460	240
33	80TJH70-20-11	80	70	20	11	43	1460	240
34	100TJH100-18-11	100	100	18	11	48	1460	240
35	80TJH25-40-15	80	25	40	15	37	1460	330
36	80TJH50-26-15	80	50	26	15	40	1460	260
37	80TJH50-28-15	80	50	28	15	40	1460	260
38	100TJH60-30-15	100	60	30	15	41	1460	265
39	80TJH70-24-15	80	70	24	15	42	1460	260
40	100TJH75-25-15	100	75	25	15	43	1460	260
41	100TJH100-18-15	100	100	18	15	49	1460	270
42	100TJH150-15-15	100	150	15	15	51	1460	270
43	150TJH150-18-18.5	150	150	18	18.5	49	980	550
44	150TJH200-12-18.5	150	200	12	18.5	53	980	550
45	150TJH150-22-22	150	150	22	22	47	980	600
46	150TJH200-15-22	150	200	15	22	50	980	600
47	150TJH60-46-30	150	60	46	30	41	980	550
48	150TJH70-38-30	150	70	38	30	42	980	710
49	150TJH100-35-30	150	100	35	30	44	980	710
50	150TJH108-30-30	150	108	30	30	44	980	710
51	150TJH150-30-30	150	150	30	30	46	980	710
52	150TJH150-35-30	150	150	35	30	46	980	710
53	150TJH200-20-30	150	200	20	30	52	980	710
54	150TJH240-20-30	150	240	20	30	55	980	710
55	200TJH300-15-30	200	300	15	30	56	980	700
56	150TJH100-50-37	150	100	50	37	44	980	850
57	200TJH300-20-37	200	300	20	37	56	980	775
58	200TJH400-15-37	200	400	15	37	58	980	775
59	150TJH150-35-45	150	150	35	45	47	980	1000
60	150TJH200-30-45	150	200	30	45	49	980	1110
61	200TJH500-15-45	200	500	15	45	59	980	1100
62	150TJH150-45-55	150	150	45	55	46	980	1140
63	150TJH250-35-55	150	250	35	55	51	980	1140
64	250TJH600-15-55	250	600	15	55	60	980	1220
65	150TJH200-45-75	150	200	45	75	49	980	1540
66	150TJH200-50-75	150	200	50	75	48	980	1550
67	200TJH350-35-75	200	350	35	75	53	980	1550
68	200TJH400-25-75	200	400	25	75	58	980	1550
69	200TJH500-20-75	200	500	20	75	59	980	1550
70	150TJH200-60-90	150	200	60	90	48	980	1550
71	200TJH400-40-90	200	400	40	90	54	980	1550
72	200TJH500-25-90	200	500	25	90	60	980	1550
73	200TJH400-50-110	200	400	50	110	53	980	1970
74	250TJH600-30-110	250	600	30	110	61	980	1970
75	300TJH780-26-110	300	780	26	110	62	980	1970
76	300TJH1000-18-110	300	1000	18	110	64	980	1970
77	200TJH400-60-132	200	400	60	132	53	980	2000
78	200TJH500-45-132	200	500	45	132	56	980	2000
79	200TJH500-55-132	200	500	55	132	55	980	2000
80	300TJH800-35-132	300	800	35	132	63	980	2000
81	300TJH1000-22-132	300	1000	22	132	64	980	2000
82	200TJH650-52-160	200	650	52	160	58	980	2650
83	300TJH780-50-185	300	780	50	185	60	980	3330
84	250TJH600-55-200	250	600	55	200	62	980	4080
85	300TJH800-55-220	300	800	55	220	60	980	3400
86	350TJH1250-35-220	350	1250	35	220	65	980	3400
87	350TJH1750-30-250	350	1750	30	250	70	980	3750
88	350TJH1500-35-250	350	1500	35	250	70	980	3750
89	350TJH1750-40-315	350	1750	40	315	70	980	4200
90	400TJH2000-35-315	400	2000	35	315	72	980	3800

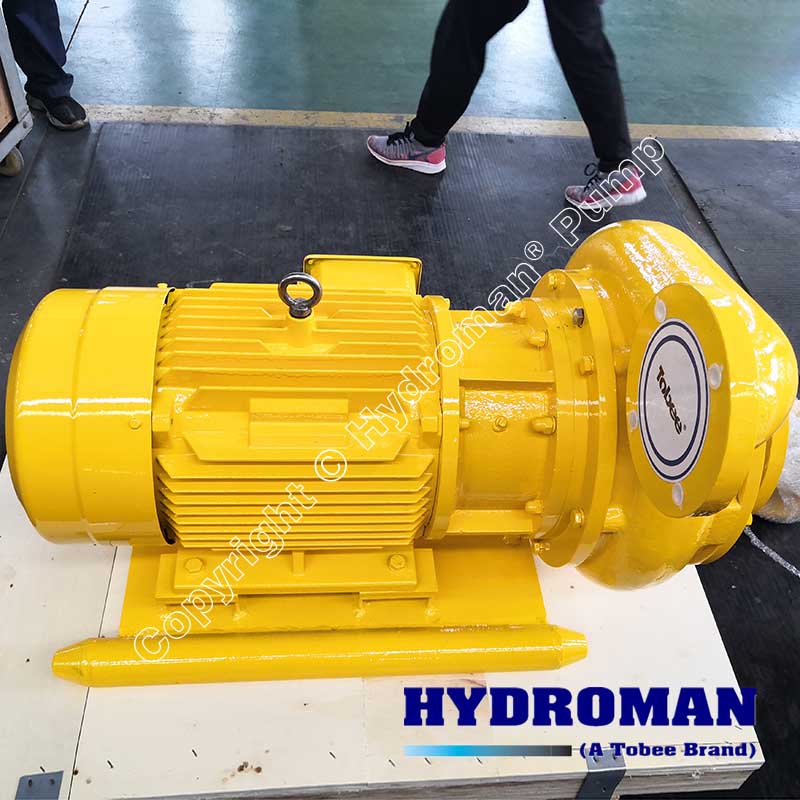

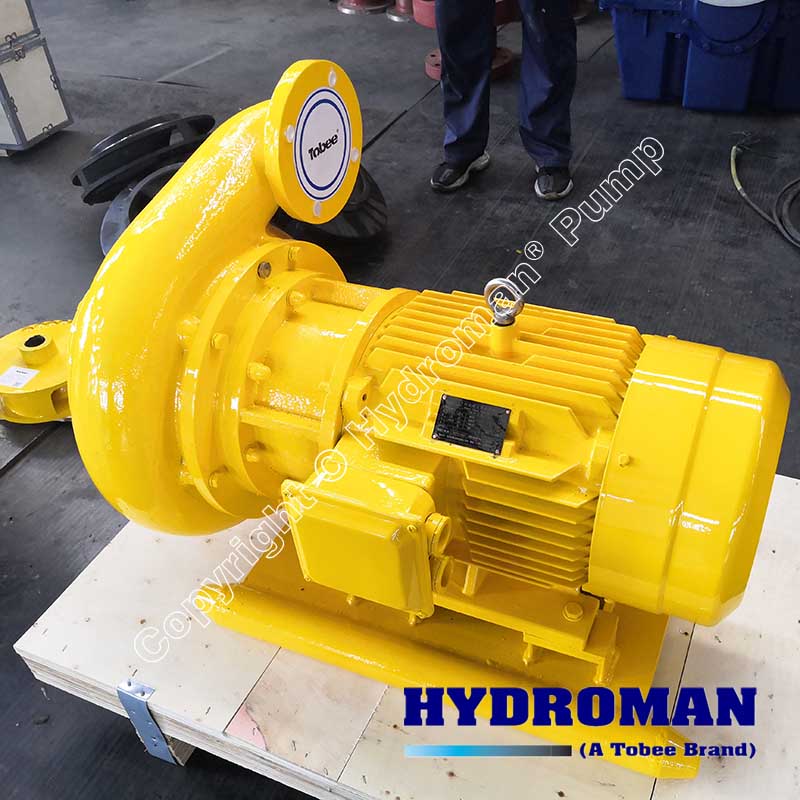

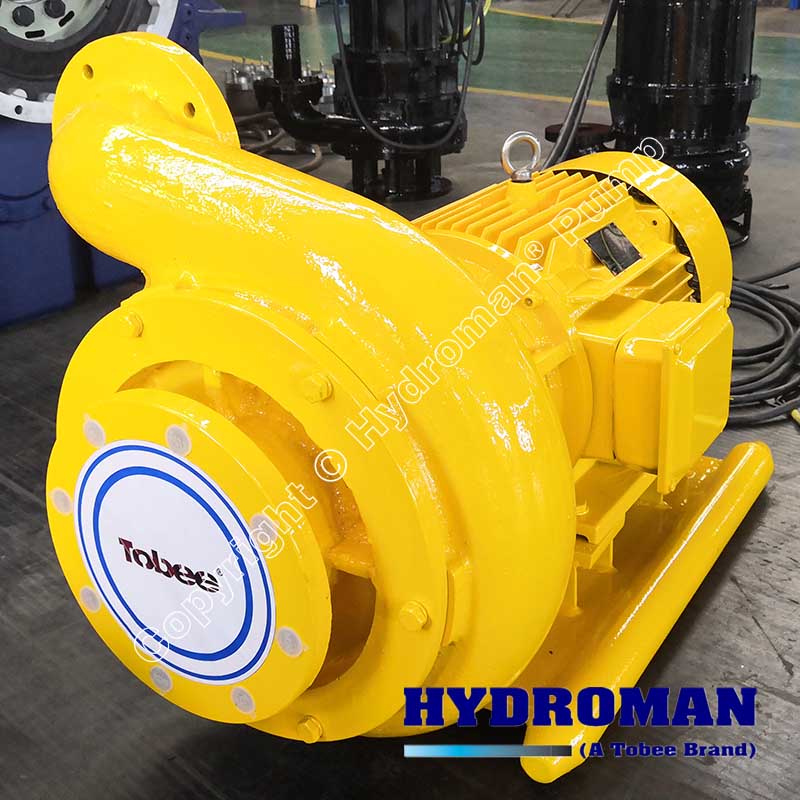

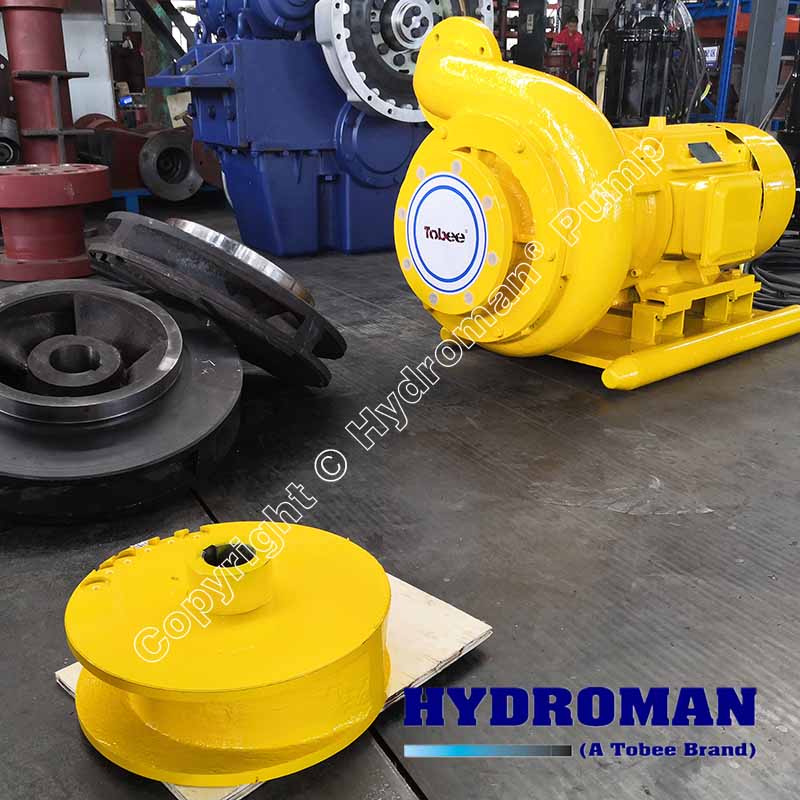

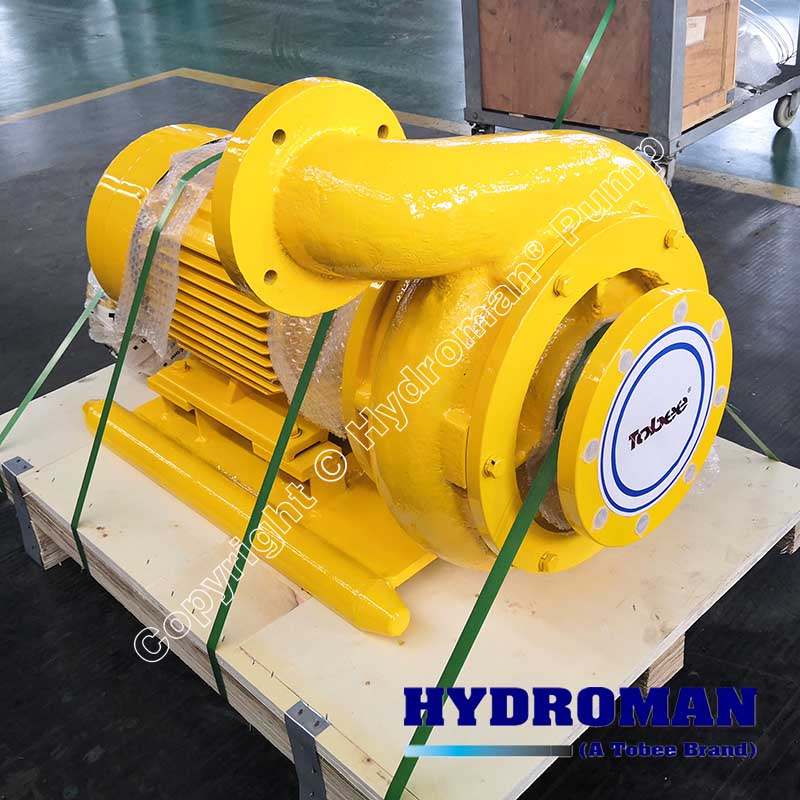

Tunneling Slurry Pump Photos for Reference:

Tunnel Slurry Pump

Horizontal Tunnel Gravel Pump

Tunnel Bentonite Slurry Pump
