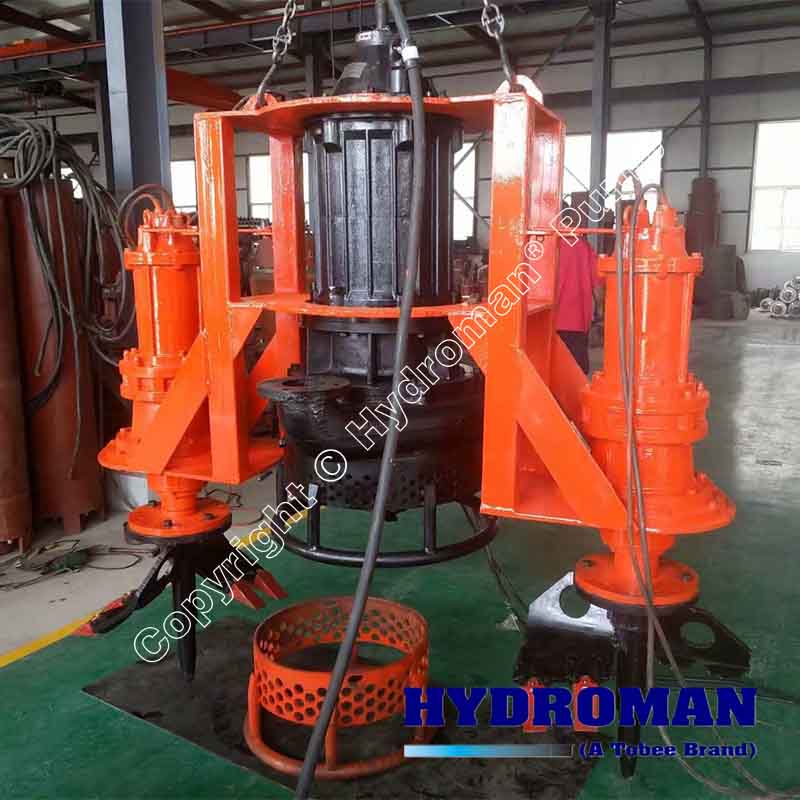

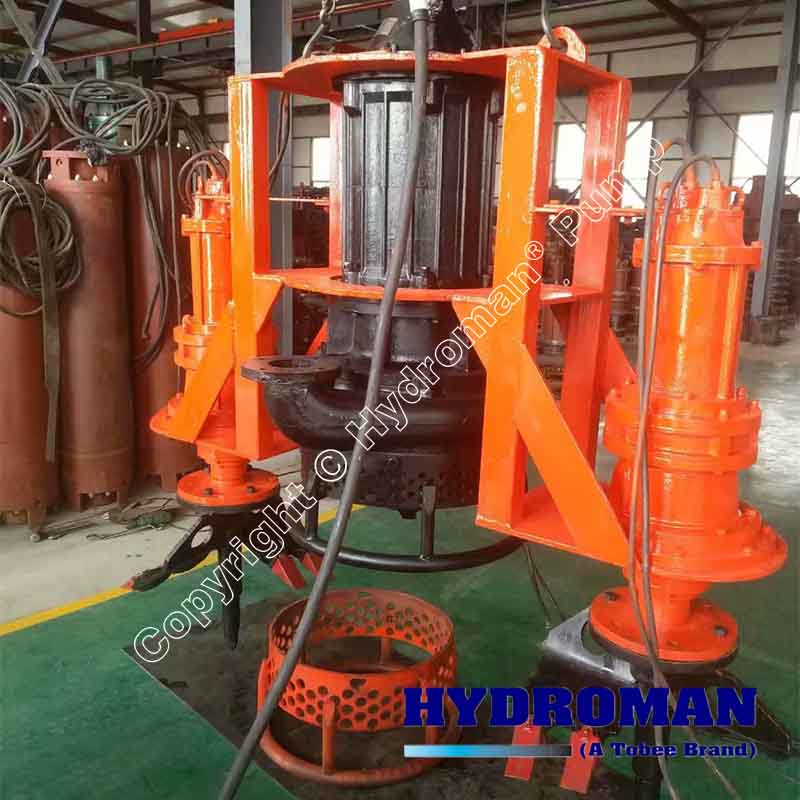

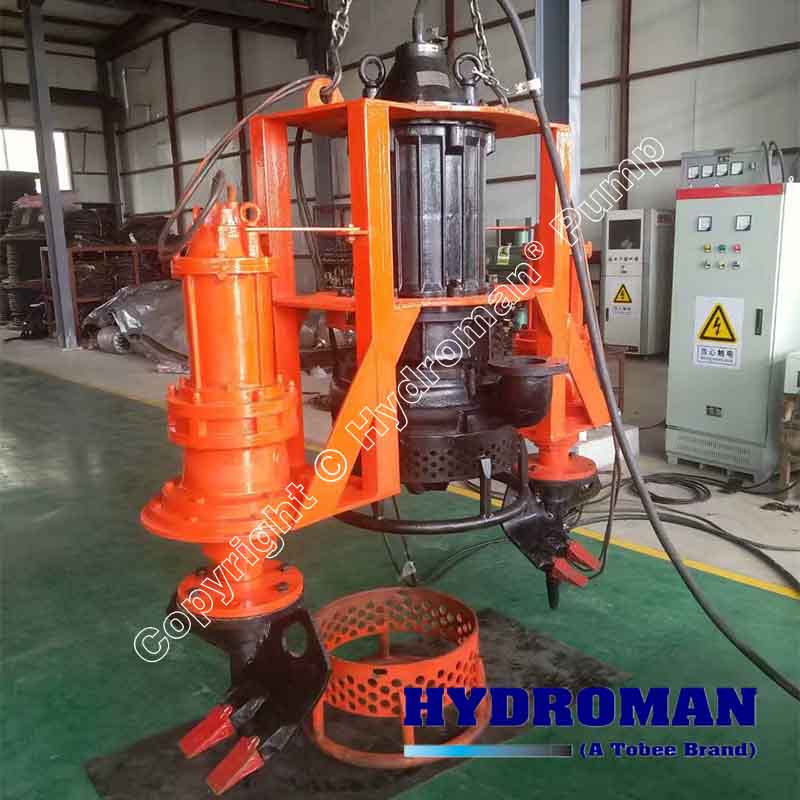

Agitator Submersible Dredging Pump

SPECIFICATIONS:

Size: 50-400mm

Capacity: 10-2000m3/h

Head: 8-150m

Max. particles: 60mm

Max. concentration: 70%

Max. working depth: ≤ 150m

Cutterheads: 0.75-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome alloy, Hyperchrome, SS304, SS316L, Duplex SS etc

Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman™ Agitator Submersible Dredging Pump is designed for pumping sand, gravel and rock notably in mining and the dredging industry. It is a pump and an excavator at the same time. The design incorporates the renowned patented Hydroman agitator, attached directly on the pump shaft, closed impeller, large open passages for easy passage of solids, heavy duty shaft and bearing configuration, special seals working in an oil bath and 4, 6, 8 or 10 pole customs built electric motor with 1.35 service factor. The impeller, wear plate liners, volute casing and the agitator are manufactured in cast chrome iron (27 to 28%). Two adjustable wear plates allow optimizing hydraulic efficiency of the dredge pump.


Design Features:

▪ Hydroman Electric Motors are all Class H insulated and have a minimum 1.25 service factor.

Hydroman Submersible Dredging Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.

▪ High quality abrasion resistance materials ensure long life of all components.

▪ Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.

▪ Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.

▪ Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.

▪ Lube Oil Inspection Ports: a wide angle port outside the submersible slurry pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.

▪ The excavating action is created by the Hi-Chrome agitator blades that lift settled sediments which then get sucked into the submersible Dredging pump, creating a continuous flow of concentrated slurry.


Hydroman™ Agitator Submersible Dredging pumps Applications:

▪ Waste sludge handling / Tank clean out / Waste collection ponds / Thickener clean out / Barge unloading.

▪ Waste collection pit / Ash sumps / Dredging waste ponds / Bark Collection pit / Clean up sumps.

▪ Gold tailings reclamation / Ball mill sumps / Settling and collection ponds / Underground slimes collection ponds / Conveyor tunnel sumps / Tailings back-fill system / Preparation plant collection sumps / Coal tailings relocation / Open pit slimes removal / Crusher sumps / Grinding area sumps / Flotation area sumps / Removal of material of material from thickeners / Truck wash sumps.

▪ Mill scale pits / Coke plant scale pit / boast furnace slag pit / Water treatment sumps / Clean up sumps.

▪ Dredging deep deposits (up to 120 m deep) / Recovery of sand not mined by primary dredge / Sands mining.

▪ Trench clean out and back-fill in pipe-cable laying projects / Clean out caissons in construction / Transfer of bentonite slurry / Overburden removal / Silt from gravel washing.

▪ Removal of silt build up at marinas, harbors, dock loading facilities, etc. / Clean out of contaminated sludge collection ponds / Reclaiming beaches / River, lake and canal clean out. De-silting water intakes / Emergency dump pond / Ash decant sumps / Fly ash collection sump / Ash and waste collection pit / Scrubber sludge transfer / Lime collection pit / Coal wash-down sumps.

▪ Coke conveyor spillage sumps / Crude oil tank clean out / Sludge transfer / Settling-collection pits / Tailings recovery / Coke fines collection pit / Relocation of sand filled drilling rigs / Drilling mud barge unloading.

▪ Pumping marble dust.
