Max. particles: 60mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Sealing arrangement: Double mechanical seal
Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc
Electric Dredge Pump with 2 Side Cutters is an extremely rugged dredge pump for transporting the most abrasive solids from heavy-duty dredging situations，so that the dredging work can be finished efficiently and thoroughly. If the pond, lake or pool you need to dredging is covered with geomembrane, the Submersible Sludge Pump with Side Cutter is a good choice for you, because it can prevents the geomembrane from destruction. Submersible dredging pump with side cutters are widely used for rivers, lakes and seas, reservoirs for pumping mud, dredging, power plant dust ash, steel plant for oxidation of iron oxide, sand picking, mine tailings etc.
Hydroman™ submersible electric dredge pump maintenance
Submersible electric dredging sand pump should be managed and used by a special person, and the insulation resistance of the electric pump winding and the casing should be checked regularly.
After each use is especially suitable for thicker slurry, the submersible electric sand pump should be put into clean water and run for a few minutes to prevent deposits and ensure the cleanliness of the motor.
If the submersible dredging mud pump is not used for a long time, the submersible mud pump should be taken out of the water. Do not soak it in water for a long time, so as to reduce the chance of the motor stator winding being damp and increase the service life of the submersible electric mud pump.
Under normal conditions, submersible agitator sand pump should be filled with oil in the oil chamber after every 300-500 hours of use to keep the mechanical seal in good lubrication and improve the service life of the mechanical seal.
After submersible dredged sand pump is disassembled and repaired, the casing components must pass the 0.2mpa air tightness test to ensure the reliable sealing of the motor.
The seal ring between the impeller and the pump body has a sealing function. If the seal is damaged, it will directly affect the performance of the electric submersible pump and should be replaced if necessary.
Hydroman™ Submersible Dredging Pump with Side Cutters Features：
Submersible Dredging Pump with Side Cutters has better stability and longer life span, because the main parts are made of abrasion resistant materials – Hyper chromium alloy.
Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, then high suction efficiency can be ensured for the Electric Submersible Dredge Pump.
Except for the main impeller inner dredging pump, there is extra agitation impeller at bottom to cut and mix the sludge, so the efficiency of submersible dredging sludge pump will be improved more.
Electric Submersible Dredged Pump with Side Cutters is easy to installation and operate while without additional vacuum pump or pump house.
Submersible Dredger Pump with Side Cutters is high efficient and enery-saving due to the powerful bottom agitator.
Professional technology support is provided for the whole process of the usage and maintenance from Hydroman™.

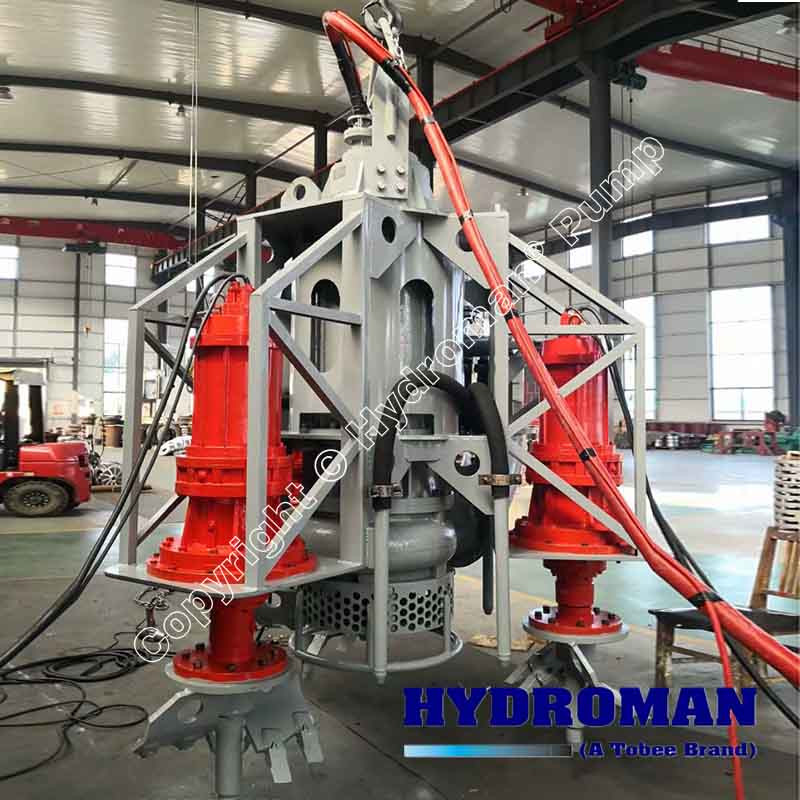

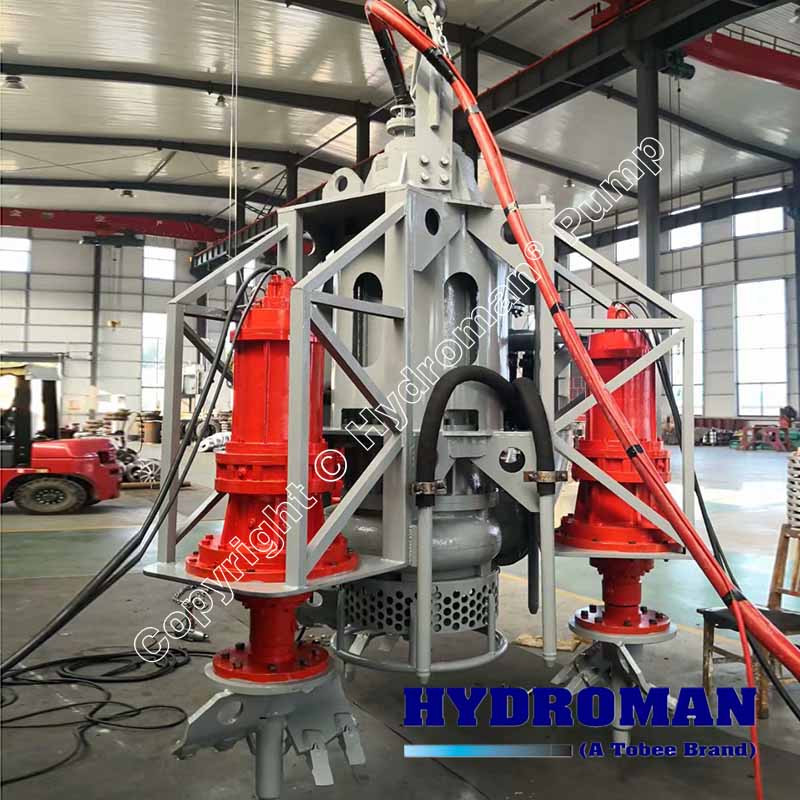

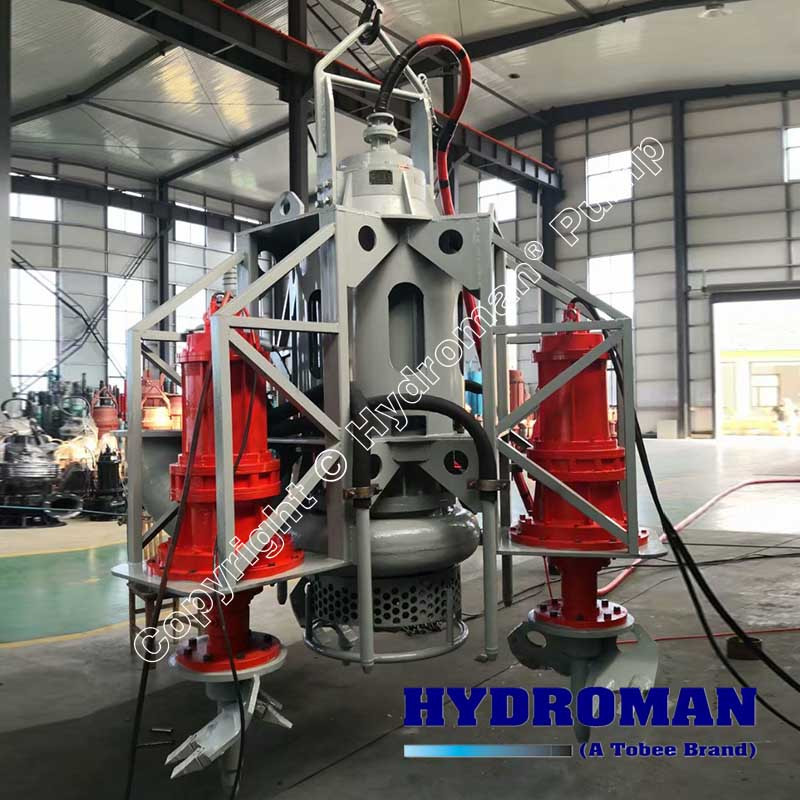

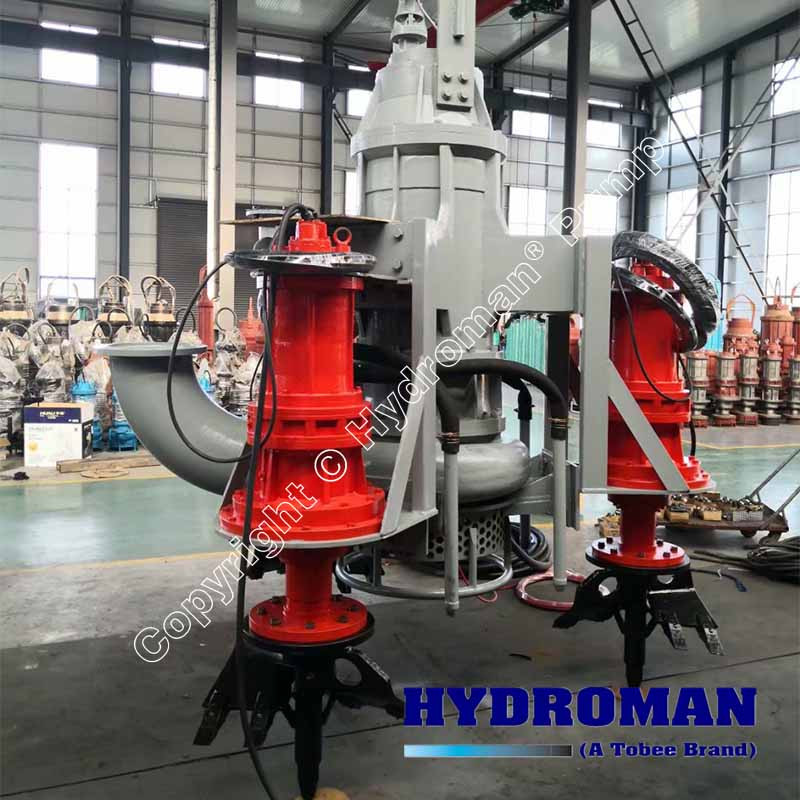

Hydroman™ Submersible Dredging Pump Assembly:
