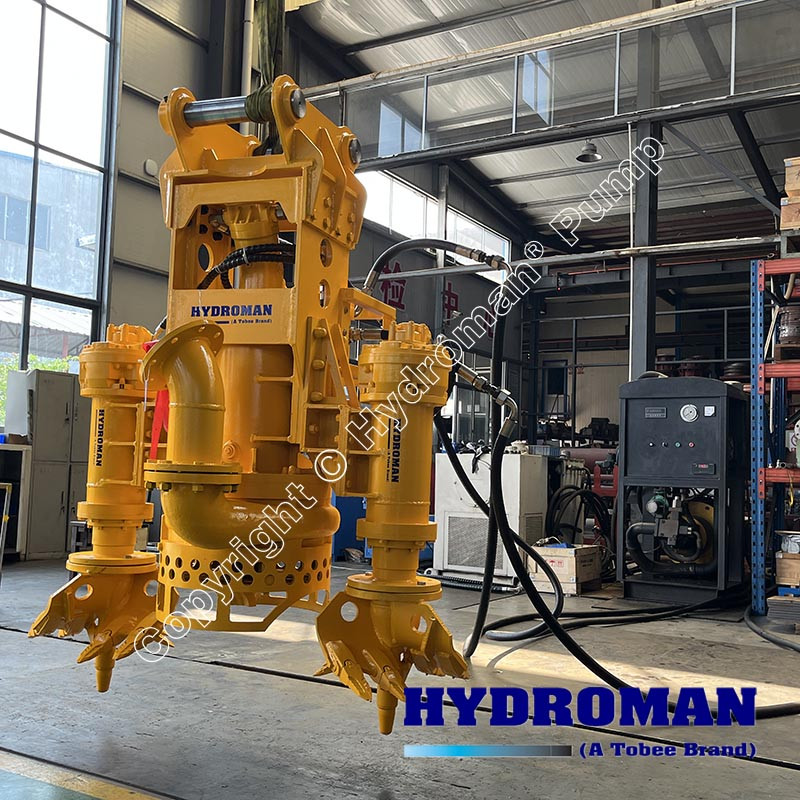

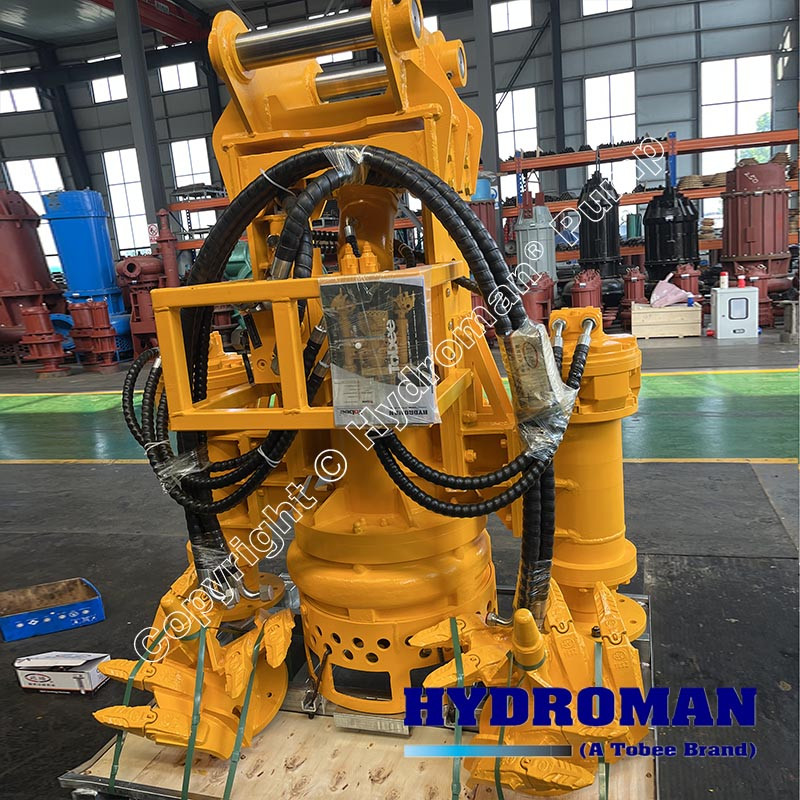

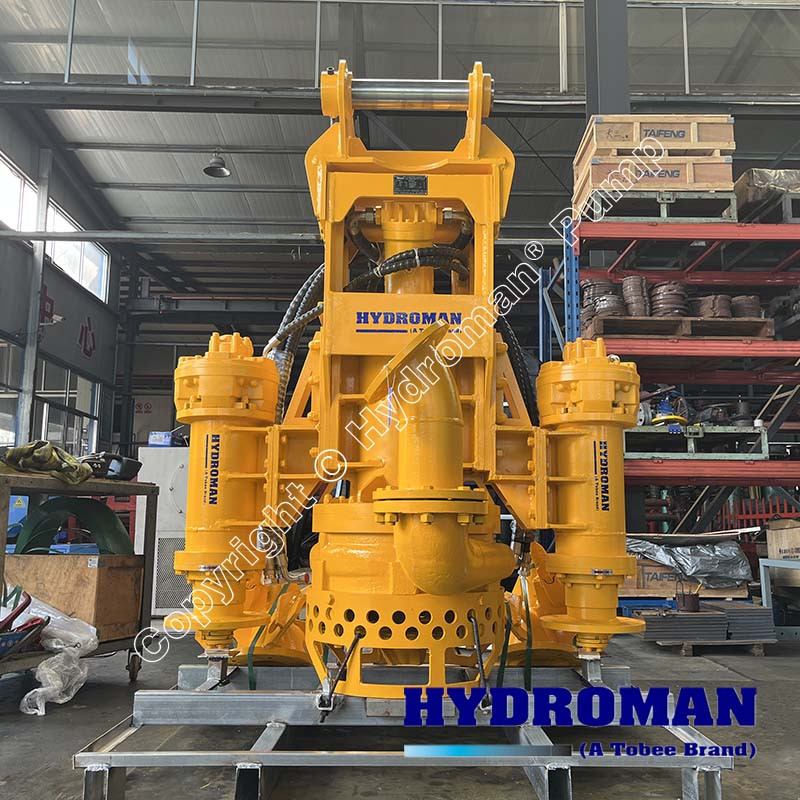

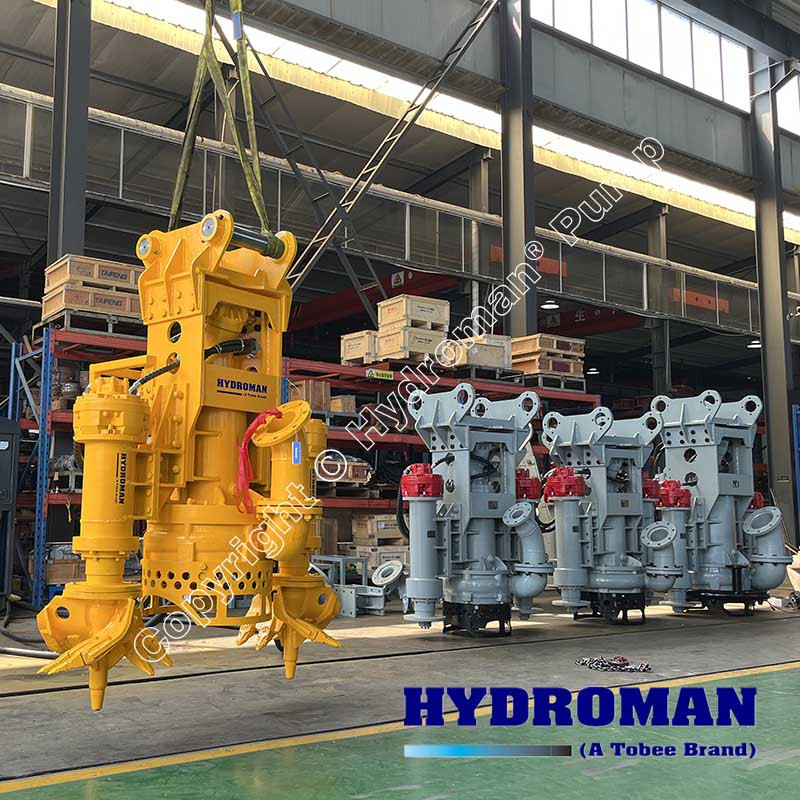

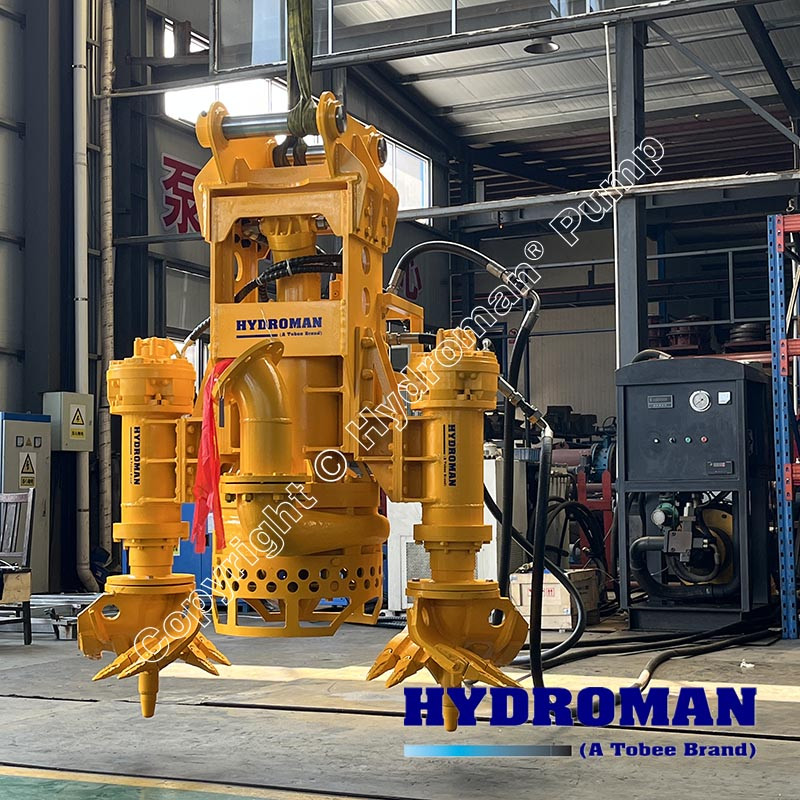

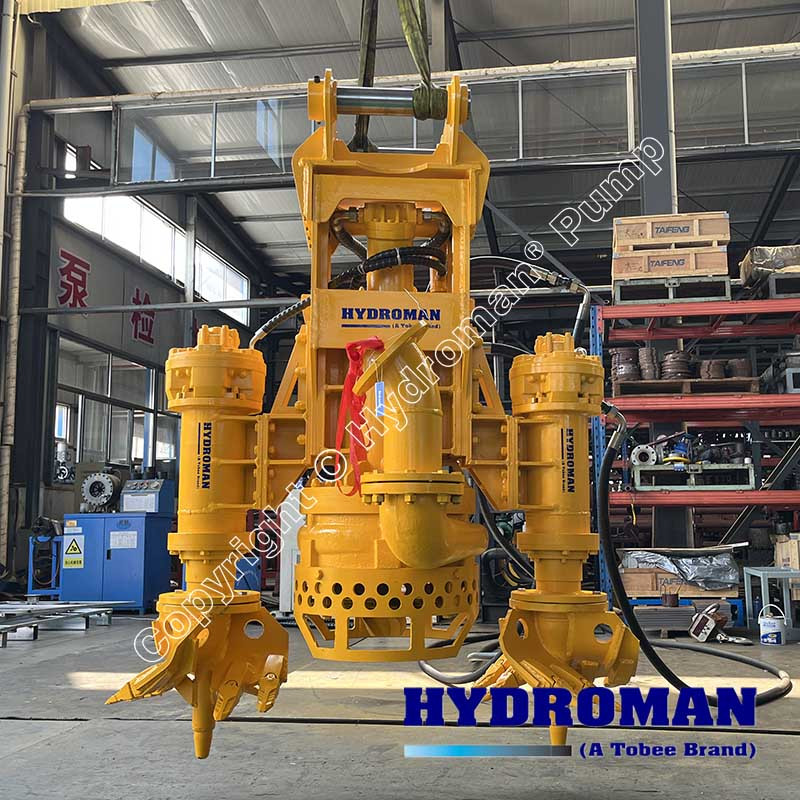

Hydraulic Slurry Sand Pump for 20 ton Excavator Komatsu PC 200

SPECIFICATIONS:

Size: 65 - 600mm

Capacity: 15-4000m3/h

Head: 10-125m

Max. particles: 120mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc


Share:
Sales@tobeepump.com +86 180 3203 4573

product details

Hydroman® Hydraulic Slurry Sand Pump installed on your 20 ton Excavator Komatsu PC 200 achieve the versatility in the world of excavation, dredging, and material handling, improve profitability and efficiency.  Excavator dredge sand pump attachmentcan exponentially increase your excavator capabilities without a massive capital investment.

What is a Hydraulic Slurry Sand Pump?

Hydraulic Slurry Sand Pump is a submersible type design centrifugal sand slurry pump, driven by hydraulic power, Hydroman® Submersible hydraulic sand slurry pump with a high-performance attachment can connects directly to the hydraulic system of your excavator, and uses the hydraulic power from the excavtor to drive a robust impeller inside a sealed casing and pump out a thick mixture of water, sand, silt, gravel, and other abrasive solids.

Key Advantages of Using Hydroman® Hydraulic Slurry Sand Pump installed on 20 ton Excavator Komatsu PC 200

 Perfect Power Match: Hydraulic dredging sand pump directly derive the power from excavator, which ensures the dredging work stable and flexibility.

 Exceptional Versatility: Move beyond just digging. With the hydraulic slurry submersible or dredging pump, your excavator can Dredge ponds, lakes, and canals, Clean out settling ponds, tailing ponds, and septic tanks, Transfer abrasive slurry and sludge over long distances, Sand Mining and extraction from riverbeds or pits, Backfilling trenches with a sand-water mixture.

 Superior Efficiency & Cost-Effectiveness: hydraulic submersible sand slurry dredge pump with agitators for excavator is on-site mobility and self-sufficiency. There is no need for separate, stationary pumps, lengthy pipe setup, or additional power sources for switch from digging to pumping.

 Robust Construction for Abrasive Materials: hydraulic slurry submersible mud pump made from maximum durability high-chrome abrasion-resistant materials.

 Enhanced Safety and Accessibility: there is no need for operators to work in or near unstable slopes or deep water, significantly improving job site safety.

Hydroman® Hydraulic Slurry Sand Pump for 20 ton Excavator Komatsu PC 200 Typical Application

 Pond, Lake, and Canal Dredging

 Settling Pond & Lagoon Cleaning

 River & Waterway Desilting

 Sand and Gravel Extraction

 Tailings Management

 Mineral Slurry Transfer

 Foundation and Trench Dewatering

 Slurry Wall and Diaphragm Wall Construction

 Tunnel and Sewer Cleanout

 Sand Backfilling

 Irrigation Channel Maintenance

 Animal Waste Management

 Environmental Remediation
