Max. particles: 25mm
Max. concentration: 70%
Temperature Range: ≤80°C
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

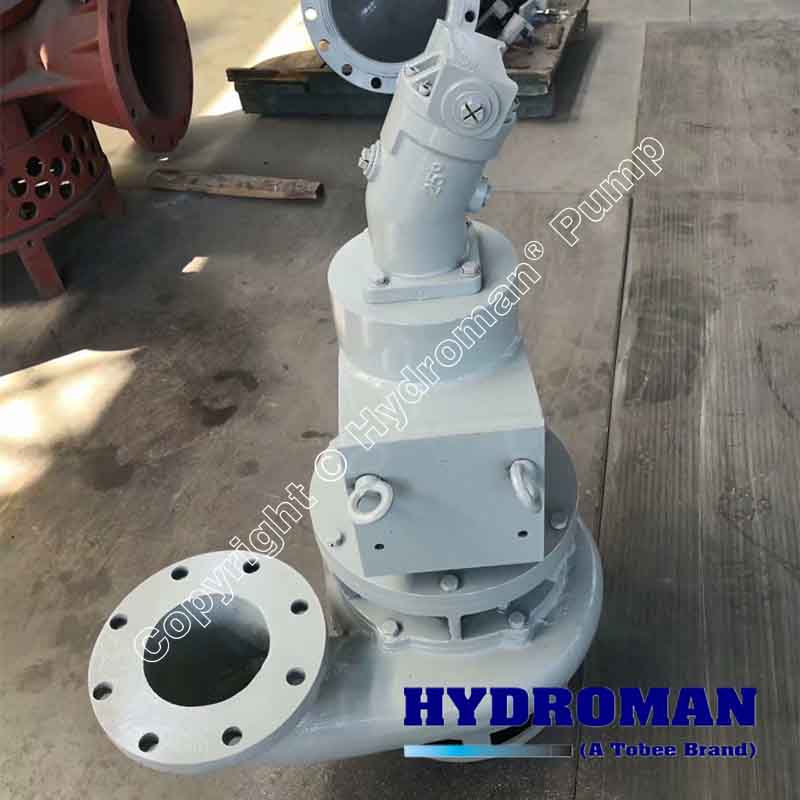

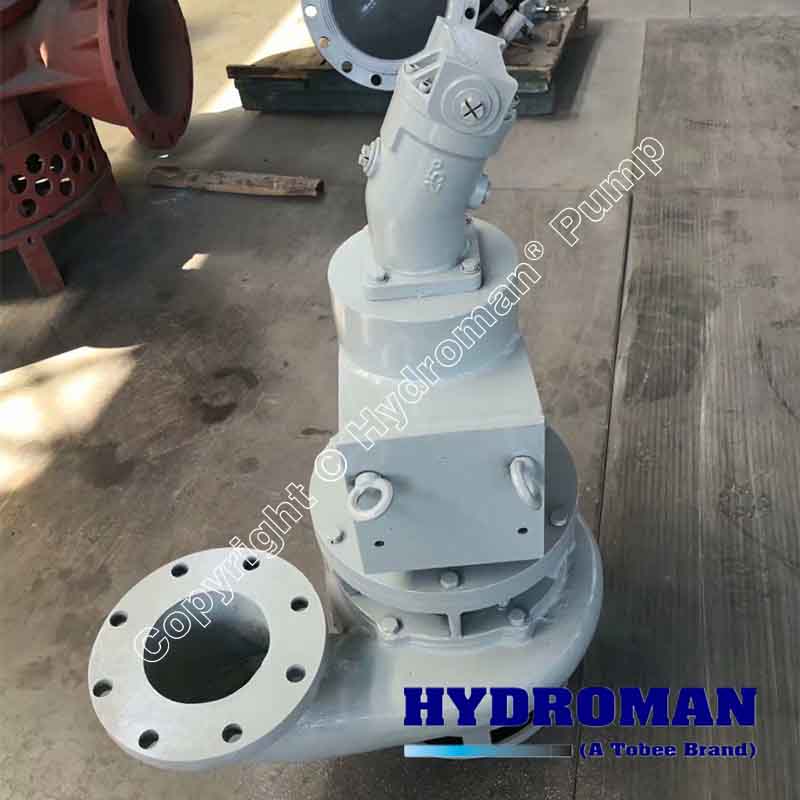

Hydroman™ THY24 Hydraulic Driven Slurry Pump is kind of hydraulic equipment for dredging applications. Hydraulic Driven slurry pump is equipped with two or three agitators to mix the precipitated slurry at high concentrations. THY24 Hydraulic driven submersible slurry pump is suitable for conveying the liquid containing solid particles such as sand or coal cinder. Hydroman hydraulic submersible slurry pump is made of wear-resisting materials with high conveying ability, strong transport capability and long life span.
▪ Hydraulic driven submersible slurry pump
▪ Pump provided of agitator to stir things up
▪ High abrasion resistance
▪ Low rotation speed
▪ Able to handle up to 70% per weight material density
▪ THY24 Pump can be easily installed and driven by a mini-excavator.
▪ No cables, no electric supply! Plug you pump and work!
Hydroman™ Hydraulic Driven Slurry Pumps Applications:
▪ The THY24 hydraulic submersible slurry pump is suitable for conveying liquid with slurry, solid particles of gravel, cinders and tailing, etc.
▪ The THY24 hydraulic submersible slurry pump is widely used in river dredging, sand pumping vessel, sewage treatment plants, metallurgical industry, mining, power plants, etc.
