Electricity Driven Submersible Slurry Pump for Mud Recycling

Jul. 22, 2022

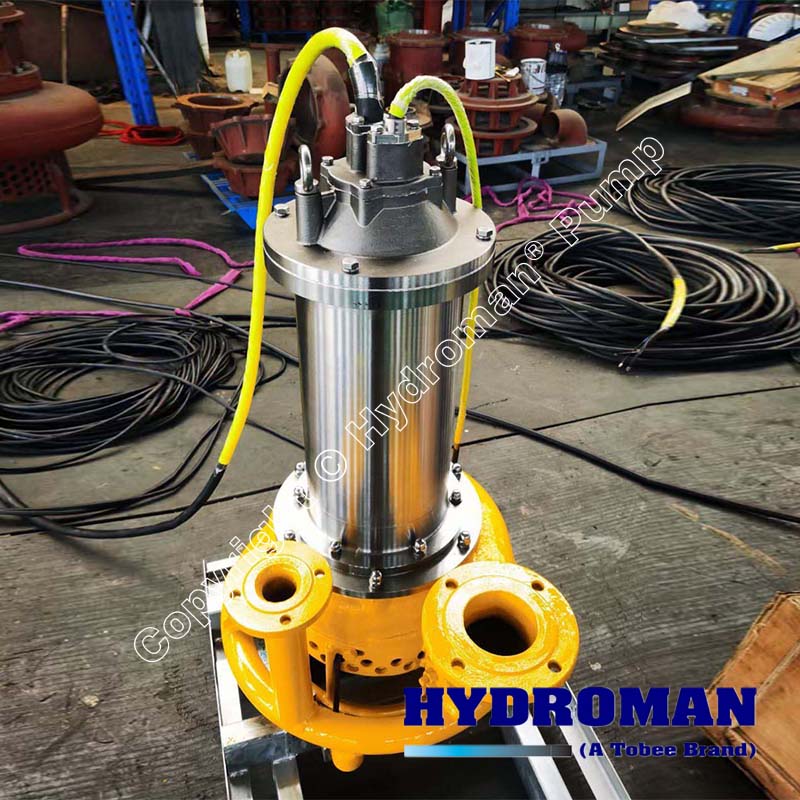

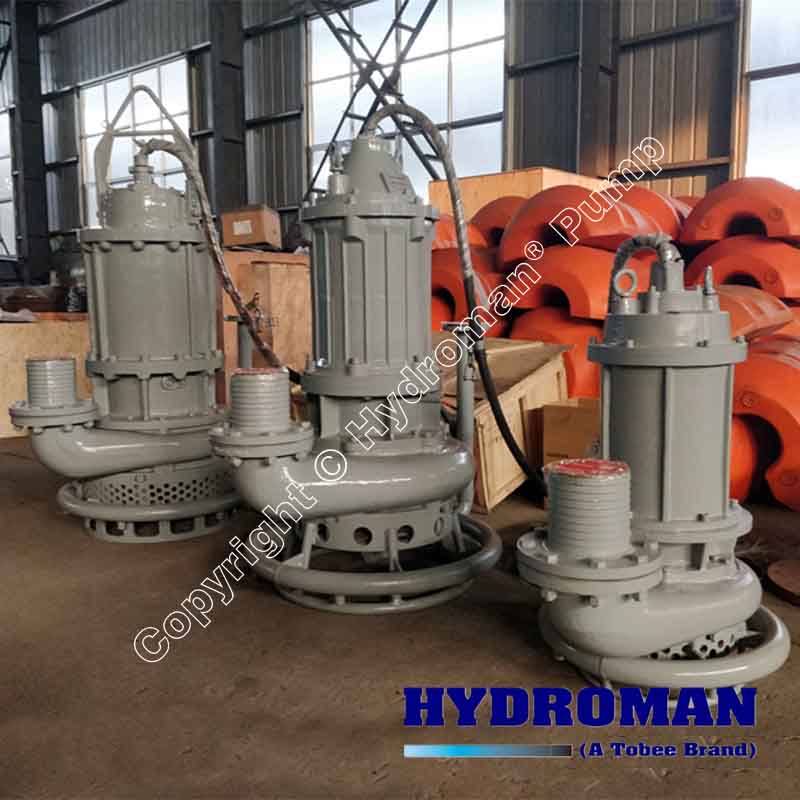

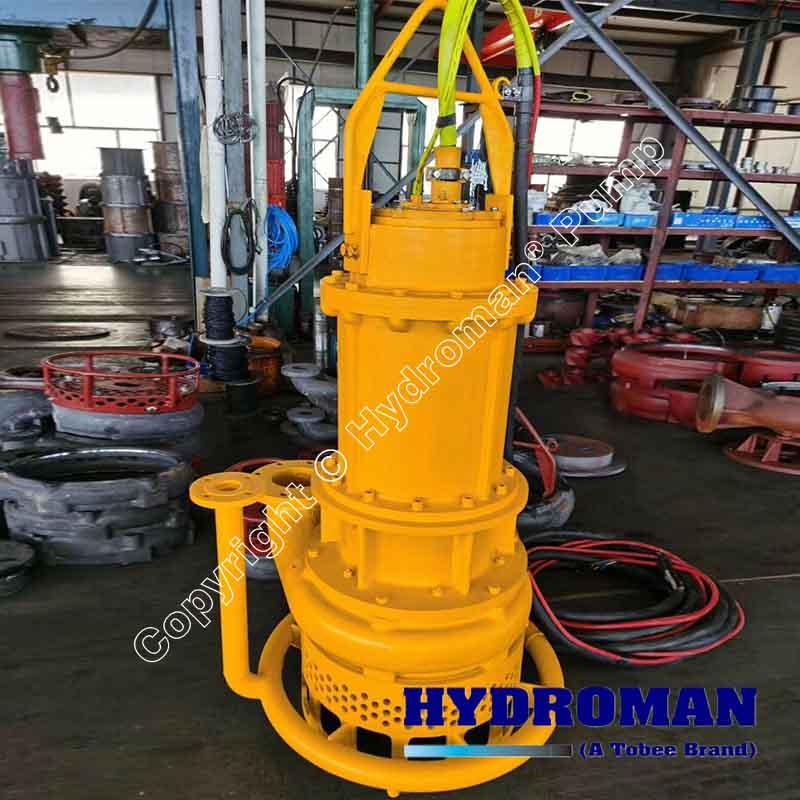

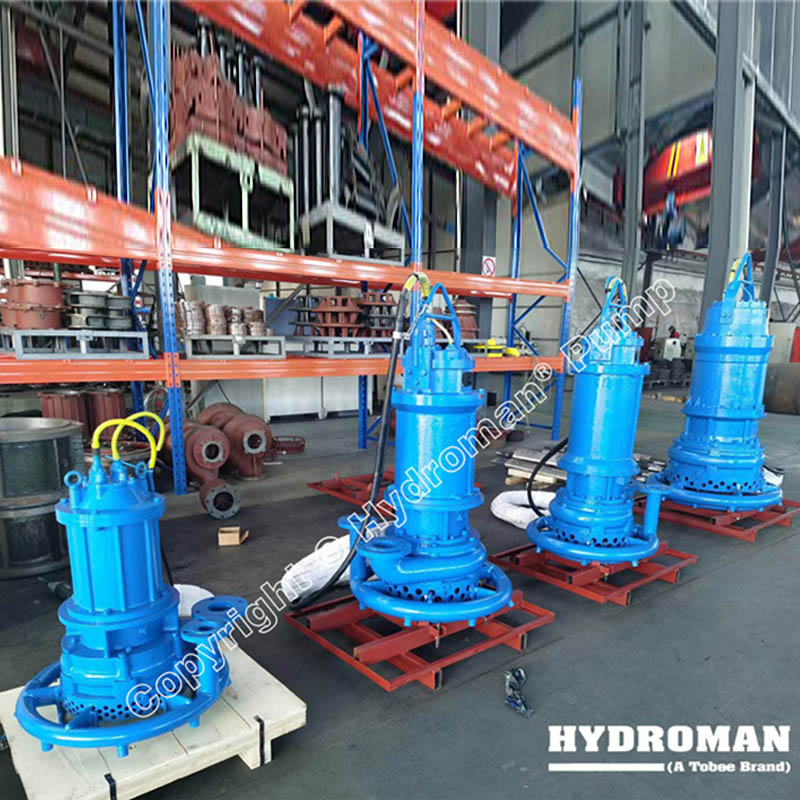

Hydroman®  Electricity Driven Submersible Slurry Pump for Mud Recycling is a kind of submersible sand suction pump that is coaxial with the motor. Submersible Mud Pump fully submerged in liquid, no need to build complex fixtures and protective measures on the ground. The motor of electric submersible mud pump is protected by mechanical seal, which can effectively prevent high-pressure water and impurities from entering the motor cavity. The stirring impeller of submersible mud recycling touches the deposition surface directly, and the slurry concentration is controlled by the diving depth, and the slurry automatically pours into the submersible slurry pump to save energy.

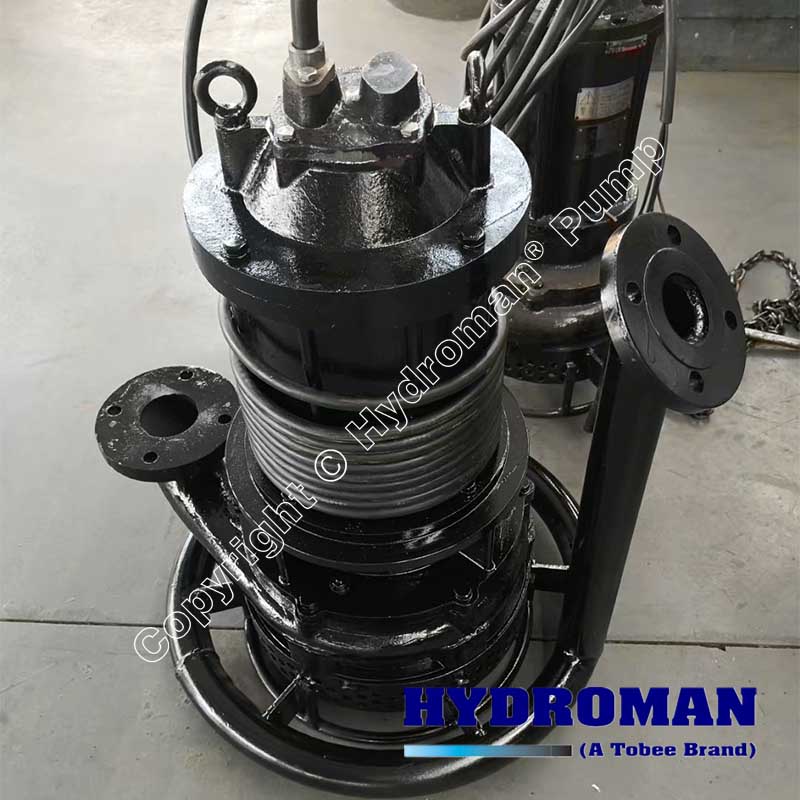

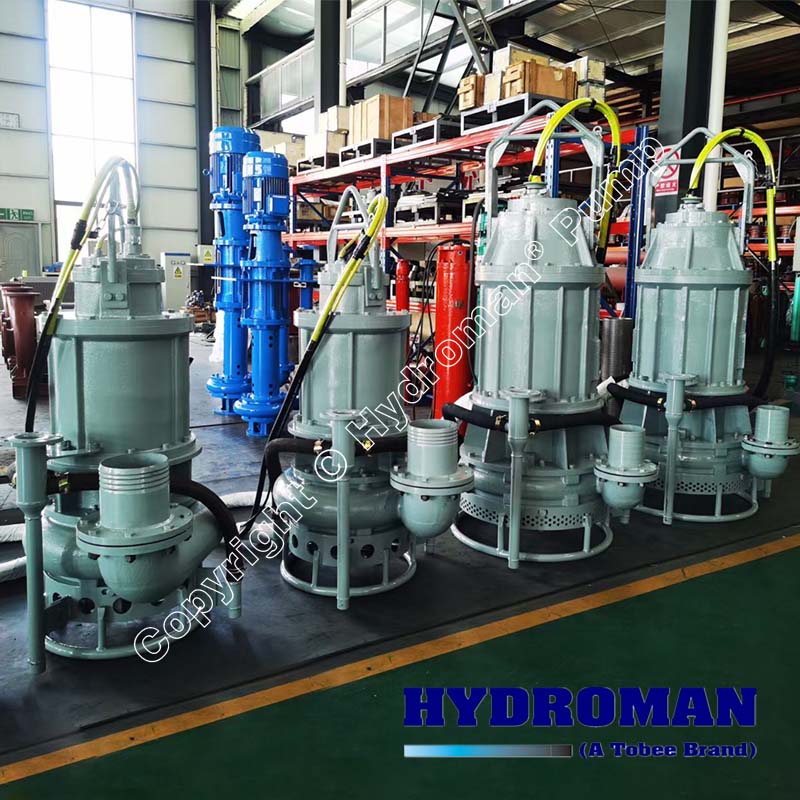

If the material is very presence of compact,dry, clay or thick dredged mud materials, you can add a high pressure water jet ring on the
submersible mud recycling slurry pump, or if the submersible sand pump requested continuously to bury with solids or need to fluidize solids to pump really thick slurry, then in addition to the agitator, Water Jet Ring can be added to the submersible suction pump stand to add high pressure water near the pump suction to further suspend settled out solids by the water jetting action of the nozzles.

Hydroman® Electricity Driven Submersible Slurry Pump for Mud Recycling is suitable for conveying slurry containing abrasive particles such as sand, cinder, tailings, etc., mainly used in metallurgy, electric power, river dredging, sand extraction, municipal mud process and other industries.


Hydroman® Electricity Driven Submersible Slurry Pump for Mud Recycling:

Submersible Sand Suction Pump with Water Jet Ring

Submersible Slurry Pump for Mud Recycling

Submersible Drilling Mud Pump

Stainless steel sand pump with high pressure water jet ring

Submersible Mud Sucking Pump for Mining

Electric Submersible Mud Pump for Coal Pile Runoff
