Max. particles: 60mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Sealing arrangement: Double mechanical seal
Materials: High chrome alloy, Hyperchrome, SS304, SS316L, Duplex SS etc
Hydroman™ Electric Submersible Sludge Pump for Pumping Industrial Waste are also known as submersible sludge pumps as they are primarily used to transfer sewage, sludge, waste water and other kinds of dirty fluids with solid particles and liquids with high viscosity. Submersible electric sludge pump is a submersible three-phase portable slurry pump equipped with a hyperchrome alloy agitator which helps to inhale the sediment smoothly. The Submersible Sludge Pump has a very high efficiency and quality compared with ordinary cast iron materials.The wear parts of electric submersible sludge pump are made of wear-resistant material,it has very high durability. Submersible Sludge Pump applications also include raw sewage & industrial waste, fresh, waste & semi-dirty water, drainage, pool & septic tank draining, waste water & effluent solutions transfer, marine bilge pumping, irrigation, liquids circulation, chemical & pharmaceutical products.
Hydroman™ Submersible centrifugal sludge pumps are available in various configurations including end-suction, non-clog, sump, horizontal & vertical discharge & auto & manual operation types suitable for light & heavy duty waste water, industrial cleaning & process applications. The Features for Hydroman submersible sludge pump include heavy-duty, hyperchrome alloy & stainless steel construction, temperature & moisture sensors, enclosed impellers, concentric volutes & explosion-proof motors.
Application of Electric Submersible Sludge Pump:
Industrial mill Scales Pits / Blast Furnace/ Coke Plant Scale Pit.
Waste Sludge Handling.
Coal Wash down Sumps.
Clean Up of Sumps & Waste Treatment Plants.
Fly Ash Collection Sumps.
Mining Open Cast Mines.
Iron / Manganese Ore Mines.
Marble & Granite Manufacturing Units.
In take Well Cleaning.
Removal of Silt Built Up from Marinas, Harbors, Dock Loading.
Reclaiming of Beaches.
River / Lake / Canals Clean outs.
Waste Collection Ponds.

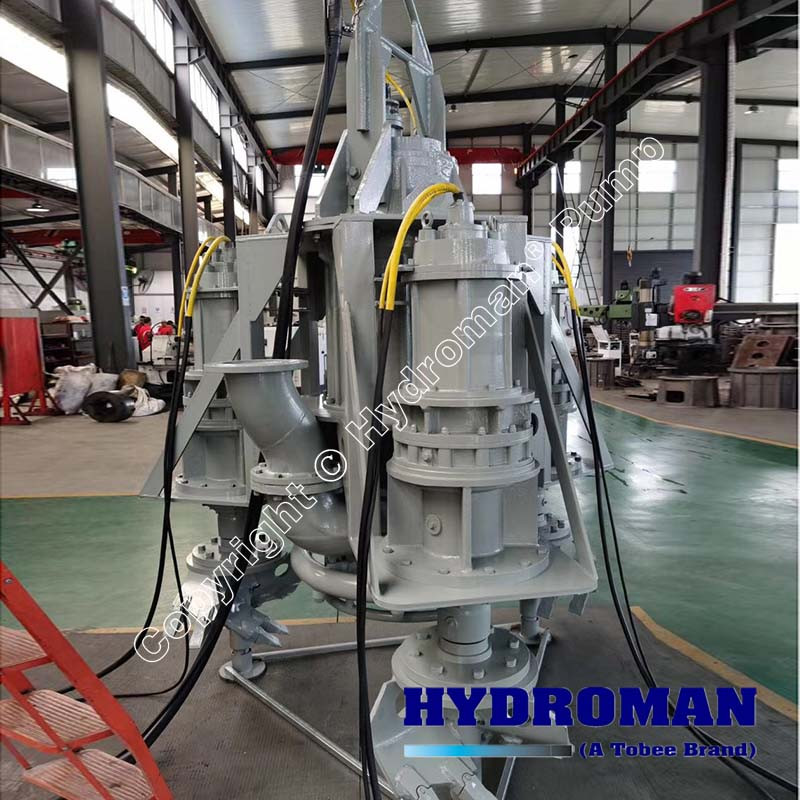

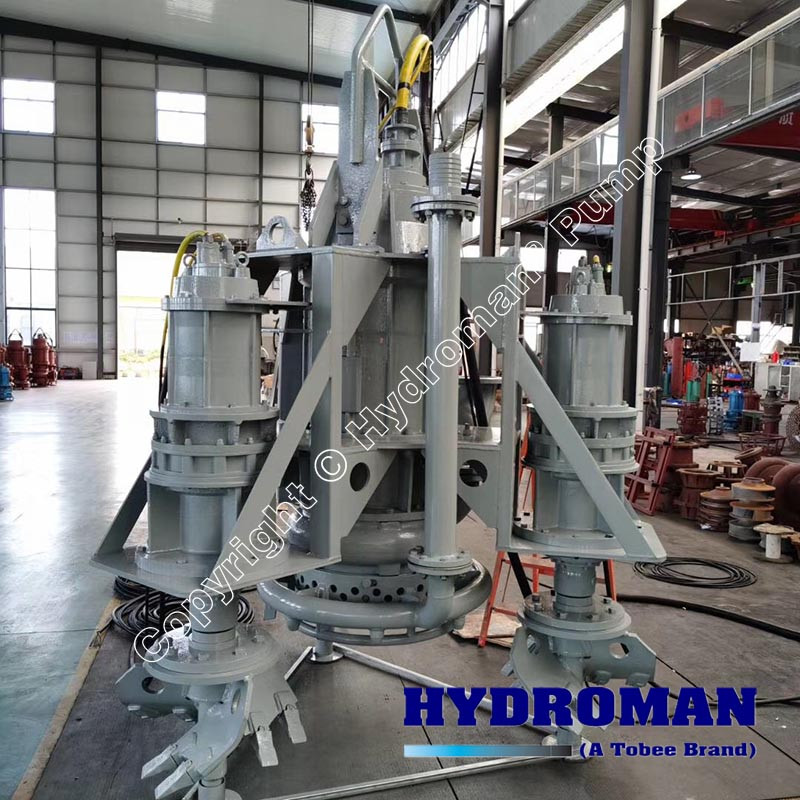

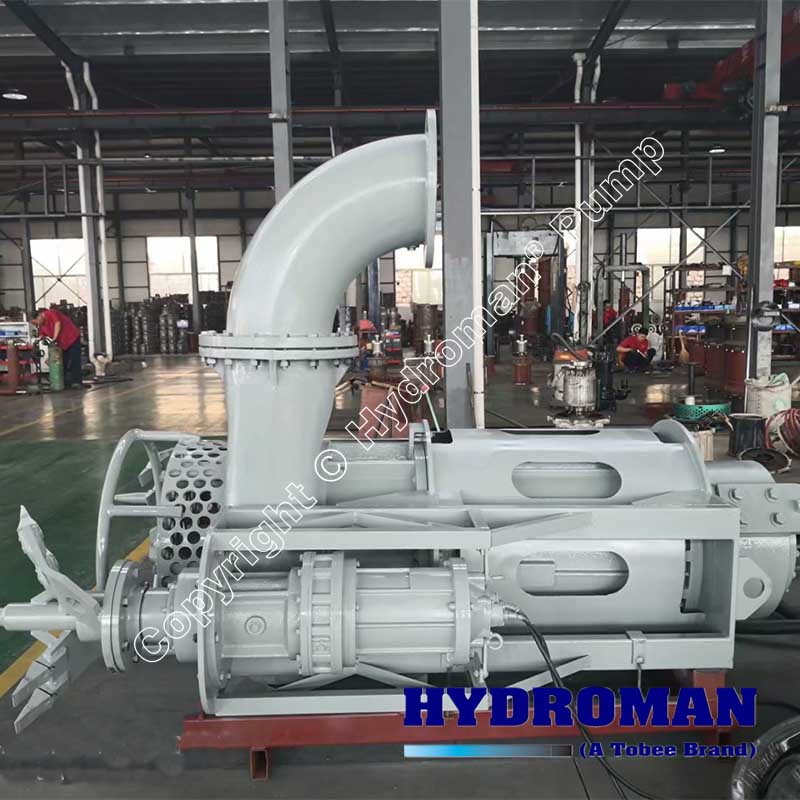

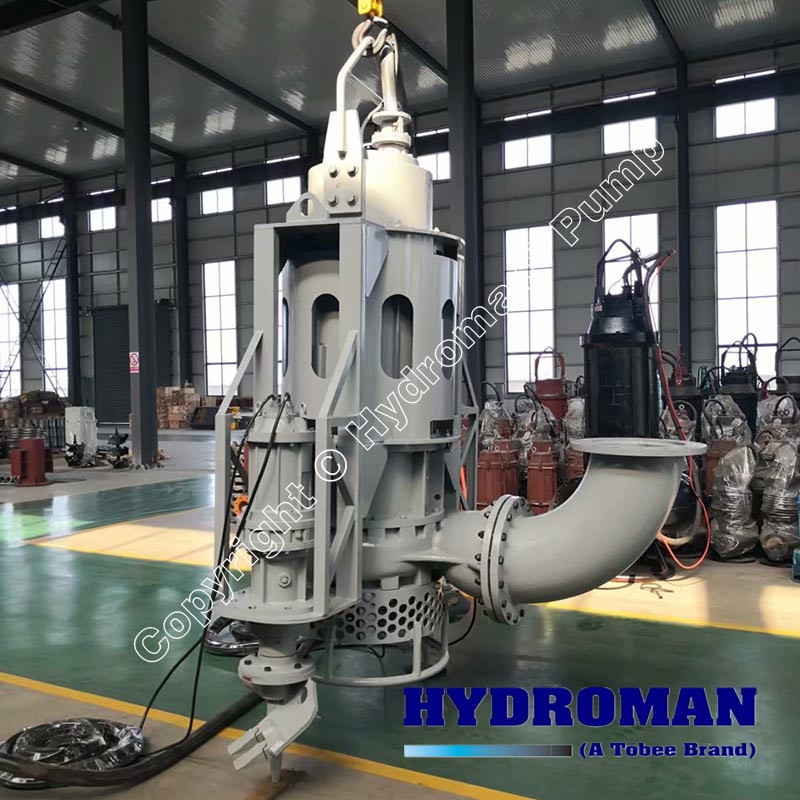

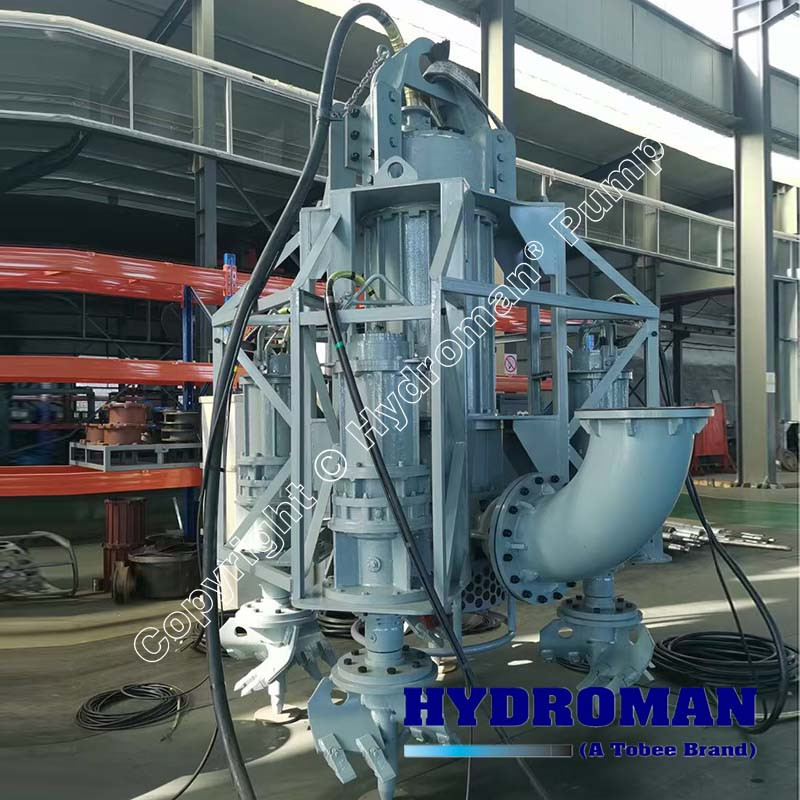

Hydroman™ Electric Submersible Sludge Pump for Pumping Industrial Waste Showing:
