SPECIFICATIONS:
Size: 65 - 600mm
Capacity: 15-4000m3/h
Head: 10-125m
Max. particles: 120mm
Max. concentration: 70%
Agitator: Available
Cutterheads: 3-22kw
Sealing arrangement: Double mechanical seal
Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc
product details

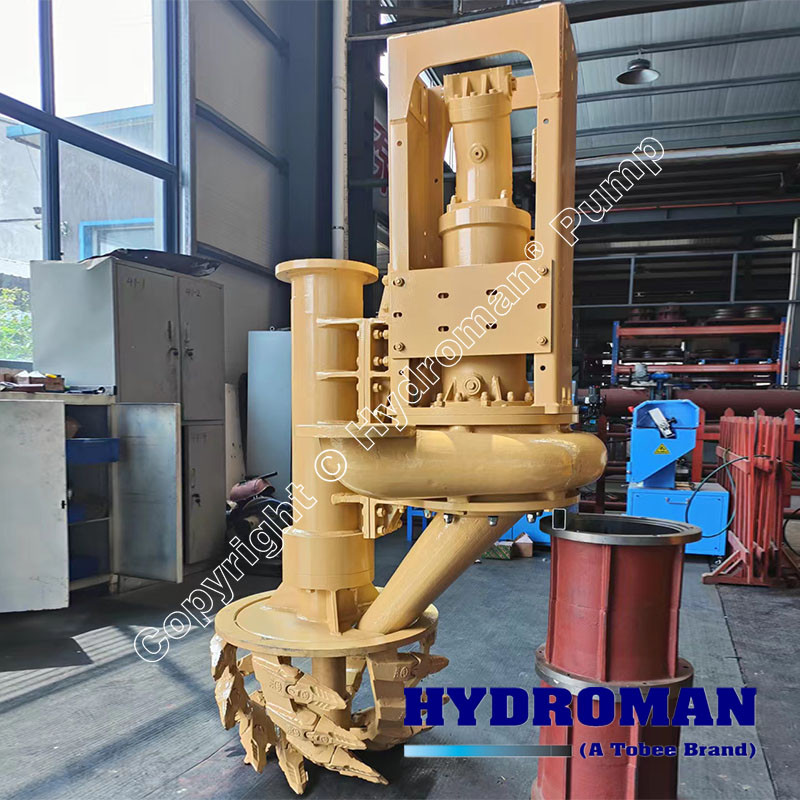

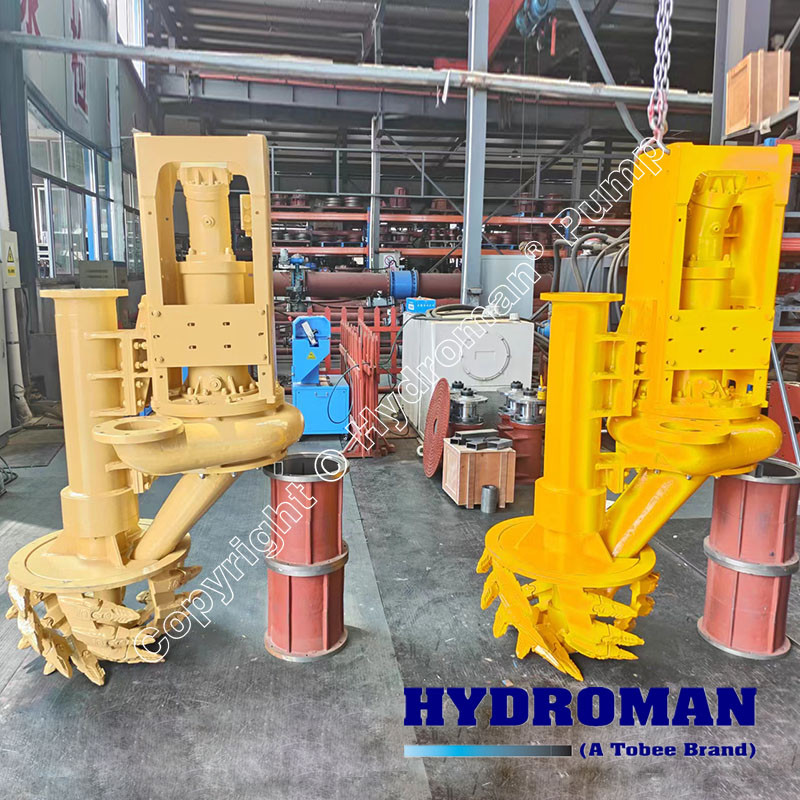

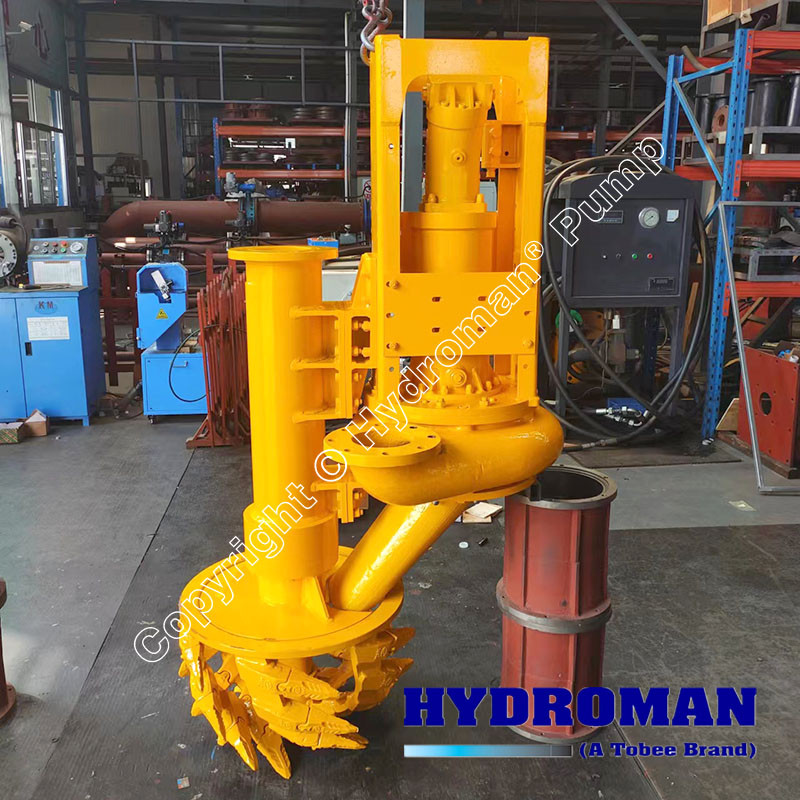

Hydroman® 8 inch Heavy Duty Submersible Dredge Slurry Pump with Headcutter with power, durability, and reliability advantage serves to industrial dredging, mining, and large-scale sediment removal, Heavy Duty Submersible Slurry Pump features an (200mm) discharge outlet delivers massive flow rates moving vast volumes of thick slurry and solids over significant distances. The submersible dredge pump with heavy-duty construction allows it to operate continuously in the most punishing environments, from sand and gravel mining to river maintenance and port deepening projects.

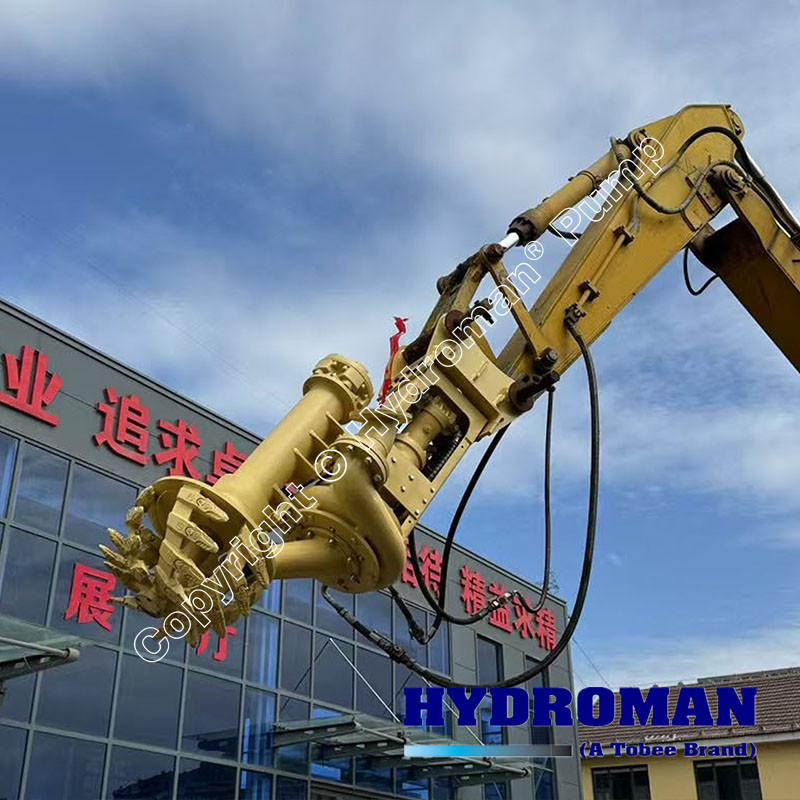

Equipment with hydraulic dredge head cutter makes the 8 inch hydraulic submersible slurry pump to be an entirely pump unit, the hardened steel cutter mechanism rotates at high torque, aggressively breaking up and loosening compacted materials—clay, hardened sludge, gravel, and even soft rock—before they enter the pump suction.
Hydroman® 8 inch Heavy Duty Submersible Dredge Slurry Pump with Headcutter is is more than just a submersible pump—it's a complete dredging solution, perfectly suited for a wide range of heavy-duty applications, including:
▪ River, lake, and port dredging
▪ Sand and gravel extraction
▪ Mining and mineral processing (tailings, slurries)
▪ Cleaning settling ponds and lagoons
▪ Construction site dewatering and slurry handling
▪ Beach nourishment and land reclamation
▪ Environmental Remediation
▪ Flood Control and Drainage
Hydroman® slurry hydraulic dredging pump integrated headcutter eliminates clogging, hydraulic excavator dredge pump submersible design offers flexibility, and submersible sludge hydraulic pump robust components withstand harsh conditions—making it ideal for port dredging, mining, environmental remediation, and more.
