Hydraulic Submersible Slurry Pump


Size: 80-400mm

Capacity: 50-1500m3/h

Head: 10-50m

Max. particles: 60mm

Max. concentration: 70%

Agitator: Available

Cutterheads: 3-22kw

Sealing arrangement: Double mechanical seal

Materials: High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Sales@tobeepump.com +86 180 3203 4573

product details

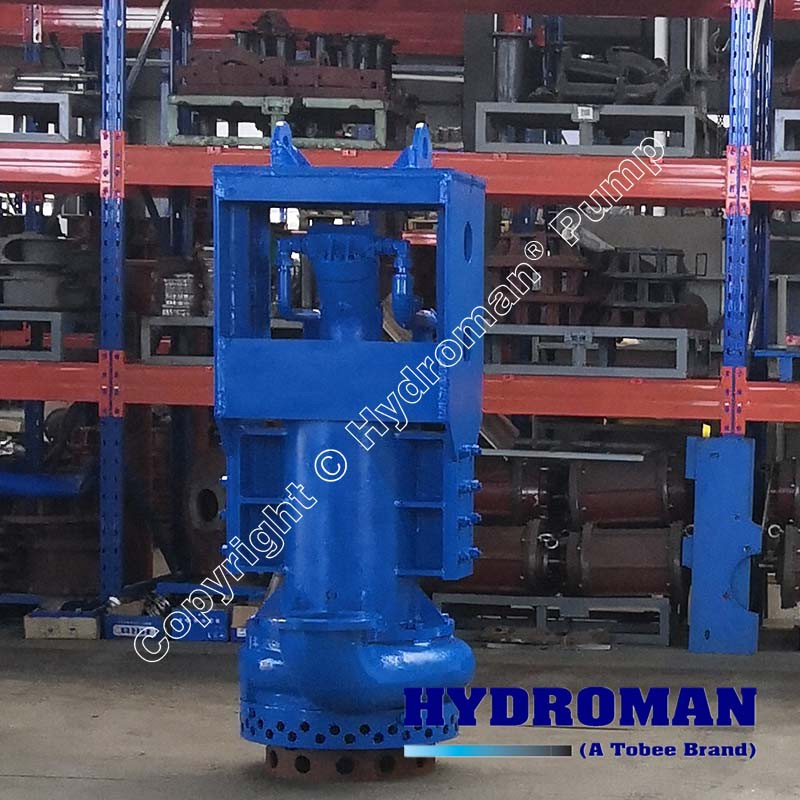

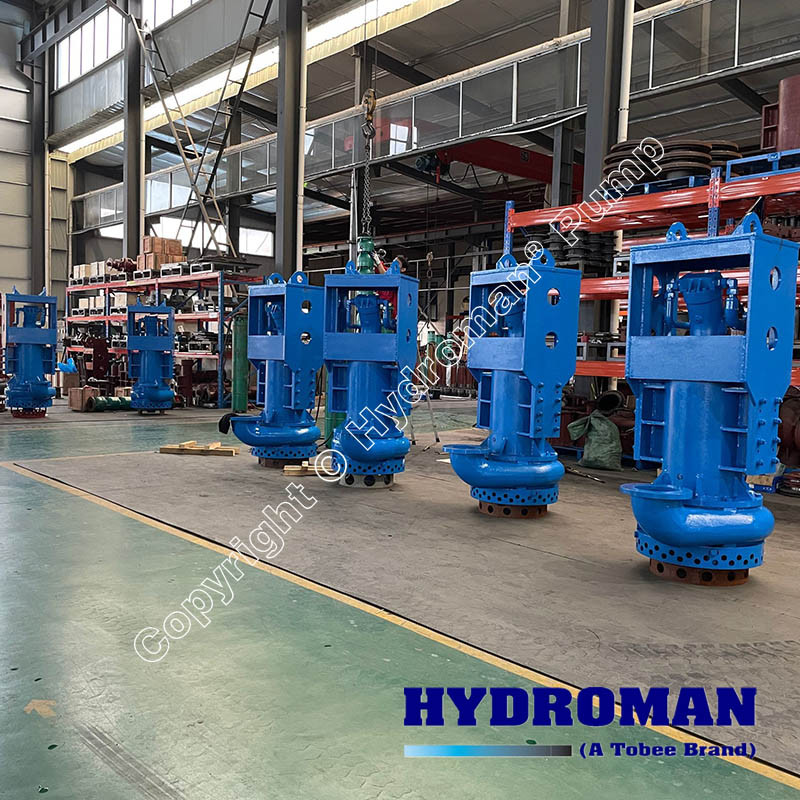

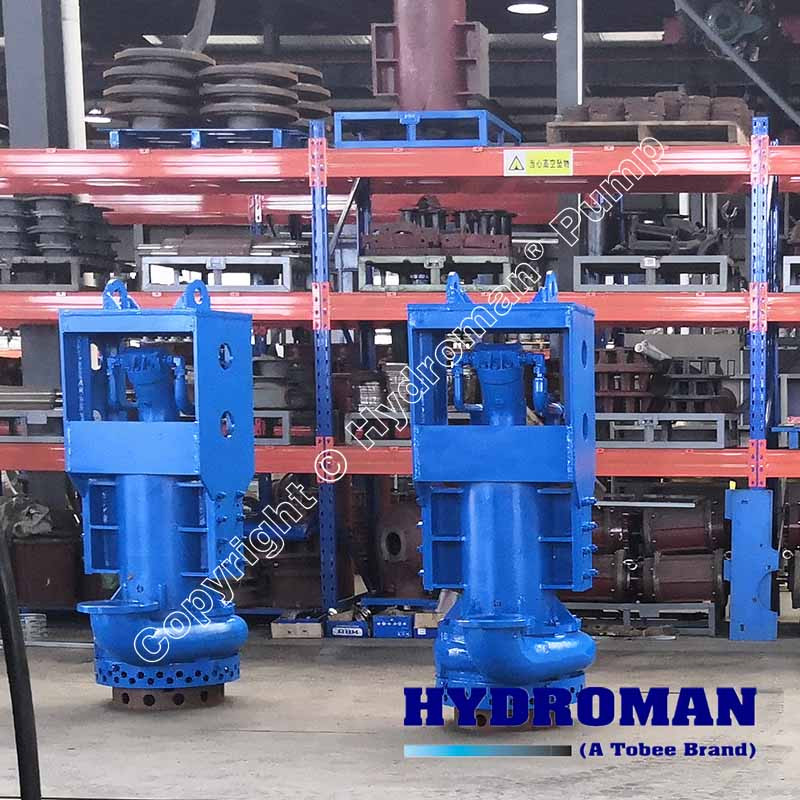

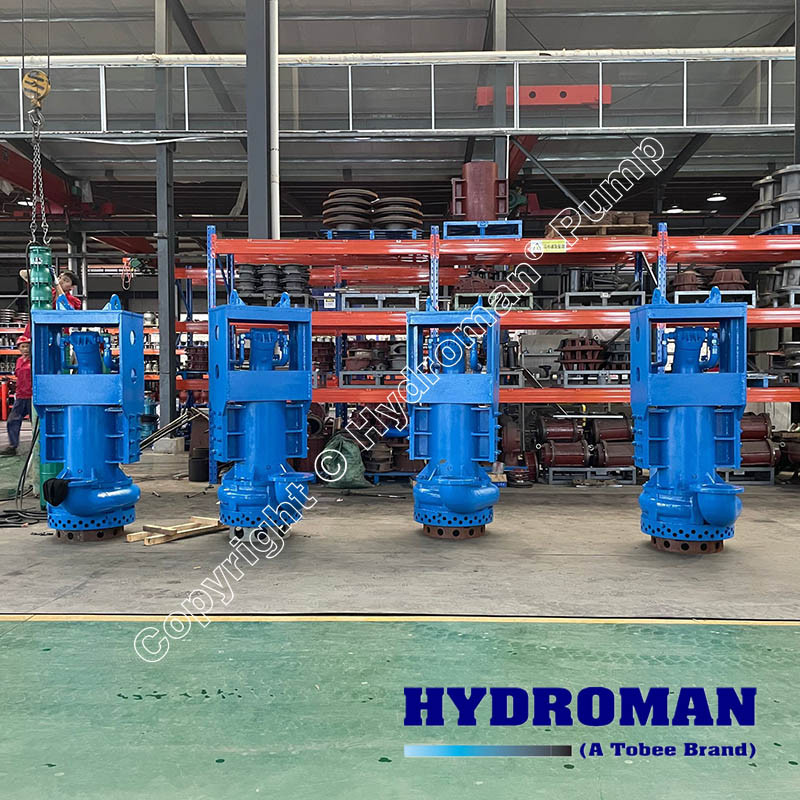

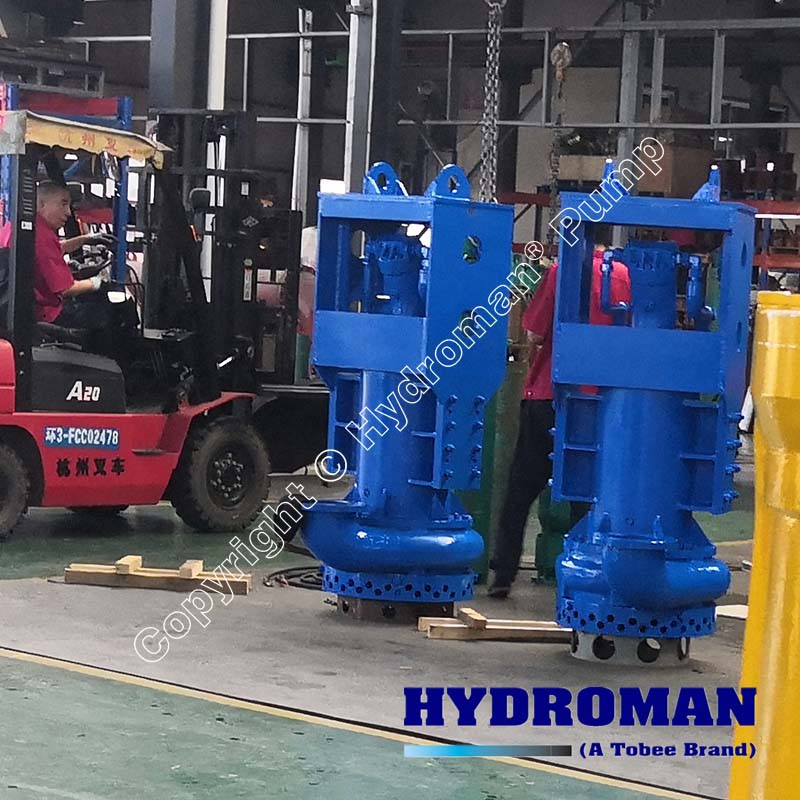

Hydroman™ Hydraulic Submersible Slurry Pump also can be named hydraulic slurry pump and submersible slurry pump driven by hydraulic actuator like hydraulic power pack or excavetor, it is a centrifugal submersible slurry pump, a singe-stage submersible slurry pump and a heavy duty submersible slurry pump. Hydraulic Submersible Slurry Pumps are used for derdging & de-silting of river, lake ,pond & port operation. Highly applicable in sludge removal, sand pumping from river bed & high density slurry extraction.
Hydroman™ Hydraulic Submersible Slurry Pump Advantages:

▪ Heavy-duty, reliable, and robust dredge body design and construction.

▪ Specially designed dredger pump, suction reamer head, and motor to realize high dredger suction ratio and more thorough dredging.

▪ Best wear-resisting.Good wear-resisting property and big flow passageway make the dredger pump suitable for mud, sand, big solid particles, ore pulp, coal pulp, and coarse sand dredging.

▪ Triple protection. Flexible sensors to realize over-heating protection, water-intake inspect protection, and oil chamber protection to ensure long and safe pump operation under abominable working conditions.

▪ Especially for multifunctional small and medium scale dredging projects.

▪ High-chromium alloy material, aluminum alloy, stainless steel pump material are available for different worksite situations.

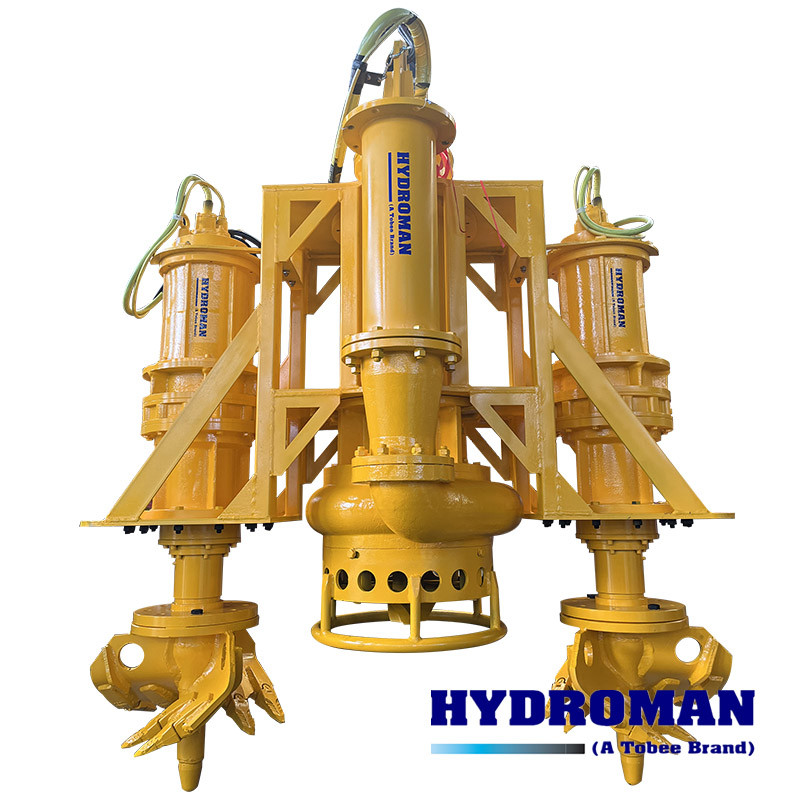

▪ One Hydraulic Submersible Slurry Pump could add 3 types of extra agitator (side agitators, head cutter and water jet ring)for higher work efficiency.

▪ Hydroman parts of hydraulic submersible slurry pump have been specially designed and shaped to provide outstanding performance, providing superb solids handling capabilities but with reduced wear (solid size up to 120 mm).

Applications of Submersible Hydraulic Slurry Pump:

▪ Dredging and desalting in the river, lake and port.

▪ Extracting sand, gravel etc., harbor reclamation project.

▪ Draining liquid with solid materials, such as iron, tailings and slag etc.

▪ Extracting slag, forging slag, sludge and other industrial waste.

▪ Pump sand and gold mining etc.

Hydroman™ Hydraulic Submersible Slurry Pump Video Showing:
