Size: 2 inch - 4 inch
Capacity: 15 m3/h - 45m3/h
Head: 10m -40m
Power: 3kw - 15kw
Sealing arrangement: Double mechanical seal
Max. particle: 120mm
Materials: High chrome, Hyperchrome, SS304, SS316L, Duplex SS etc.
Hydroman™ pump is the professional submersible pump manufacturer and supplier
who has been dedicated to designing and manufacturing a complete range
of heavy duty submersible slurry pumps, submersible slurry pump is the
effective and efficient slurry pumping equipment which is engineered for
underwater applications and widely used to handle slurry, sludge,
gravels and sediments and other heavy liquids with high concentrations
of solids in suspension. The motor of submersible pumps is protected by a
double mechanical seal, which can effectively prevent high-pressure
water and impurities from entering the inner mechanisms of the
motor. Submersible slurry pump can be directly powered by either a
hydraulic or an electric motor assembled within a protective case which
features combat structure, high efficient and flexible operation, etc.
Hydroman submersible slurry pump features:
An agitator for submersible slurry pumps delivers kinetic energy (energy of motion) to solids surrounding the pump intake, re-suspending them into a fluid state which would have otherwise buried and starved the pump of liquid.
▪ Hydroman Subersmible Slurry Agitator Pumps are available with flotation devices and a variety of options, including electric hoist, traversing winch, floating discharge piping, control panels, side cutters (side agitators), head cutter, cooling jacket and high-pressured jet ring (for additional agitation) to aggrandize the efficiency particularly in presence of dredging sand.
▪ Hydroman submersible slurry pumps are submerged in water, which means the pump doesn’t have to put much effort into the suction. Maximum of energy will go towards throwing the sludge through the outlet. It increases efficiency and provides a high sludge suction rate and thorough desilting.
▪ The motors of these high-performance submersible slurry pumps are protected by a double mechanical seal that prevents high-pressure water and other impurities from entering inside the motor.
▪ Wet parts of submersible slurry pump are made of high-chrome alloy (hardness up 62HRB to 65HRB) or stainless steel,excellent performance to resist wear,corrosion,impact or erosion.
Hydroman submersible slurry pump application:
Sand & Clay Mining
Mineral Extraction & processing
Coal pile run-off
Ball and sag mill runoff
Coal tunnel wash down sumps
Bottom ash sumps
Fly ash & precipitator sumps
Red mud decanting
Ash pond float sumps
Red mud decanting
Thicker Drain or thicker underflow sump
Mill rougher sumps

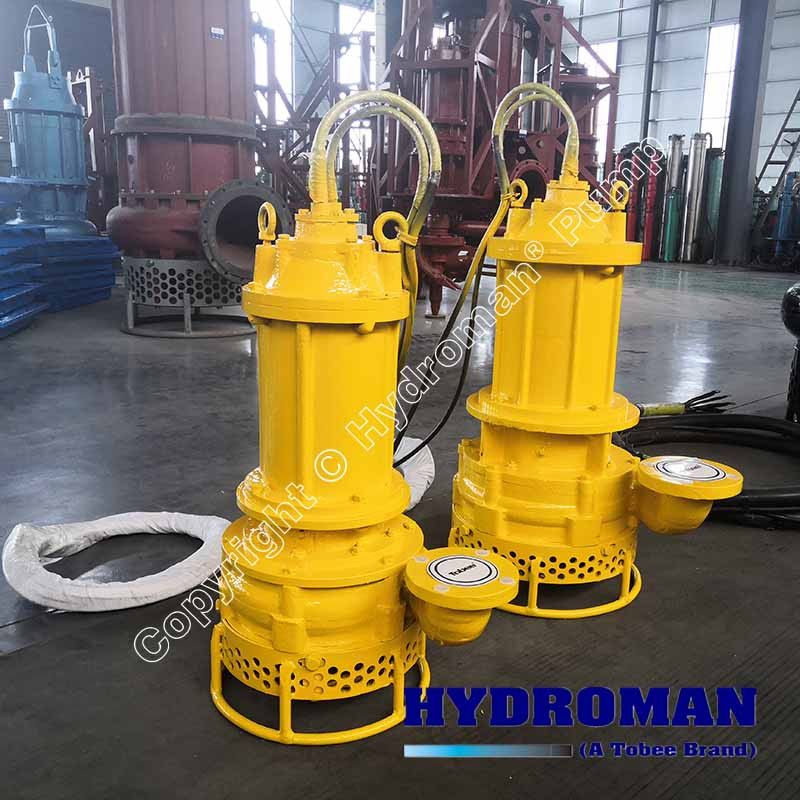

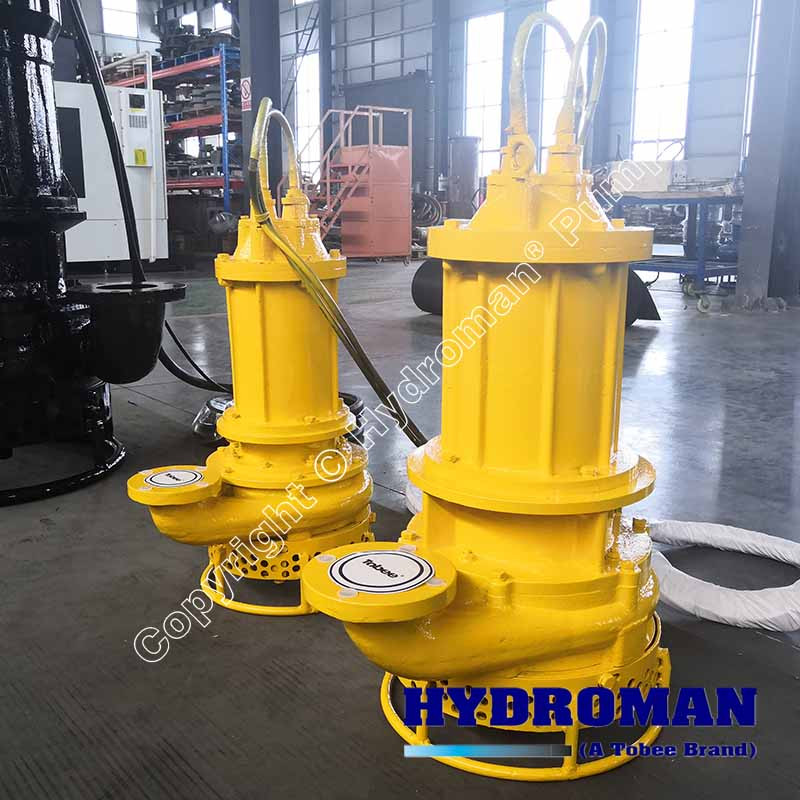

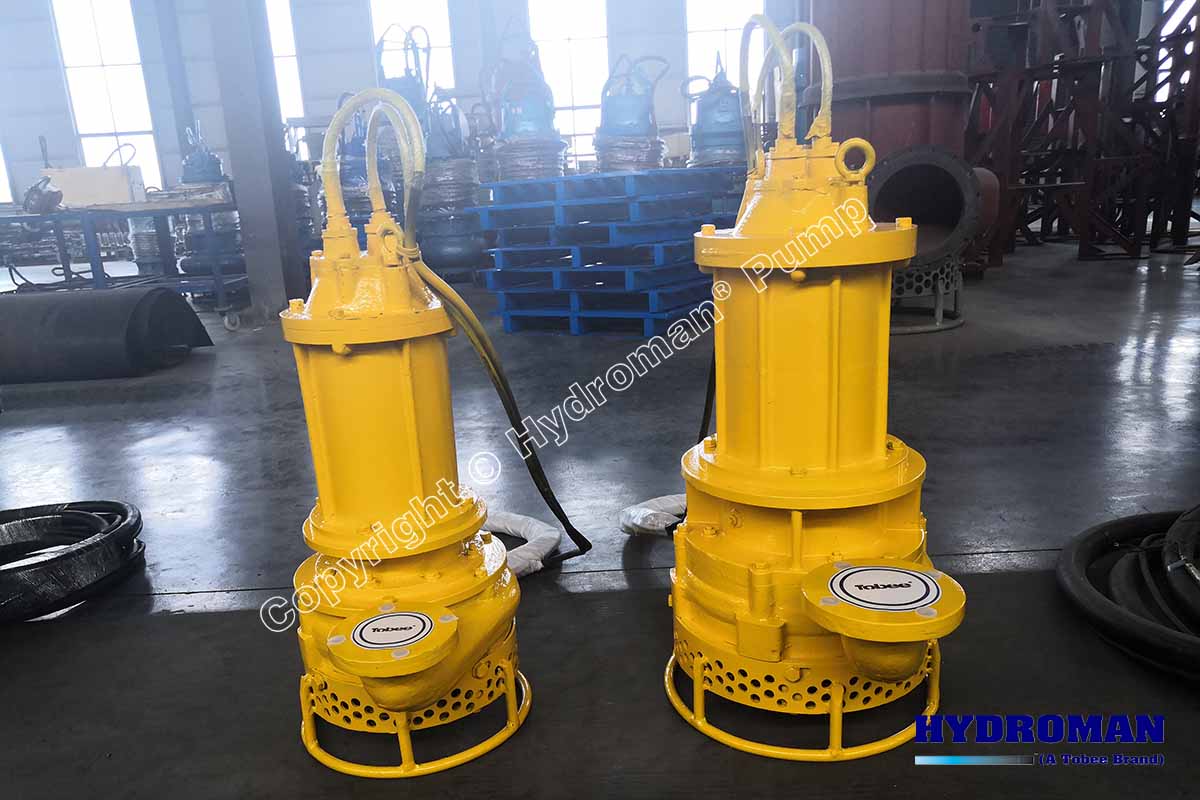

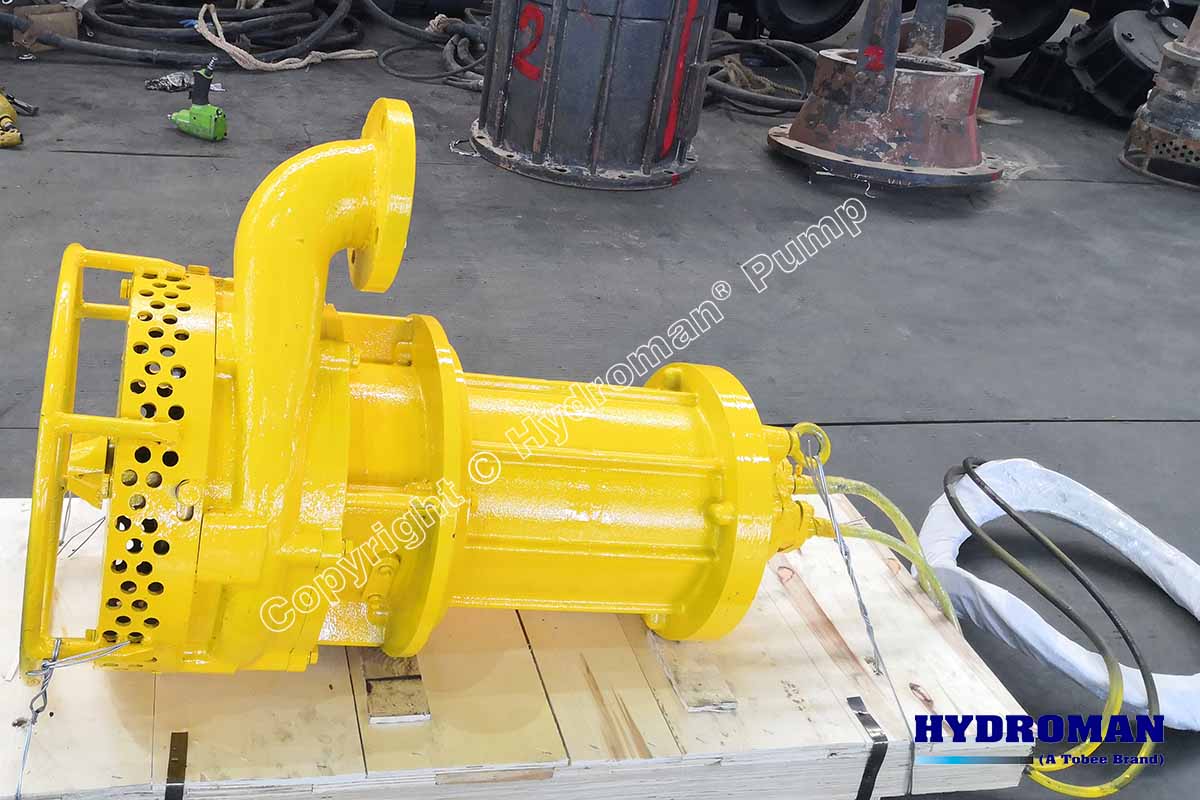

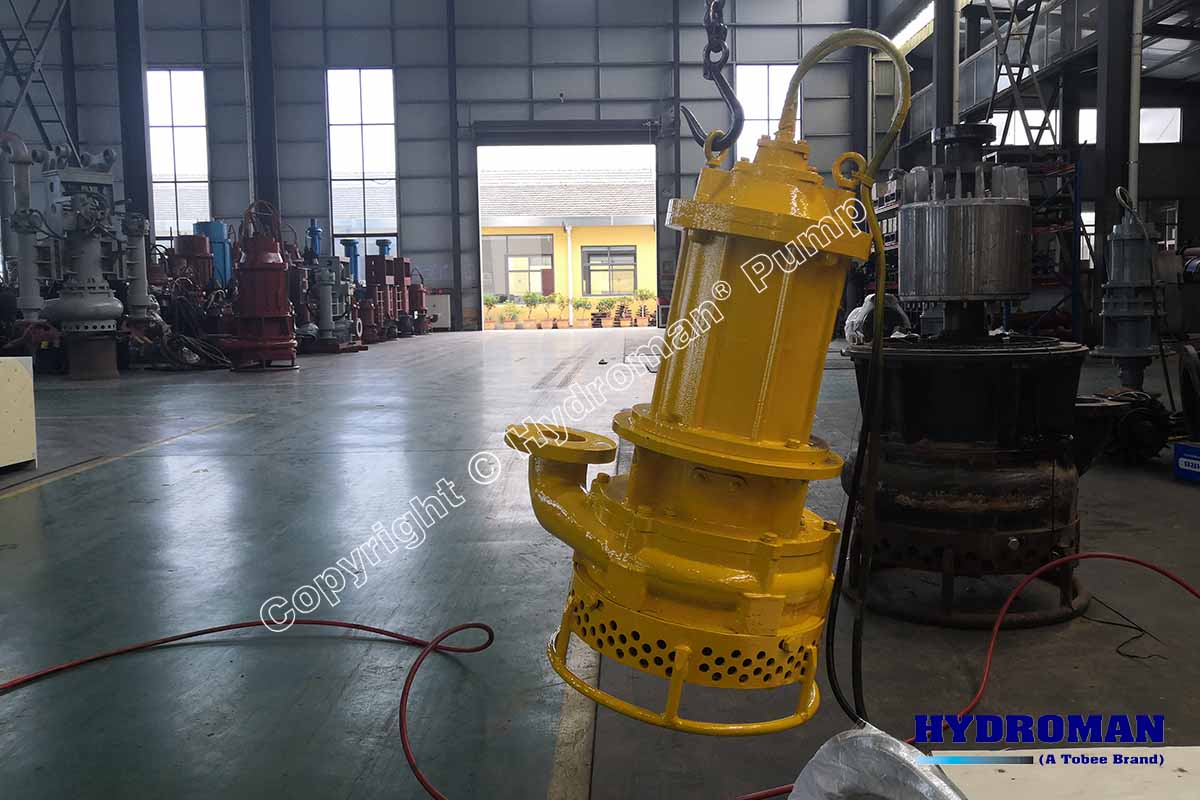

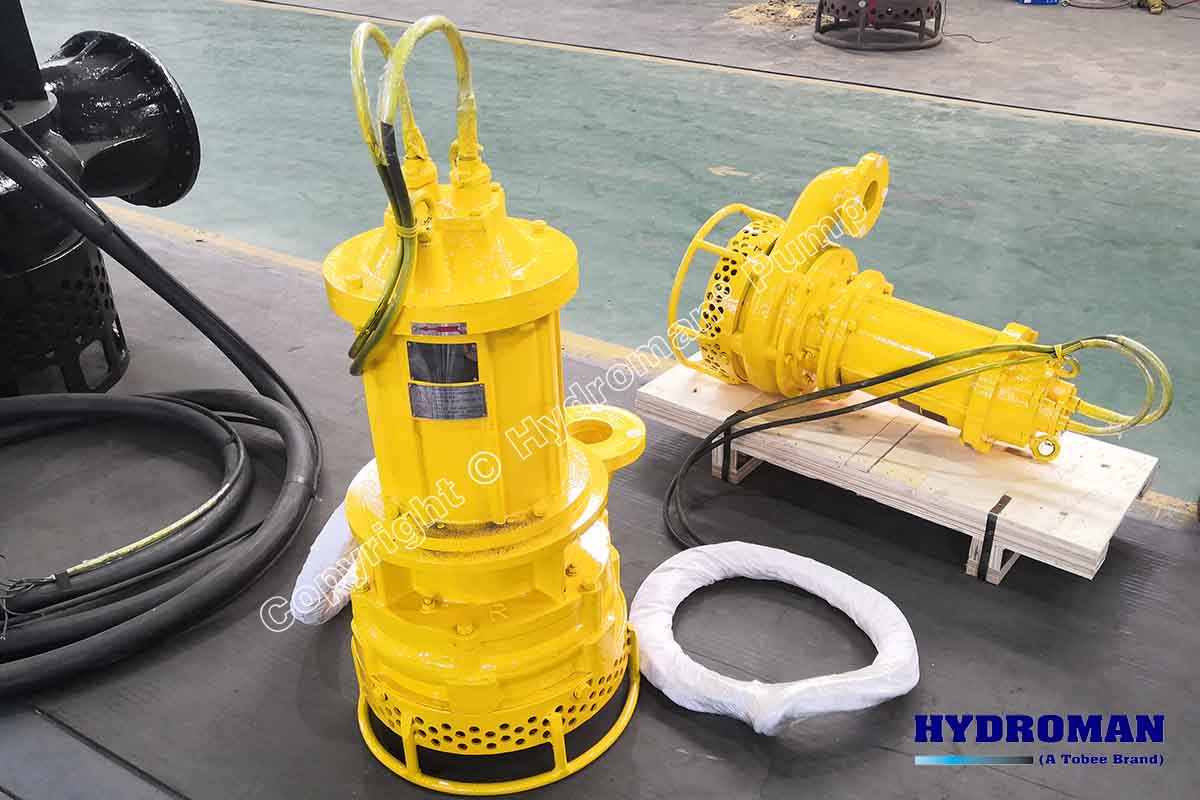

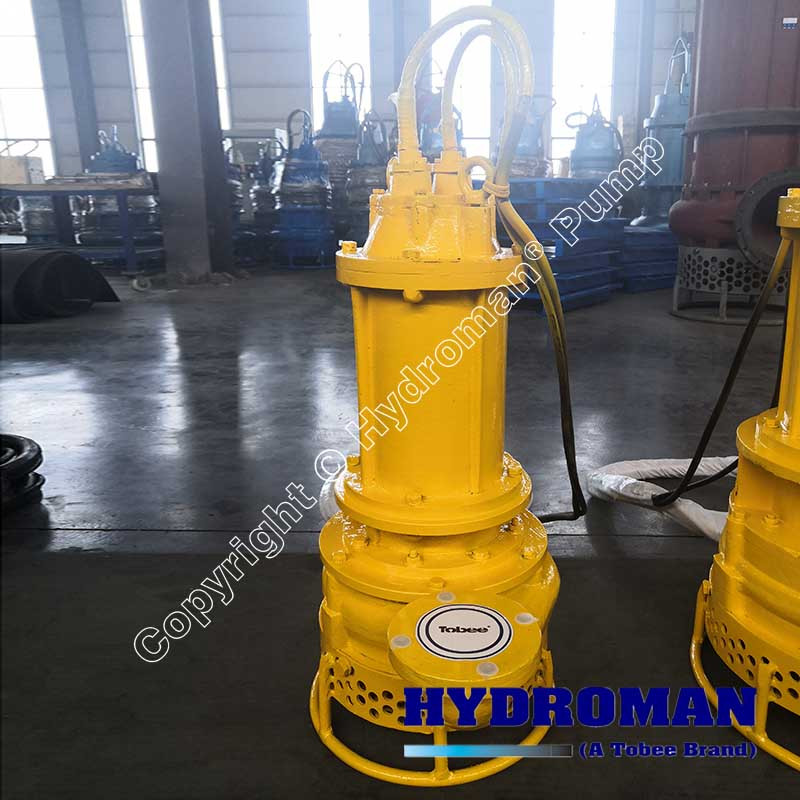

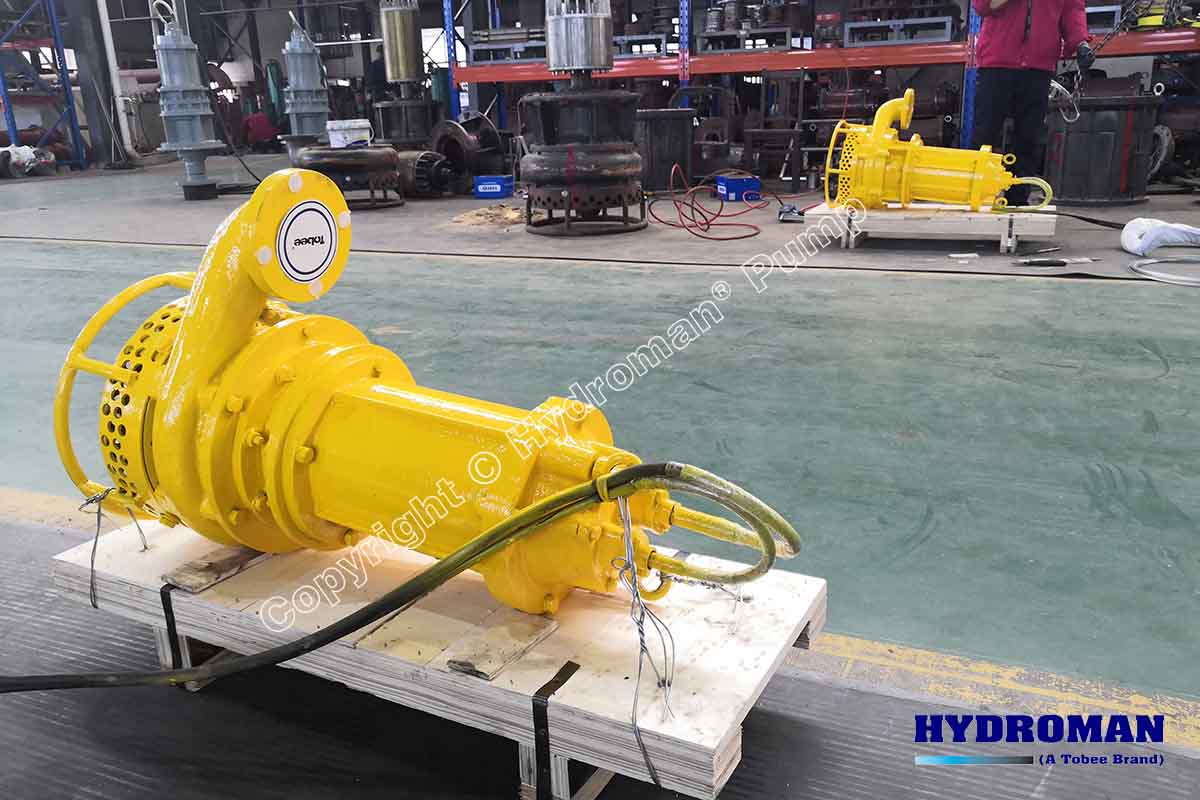

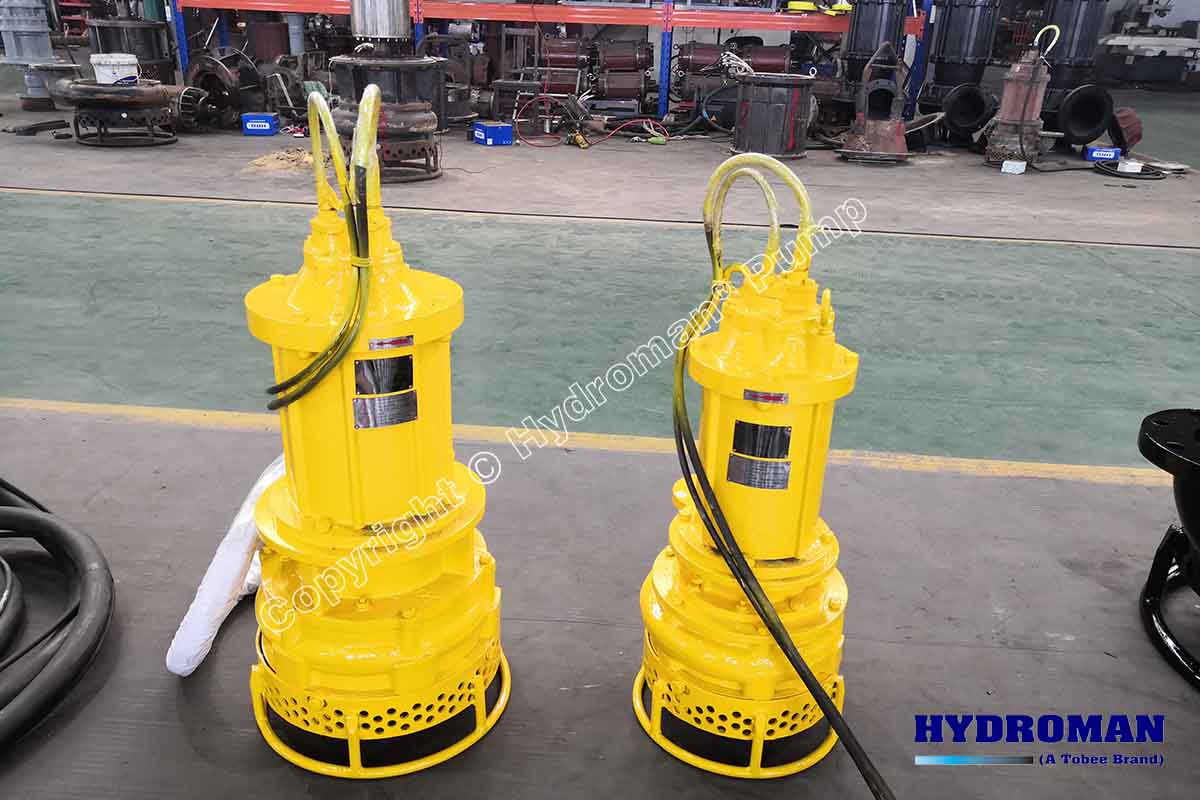

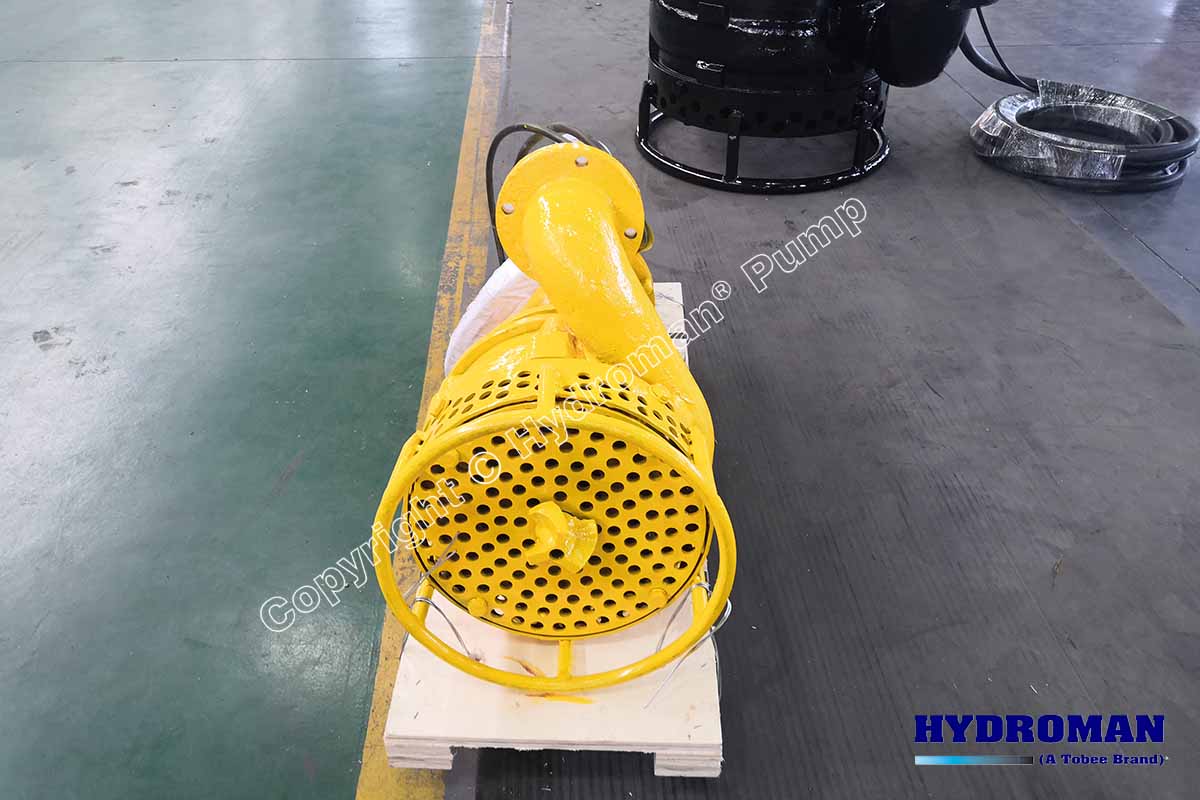

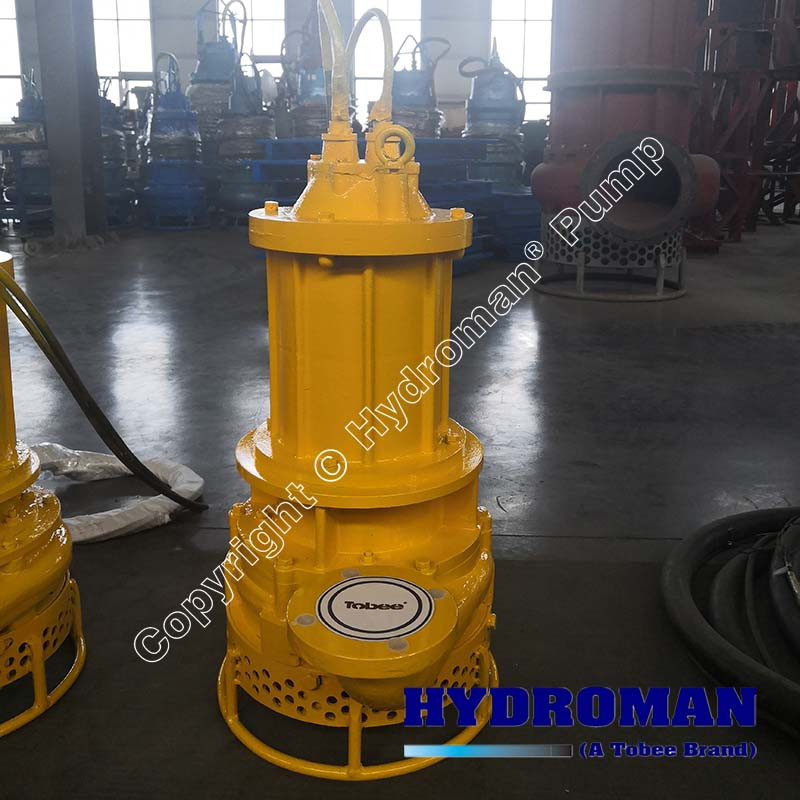

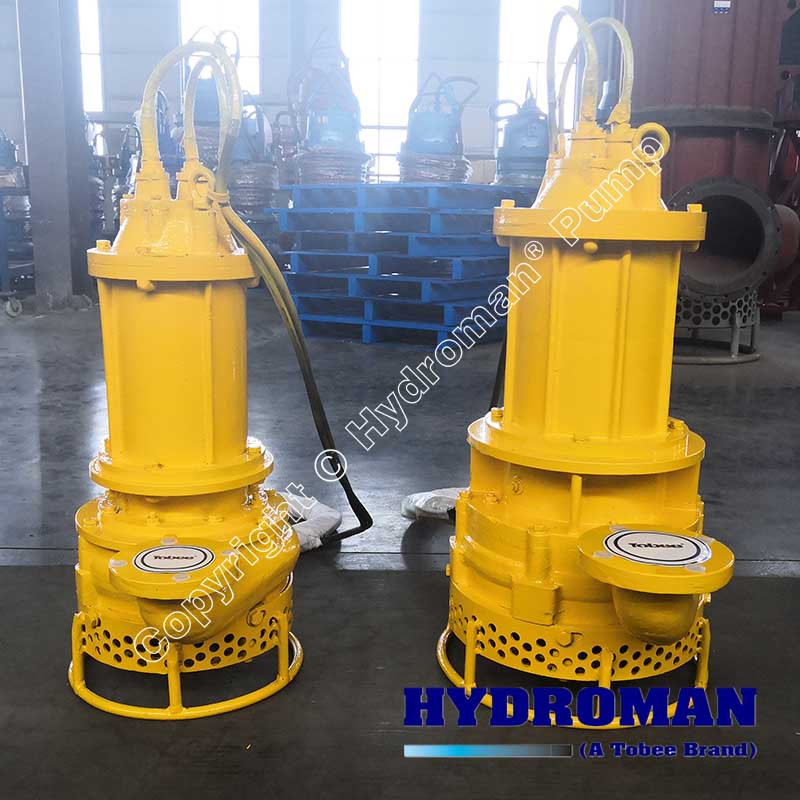

Hydroman submersible slurry pump photos:
